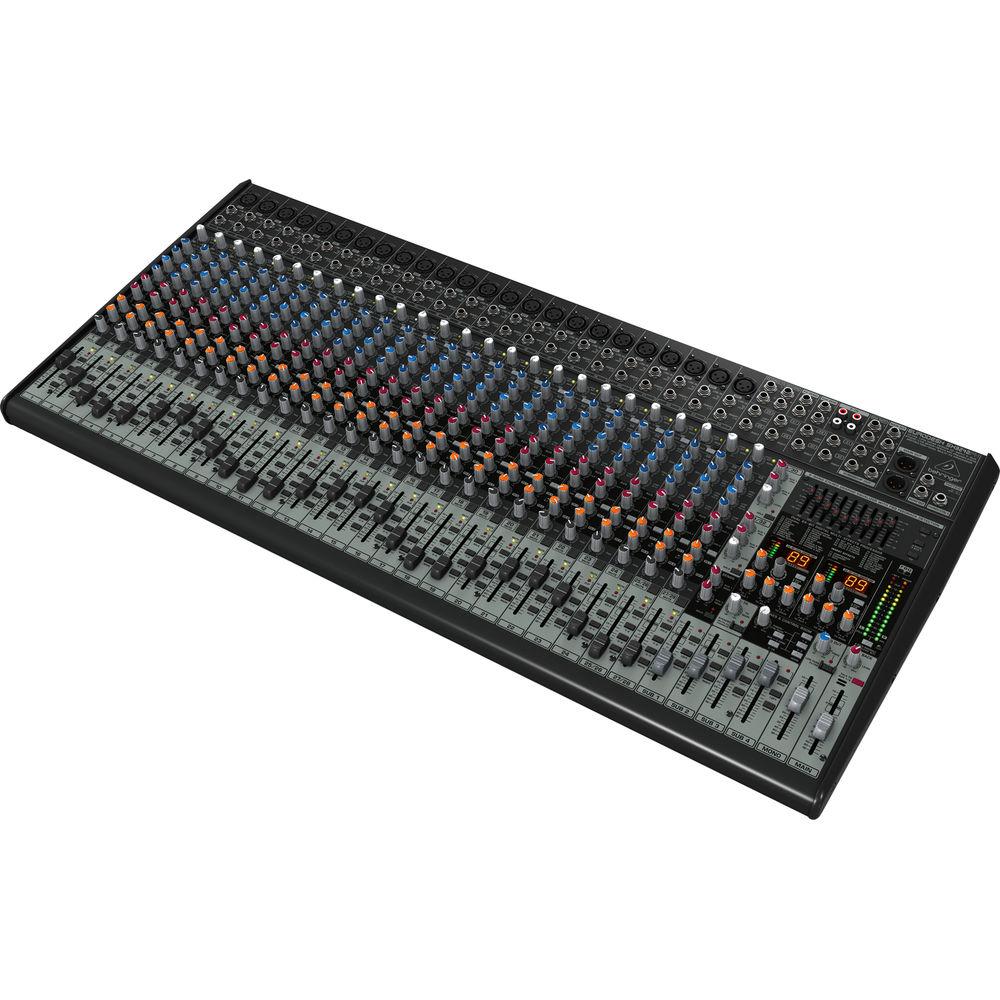

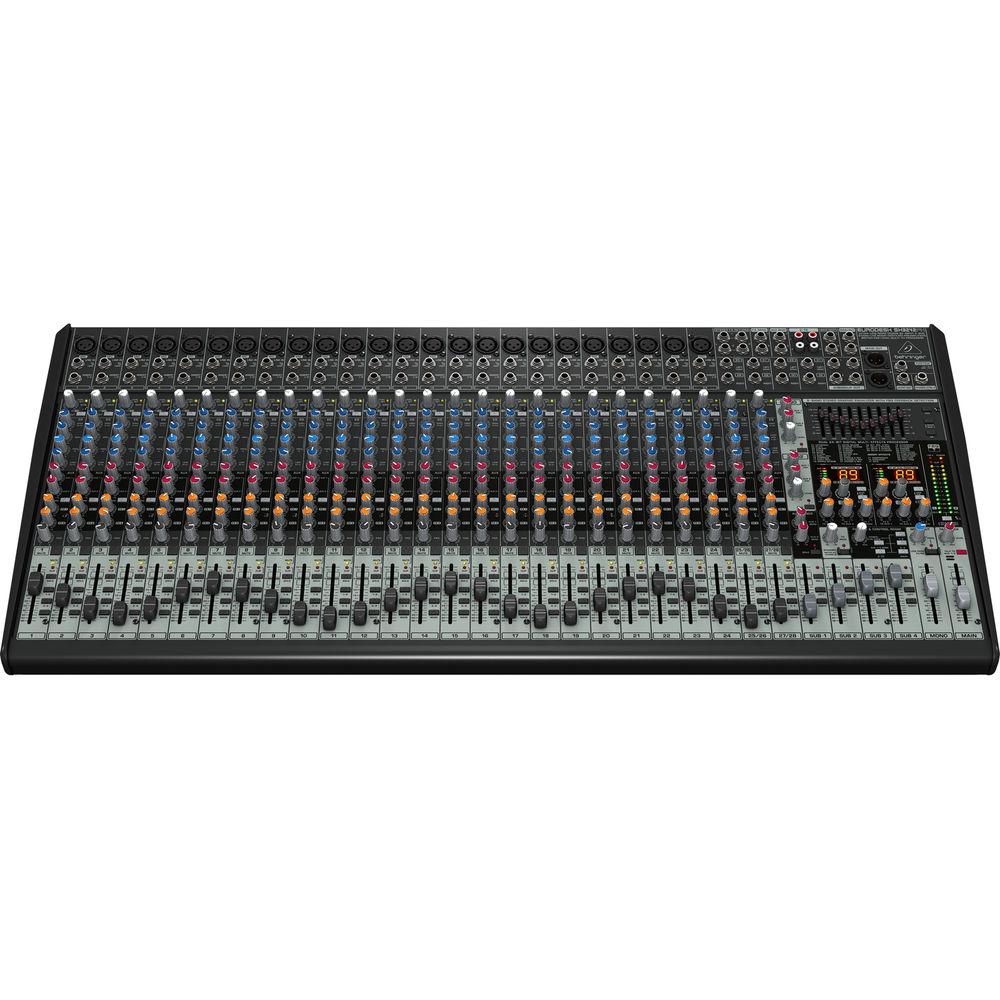

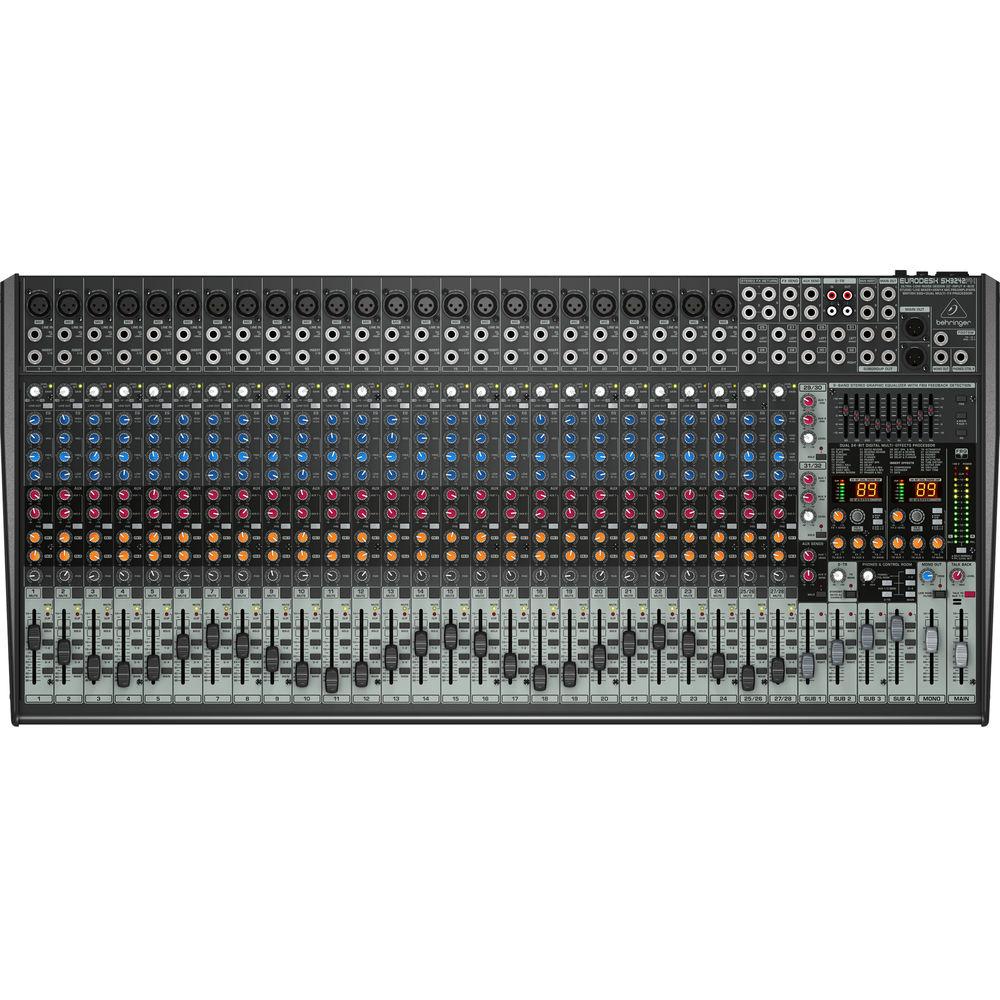

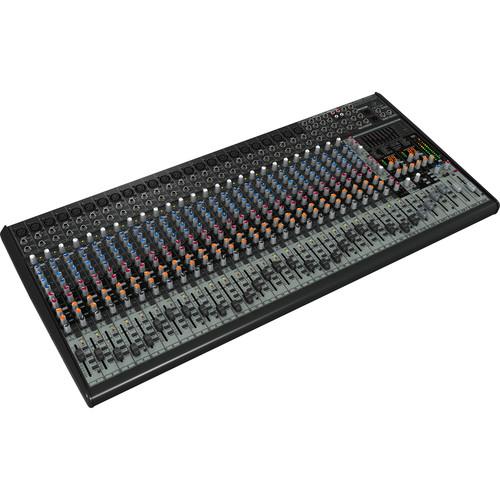

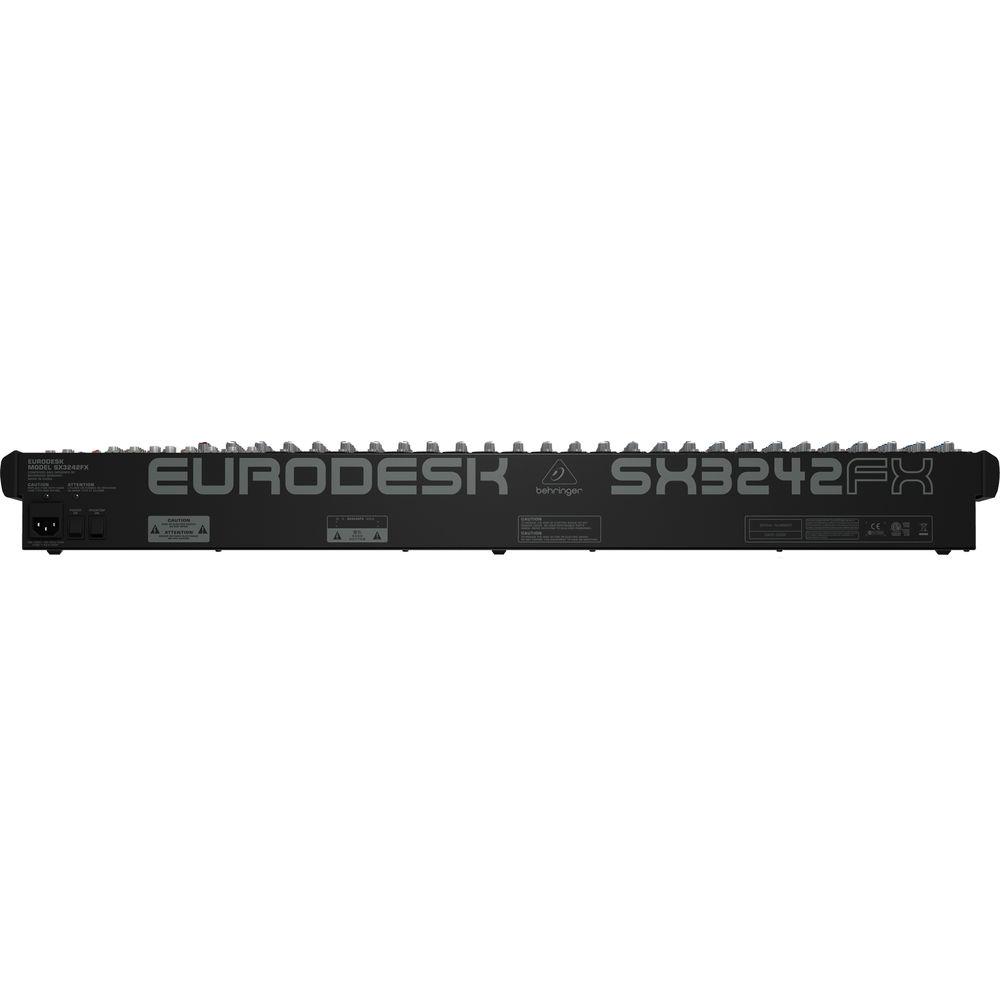

User Manual for Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording and Sound Reinforcement Console Click to enlarge the picture
Contents of the user manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording
- Product category: Sound Reinforcement Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Sound Reinforcement Mixers
 |
User manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Behringer Eurodesk SX3242FX-PRO 32-Channel Audio Console is an affordable audio mixer that delivers a feature set suitable for recording and live sound applications. The desk features a total of 32 input channels, with 24 mono and 4 stereo input channels. All mono inputs include XLR microphone inputs and inserts for routing signal to external processors.The mixer's recording features include a built-in 24-bit VIRTUALIZER effects processor, 4-band EQ section and 4-bus outputs for routing to monitors, multi-track recorders, etc. A stereo 9-band EQ with FBQ Feedback Detection, global mute switching and Mono output for sub-woofers are among some of the key sound reinforcement features.The studio-grade acoustically "Invisible" IMP Mic Preamps and ULN (Ultra Low-Noise) circuitry deliver pristine audio fidelity and minimize noise. With 32 channels, the full-featured Eurodesk SX3242FX-PRO is ideal for project studio recording and sound reinforcement in small clubs, houses-of-worship and more. - 32 Total Input Channels
- The desk features a total of 32 input channels, with 24 mono and 4 stereo input channels.
- Built-in 24-bit Effects
- A built-in 24-bit VIRTUALIZER effects processor provides plenty of reverb, delay and chorus effects.
- 4-Bus Output Routing
- 4-bus outputs provide routing to recorders, monitors, etc.
- 9-Band Graphic EQ with FBQ
- The stereo 9-band graphic EQ features Behringer's FBQ system for eliminating feedback.
- Global Mute Switching
- All mutes may be activated with a single switch. This is ideal when playing background music in live sound reinforcement applications.
UPC: 705105732435 In the Box Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording and Sound Reinforcement Console Limited 10-Year Warranty User Manual PDF 4.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording and Sound Reinforcement Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer SL3242FX-PRO Specs | Total # Of Inputs | 32 | | Mic/Line Inputs | 24 - XLR Microphone
32 - 1/4" TRS Phone Line | | Stereo Line Inputs | 4 - 1/4" TRS Stereo Line | | In-Line Inputs/Returns | No | | AUX Sends | 2 AUX Sends - 1/4" TRS Phone
2 FX Sends - 1/4" TRS Phone | | AUX Returns | 2 AUX Returns - L/R 1/4" TRS Phone | | Inserts | 24 - 1/4" TRS Phone (mono inputs)
2 - 1/4" TRS Phone (main output) | | BUS (Group) Outputs | 4 - 1/4" TRS Phone | | 2 Trk Master I/O | Main Out - Stereo L/R 3-pin XLR
Main Out - Stereo L/R 1/4" TRS PhoneMono Out - 1/4" Phone
Phono/CTRL Room - Stereo Single 1/4" TRS Phone | | ALT I/O | Foot Switch - 1/4" Phone | | Monitor Outputs | Phono/CTRL Room - Stereo Single 1/4" TRS Phone | | EQ Section | Mono Channels
Low - 80Hz +/- 15dBMid - 100Hz to 8kHz +/- 15dB
High - 12kHz +/- 15dBLow Cut - 80Hz, 18dB/oct.
Stereo ChannelsLow - 80Hz +/- 15dB
Low Mid - 400Hz +/- 15dBHigh Mid - 3kHz +/- 15dB
High - 12kHz +/- 15dB | | Solo/Mute | SOLO / PFL MUTE | | Channel Level Control | Fader | | Trim/Gain Control | Rotary Pots | | Phantom Power | +48V Phantom Power | | Metering | Peak LEDs | | Frequency Response | < 10Hz - 70kHz +0dB / -1dB
< 10Hz - 130kHz +0dB / -3dB | | Dynamic Range | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 110dB / 112dB A-weighted | | Total Harmonic Distortion (THD) | 0.004% / 0.003% A-weighted | | Power Supply | Power Consumption 50W
Fuse (100 - 240V~, 50/60Hz) T 2.0 A H 250VStandard IEC Receptacle | | Dimensions (WxHxD) | 3.9 x 35.3 x 16.1" (100 x 896 x 410mm) | | Weight | 25.4 lbs (11.5kg) | | | | Package Weight | 28.15 lb | | Box Dimensions (LxWxH) | 37.6 x 19.0 x 7.1" |
