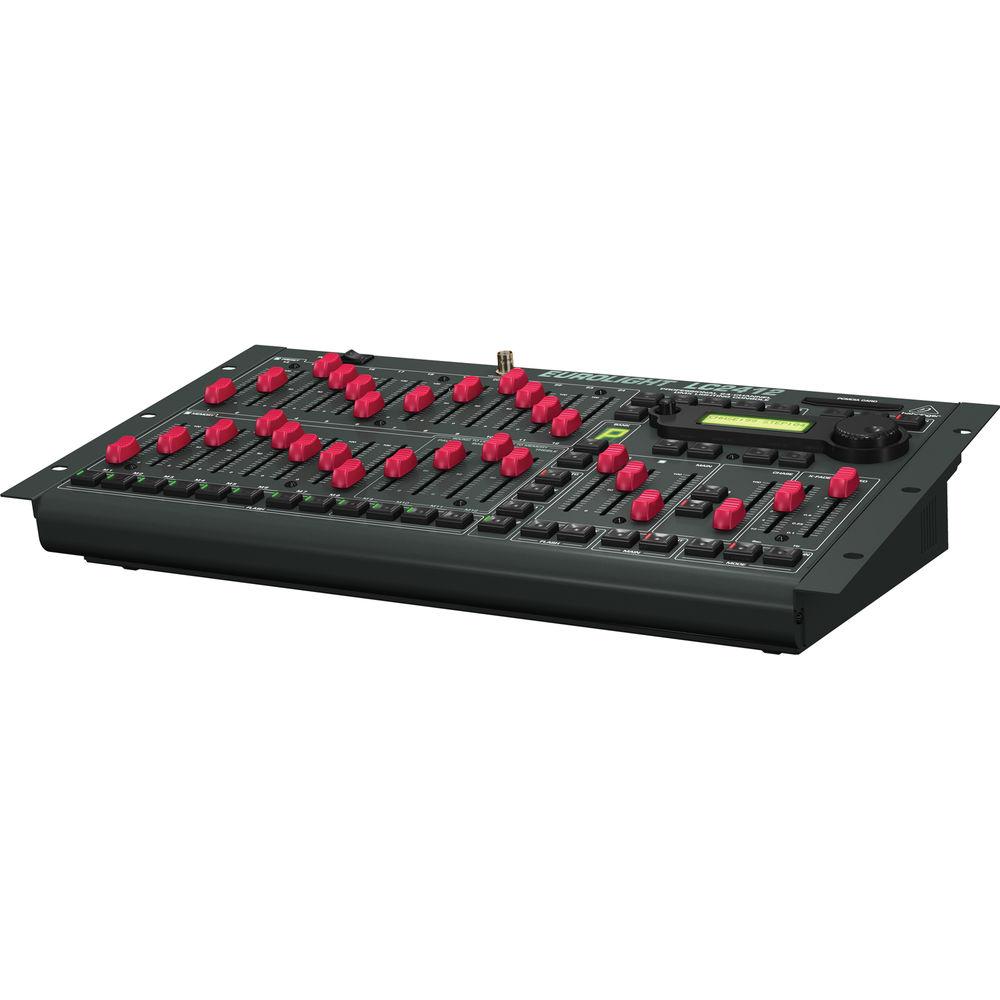

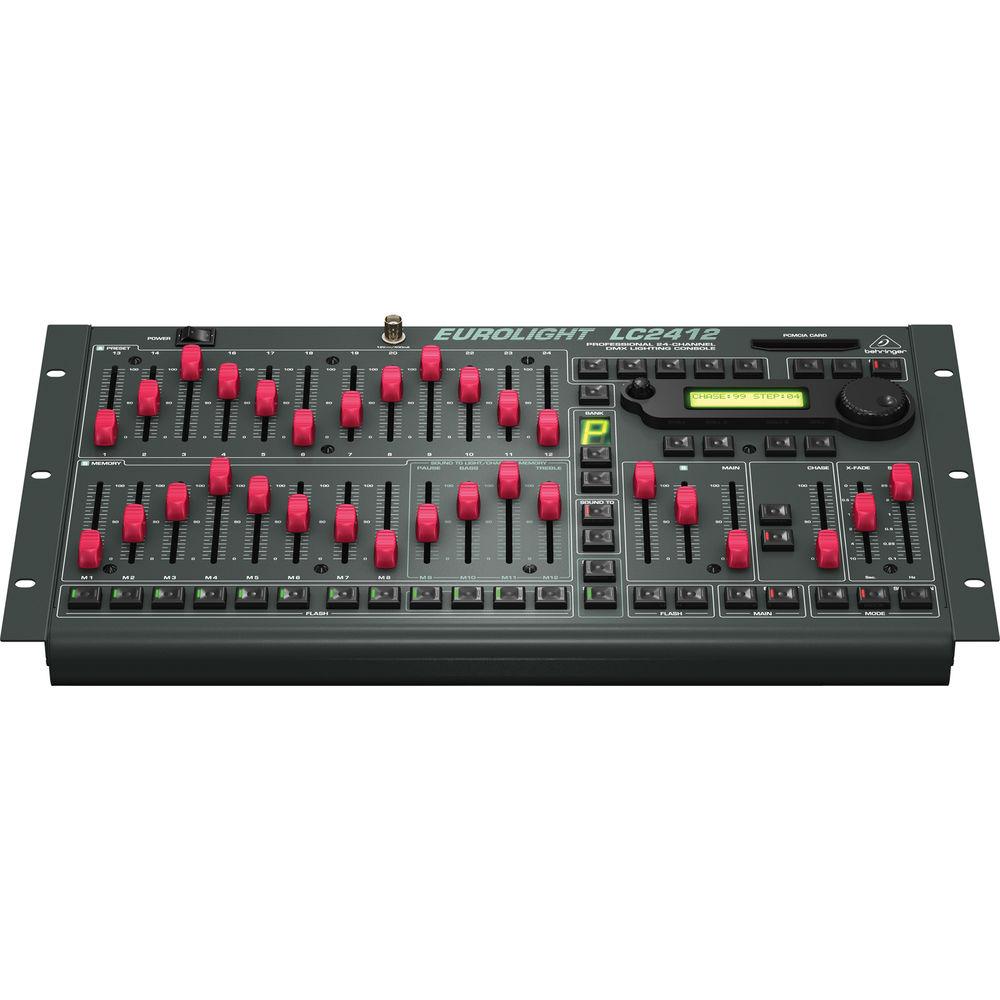

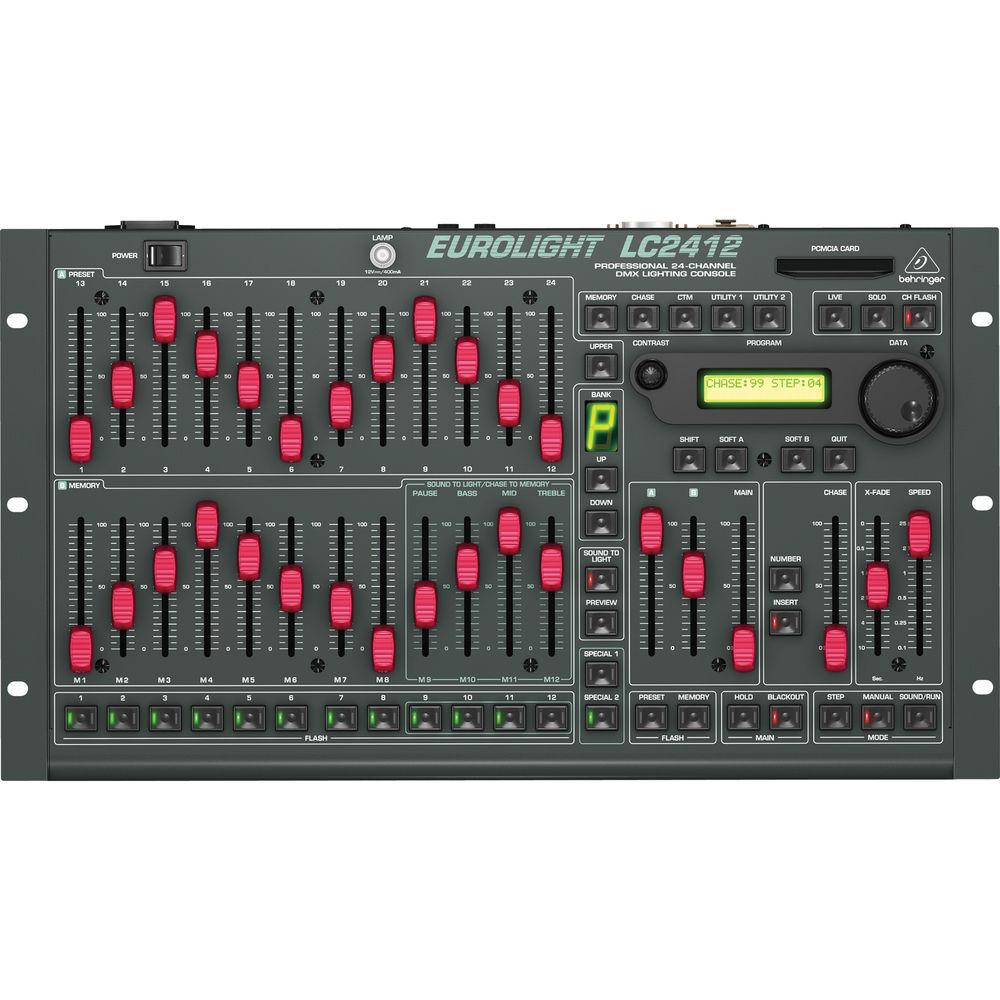

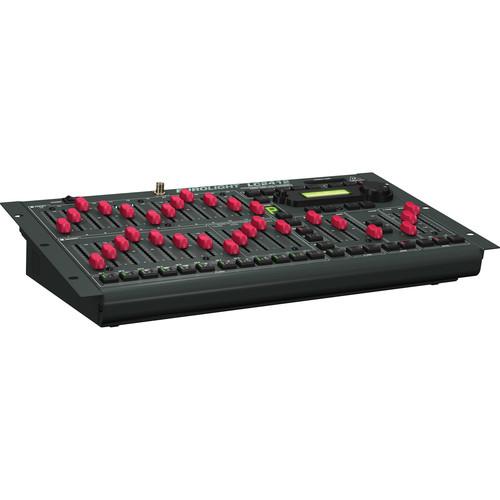

Product description What You Need to Know When Working with DMX Read More wxqxxqdyfstydbewszyybxxsbswytuczys The Behringer EUROLIGHT LC2412 24-Channel DMX Lighting Console is a professional, yet cost-effective DMX controller for nightclub lighting, stage lighting, mobile DJs, bands, etc. The EUROLIGHT LC2412 boasts a feature set that includes 24 preset channels that are assignable to 512 DMX channels. Up to 120 scenes may be stored in 10 banks and an integrated chaser features 650 steps with sync-to-bass, and the frequency dependent sound-to-light function. There are 2 multifunctional channels for operating fog machines, color changers and other non DMX effects. Save complete settings on standard PCMCIA cards (not included), and install the EUROLIGHT LC2412 into a standard 19" rack enclosure. - 24 preset channels, assignable to 512 DMX channels
- Up to 3 DMX channels can be controlled per preset channel
- 120 scenes storable in 10 banks
- Integrated chaser with up to 650 steps featuring sync-to-bass beat
- Frequency-dependent sound-to-light function
- Crossfade time freely selectable for super-smooth scene fades
- 2 additional, multi-functional channels for special effects (fog machine, color changer, etc.)
- Ultra-flexible fading functions for manual and automatic operation
- Intuitive solo and channel flash functions
- Extremely effective preview function allows "hidden" memory and chaser checks even during live performances
- Dimmer control via DMX or analog output (0/+10 V)
- MIDI interface for cascading of 2 LC2412s (master/slave setup)
- PCMCIA card slot for storing of up to 25 complete settings (PCMCIA card not supplied)
- Illuminated display/controls and BNC Lamp socket for easy operation in dark stage environments
- Rack-mounting kit for installation in standard 19" racks included
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
UPC: 736211579140 In the Box Behringer EUROLIGHT LC2412 24-Channel DMX Lighting Console Limited 10-Year Warranty User Manual PDF 3.2mbwxqxxqdyfstydbewszyybxxsbswytuczys Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIGHT LC2412 24-Channel DMX Lighting Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer LC2412 Specs | Channels | 26 (24 + 2 Switchable Channels) | | DMX Interface | 78 out of 512 DMX channels (max. 3 DMX per console-channel) | | Memory | 120 Max Locations

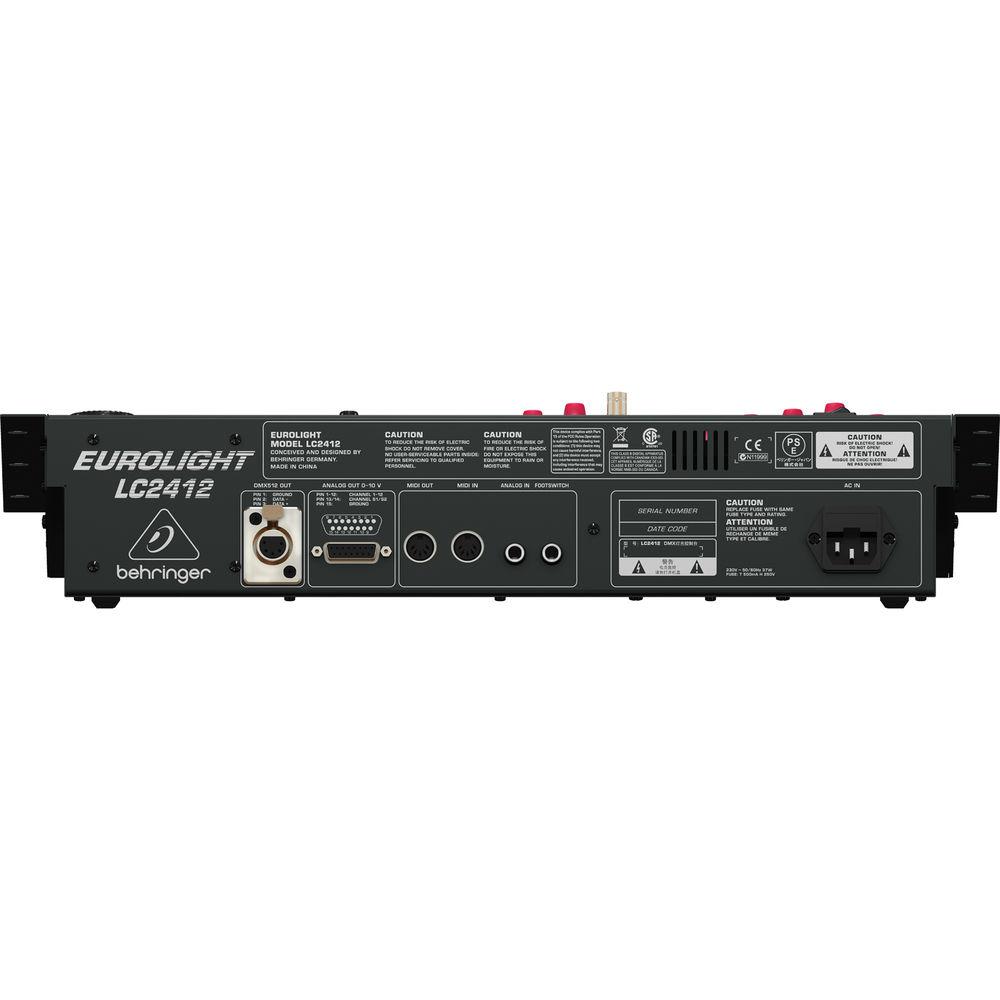

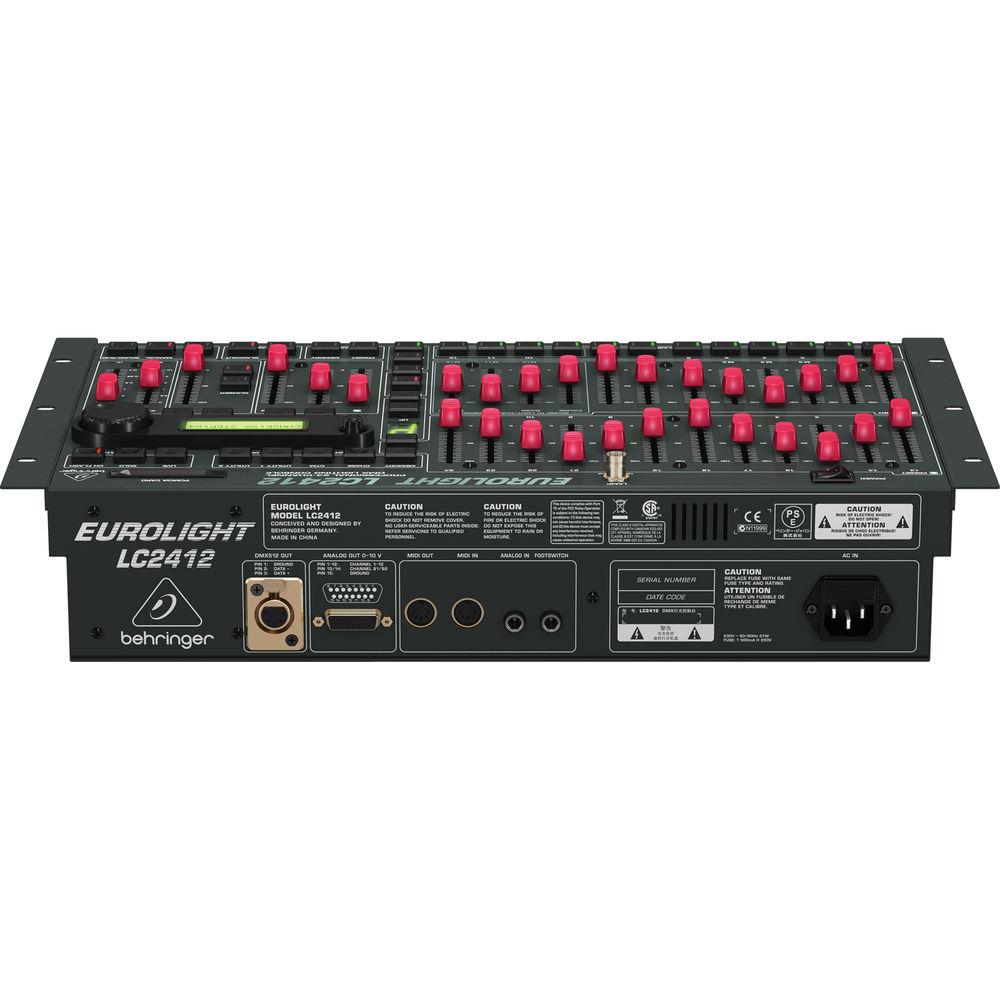

Chases: Max 99 Steps: Max 650, up to 99 per chase | | Connections | Analog In: 1/4" TS Unbalanced
MIDI In / Out: DIN 5-Pin DMX-512 Output: 5-pin XLR
Analog Output: D-Sub 15-pin Connector | | Storage | PCMCIA ATA Flash Card
4 MB Battery Type: 3 V Lithium Battery (CR2032) | | Power | USA / Canada: 120 VAC, 60 Hz
Consumption: 27 W Fuse: 100-120 VAC: T 1 A H
Standard IEC Receptacle | | Dimensions (HxWxD) | 4.17 x 17.40 x 10.95" (106 x 442 x 278 mm) | | Weight | 8.38 lb (3.8 kg) | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 19.6 x 13.1 x 5.8" |
