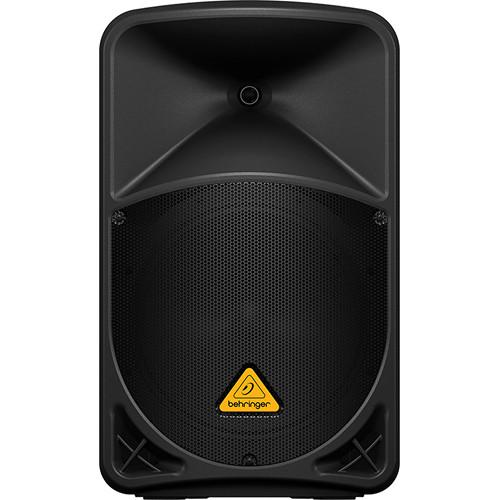

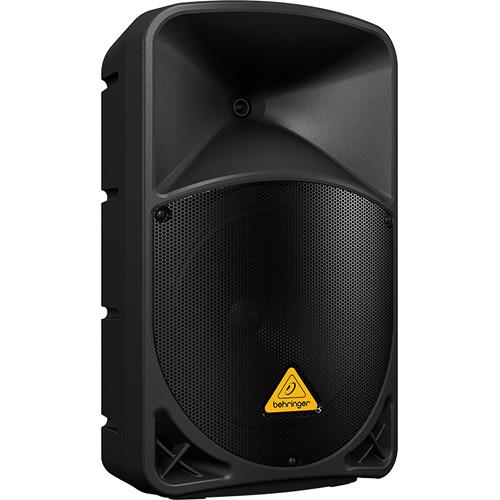

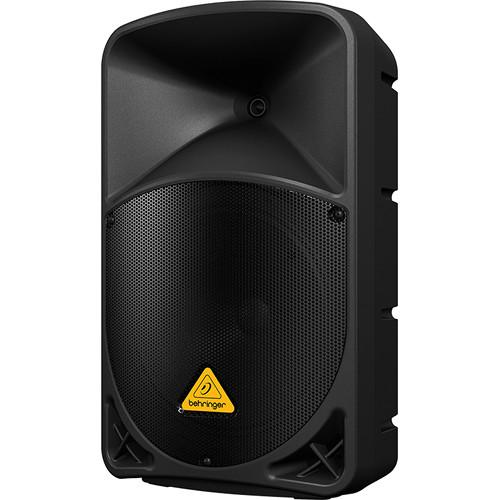

Product description - EUROLIVE B112D Active PA Speaker System with Wireless Option and Integrated Mixer
The EuroLive B112D Active PA from Behringer features a 12" woofer and a 1.35" aluminum high frequency compression driver that are capable of a maximum output of 1000 watts. It has an integrated mixer that provides you with independent input trim control of its two combination XLR/TRS mic/line inputs. The B112D is also wireless ready, featuring a USB 3.0 input designed to work with Behringer's ULTRALINK wireless systems. It can be used for general PA applications such as lectures, live performance, or audio playback.

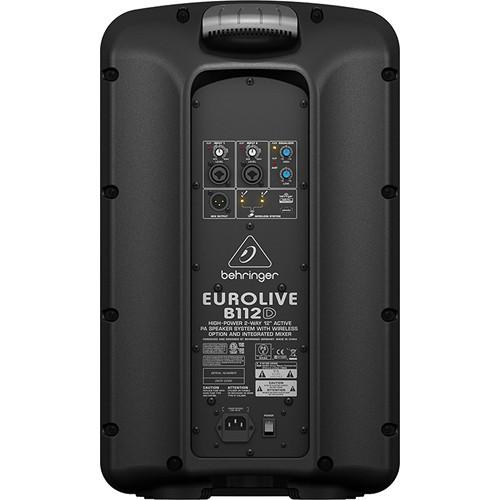

The B112D rear panel features a 2 band high and low EQ that allows you to tune the PA to its environment while the built-in optical limiter is designed to protect its speakers. The Mix XLR output allows you to connect multiple B112Ds for increased output. - Ultra-wide dispersion, large-format exponential horn
- Class D technology switches on and off thousands of time per second, delivering power only as it is needed
- Trapezoidal enclosure allows for stand mounting with a 35mm pole socket or tilting for floor monitor use
- Ergonomically shaped handles provide easy carrying and setup
UPC: 794504550214 In the Box Behringer EuroLive B112D Active PA Limited 10-Year Warranty Quick-Start Guide PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EuroLive B112D Active PA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B112D Specs | | | Configuration | Active | | Total Power Capacity | 1000 W | | Amplifier Power Rating | LF:
700 W
HF:
300 W | | | | Frequency Response | 50 Hz to 20 kHz | | Input Sensitivity | 0 to -36 dBu | | Max Input Level | 18 dBu | | Gain Range | Up to 36 dB | | I/O Impedance | Input:
14 kOhms | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
1 x XLR Output | | USB | 1 x USB Type-A (USB 3.0, Wireless Audio) | | Wireless Audio | Proprietary | | Wireless Range | 262.5' / 80 m | | | | Crossover | 2.8 kHz | | EQ | HF Shelf:
±15 dB at 12 kHz
LF Shelf:
±15 dB at 80 Hz | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 120 VAC, 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 110 W (Max) | | | | Dimensions | 22.4 x 13.4 x 10.6" / 56.8 x 34.2 x 27.0 cm | | Weight | 27.1 lb / 12.3 kg | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 26.3 x 17.4 x 14.7" |
