User Manual for Behringer EUROLIVE B112W 12" Powered PA System Click to enlarge the picture
Contents of the user manual for the Behringer EUROLIVE B112W 12" Powered PA
- Product category: Portable PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Portable PA Systems
 |
User manual for the Behringer EUROLIVE B112W 12" Powered PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - EUROLIVE B112W Active PA Speaker System with Bluetooth Technology & Wireless Microphone Option

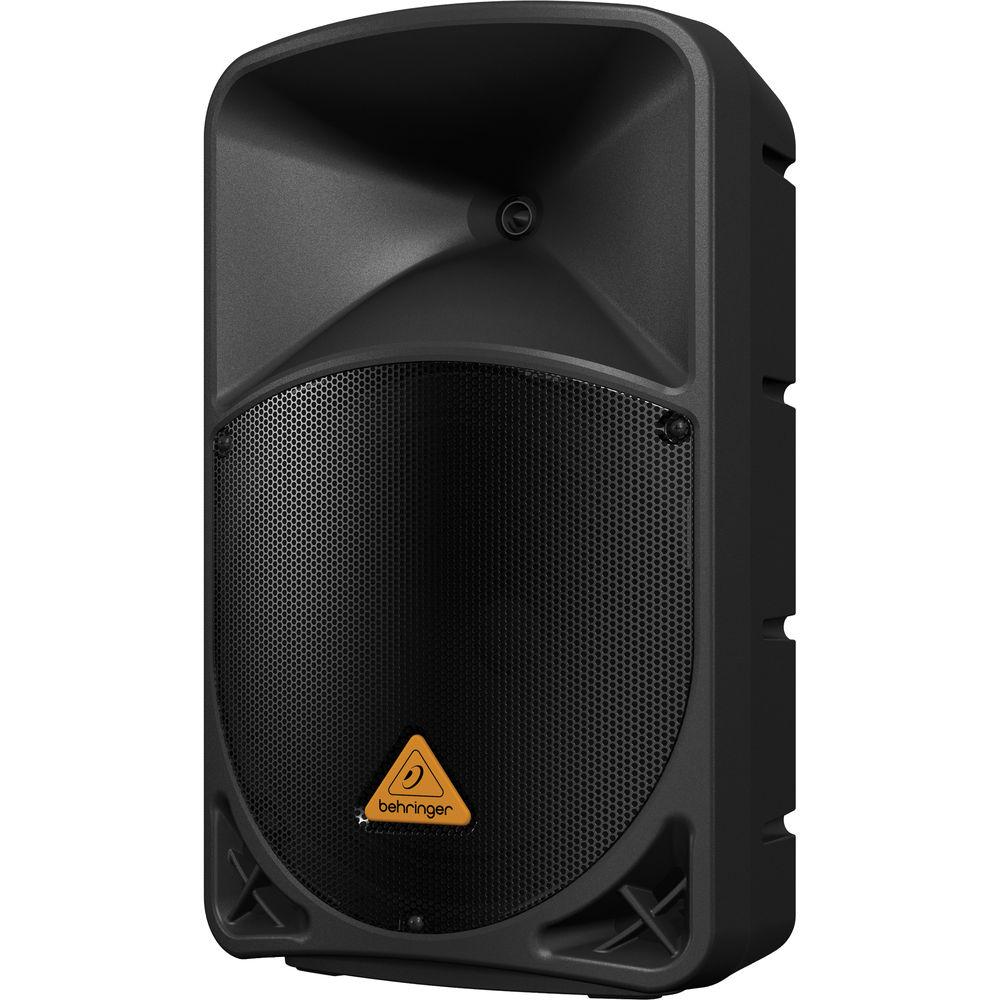

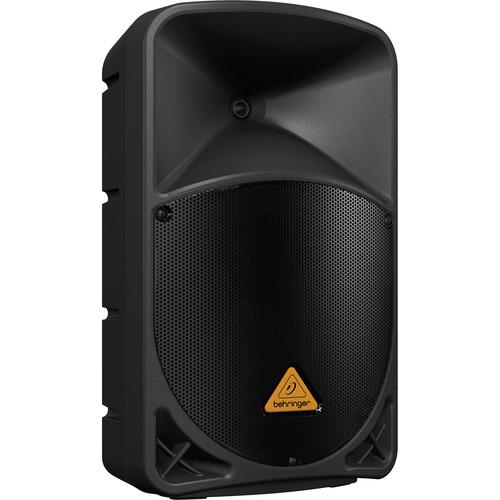

The EUROLIVE B112W 12" Powered PA System from Behringer is a Class-D amplified active PA system capable of up to 1,000 watts of output. It features a variety of connection options, including dual mic/line combination XLR/TRS inputs, Bluetooth streaming audio compatibility, and a USB 3.0 port for connecting an optional Behringer ULM wireless microphone system. The B112W has an integrated 2-channel mic/line mixer, and can be connected to a second optional B112W wirelessly via Bluetooth and its XLR Mix output.
The system sports a 12" woofer and a 1.35" compression driver. Its 2-band EQ can be used to shape the sound of your output. It can be table or floor mounted, or placed on an optional speaker stand. - 1000-watt 2-way PA sound reinforcement speaker system for live and playback applications
- Bluetooth A2DP technology to stream audio from any Bluetooth-compatible device
- Wireless ready for optional Behringer digital wireless microphone system
- 2-channel mixer with individual Mic/Line inputs, volume controls, and clip LEDs
- Dedicated 2-band EQ plus integrated sound processor for system control and speaker protection
- Class-D amplifier technology
- 12" long-excursion driver provides bass and acoustic power
- 1.35" aluminum diaphragm compression driver for high-frequency reproduction
- Wide dispersion large-format exponential horn
- Line output for linking additional speaker systems
- Trapezoidal enclosure design allows for multiple positioning:
- Stand mounting with 35mm pole socket
- Tilts on its side for use as a floor monitor
- Ergonomically-shaped handles for carrying and setup
UPC: 696859053917 In the Box Behringer EUROLIVE B112W 12" Powered PA System Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE B112W 12" Powered PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B112W Specs | | | Maximum Output Power | Low-Frequency Range: 700 W, independent of limiters and driver protection circuits
High-Frequency Range: 300 W, independent of limiters and driver protection circuits | | | | Sensitivity | XLR (Servo Balanced): -36 to 0 dBu
1/4" TRS Jack (Servo Balanced): -36 to 0 dBu | | Input Impedance | XLR (Servo Balanced): 14 kΩ
1/4" TRS Jack (Servo Balanced): 14 kΩ | | Wireless | Connector: USB 3.0
Frequency Band: 2.4 GHz
Frequency Response (Wireless Link): 20 Hz to 20 kHz (+0/-2.5 dB)
Range: 262.5' (80 m) , maximum, line of sight | | | | Input Trim | -∞ to +36 dB | | Maximum Input Level | 18 dBu | | | | Frequency Response | 50 Hz to 20 kHz | | Crossover Frequency | 2.8 kHz | | Limiter | Optical | | Equalizer | Dynamic Equalizer: Processor-controlled
High: +/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz | | | | Voltage | USA/Canada: 120 V, 60 Hz (T 6.3 A H 250 V)
UK/Australia: 240 V ~, 50 Hz (T 3.15 A H 250 V)
Europe: 230 V ~, 50 Hz (T 3.15 A H 250 V)
Japan: 100 V~, 50-60 Hz (T 6,3 A H 250 V) | | Power Consumption | 110 W, maximum | | Mains | Standard IEC receptacle | | | | Dimensions (H x W x D) | 22.4 x 13.4 x 10.6" (568 x 342 x 270 mm) | | Weight | 27.1 lb (12.3 kg) | | | | Package Weight | 31.4 lb | | Box Dimensions (LxWxH) | 26.0 x 17.0 x 14.0" |
