Product description - B1200D-PRO Active 500-Watt 12" PA Subwoofer

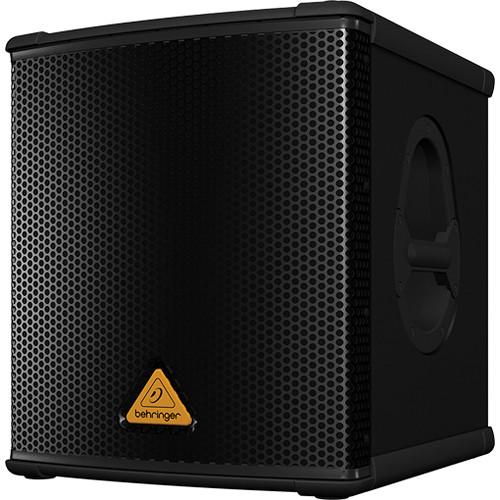

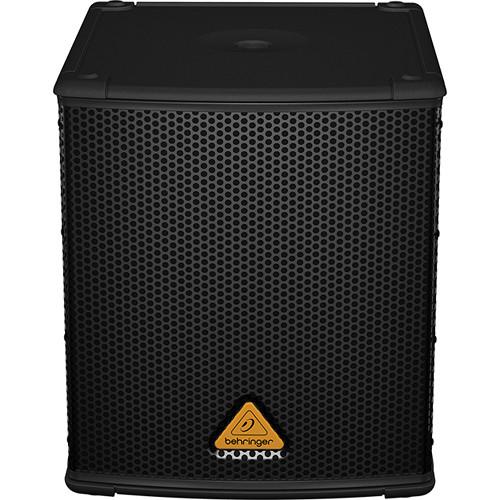

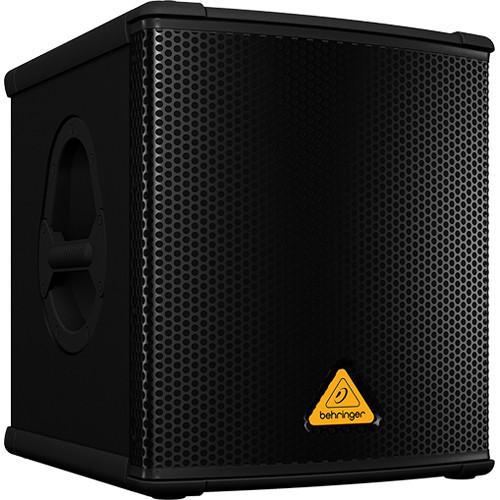

The Behringer EUROLIVE B1200D 12" Active 500W Subwoofer is designed for professional live sound reinforcement applications. The unit features a 12" long excursion woofer powered by an energy efficient Class-D 500W amplifier. Built-in thermal and clip limiters protect the speaker and amplifier from overloading. Externally, the box features a steel grill to protect the cone and ergonomic handles for easy transport. It includes a pole socket for mounting speakers with commercial spacer poles.

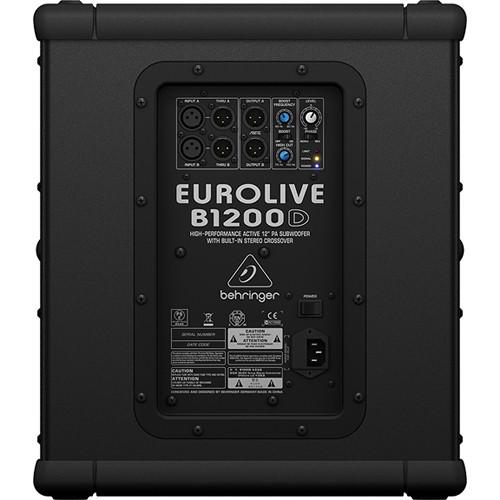

For I/O, the subwoofer features two balanced XLR inputs, two balanced XLR outputs, and two XLR Thru jacks for connecting to additional speakers. The back panel includes a tunable and switchable +6 dB bass boost knob between 40 and 90 Hz, a phase button for inverting the polarity of the signal, a 70 to 150 Hz high frequency cut knob, and a volume control.
The high pass filter does not affect the XLR Thru circuit. A set of three LED indicator lights show power to the subwoofer, the presence of a signal, and when the limiter is engaged. UPC: 713757159715 In the Box Behringer EUROLIVE B1200D 12" Active 500W Subwoofer Power Cord Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Quick-Start Guide PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE B1200D 12" Active 500W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B1200D-PRO Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 500 W Peak | | | | LF Driver | 1 x 12" / 307 mm Woofer | | | | Frequency Range | 45 Hz to 180 Hz -10 dB | | Frequency Response | 60 Hz to 130 Hz ±3 dB | | Maximum SPL | 122 dB | | Input Sensitivity | +4 dBu Center position for full rated power. | | Gain Range | Up to +6 dB | | I/O Impedance | Input:
12 kOhms (Unbalanced)
24 kOhms (Balanced)
Output:
300 Ohms (Unbalanced)
600 Ohms (Balanced) | | SNR | >100 dB | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | 2 x XLR 3-Pin Balanced Input
1 x XLR Balanced Thru/Output
1 x XLR Balanced Output | | | | Semi-Parametric EQ | +10 dB at 40 Hz to 90 Hz for Bass Boost | | Filters | Low-Pass:
70 to 150 Hz, 24 dB/Octave Butterworth
High-Pass:
100 Hz, 18 dB/Octave Butterworth | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 120 VAC, 60 Hz (T 6.3 A H 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A H 250 V)
100 VAC, 50 / 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 110 W | | | | Dimensions | 17.0 x 14.8 x 16.7" / 432.0 x 375.0 x 423.0 mm | | Weight | 43.1 lb / 19.5 kg | | | | Package Weight | 46.5 lb | | Box Dimensions (LxWxH) | 20.5 x 20.0 x 18.5" |
