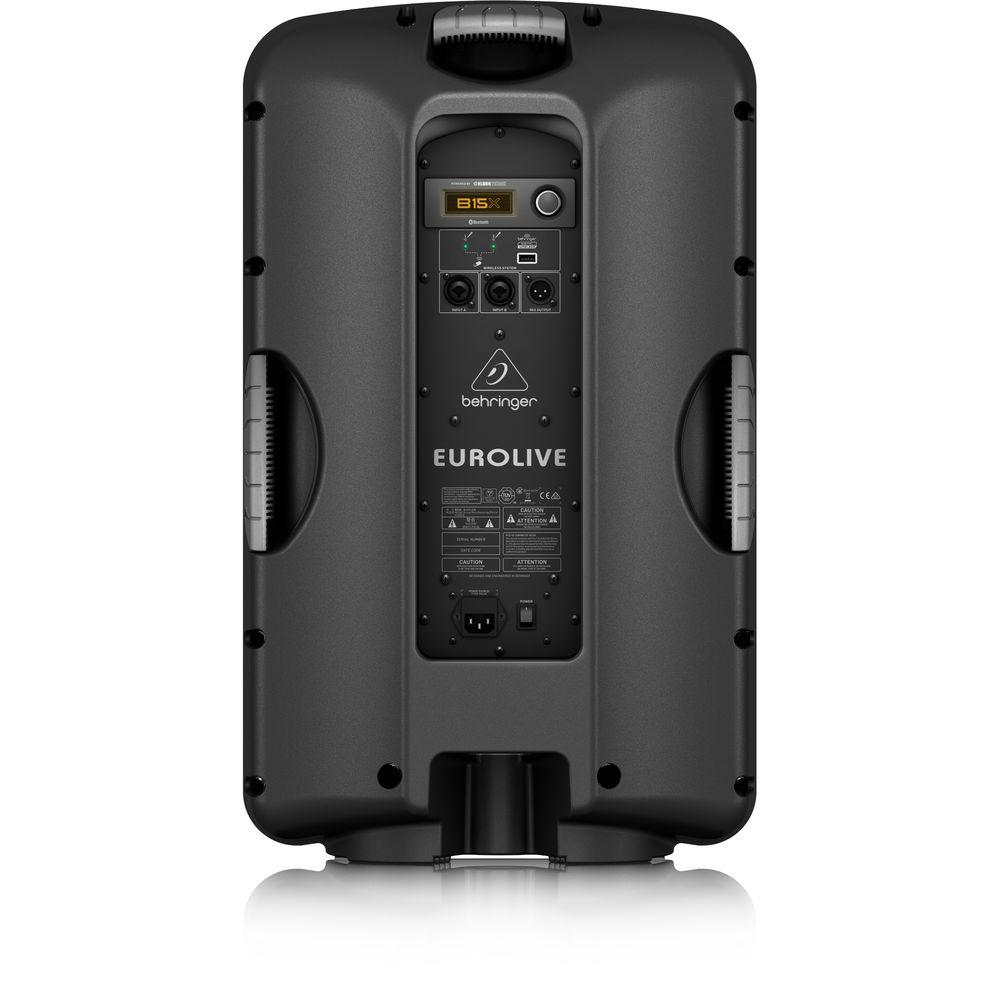

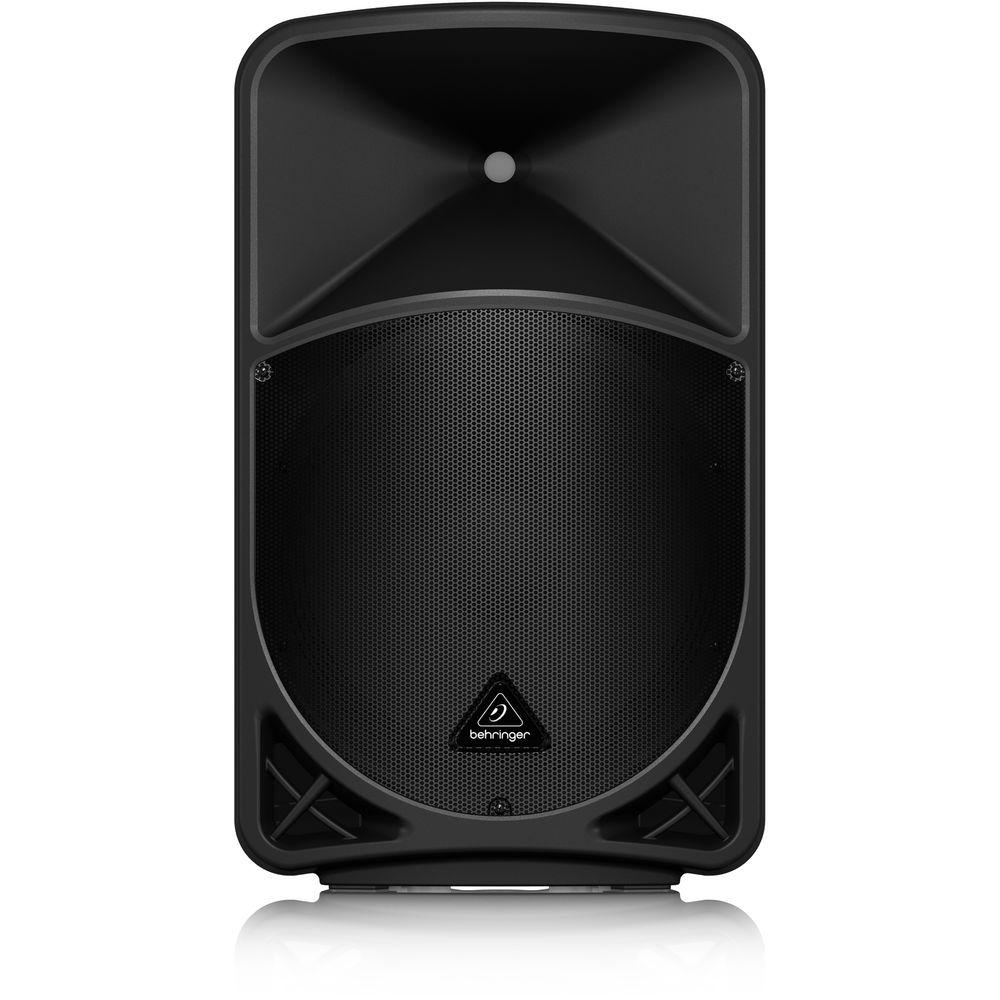

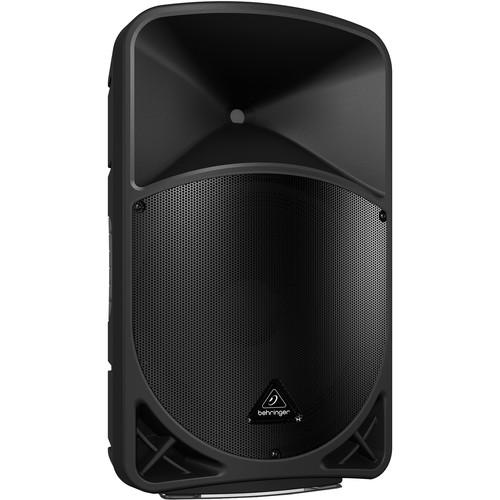

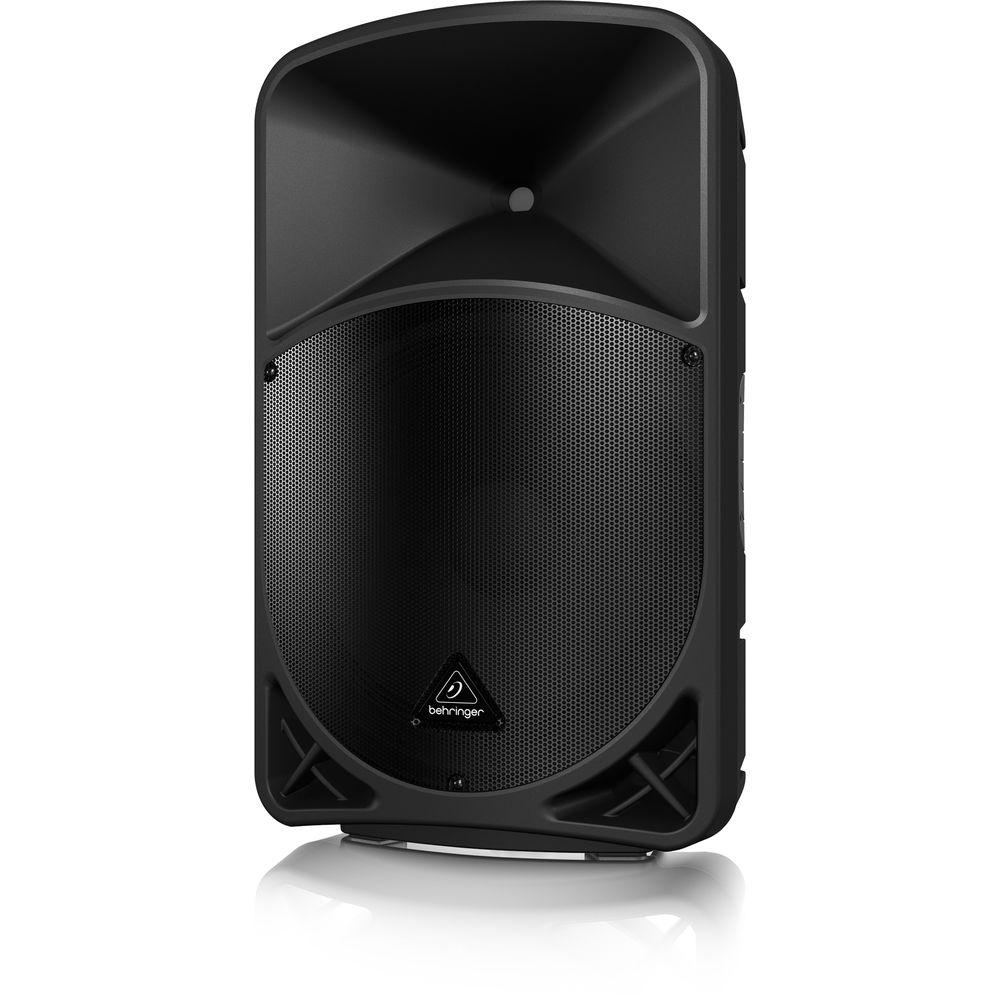

User Manual for Behringer EUROLIVE B15X 1000W 2-Way 15" Powered Speaker Click to enlarge the picture
Contents of the user manual for the Behringer EUROLIVE B15X 1000W 2-Way 15"
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer EUROLIVE B15X 1000W 2-Way 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Behringer EUROLIVE B15X is a 15" 2-way powered loudspeaker designed to provide full-range sound reinforcement and convenient I/O for musicians, performers, and DJs in live stage, theater, karaoke, and club setups. The Class-D amplification drives the 15" woofer and 1" tweeter to produce 1000W of power output with a frequency response of 50 Hz to 20 kHz. The B15X supports Bluetooth audio streaming and features a variety of other input options including two instrument/mic combo jacks that accept input signals over XLR balanced, 1/4" TRS balanced, or 1/4" TS unbalanced connectors. The unit is wireless-ready for the Behringer Ultralink ULM Series wireless digital microphone system (available separately), allowing you to receive signals from two independent ULM mics. The integrated 3-channel digital mixer with LCD display offers DSP functions such as a 3-band EQ and presets for a variety of applications. All settings can be controlled via dedicated free apps for both Android and iOS Bluetooth-enabled devices. Portable and lightweight (at 40.1 lb), the B15X is equipped with ergonomically shaped handles for easy carrying and setup. The speaker's trapezoidal enclosure allows for stand mounting with a 35mm pole socket, or tilts on its side for use as a floor monitor. - Key Features
-
- 2-way PA sound reinforcement speaker system with 1000W of Class-D amplification, for live and stage monitoring applications
- 15" long-excursion driver provides deep bass and acoustic power
- 1" aluminum-diaphragm compression driver for accurate high-frequency reproduction
- Two instrument/mic combo jacks accept input signals over XLR balanced, 1/4" TRS balanced, or 1/4" TS unbalanced connectors
- Remote control 3-channel digital mixer with gain setting recall
- Wireless-ready for Behringer Ultralink ULM Series wireless digital microphone system (available separately)—USB socket accepts signals from two independent ULM mics
- Comprehensive remote control via free iOS / Android mobile apps
- Bluetooth stereo audio streaming
- DSP sound-optimization presets for application type and speaker positioning—Music, Live, Speech, and Club modes
- Intuitive single-rotary-control user interface with LCD display for ease of navigation
- Link speaker to another B12X / B15X speaker via Bluetooth, in Master/Slave configuration
- Ultra-wide dispersion, large-format exponential horn
- Versatile trapezoidal enclosure design allows stand mounting with 35mm pole socket, or tilts on its side for use as a floor monitor
- Portable and lightweight (at 40.1 lb)
- Ergonomically shaped handles for easy carrying and setup
- Designed and engineered in Germany
UPC: 748252175045 In the Box Behringer EUROLIVE B15X 1000W 2-Way 15" Powered Speaker Limited 3-Year Warranty Quick start Guide PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE B15X 1000W 2-Way 15" Powered Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B15X Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25.4 mm Tweeter | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Max Input Level | +22 dBu | | Gain Range | -32 dB to +45 dB | | I/O Impedance | XLRInput:
33 kOhms (Balanced)
16 kOhms (Unbalanced)
1/4"Input:
33 kOhms (Balanced)
16 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input | | USB | 1 x USB Type-A (Wireless Audio) | | Bluetooth Version | 4.0 | | Bluetooth Profiles | GATT
A2DP 1.2 | | | | EQ | LF Shelf:
±10 dB at 80 Hz
HF Shelf:
±10 dB at 12 kHz | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 110 W (1/8 Power) | | | | Dimensions | 28.1 x 16.8 x 12.3" / 712.5 x 426.7 x 312.9 mm | | Weight | 40.1 lb / 18.2 kg | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 32.5 x 21.0 x 16.2" |
