User Manual for Behringer Eurolive B1800XP Active 3000W Subwoofer with 18" Turbosound Speaker Click to enlarge the picture
Contents of the user manual for the Behringer Eurolive B1800XP Active 3000W Subwoofer
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer Eurolive B1800XP Active 3000W Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

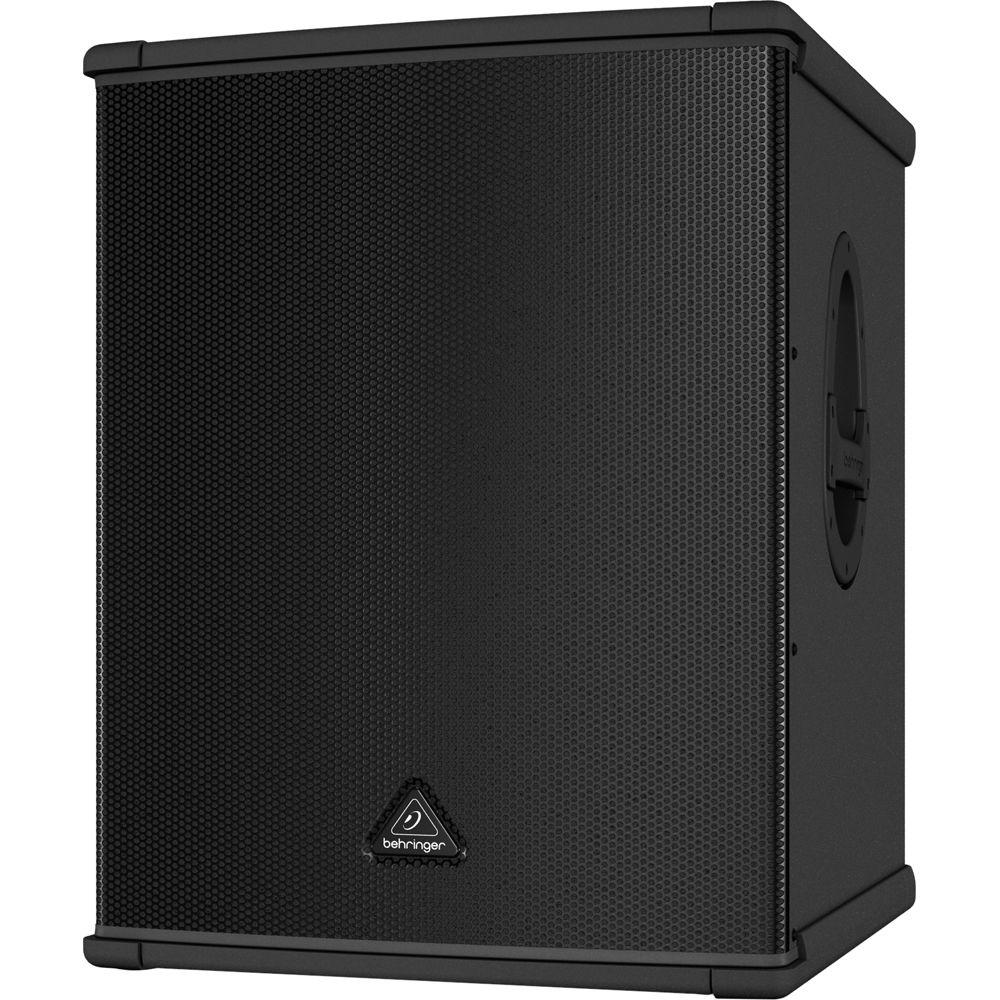

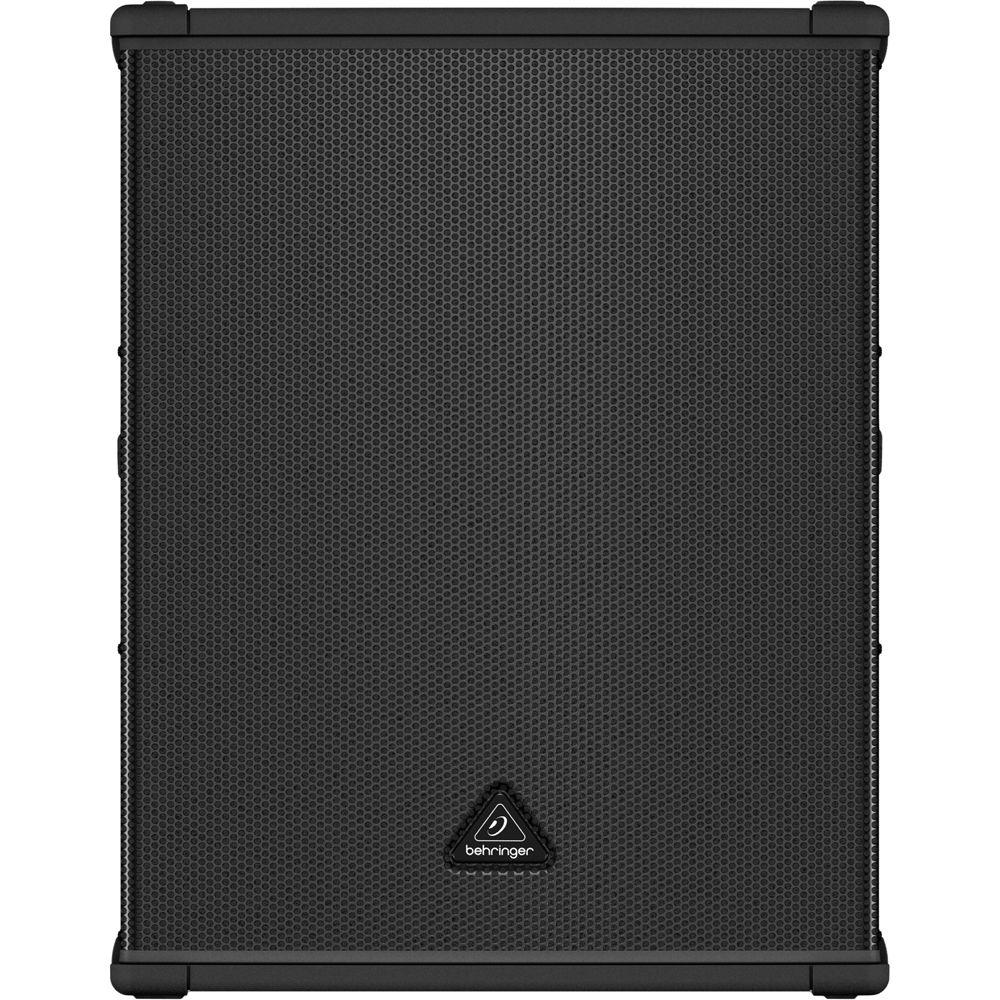

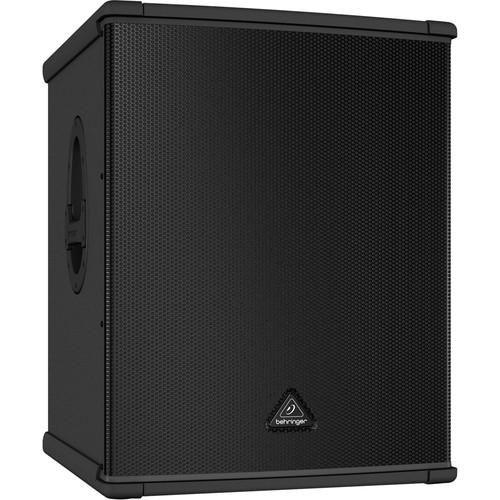

Product description The Eurolive B1800XP from Behringer is an active powered subwoofer, which provides ample low frequency sound reinforcement by leveraging an 18" long-excursion TURBOSOUND woofer with 3000W of Class-D amplification to deliver a frequency response of 40 to 150 Hz (±3 dB).

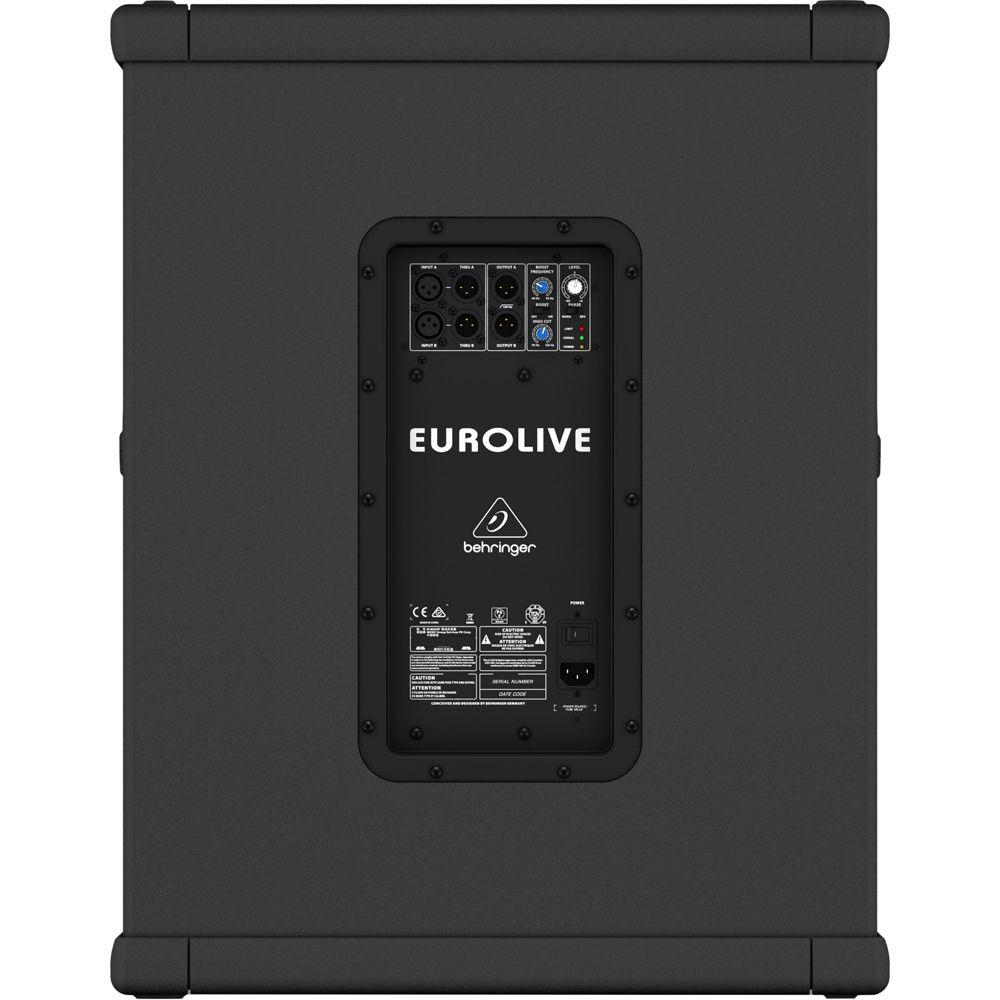

The subwoofer features balanced XLR inputs and outputs, as well as balanced XLR Thru jacks for connecting to additional speakers and building more powerful and complex systems. A boost frequency knob targets a boost frequency between 40 and 90 Hz and gives the target frequency a +10 dB boost. The unit also has a high cut dial that provides precise control over the upper corner frequency of the subwoofer's amplifier, without affecting the Thru signals. A level knob controls the input gain and a phase switch allows you to reverse the output phase to compensate for frequency cancellations between the subwoofer and satellite speakers.
The subwoofer includes ergonomic handles for easy transport as well as a pole socket for mounting with commercial spacer poles. A rugged steel grill protects the speaker cone and an internal intelligent limiter ensures maximum sound performance and woofer protection. The B1800XP ships with a power cord. -
- High-performance 3000W powered subwoofer for PA applications
- World-famous, British engineered 18" TURBOSOUND speaker
- Extremely high sound pressure level and incredibly accurate bass
- Precise reproduction of ultra-low frequencies for "bulletproof" punch and impact
- State-of-the-art 3000-Watt Class-D amplifier with comprehensive over-excursion, thermal, RMS and clip limit protection
- Built-in active stereo crossover provides high-pass filtered outputs for full-range loudspeakers
- Tunable and switchable Bass Boost plus Phase switch for ultimate low-frequency performance
- Variable High Cut control for perfect sound alignment
- Subwoofer Level control to adjust the balance between subwoofer and the full-range speakers
- Power, Signal and Clip LEDs for perfect monitoring
- Intelligent limiter for maximum sound performance and woofer protection
- Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
- Pole socket for mounting with commercial spacer poles
- Ergonomically shaped handles for easy transport
- Rugged steel grill for optimal speaker protection
UPC: 748252158543 In the Box Behringer Eurolive B1800XP Active 3000W Subwoofer with 18" Turbosound Speaker Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Eurolive B1800XP Active 3000W Subwoofer with 18" Turbosound Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B1800XP Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 3000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 45.7 cm Woofer | | | | Frequency Range | 32 Hz to 200 Hz -10 dB | | Frequency Response | 40 Hz to 150 Hz ±3 dB | | Maximum SPL | 129 dB | | Input Sensitivity | +4 dBu (Center) | | Max Input Level | +22 dBu (Balanced) | | Gain Range | Up to +6 dB | | I/O Impedance | Input:
12 kOhms (Unbalanced)
24 kOhms (Balanced) | | THD | <1% | | SNR | >100 dBA | | Protections | DC, On/Off Protection, Short Circuit, Thermal | | | | Audio I/O | 2 x XLR Balanced Input
1 x XLR Balanced Thru/Output
1 x XLR Balanced High-Pass Output High-Pass Filter: 100 Hz, Butterworth, 18 dB slope | | | | Semi-Parametric EQ | +10 dB at 40 Hz to 90 Hz for Bass Boost | | Filters | Low-Pass:
70 to 150 Hz, 24 dB/Octave Butterworth
High-Pass:
100 Hz, 18 dB/Octave Butterworth | | Phase Adjustment | 0 / 180° | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 15 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 180 W (1/8 Power) | | | | Dimensions | 27.7 x 21.6 x 21.8" / 70.4 x 54.9 x 55.4 cm | | Weight | 98.9 lb / 44.9 kg | | | | Package Weight | 112.5 lb | | Box Dimensions (LxWxH) | 32.5 x 27.0 x 27.0" |
