Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - B207MP3 Active PA/Monitor Speaker System with MP3 Player

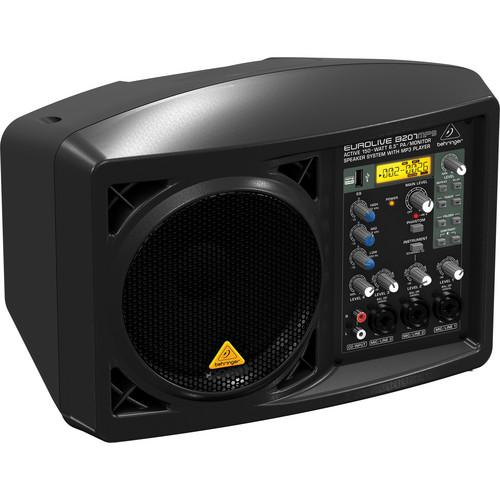

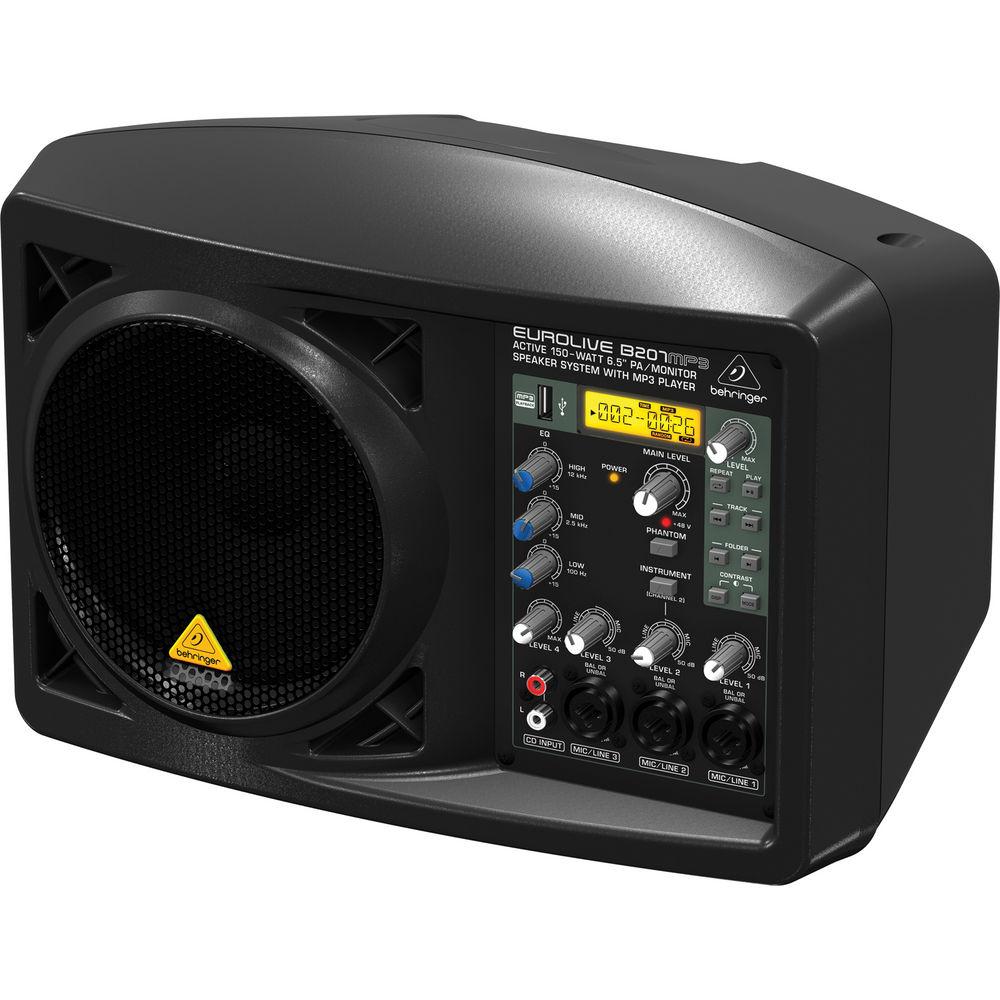

The Behringer EUROLIVE B207MP3 is a PA and monitor system with an integrated MP3 player. It features three channels for mic or line inputs, one channel for RCA inputs, a large speaker, and an onboard MP3 player which can play files straight from a USB stick. Comparatively lightweight at 11.2 lb, the B207MP3 can be mounted on a mic stand or boom; with or without mounting, it can serve as a PA or monitor system for intimate gigs and mid-sized meetings.
This PA features Class-D amplifier technology and a 6.5" neodymium driver. It is able to produce 150W of sound. You can also link additional active loudspeaker systems via the THRU socket. The built-in 4-channel mixer accepts XLR, TRS, and RCA inputs, and should you want to plug in a guitar or a bass, Channel 2 will allow you to do so without a DI. A dedicated 3-band Equalizer (Low / Mid / High) provides easy-to-use tonal control over the speaker. Its top-handle and comparably light weight renders the system portable.
- Multi-purpose, 150W active speaker for vocal- and keyboard-monitoring, multi-media, small press conferences, home recording, and more
- Included MP3 player plays audio files via USB stick
- Class-D amplifier technology
- 6.5" neodymium driver optimized for the B207MP3

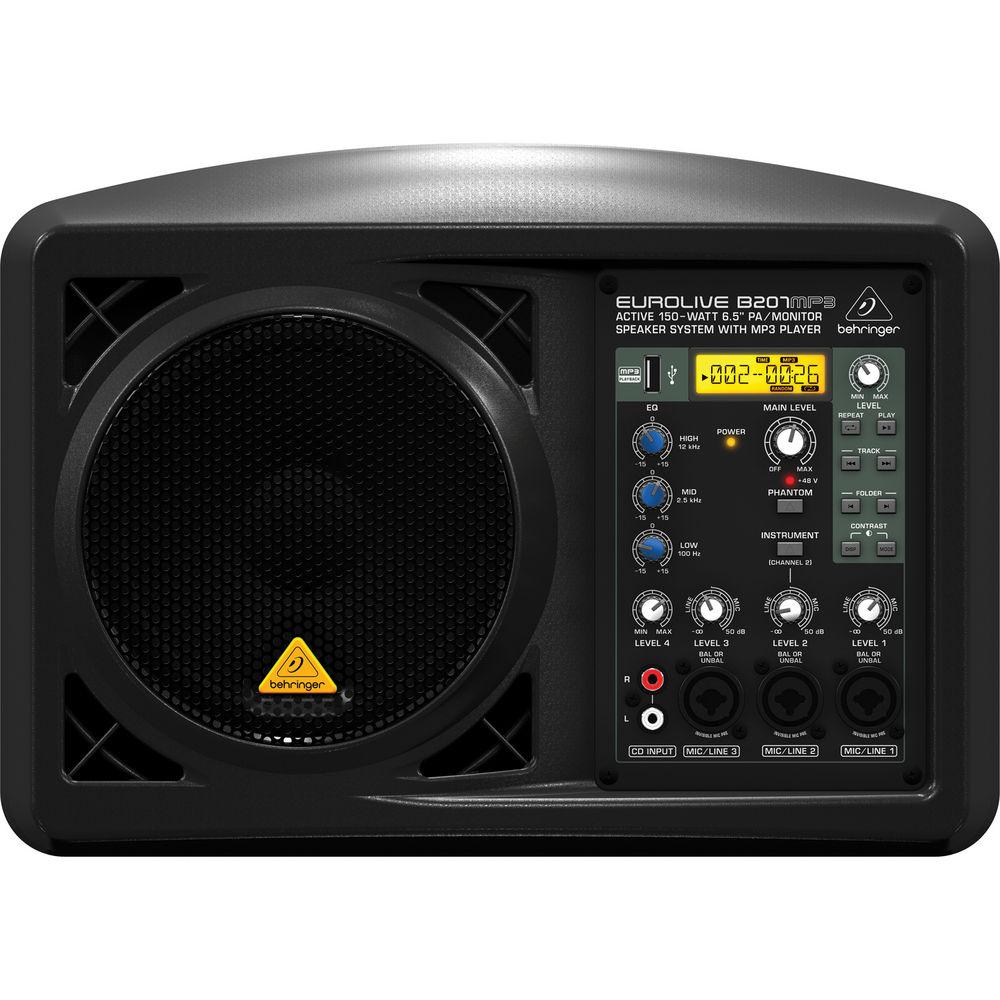

- Ultra-low noise 4-channel mixer with 3-band EQ
- 3 mic preamps with phantom power for condenser microphones, as well as one instrument-ready input (no DI required)
- Dedicated stereo input for keyboards, MP3, CD, and anything else communicating over RCA connection points

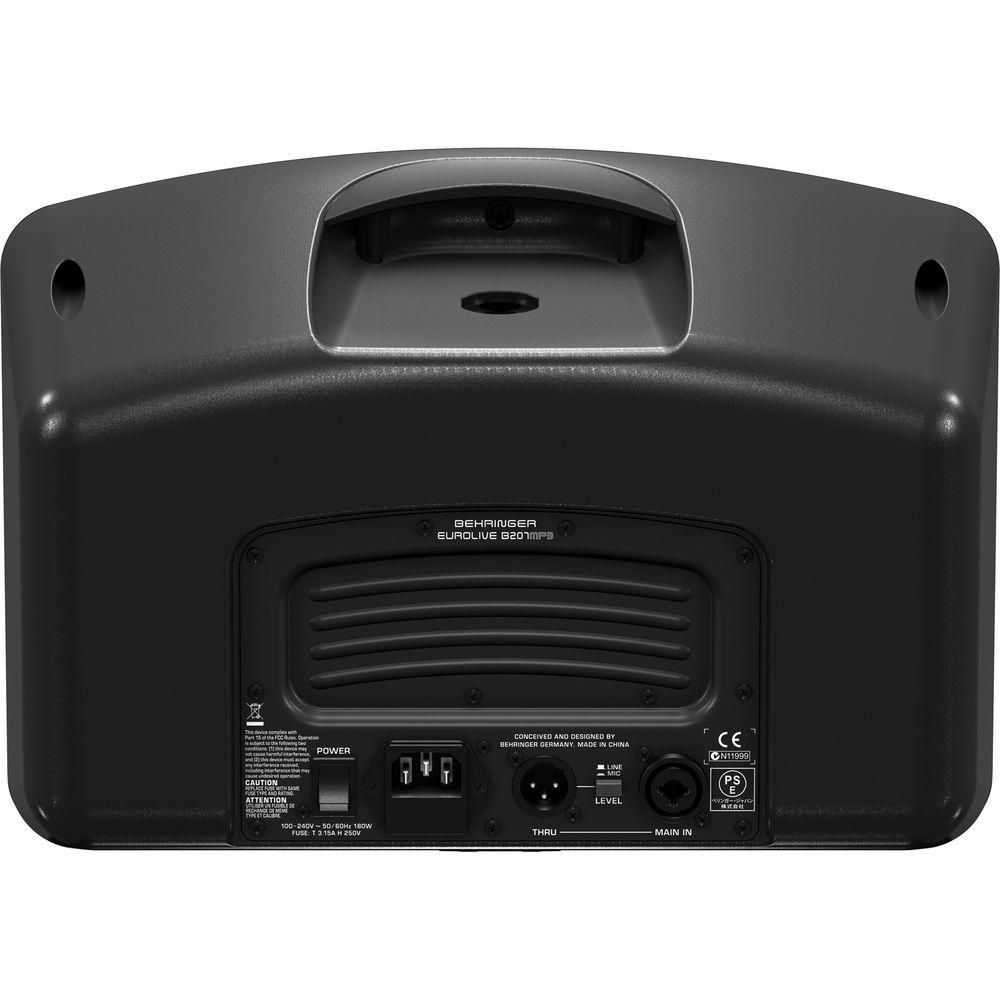

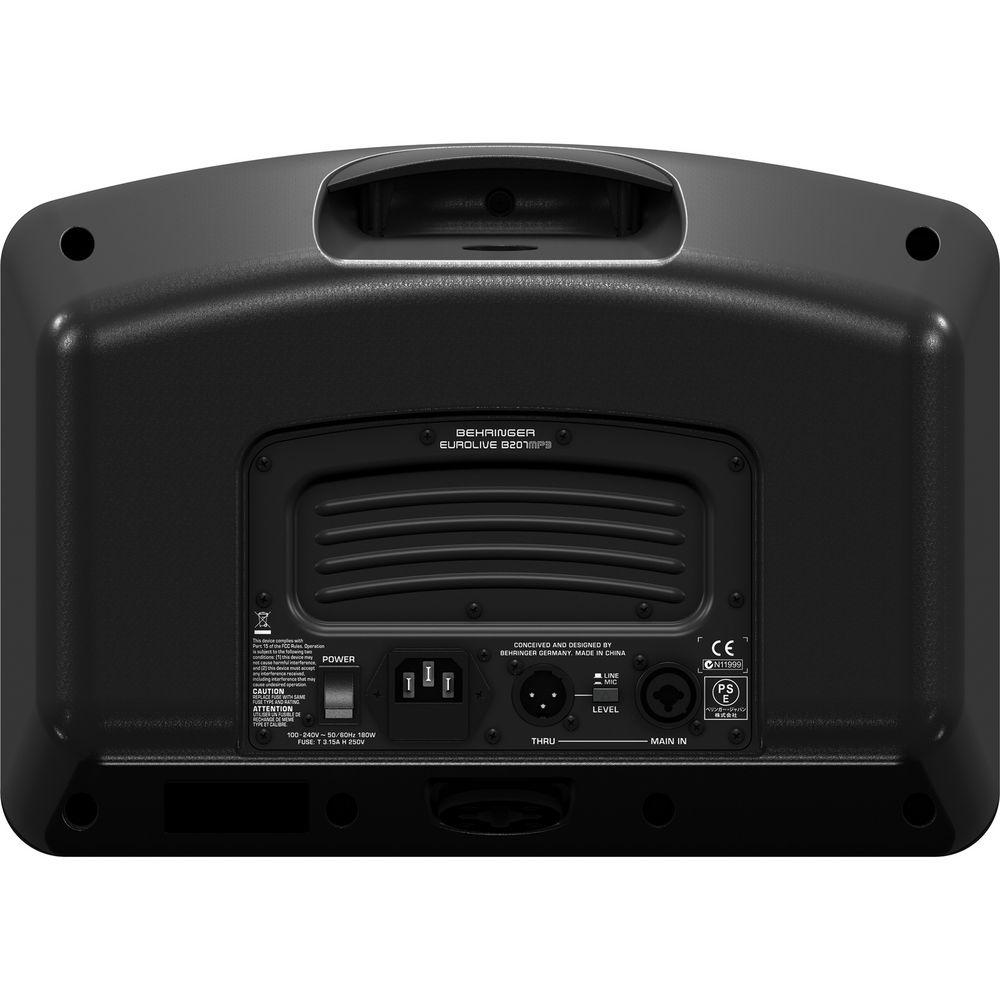

- XLR-Thru connector with mic / line switch for linking and integrating more B207MP3s into your system
- Mic-stand integration system for use with traditional mic stands and booms
- Integrated limiter for system control and speaker protection
- Internal switch-mode power supply
- Impact-resistant enclosure with integrated top carry handle
UPC: 713757159012 In the Box Behringer EUROLIVE B207MP3 Active 150W 6.5" PA / Monitor Speaker System with MP3 Player Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE B207MP3 Active 150W 6.5" PA Monitor Speaker System with MP3 Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B207MP3 Specs | | | Maximum Output Power | 150 W @ 6 Ohms | | Type | Class-D | | Limiter | Optical | | Equalizer | Dynamic Equalizer: Processor-controlled | | | | MP3 Playback | USB Type A:File System: FAT16, FAT32Format: MP3Bit Rates: 32 to 320 kb/s, VBR | | Input Channels | Channel 1: XLR / ¼" TRS Combo JacksSensitivity: -40 to 4 dBuInput Impedance: 20 kOhmsChannel 2: XLR / 1/4" TRS Combo JacksSensitivity: -40 to 4 dBuInput Impedance: 20 kOhms / 1 MOhms switchableChannel 3: XLR / ¼" TRS Combo JacksSensitivity: -40 to 4 dBuInput Impedance: 20 kOhmsChannel 4: RCA JacksSensitivity: -10 to 4 dBuInput Impedance: 10 kOhms | | Phantom Power | Channels 1, 2, and 3: 48 V, switchable | | | | Channel Level Control | Input Trim: -∞ to +30 dBMaximum Input Level: 22 dBu | | Link | Thru: XLR connector, mic / line switchableMain in: XLR / 1/4” TRS combo jack | | | | Loudspeaker Power | Frequency Response: 60 Hz to 18 kHz (-10 dB), 90 Hz to 12 kHz (-3 dB)Sound Pressure Level: Maximum 116 dB SPL @ 1 m | | Equalizer | High: >12 kHz / ±15 dBMedium: 2.5 kHz / ±15 dBLow: <100 Hz / ±15 dB | | | | Power Supply Voltage | USA / Canada: 120 VAC, 60 Hz (T 3.15 A H 250 V)
UK / Australia / Europe: 220 to 240 VAC, 50/60 Hz (T 3.15 A H 250 V) | | Power Consumption | Maximum 180 W | | Connection | Mains Connection: Standard IEC receptacle | | | | Speaker Size | 6.5" / 16.5 cm | | Dimensions (H x W x D) | 10.0 x 14.0 x 8.6" / 25.4 x 35.6 x 21.8 cm | | Weight | Approximately 11.2 lb / 5.1 kg | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 16.3 x 12.5 x 10.9" |
