User Manual for Behringer Eurolive B2520 Pro Dual 15" High-Performance Loudspeaker Click to enlarge the picture
Contents of the user manual for the Behringer Eurolive B2520 Pro Dual 15"
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer Eurolive B2520 Pro Dual 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

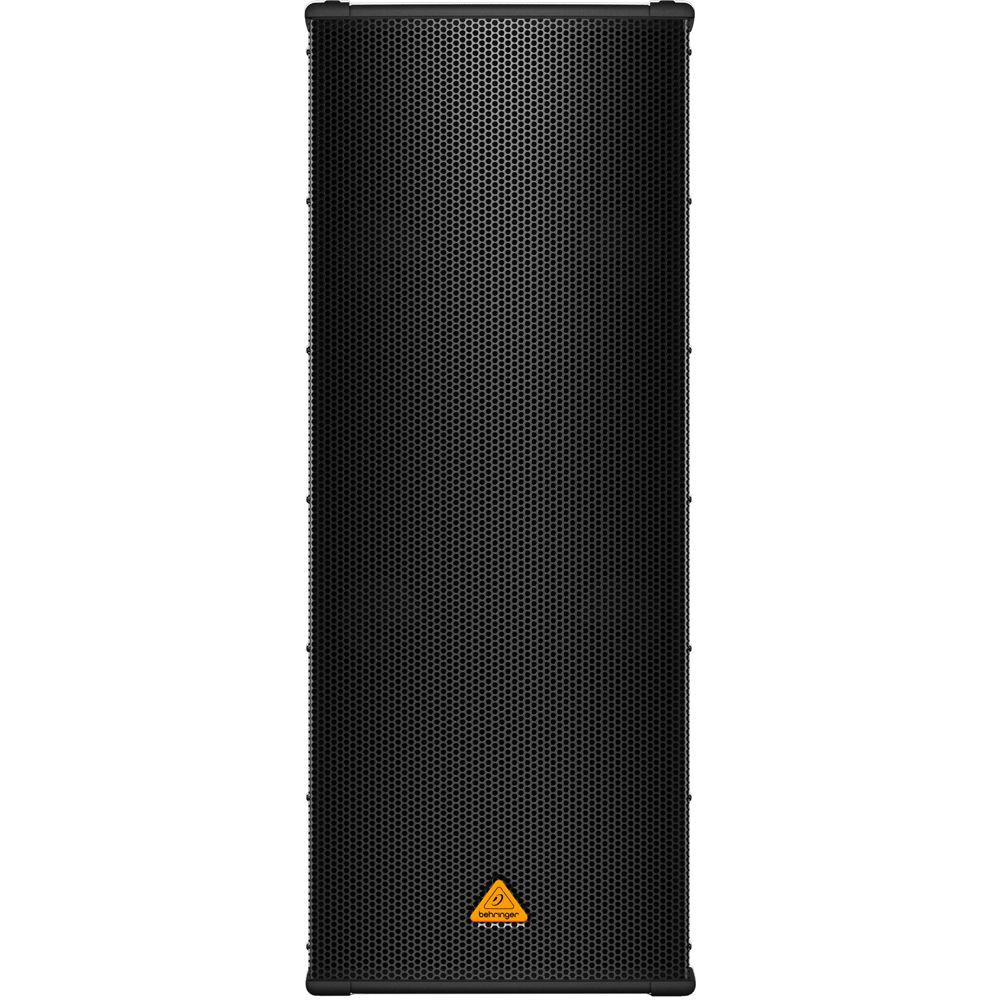

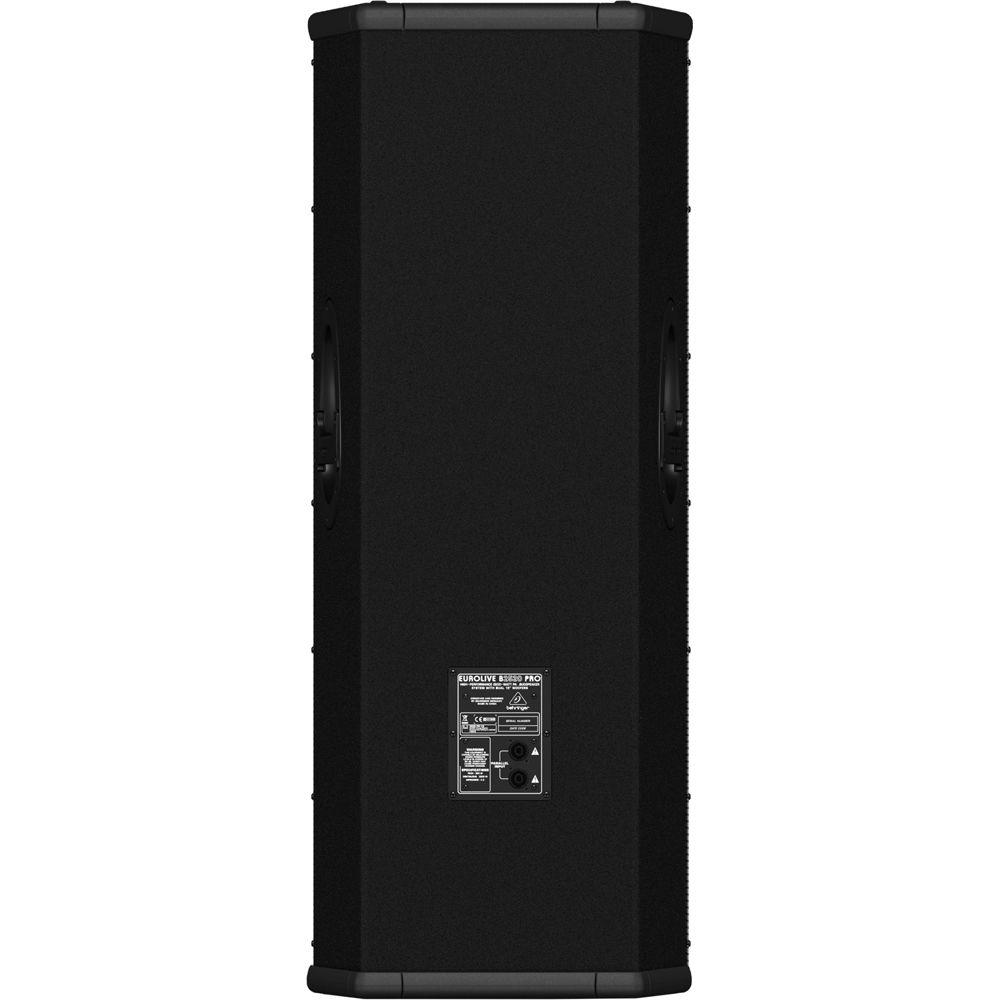

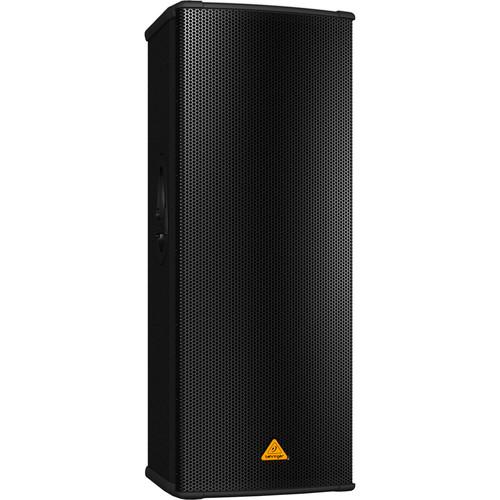

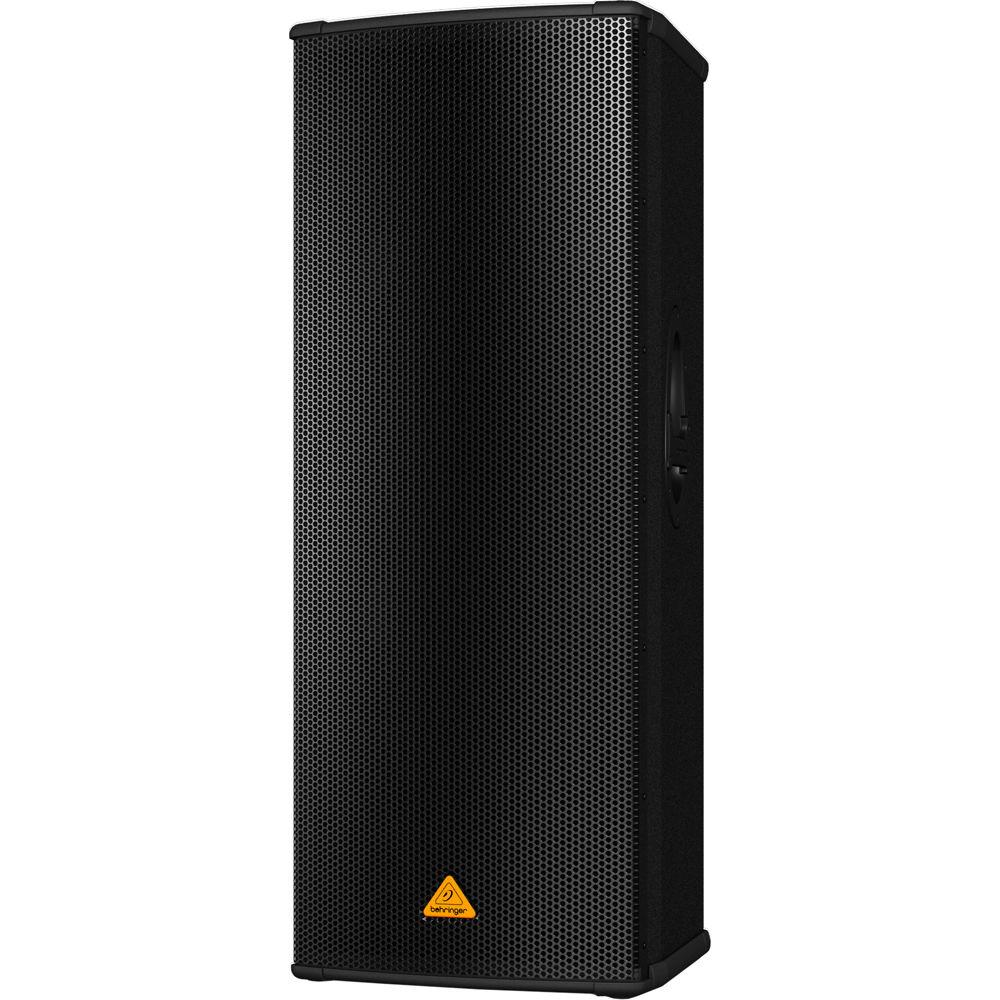

Product description The Eurolive B2520 Pro from Behringer is a high-performance PA loudspeaker ideal for professional applications. The speaker has a pair of 15" long-excursion woofers and a proprietary 1.75" titanium-diaphragm compression tweeter to provide high-quality audio with a wide frequency response. The loudspeaker has a maximum power handling capability of 2200W to provide strong, clear audio with high SPL levels and low distortion.
The speaker has parallel Speakon inputs for connection to virtually any professional sound system. Integrated protection circuitry ensures optimal driver performance, while a dispersion cone provides a wide coverage pattern. The cabinet is ruggedly built and has a full steel grille for life on the road. Ergonomic handles provide convenient transportation. - Dual 15" long-excursion woofers and a proprietary 1.75" titanium-diaphragm compression tweeter to provide high-quality audio with a wide frequency response
- Maximum power handling capability of 2200W to provide strong, clear audio with high SPL levels and low distortion
- Parallel Speakon inputs for connection to virtually any professional sound system and linking of additional loudspeakers
- Integrated protection circuitry ensures optimal driver performance, while a dispersion cone provides a wide coverage pattern
- Rugged construction with a full steel grille for life on the road
- Enclosure profile allows multiple positioning options: 10° or 35° cluster and stacking mode, as well as positioning as a side fill monitor
- Ergonomic handles provide convenient transportation
UPC: 736211580344 In the Box Behringer Eurolive B2520 Pro Dual 15" High-Performance Loudspeaker Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Eurolive B2520 Pro Dual 15" High-Performance Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B2520-Pro Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 550 W RMS
2200 W Peak | | System Impedance | 4 Ohms | | | | HF Driver | 1 x 1.75" / 44 mm Titanium Compression Driver | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Response | 50 Hz to 18 kHz | | Maximum SPL | 99 dB (Full-Space) | | Coverage Angle | 100° H x 50° V (Main)
50° H x 50° V (Monitor) | | | | Crossover | Low-Pass:
200 Hz
High-Pass:
1.8 kHz | | | | Dimensions | 18.3 x 46.6 x 19.0" / 465.0 x 1185.0 x 482.0 mm | | Weight | 105 lb / 47.5 kg | | | | Package Weight | 117.8 lb | | Box Dimensions (LxWxH) | 50.4 x 23.2 x 23.0" |
