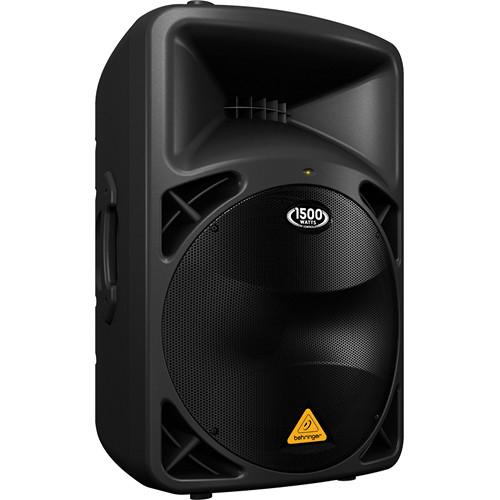

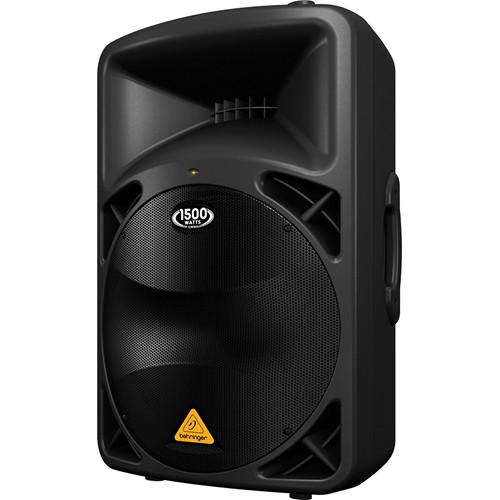

User Manual for Behringer EuroLive B615D Active PA Speaker Click to enlarge the picture
Contents of the user manual for the Behringer EuroLive B615D Active PA Speaker
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer EuroLive B615D Active PA Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The EuroLive B615D Active PA Speaker System from Behringer features a 15" woofer and a 1.75" titanium high frequency compression driver that are capable of 1500 watts maximum output with a maximum sound pressure level (SPL) of 126 dB. It has an XLR mic/line input with an independent volume control knob and clip LED as well as a 1/4" TRS input. The B615D can be used for general PA applications such as lectures, live performance, or audio playback.
The B615D houses a 2 band shelving EQ that allows you to tune it to its environment while the built-in optical limiter is designed to protect its speakers. The XLR link output allows you to connect multiple B615Ds for increased output. - Internal switch-mode power supply helps lower noise
- Class D technology switches on and off thousands of time per second, delivering power only as it is needed
- Trapezoidal enclosure allows for stand mounting with a 35mm pole socket or tilting for floor monitor use
- Ergonomically shaped handles provide easy carrying and setup
UPC: 794504547818 In the Box Behringer EuroLive B615D Active PA Speaker Limited 10-Year Warranty Quick-Start Guide PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EuroLive B615D Active PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B615D Specs | | | Configuration | Active | | Total Power Capacity | 1500 W | | | | HF Driver | 1 x 1.75" / 44 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Frequency Response | 50 Hz to 18 kHz | | Maximum SPL | 126 dB SPL | | Input Sensitivity | +4 dBu to -40 dBu | | Max Input Level | 22 dBu | | Gain Range | Up to 30 dB | | I/O Impedance | Input:
20 kOhms | | | | Audio I/O | 1 x XLR Line/Mic Input
1 x 1/4" TRS Input
1 x XLR Thru/Output | | | | Crossover | 1.8 kHz | | EQ | HF Shelf:
±15 dB at 12 kHz
LF Shelf:
±15 dB at 80 Hz | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 120 VAC, 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 600 W (Max) | | | | Dimensions | 28.8 x 18.5 x 16.7" / 73.2 x 47.0 x 42.4 cm | | Weight | 57.8 lb / 26.2 kg | | | | Package Weight | 64.4 lb | | Box Dimensions (LxWxH) | 33.0 x 21.0 x 20.0" |
