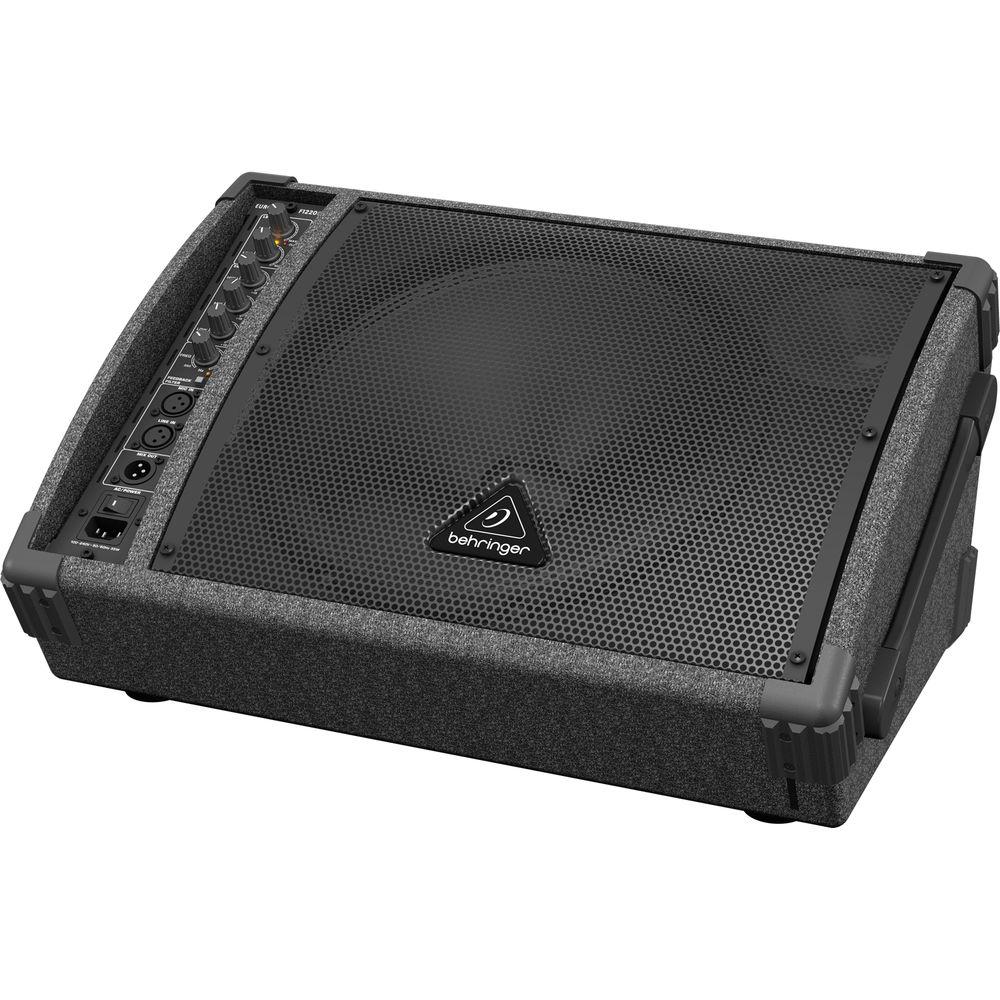

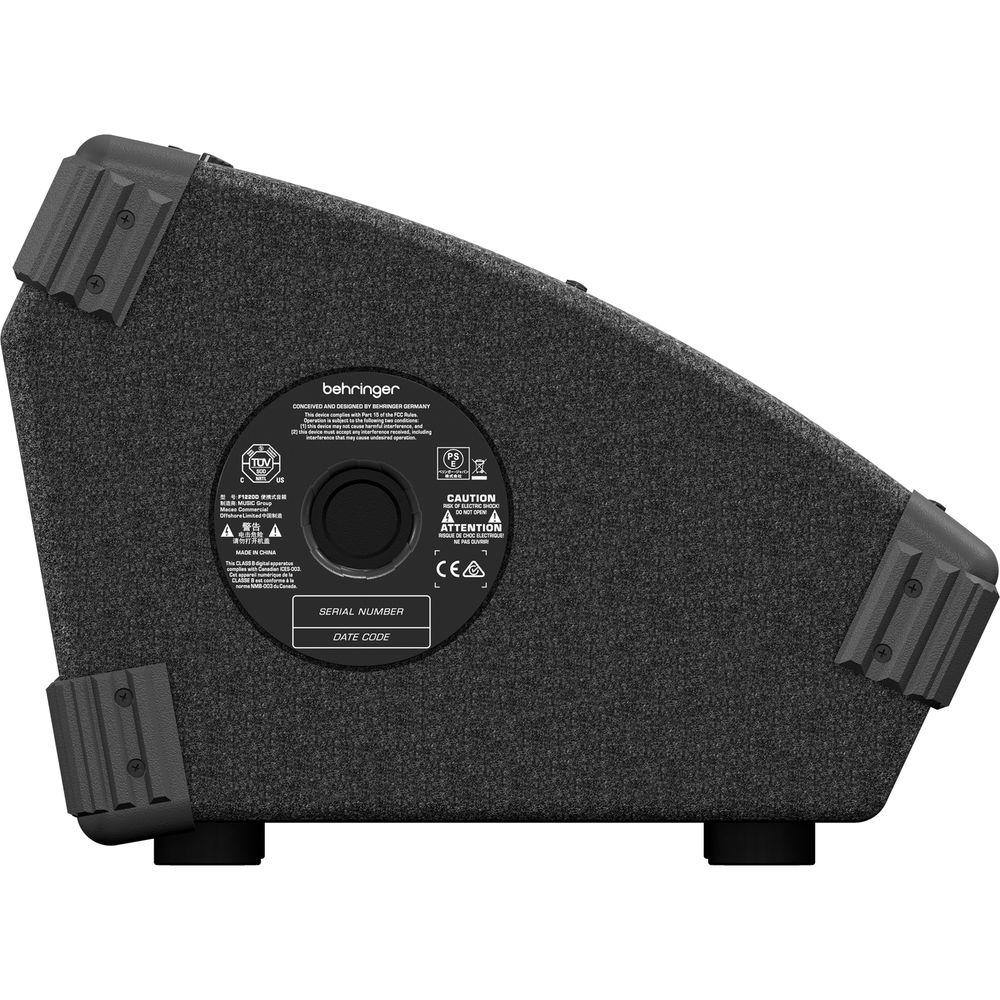

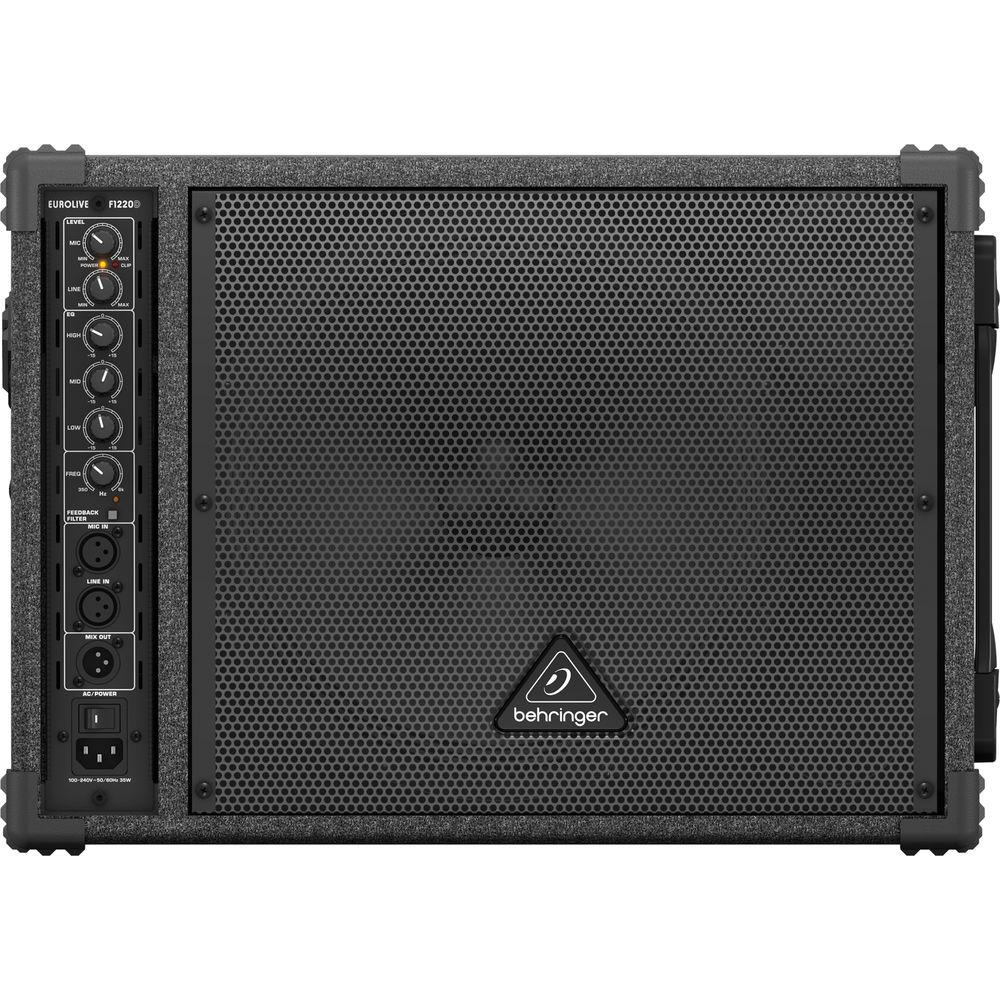

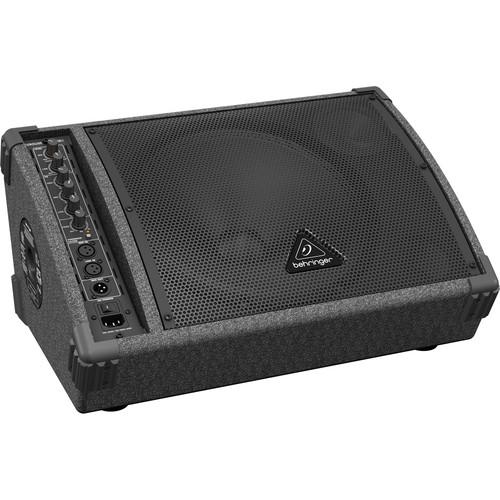

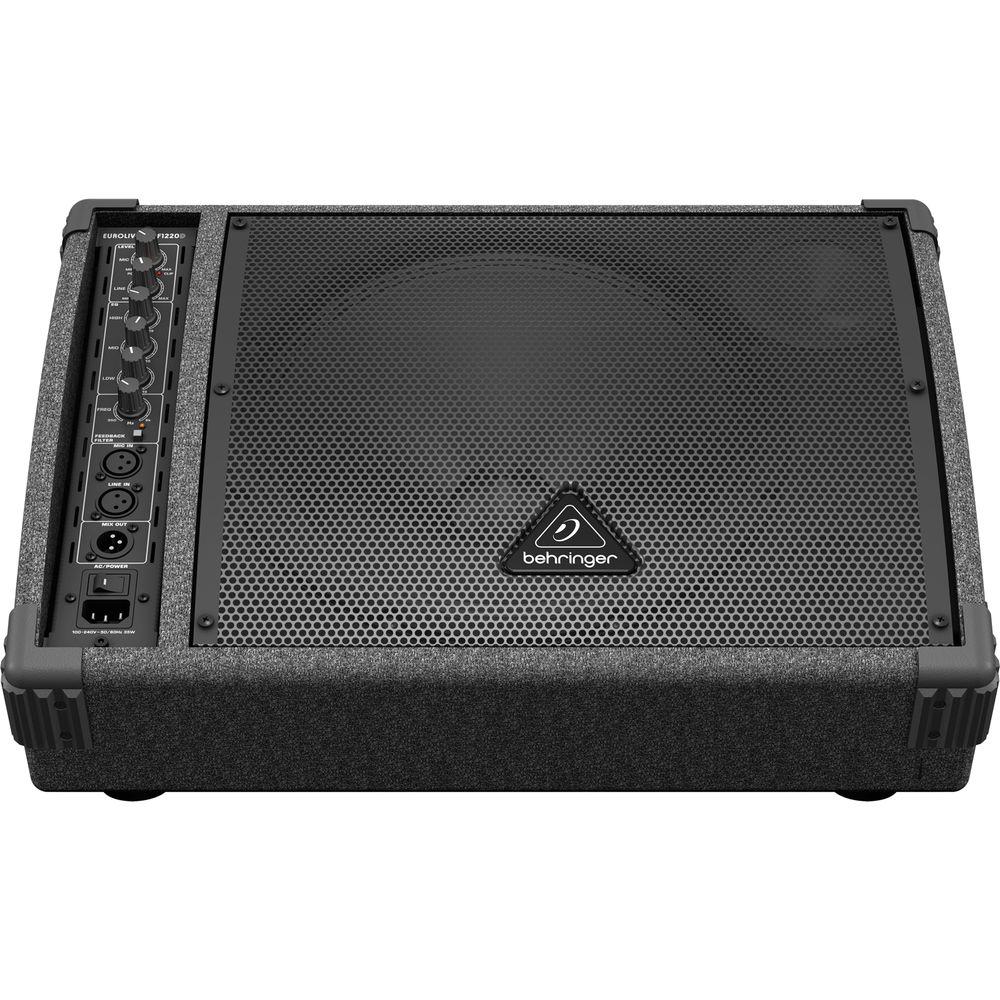

User Manual for Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System Click to enlarge the picture
Contents of the user manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System
The Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System utilizes a 250-Watt Class D amplifier in a true bi-amp configuration to power a single 12" woofer for bass and a high resolution 3" tweeter for highs loaded in a proprietary wide-dispersion horn for live performance and playback applications. The unit includes an adjustable feedback filter as well as an integrated limiter for system control and speaker protection.
For inputs, a built-in 2-channel mixer with individual mic/line inputs and volume controls offers a wide range of connectivity and the dedicated 3-band EQ allows for precise shaping of your sound. An additional line output allows for linking of additional speakers into the system. An internal switch-mode power supply provides superior transient response, low power consumption, and low-noise audio. An integrated 35 mm pole socket allows you to mount the unit on a stand, or it can be placed on the ground and used as a floor monitor. At only 23.6 lb (10.7 kg), the speaker is well suited for travel to and from gigs, on the road, on stage, and in the studio. UPC: 696859305740 In the Box Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer F1220D Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 250 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 3" / 76.2 mm Tweeter | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Range | 45 Hz to 18 kHz | | Input Sensitivity | Mic Input:
-18 dBu to -37 dBu
Line Input:
+16 dBu to -4 dBu Level VR from center to max | | I/O Impedance | Mic Input:
1 kOhms (Balanced)
2 kOhms (Unbalanced)
Line Input:
10 kOhms (Balanced)
20 kOhms (Unbalanced)
Output:
100 Ohms (Unbalanced) | | | | Audio I/O | 1 x XLR Balanced Line Input
1 x XLR Balanced Mic Input
1 x XLR Output | | | | Crossover | 2 kHz (Active) | | EQ | HF Shelf:
±15 dB at 12 kHz
LF Shelf:
±15 dB at 80 Hz
MF Notch/Peak:
±15 dB at 2.5 kHz | | Semi-Parametric EQ | -15 dB at 350 Hz to 6 kHz, Q: 20 for Feedback Suppression | | Dynamic Processing | Limiter | | | | AC Power Connector | 1 x IEC | | Power Consumption | 35 W (1/8 Power) | | | | Mounting | 1 x 1.18" / 30 mm Pole Socket (Dual Angle) | | Construction Material | Perforated Metal Grille, Wood | | Dimensions | 9.4 x 19.7 x 11.9" / 238.0 x 500.0 x 354.0 mm | | Weight | 23.6 lb / 10.7 kg | | | | Package Weight | 30.3 lb | | Box Dimensions (LxWxH) | 23.2 x 17.15 x 12.15" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
