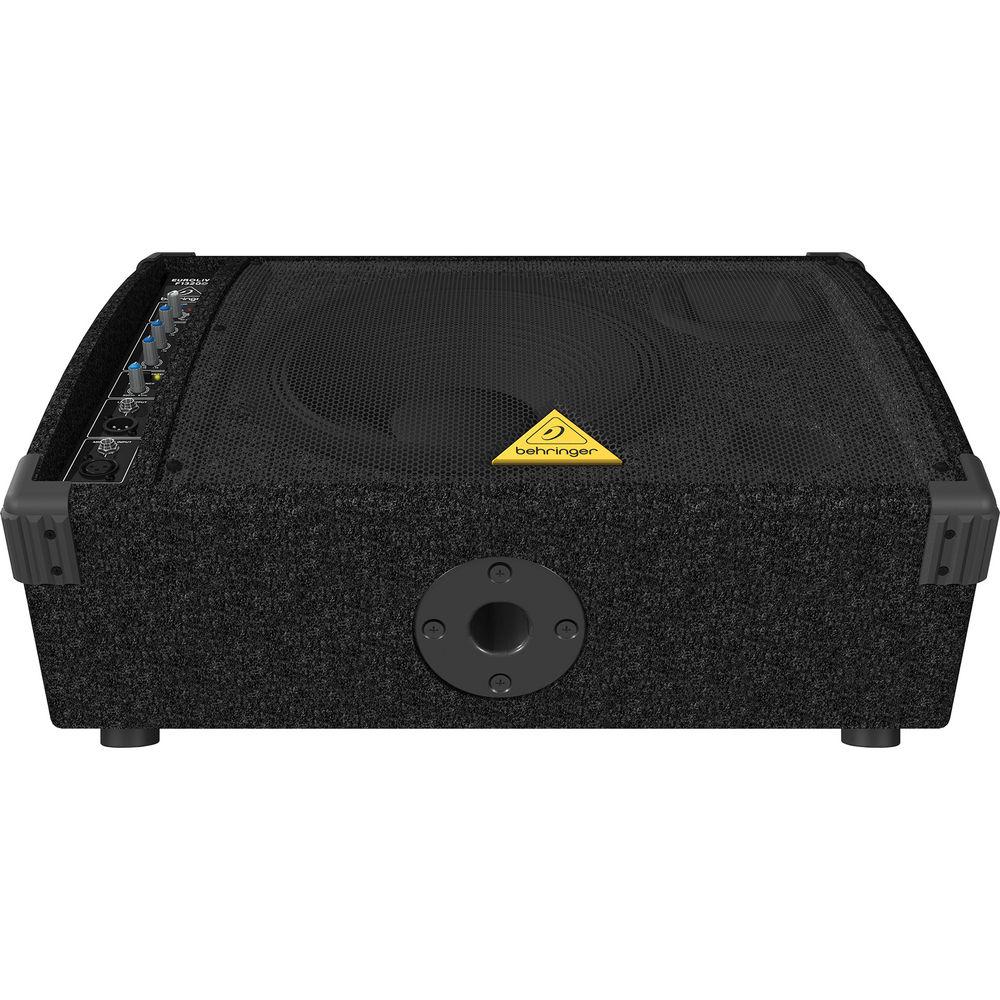

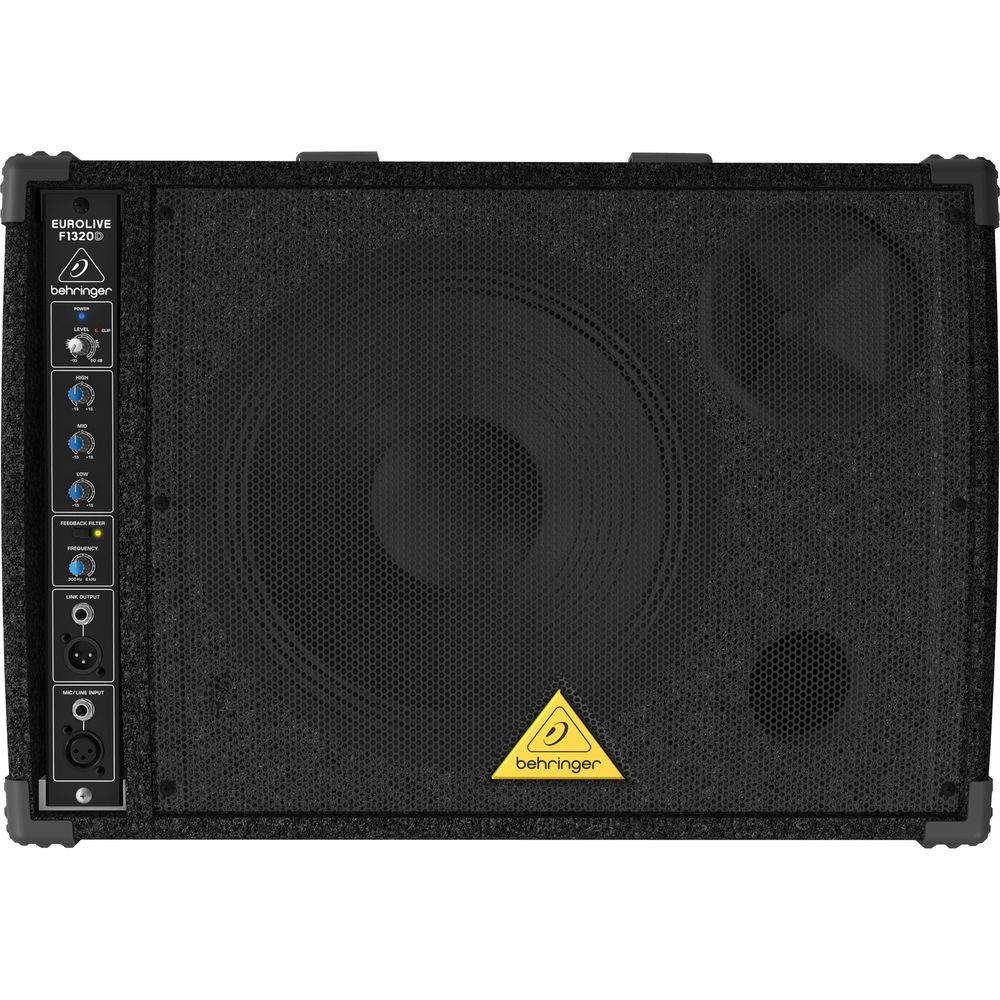

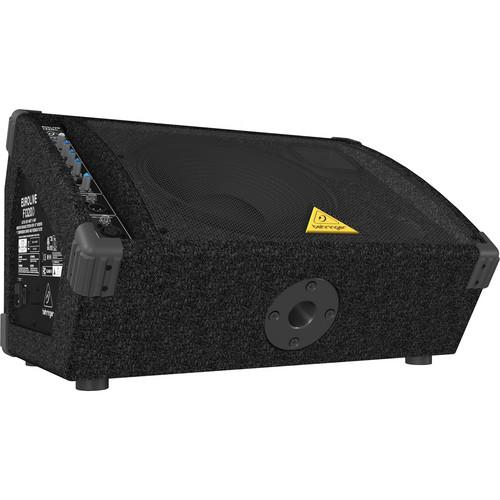

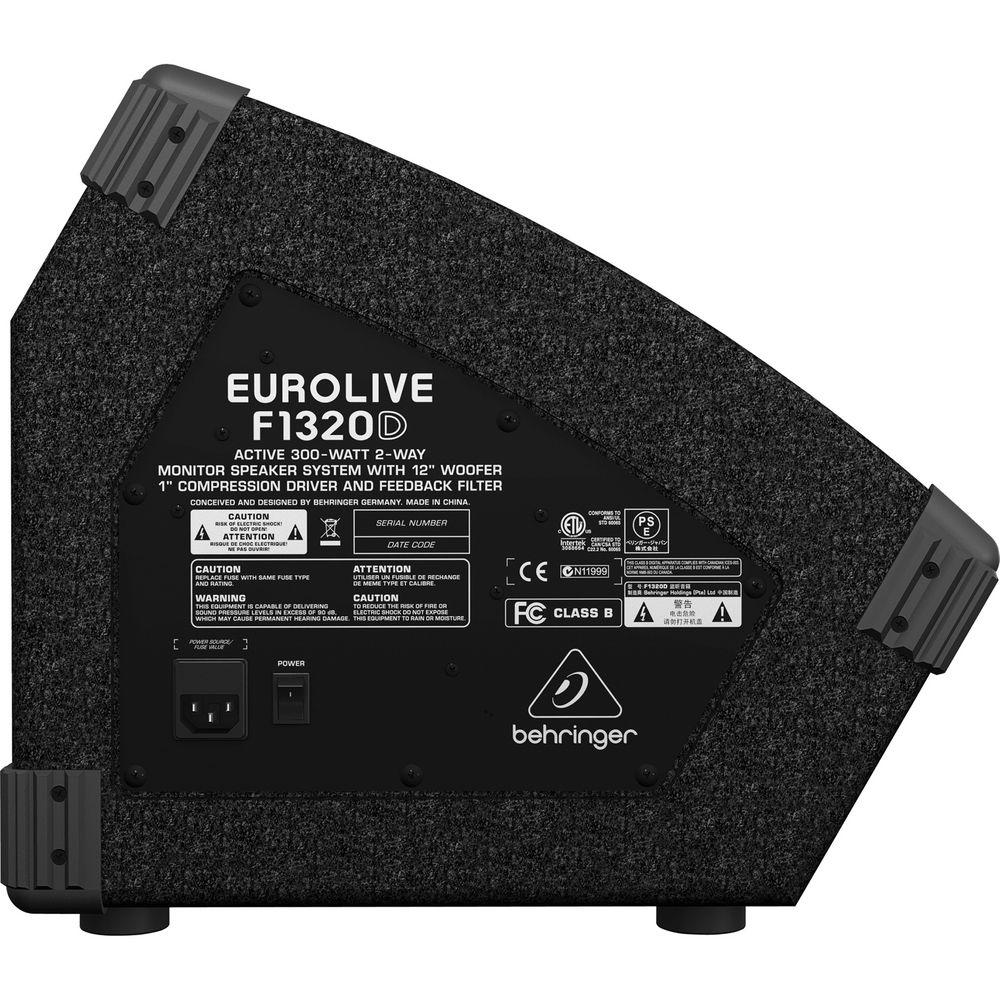

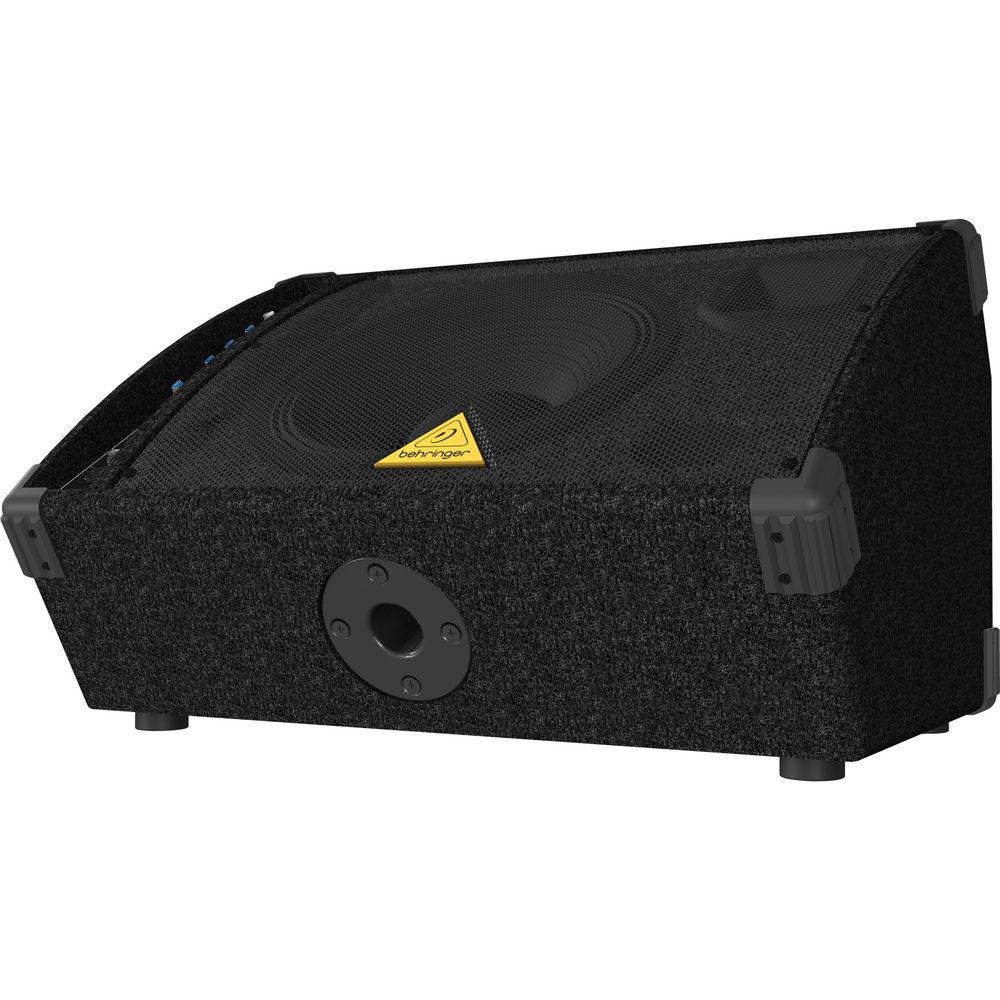

User Manual for Behringer EUROLIVE F1320D Active 300W 12" 2-Way Monitor Speaker System Click to enlarge the picture
Contents of the user manual for the Behringer EUROLIVE F1320D Active 300W 12"
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer EUROLIVE F1320D Active 300W 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The EUROLIVE F1320D Active 300W 12" 2-Way Monitor Speaker System from Behringer provides high-quality sound with wide frequency bandwidth and high dynamic range. The speaker has a powerful 12" long-excursion woofer and a 1" high-resolution tweeter to provide deep bass and clear treble. The proprietary horn design offers ultra-wide dispersion to reach a wide audience. The speaker has a 300W Class-D amplifier to deliver plenty of power and terrific sonic integrity while keeping weight to a minimum.
The speaker has ultra-low noise mic/line switchable XLR and 1/4" inputs, plus XLR and 1/4" link outputs. There is a volume control with a clip LED, as well as an adjustable feedback filter, integrated limiter, and integrated sound processor for ultimate protection and control of the system. A dedicated 3-band EQ allows you to shape your sound, while the internal switch-mode power supply delivers noise-free audio, excellent transient response, and low power consumption. The speaker has a standard 35mm pole socket for mounting on a stand, ideal for PA use. - Provides high-quality sound with wide frequency bandwidth and high dynamic range in a rugged design
- The powerful 12" long-excursion woofer and 1" high-resolution tweeter provide deep bass and clear treble
- The proprietary horn design offers ultra-wide dispersion to reach a wide audience
- A 300W Class-D amplifier is built-in to deliver plenty of power and terrific sonic integrity while keeping weight to a minimum
- Ultra-low noise mic/line switchable XLR and 1/4" inputs, plus XLR and 1/4" link outputs
- There is a volume control with a clip LED, as well as an adjustable feedback filter, integrated limiter, and integrated sound processor for ultimate protection and control of the system
- A dedicated 3-band EQ allows you to shape your sound
- The internal switch-mode power supply delivers noise-free audio, excellent transient response, and low power consumption
- A standard 35mm pole socket allows mounting on a stand, ideal for PA use
UPC: 705105163987 In the Box Behringer EUROLIVE F1320D Active 300W 12" 2-Way Monitor Speaker System Power Cable Limited 10-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way Monitor Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer F1320D Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 300 W | | Amplifier Power Rating | LF:
160 W RMS
225 W Peak (at 8 Ohms)
HF:
40 W RMS
72 W Peak (at 8 Ohms) | | | | Frequency Response | 60 Hz to 16 kHz -10 dB | | Maximum SPL | 115 dB | | Input Sensitivity | 0 to -50 dBu | | I/O Impedance | Input:
20 kOhms (Balanced)
30 kOhms (Unbalanced) | | | | Audio I/O | 1 x XLR Line/Mic Input
1 x 1/4" Line/Mic Input
1 x XLR Thru/Output
1 x 1/4" Thru/Output | | | | EQ | HF Shelf:
±15 dB at 12 kHz
MF Notch/Peak:
±15 dB at 2.5 kHz
LF Shelf:
±15 dB at 80 Hz | | Semi-Parametric EQ | -15 dB at 300 Hz to 6 kHz, Q: 20 for Feedback Suppression | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 120 VAC, 60 Hz (T 4 A H 250 V)
230 to 240 VAC, 50 Hz (T 2 A H 250 V)
220 VAC, 50 / 60 Hz (T 2 A H 250 V)
100 VAC, 50 / 60 Hz (T 4 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 300 W (Max) | | | | Dimensions | 14.2 x 22.8 x 16.0" / 360.0 x 580.0 x 406.0 mm | | Weight | 34.5 lb / 15.7 kg | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 26.5 x 19.0 x 18.0" |
