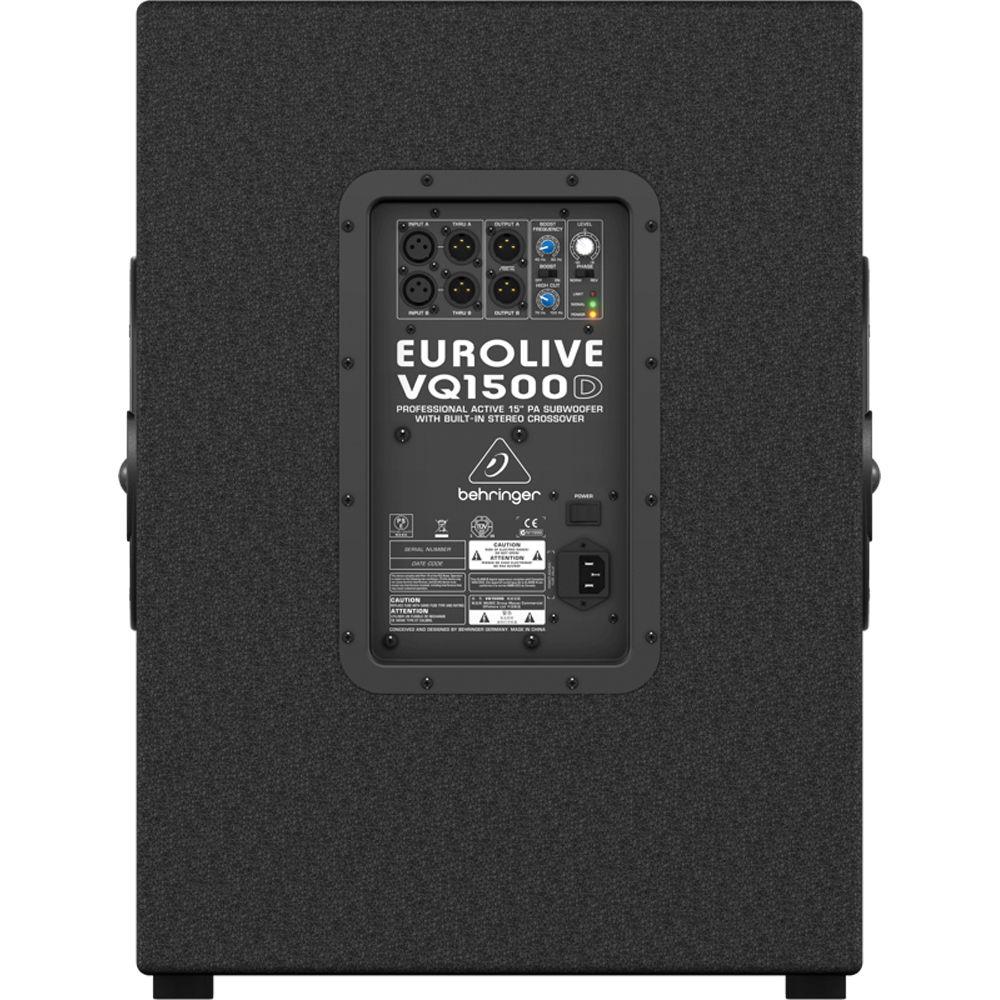

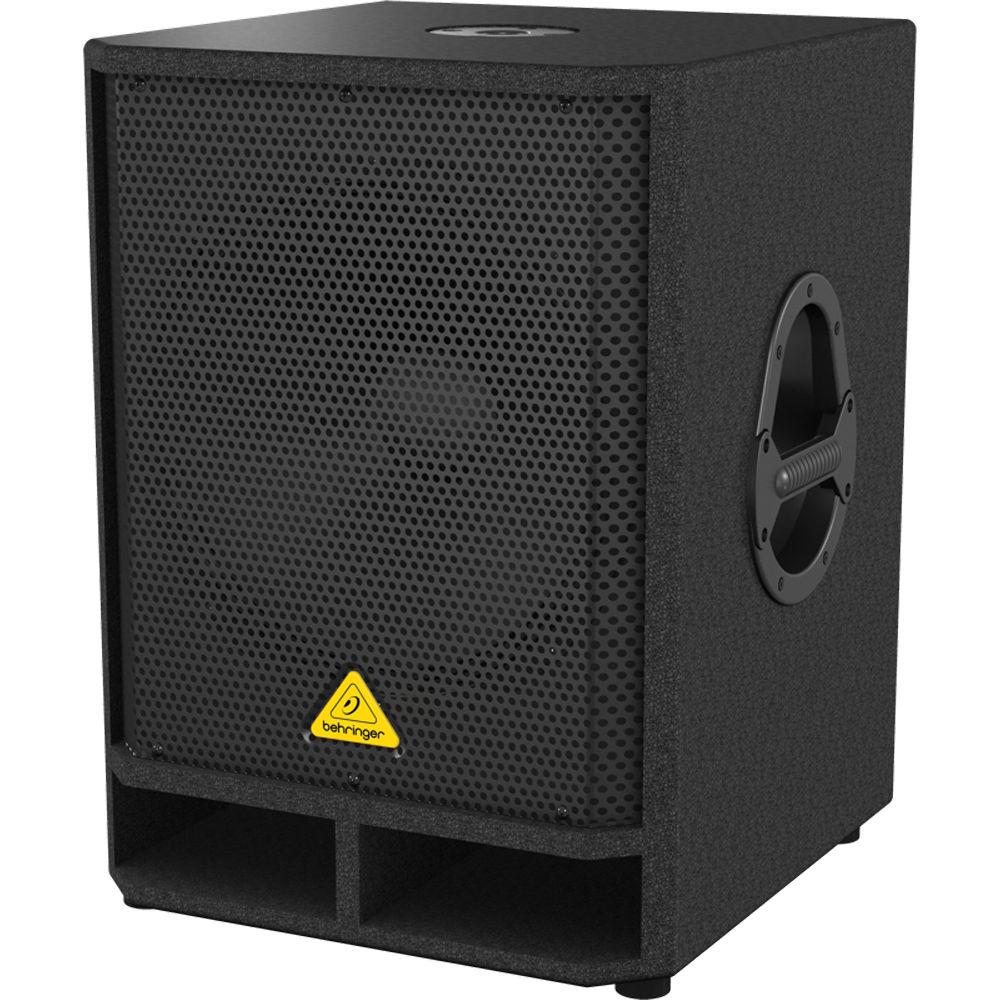

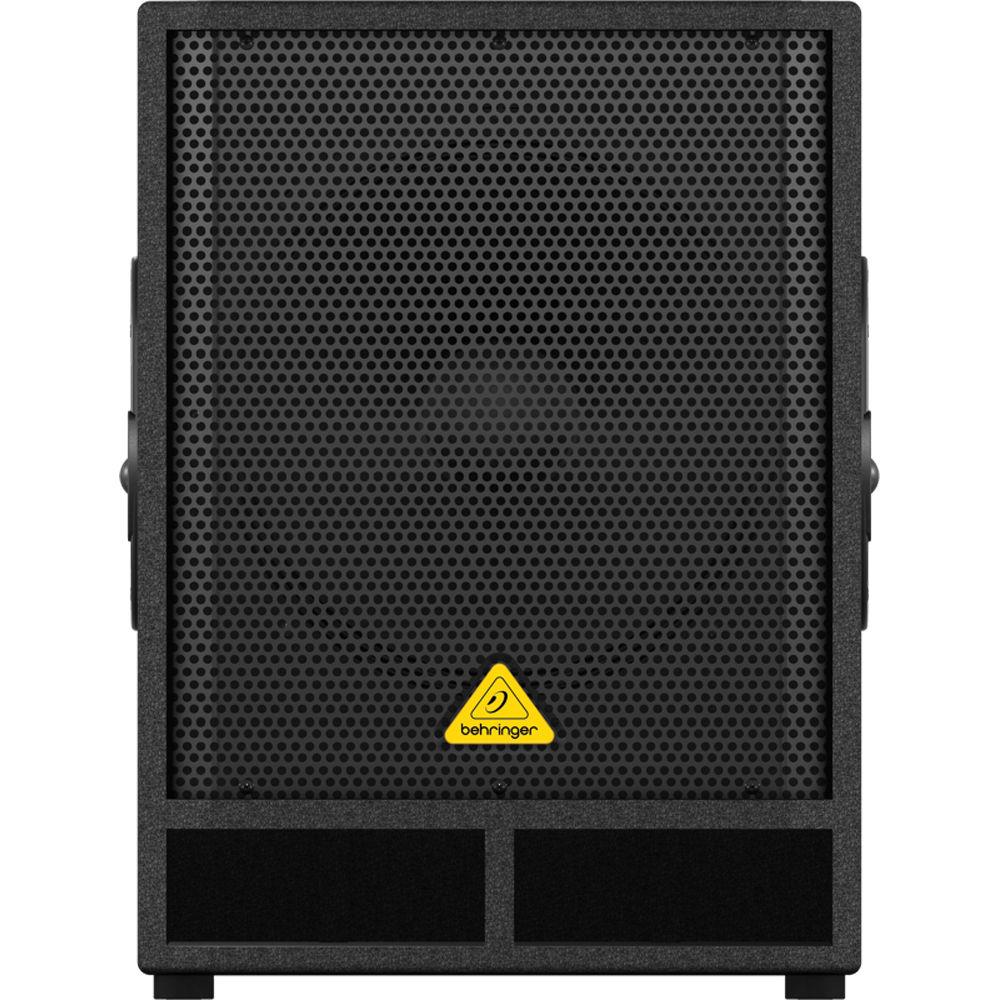

Product description The EUROLIVE VQ1500D - Professional 15" Powered Subwoofer provides low frequency reinforcement for PA systems, and is designed to accompany your full-range loudspeakers. The sub has a 15" long-excursion transducer with a with a high temperature voice coil, which is powered by a 500W Class-D amplifier to deliver strong bass with low distortion. It features stereo XLR inputs, a 100Hz fixed-frequency electronic crossover with stereo XLR outputs to feed your satellite loudspeakers, plus a set of stereo thru XLR outputs that send out a full range copy of the input signal.
The subwoofer also has a phase flip switch and a level control so you can adjust the input gain. It has power, signal and clip LED indicators that let you keep tabs on performance and it features a rugged steel grill to protect the woofer. There are ergonomically shaped handles for convenient transportation, and a pole socket lets you mount a speaker on top of the subwoofer. - Variable high cut control to dial the upper corner frequency (70 - 150 Hz) for the subwoofer's amplifier
- Intelligent limiter for maximum sound performance and woofer protection
- Tunable and switchable bass boost (40Hz to 90Hz) plus phase flip for enhanced low frequency performance
- Internal switch-mode power supply for low noise, superior transient response and low power consumption
UPC: 696859054136 In the Box Behringer EUROLIVE VQ1500D - Professional 15" Powered Subwoofer with Built-In Stereo Crossover Limited 10-Year Warranty Quick-Start Guide PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROLIVE VQ1500D - Professional 15" Powered Subwoofer with Built-In Stereo Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer VQ1500D Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 500 W Peak | | | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Frequency Range | 40 Hz to 200 Hz -10 dB | | Frequency Response | 65 Hz to 150 Hz ±3 dB | | Maximum SPL | 122 dB (Peak) | | Input Sensitivity | +4 dBu Center position for full rated power. | | I/O Impedance | Input:
12 kOhms (Unbalanced)
24 kOhms (Balanced)
Output:
300 Ohms (Unbalanced)
600 Ohms (Balanced) | | SNR | <100 dB | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | 2 x XLR Balanced Input
1 x XLR Balanced Thru/Output
1 x XLR Balanced Output | | | | Crossover | High-Pass:
100 Hz, 18 dB/Octave Butterworth | | Semi-Parametric EQ | +10 dB at 40 Hz to 90 Hz for Bass Boost | | Filters | Low-Pass:
70 to 150 Hz, 24 dB/Octave Butterworth | | Phase Adjustment | 0 / 180° | | | | AC Input Power | 120 VAC, 60 Hz (T 6.3 A H 250 V) | | | | Dimensions | 24.3 x 19.3 x 20.8" / 616.0 x 490.0 x 528.0 mm | | Weight | 72.8 lb / 33.1 kg | | | | Package Weight | 79.5 lb | | Box Dimensions (LxWxH) | 29.0 x 25.5 x 24.0" |
