User Manual for Behringer EUROPORT EPS500MP3 500W 8-Channel Portable PA System Click to enlarge the picture
Contents of the user manual for the Behringer EUROPORT EPS500MP3 500W 8-Channel Portable
- Product category: Portable PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Portable PA Systems
 |
User manual for the Behringer EUROPORT EPS500MP3 500W 8-Channel Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - EUROPORT EPS500MP3 Ultra-Compact 500-Watt 8-Channel Portable PA System

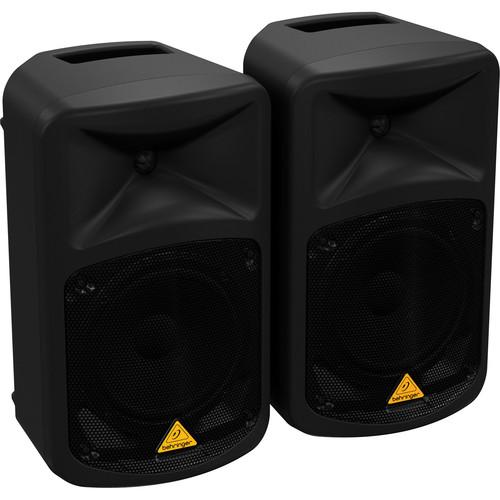

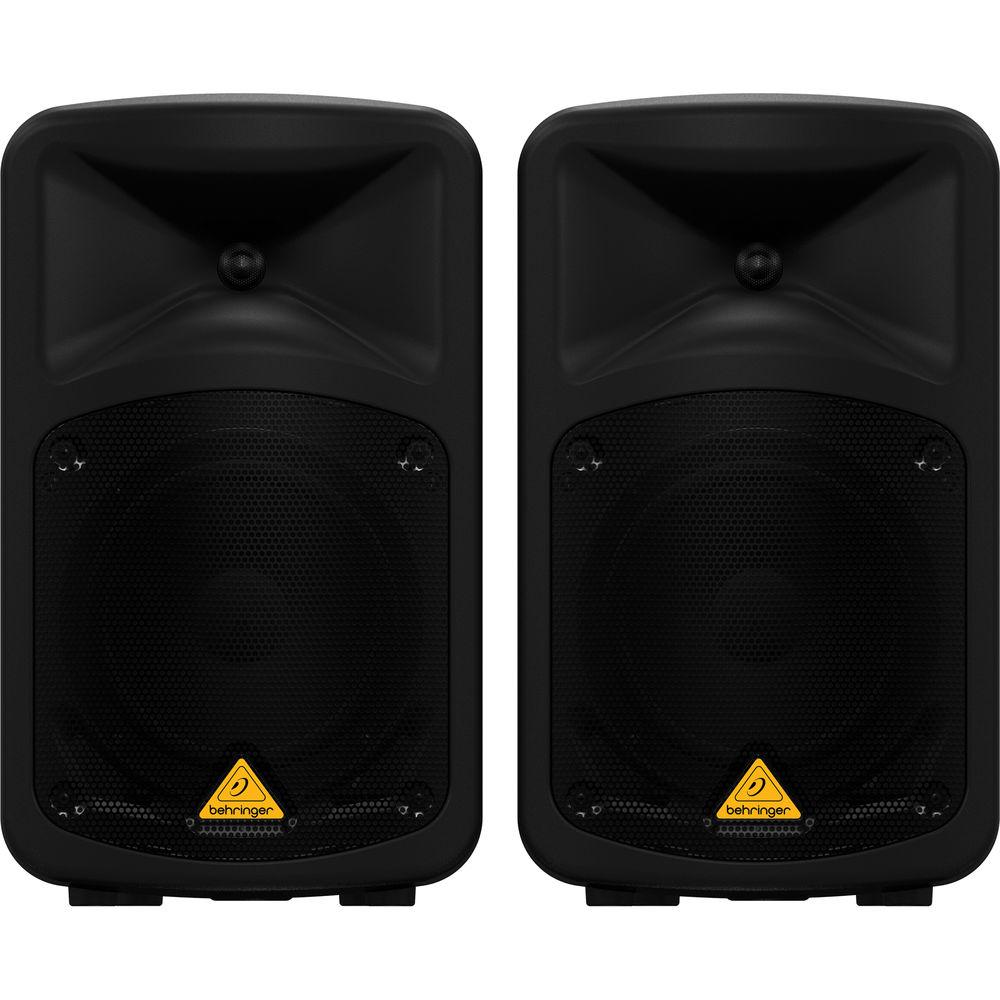

The EUROPORT EPS500MP3 500W 8-Channel Portable PA System from Behringer consists of dual 2-way speakers, an 8-channel detachable mixer, a handheld dynamic microphone with cable, and two 16' speaker cables. It is capable of up to 500 watts of output.

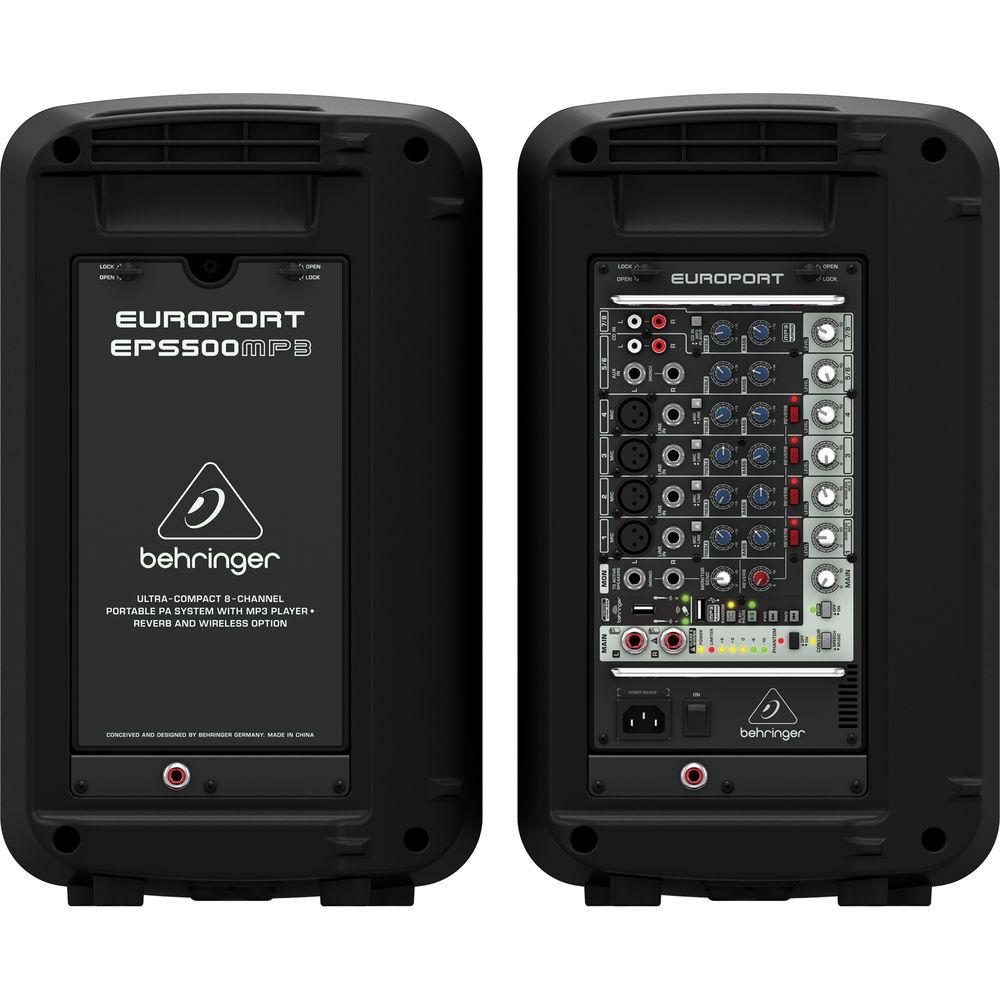

Both of the included speakers feature an 8" woofer and a 1" compression driver. The 8-channel mixer is located on the back of one of the speakers, and can be detached for optimal placement. It has 4 mic/line inputs, 2 stereo inputs, an integrated MP3 player, and is wireless ready for using an optional Behringer ULM series wireless microphone. - 8-channel PA system with dual speakers and detachable 500-watt mixer
- Mixer detaches from speaker for multiple positioning options
- Integrated MP3 player included to play audio files via USB stick
- Wireless ready for Behringer ULM series wireless microphones (sold separately)
- Voice-Over-Priority dims music when mics are used
- 8" woofer and 1" compression transducer
- 4 mic/line inputs & 2 stereo channels
- 4 mics preamps with switchable +48V phantom power
- 2-band EQ on all channels
- Music/Speech system EQ switch
- Built-in storage compartment for microphone, cables, and accessories
- 35mm pole socket for pole mounting
UPC: 713757159517 In the Box Behringer EUROPORT EPS500MP3 500W 8-Channel Portable PA System Dynamic Microphone Microphone Cable 2 x 16' (5 m) Speaker Cables Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROPORT EPS500MP3 500W 8-Channel Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer EPS500MP3 Specs | | | Maximum Output Power | 250 W + 250 W, independent of limiters and driver protection circuits | | Limiter | Optical | | | | Type | 4x XLR, balanced | | Sensitivity | -54 dBV | | Impedance | 2.2 kΩ | | | | Type | 6x 1/4" (6.3 mm) TRS connector, balanced
4x RCA | | Sensitivity | 1/4" TRS: -11 dBV
RCA: -11 dBV | | Impedance | 1/4" TRS: 10 kΩ
RCA: 15 kΩ | | | | Port | USB Type A | | Format | MP3 | | Bit Rates | 8 to 320 kbps | | Sample Rates | 8, 16, 32, 11.025, 22.05, 44.1, 12, 24, 48 kHz | | | | Connector | USB 3.0 | | Frequency Band | 2.400 ~ 2.483 GHz | | Frequency Response | Wireless Link: 20 Hz to 14.7 kHz (+0/-2.5 dB) | | Range | 393.7' (120 m) | | | | Type | 2x 1/4" (6.3 mm) TS, unbalanced | | Impedance | 1 kΩ | | | | Input Trim | -∞ to +16.5 dB | | Maximum Input Level | 26 dBu | | | | Woofer | 8" (209 mm) | | Tweeter | 1" (25.4 mm) | | Frequency Response | 50 Hz to 20 kHz (-10 dB) | | | | Equalizer | High: +/-15 dB @ 10 kHz
Low: +/-15 dB @ 80 Hz | | | | Type | Dynamic | | Frequency Response | 80 Hz to 15 kHz | | | | Voltage | USA/Canada: 100 - 120 V, 50/60 Hz
UK/Australia: 220 - 240 V, 50/60 Hz
Europe: 220 - 240 V, 50/60 Hz
China/Korea: 220 - 240 V, 50/60 Hz
Japan: 100 - 120 V, 50/60 Hz | | Connector | Standard IEC receptacle | | | | Dimensions (HxWxD) | 18.3 x 10.9 x 10.1" (466 x 276 x 257 mm), approximate | | Weight | 41.3 lb (18.8 kg), approximate | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 13.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
