User Manual for Behringer Europort HPA40 40W Handheld PA System Click to enlarge the picture
Contents of the user manual for the Behringer Europort HPA40 40W Handheld PA
- Product category: Personal PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Personal PA Systems
 |
User manual for the Behringer Europort HPA40 40W Handheld PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

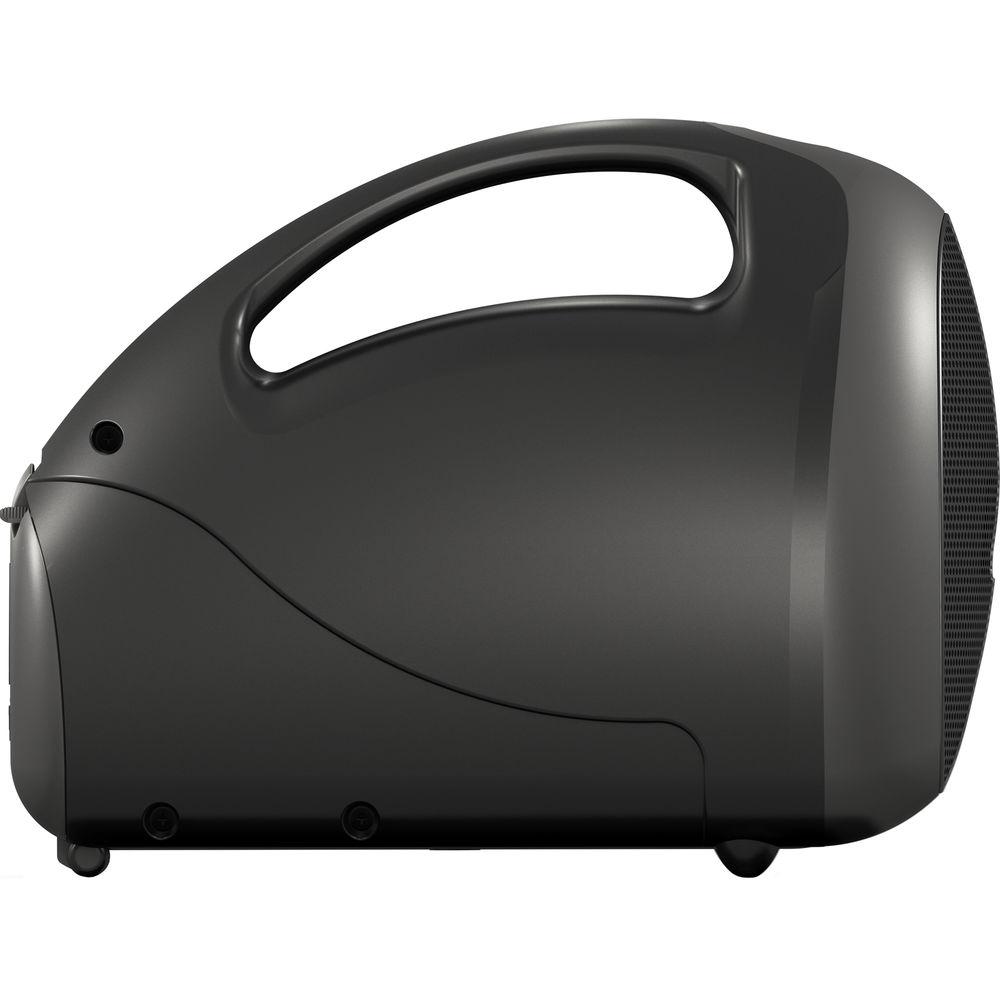

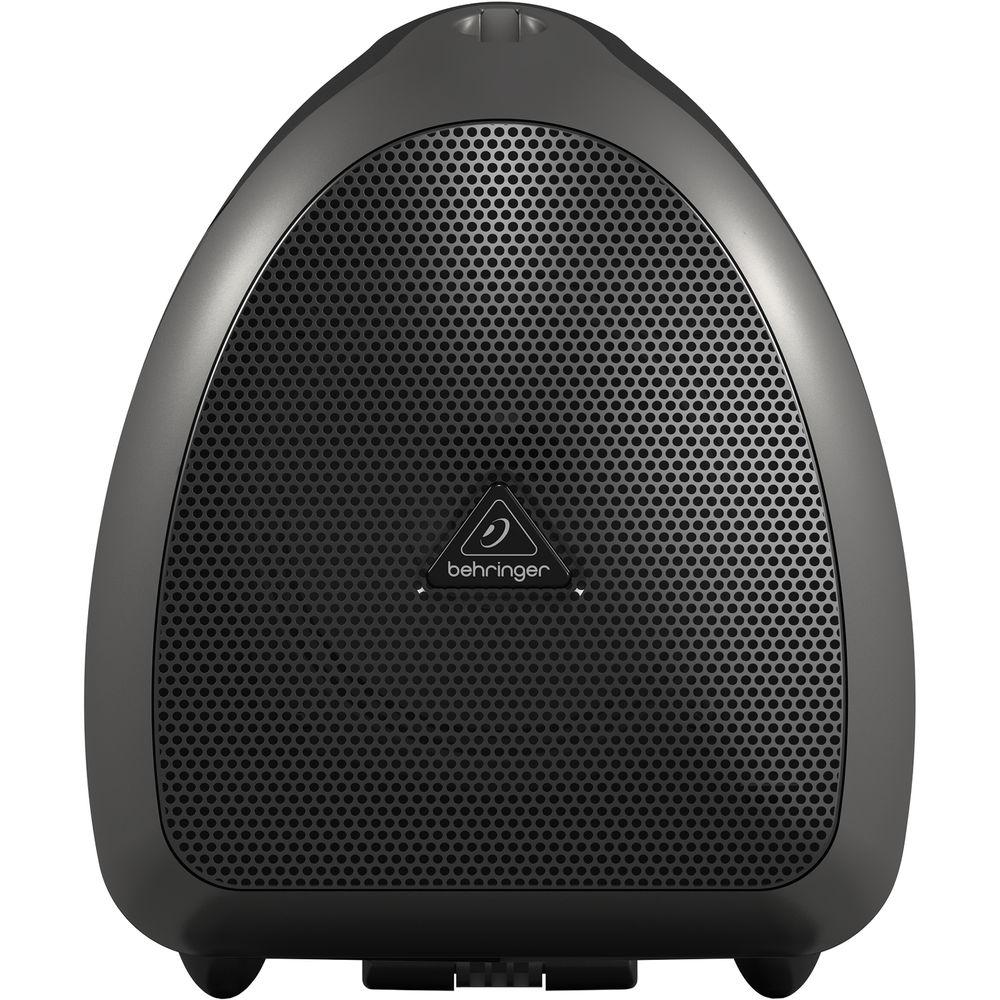

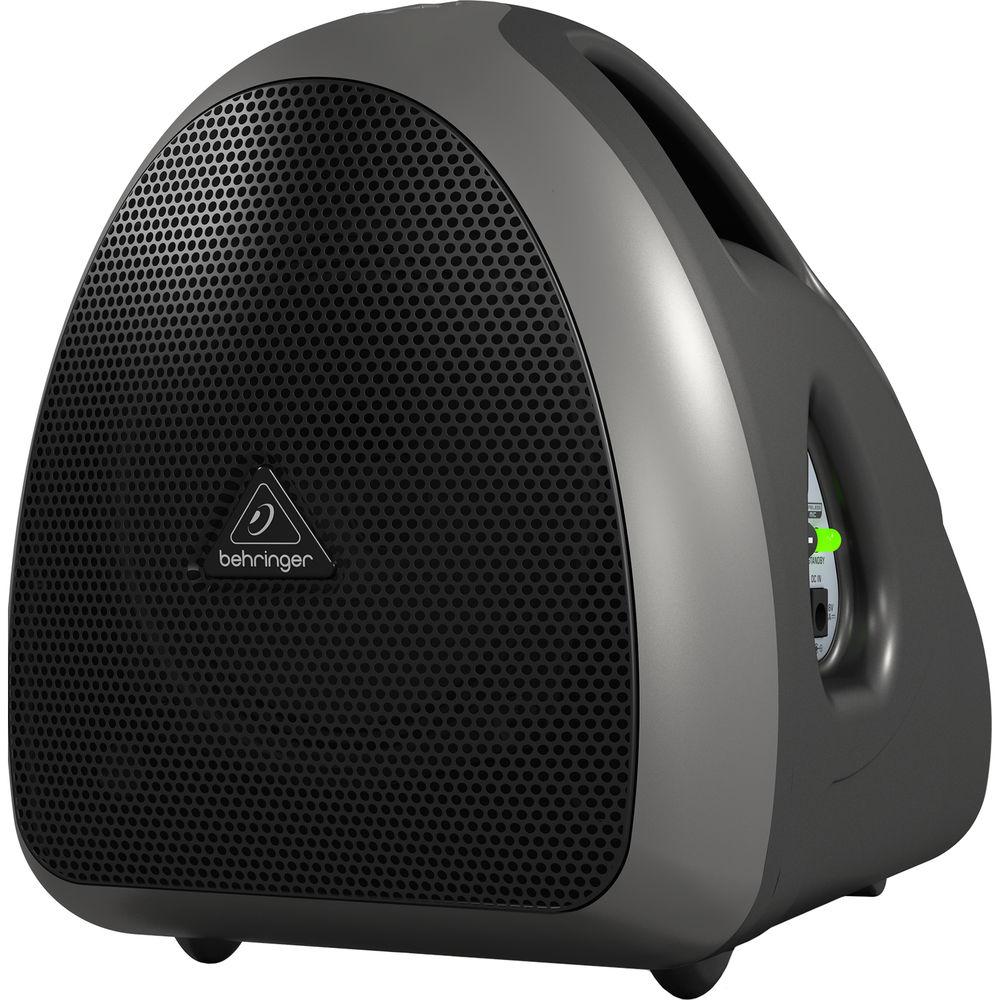

Product description The HPA40 from Behringer is a powerful 40W, handheld PA system designed to raise your voice over a crowd and is well suited for business meetings, sports coaching, tour guides, outdoor activities, classrooms, and more. The system includes a hypercardioid XM1800S microphone and is "wireless ready" for any of the optional Behringer ULM wireless microphones. There are mic and auxiliary inputs for connecting the included mic or any smart device or line-level source. The on-board rechargeable battery offers up to 8 hours of continuous use and is full charged in 8.5 hours. The HPA40 includes an ergonomically designed carrying handle, a shoulder strap, a 3' spiral cable, a charging adapter, and a mic stand adapter. -
- Ultra-compact, portable PA system ideal for business meetings, tour guides, classroom activities, and various other applications
- 5" full-range loudspeaker with enormous power and incredible sonic performance in a super-light package
- AC & battery operated with up to 8 hours continuous use per battery charge
- “Wireless ready" for high-quality Behringer digital wireless microphone system (not included)
- Mic and Auxiliary inputs to connect to your mic, smart phone and other line level sources
- Comes with a Behringer XM1800S microphone, 3' cable, charger and mic stand adapter

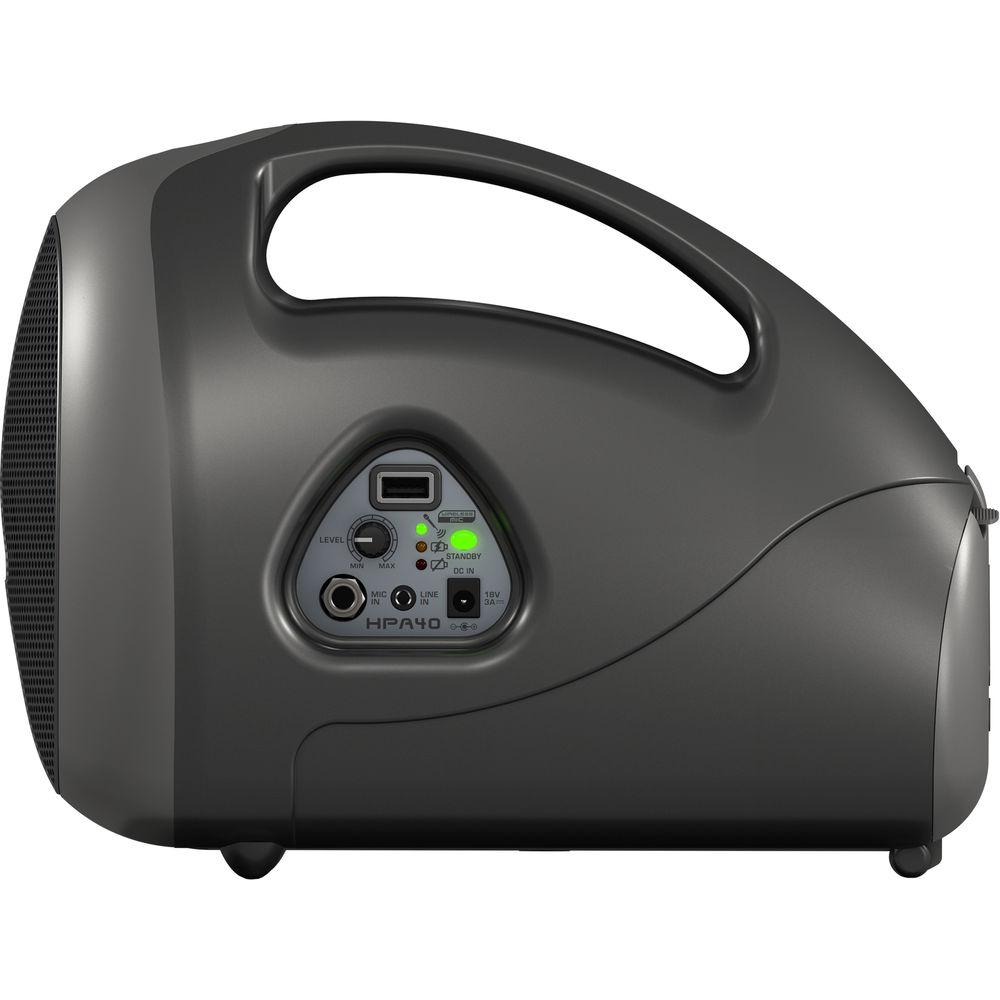

- Power switch, Volume control and battery charge indicator LEDs

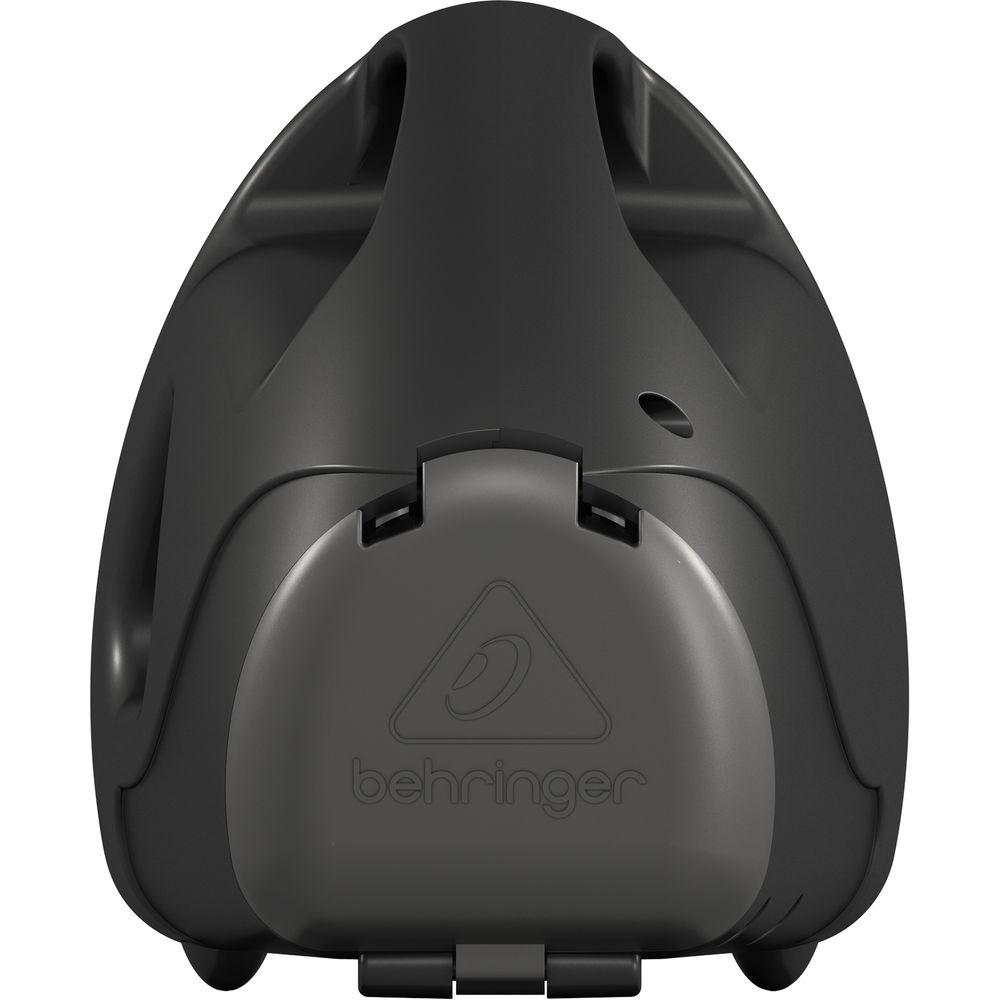

- Convenient battery and shoulder strap compartment
- Ergonomically designed carrying handle and shoulder strap for effortless portability
UPC: 696859054259 In the Box Behringer Europort HPA40 40W Handheld PA System XM1800S Microphone Charger 3' Cable Mic Stand Adapter Shoulder Strap Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europort HPA40 40W Handheld PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer HPA40 Specs | Power Output | Output Power (Adapter/Battery): 50 W / 25 W | | Speakers | Full Range: 5.0" / 12.7 cm | | Wireless (Features) | USB Dongle: USB socket accepts signals from 2 independent Behringer ULM microphones (not included)
Signal Indicator LED: 1 (green) | | Microphone | Type: Behringer XM1800S, dynamic
Pattern: Hypercardioid
Spiral Cable: 3.0' / 0.9 m | | Power | Power Supply: Built-in rechargeable battery
Rechargeable Battery Type; 12 VDC, 2.6 Ah
Charging Time: 8.5 hours (approximate)
Operating Time: up to 8 hours (dependent on output power)
External Power Input: 18 VDC, 3 A
Adapter Input: 100 to 240 VAC, 50/60 Hz, 1.5 or 1.8 A (UL version)
Adapter Output: 18 VDC, 3 A or 18 VDC 3.5 A (UL Version)
Mains Connector: Standard IEC receptacle | | Dimensions (H x W x D) | 8.6 x 7.1 x 11.2" / 21.8 x 18.1 x 28.4 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 13.6 x 11.2 x 9.5" |
