User Manual for Behringer Europort MPA100BT, Portable 100W Bluetooth Speaker with Wireless Handheld Mic Click to enlarge the picture
Contents of the user manual for the Behringer Europort MPA100BT, Portable 100W Bluetooth
- Product category: Portable PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Portable PA Systems
 |
User manual for the Behringer Europort MPA100BT, Portable 100W Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

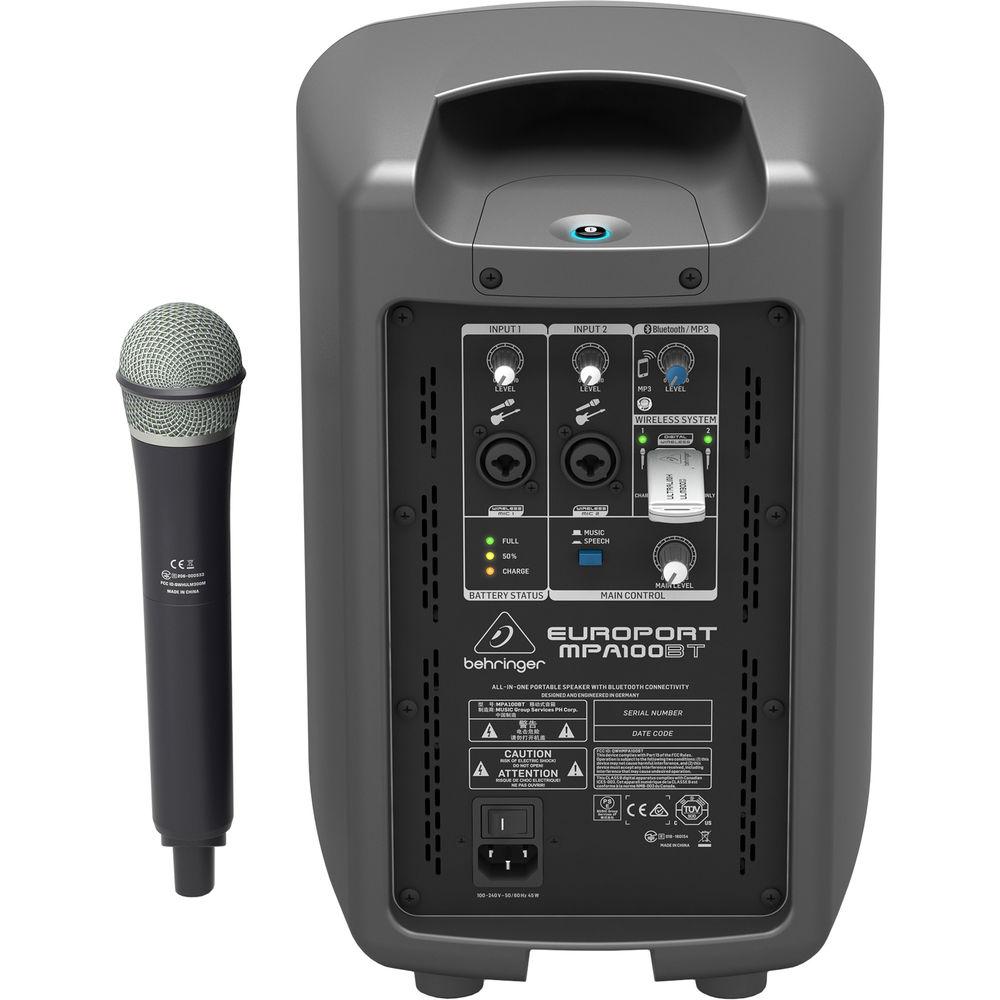

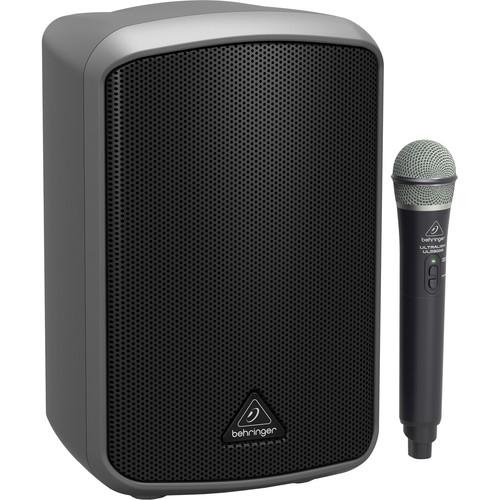

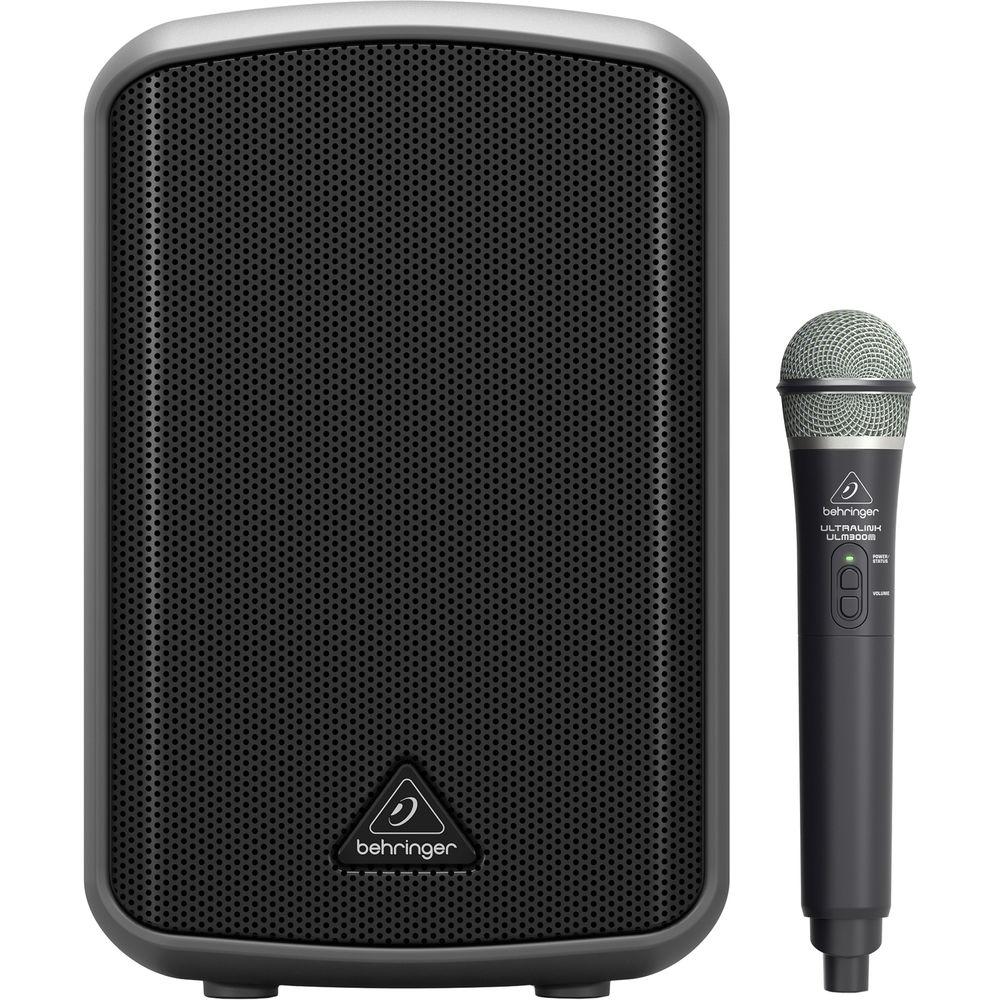

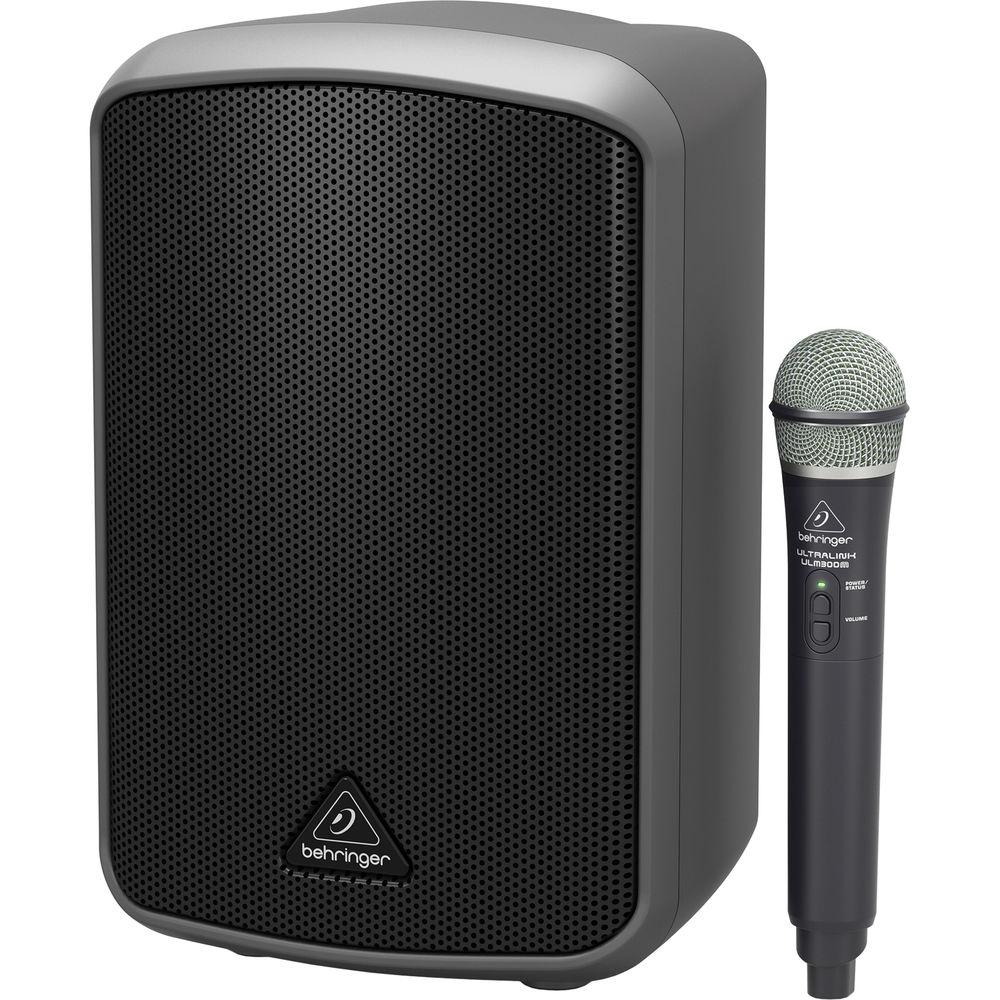

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Europort MPA100BT, Portable 100W Bluetooth Speaker with Wireless Handheld Mic from Behringer is an all-in-one portable 6" speaker with a wireless handheld microphone system and a built-in 4-channel mixer. It can be used as a PA or monitor system for intimate gigs and mid-sized meetings. This PA features Class-D amplifier technology and is built with two XLR-1/4" combo jacks, Bluetooth connectivity – for streaming audio directly from your iOS device – and a USB port for the included UltraLink ULM300USB wireless microphone system. Also, volume control is available for each channel input on the mixer. The Europort MPA100BT runs on battery or AC power and is built with an integrated mount for 35mm poles. Additionally, whether you set your MPA100BT speakers on a table, or mount them on optional speaker stands, you'll enjoy music streaming through this rich-sounding, easy-to-setup system in mere moments. - All-in-one portable PA system with full Bluetooth connectivity
- Easy to set-up and use – no technical background required
- 100 Watts of powerful, high-quality sound for audiences of up to 300 people
- Perfect for parties, schools, corporate and educational presentations, seminars, aerobics, auctioneers, working musicians, tour guides, weddings, etc.
- High-performance Behringer ULM digital wireless microphone system included
- Connect your iPod, iPhone, iPad or any other MP3 player via Bluetooth
- AC and battery operated with up to 20 hours of continuous use per battery charge
- 4-channel mixer with individual volume control to connect to your mic, smartphone, and other line level sources
- Music/Speech switch to set overall system equalization
- Powerful 6" woofer and high-resolution tweeter driven by a Class-D amplifier
- Integrated mount with 35mm pole socket
- "Planet Earth" switching power supply for maximum flexibility (100 to 240 VAC) and low power consumption for energy savings
UPC: 748252179340 In the Box Behringer Europort MPA100BT, Portable 100W Bluetooth Speaker with Wireless Handheld Mic Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver vdxbawqafeyxdttbzya Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europort MPA100BT, Portable 100W Bluetooth Speaker with Wireless Handheld Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MPA100BT Specs | Maximum Output Power | 100 W | | Speaker | Woofer: 6" (15 cm)
Tweeter: 0.75" (1.9 cm) | | Frequency Response | 65 Hz to 18 kHz (±3 dB)
Music/Speech: Switchable | | Inputs | 2 x XLR-1/4" (6.3 mm) combo inputs (server-balanced) | | Input Impedance | XLR: 2 kOhms, balanced/21 kOhms, unbalanced
1/4": 1 MOhms, unbalanced | | Maximum Input Level | -10 dBu balanced/16 dBu unbalanced | | Level Controls | Input Trim: ∞ to 35 dB
Bluetooth/MP3 Level Control: ∞ to +6 dB
Main Level Control: ∞ to +10 dB | | USB | USB socket accepts signals from ULM300USB | | Mixer | 4 x channels with volume control for each channel | | Signal Indicator | 2 x LED (green) | | Bluetooth/MP3 | Frequency Range: 2402 MHz to 2480 MHz
Channel Number: 79
Version: Bluetooth 3.0
Output: Class-2 type output power
Compatibility: Supports A2DP 1.2 profiles | | Battery | Built-In Rechargeable: 12 VDC/8000 mAh
Charging Time: Approximately 6 to 8 hours
Operating Time: Up to 20 hours
Battery Status Indicator: Low <25% (red), 50% (yellow), 75% and 100% (green) | | Power Supply | 100 to 240 VAC, 50/60 Hz
Power Consumption @ 1/8 Max Power: 45 W
Mains Connection: Standard IEC receptacle | | Dimensions (H x W x D) | 14.7 x 9.5 x 9.0" (37.3 x 24.1 x 22.9 cm) | | Weight | 18.7 lb (8.5 kg) | | | | Package Weight | 22.83 lb | | Box Dimensions (LxWxH) | 19.5 x 13.0 x 12.5" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer Europort MPA100BT, Portable 100W Bluetooth Speaker with Wireless Handheld Mic
| Subject: Battery indicator lights | | Date: 07.01.2022 08:37:44 | Name: Laurence West | Hi guys I have a Behringer Europort mpa 100 Bt
When charged up ,the three lights light up after 30 minutes of operation only red light is lit as if flat
But will keep operating for up to or close to twenty hours ,unless it is turned of beforehand and then will not start again as if it is flat “weird”
Any explanation would be much appreciated
Was purchased 3 years ago
Cheers Laurence | | Post reply |
