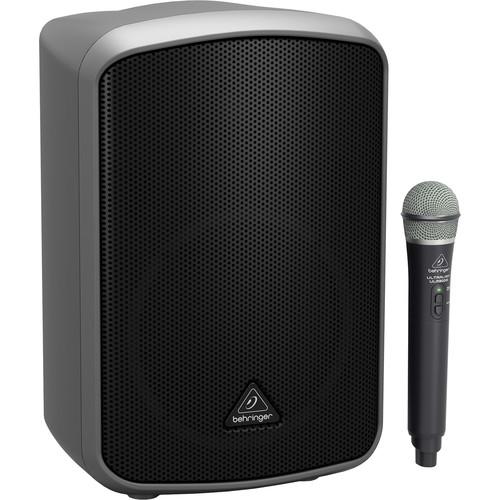

User Manual for Behringer Europort MPA200BT 8" 200W Portable Bluetooth Speaker with Wireless Handheld Mic Click to enlarge the picture
Contents of the user manual for the Behringer Europort MPA200BT 8" 200W Portable
- Product category: Portable PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Portable PA Systems
 |
User manual for the Behringer Europort MPA200BT 8" 200W Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Behringer Europort MPA200BT is a portable PA system that includes the company's Ultralink ULM300USB USB digital wireless system with a handheld dynamic microphone. The 8" woofer and high-resolution tweeter are driven by a Class-D amplifier capable of delivering 200W of power to audiences of up to 500 people at parties, schools, corporate and educational presentations, weddings, and more. The MPA200BT supports Bluetooth audio streaming and features a variety of other input options including two combo XLR-1/4" TRS mic/instrument inputs and an 1/8" aux input. The built-in digital mixer with LCD display offers DSP functions such as a 3-band EQ and presets for a variety of applications. All settings can be controlled via dedicated free apps (available separately) for both Android and iOS Bluetooth-enabled devices. The unit is equipped with a rechargeable battery that provides up to 20 hours of continuous use on a full charge. It can also operate on AC with a "Planet Earth" auto-switching power supply optimized for energy saving. - Key Features
-
- All-in-one portable PA system with full Bluetooth connectivity
- Perfect for parties, schools, corporate and educational presentations, seminars, aerobics, auctioneers, working musicians, tour guides, weddings, and more
- Simple to set-up and use—no technical background required
- 200W of powerful, high-quality sound for audiences up to 500 people
- Powerful 8" woofer and high-resolution tweeter driven by a Class-D amplifier
- Ultralink ULM300USB digital wireless microphone system—includes the ULM300M handheld microphone and ULM300D dual-mode USB receiver
- Bluetooth stereo audio streaming
- AC- and battery-operated with up to 20 hours of continuous use on a full battery charge
- Two instrument/mic combo jacks accept input signals over XLR balanced, 1/4" TRS balanced, or 1/4" TS unbalanced connectors
- 1/8" stereo aux input to connect smartphones and MP3 players
- 4 x channel inputs with individual volume control
- 4-channel digital mixer with gain setting recall
- DSP with bass, mid, treble controls and Music, Live, Speech, and Club presets
- Intuitive user interface with encoder knob and LCD display for ease of navigation
- Output jack sends a combined signal from all inputs (inst/mic jacks, wireless microphone, Bluetooth, and aux jack) out over a balanced XLR connection
- Comprehensive wireless remote control via dedicated free apps (available separately) for both Android and iOS Bluetooth-enabled devices
- Integrated stand mounting with 35mm pole socket
- "Planet Earth" auto-switching power supply for maximum flexibility (100 to 240 VAC) and low power consumption for energy saving
- Designed and engineered in Germany
UPC: 748252179449 In the Box Behringer Europort MPA200BT 8" 200W Portable Bluetooth Speaker with Wireless Handheld Mic Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver zqtfztwczfrrttzcdassqsrzttyzvvtxvxa Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europort MPA200BT 8" 200W Portable Bluetooth Speaker with Wireless Handheld Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MPA200BT Specs | Amplifier | Maximum Output Power: 200 W
Type: Class-D | | Speaker | Woofer: 8.00" (20.32 cm)
Tweeter: 1" (2.54 cm) | | Frequency Response | 70 Hz to 20 kHz (±3 dB)
| | Inputs | 2 x XLR-1/4" (6.3 mm) TRS combo inputs (servo-balanced)
1 x 1/8" (3.5 mm) stereo aux input | | Input Impedance | XLR: 2 kOhms, balanced / 20 kOhms, unbalanced
1/4" TRS: 1 MOhm, unbalanced | | Maximum Input Level | XLR, 1/4" TRS: -9 dBu balanced / +15 dBu unbalanced
1/8" Aux: +10 dBu, stereo | | Output | 1 x XLR, balanced | | Level Controls | Input Trim: ∞ to +10 dB
Bluetooth: ∞ to 0 dB
Aux Level Control: ∞ to +10 dB
Main Level Control: ∞ to +10 dB | | DSP | Audio Optimization: Music, Live, Speech, Club modes
Bass: -10 dB to +10 dB at 80 Hz, shelving
Mid: -10 dB to +10 dB at 1 kHz, shelving
Treble: -10 dB to +10 dB at 12 kHz, shelving | | Display | 128 x 32, LCD amber backlit
Rotary push encoder
Buttons for process, setup, exit, enter | | Wireless | USB socket accepts signals from Ultralink ULM300USB digital wireless mic system
Signal Indicator LED: 2, green | | Bluetooth/MP3 | Frequency Range: 2402 MHz to 2480 MHz
Channel Number: 79
Version: Bluetooth 4.0
Output: Class-2 type output power
Compatibility: Supports GATT and A2DP 1.2 profiles | | Battery | Built-In Rechargeable: 12 VDC / 12 Ah
Charging Time: Approximately 8 to 10 hours
Operating Time: Up to 20 hours | | Power Supply | 100 to 240 VAC, 50/60 Hz
Power Consumption at 1/8 Maximum Power: 100 W
Mains Connection: Standard IEC receptacle | | Dimensions (H x W x D) | 11.0 x 10.1 x 16.5" (280 x 257 x 420 mm) | | Weight | 26.6 lb (12.1 kg) | | | | Package Weight | 31.1 lb | | Box Dimensions (LxWxH) | 21.5 x 14.0 x 13.5" |
