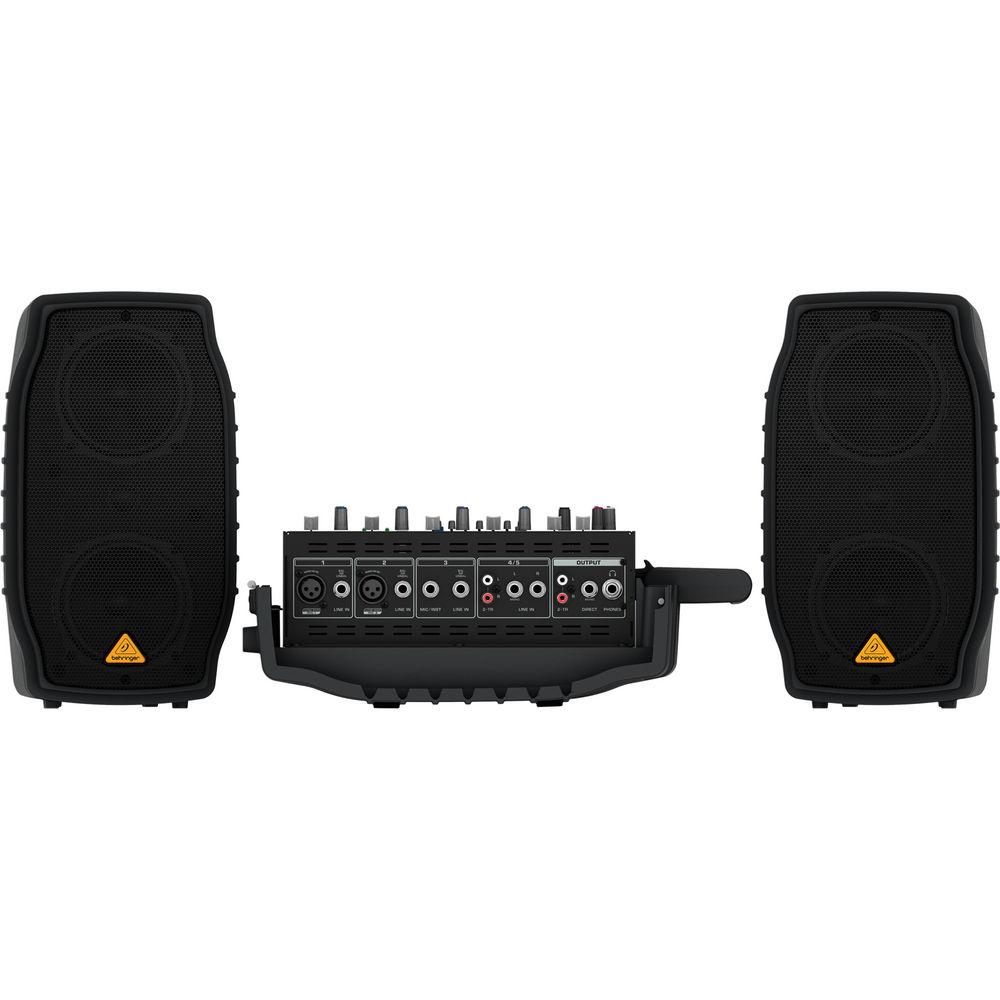

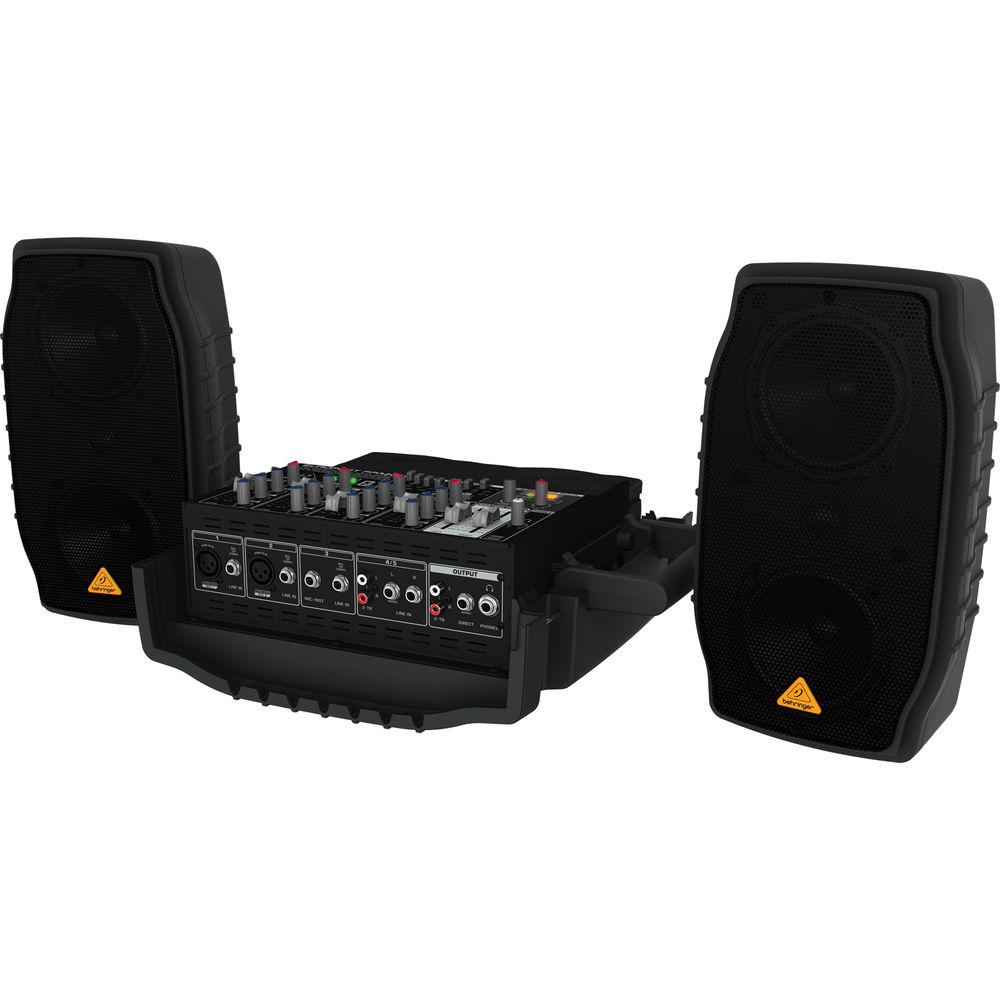

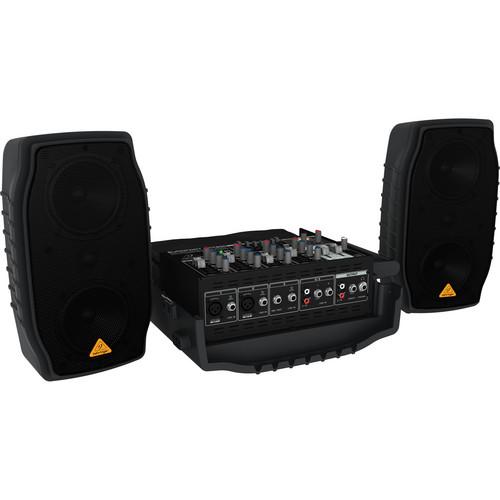

User Manual for Behringer EUROPORT PPA200 - 200W 5-Channel Portable PA System with Wireless Option Click to enlarge the picture
Contents of the user manual for the Behringer EUROPORT PPA200 - 200W 5-Channel
- Product category: Portable PA Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Portable PA Systems
 |
User manual for the Behringer EUROPORT PPA200 - 200W 5-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - EUROPORT PPA200 Portable PA System

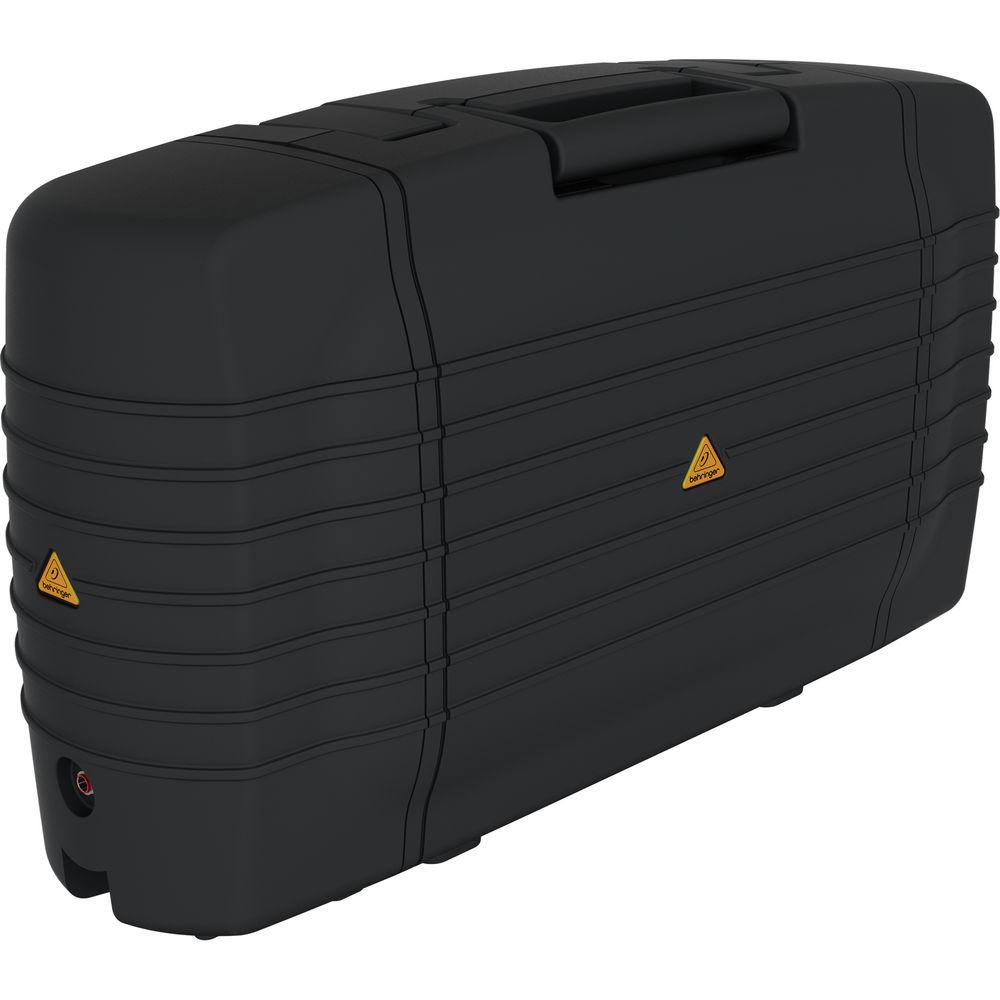

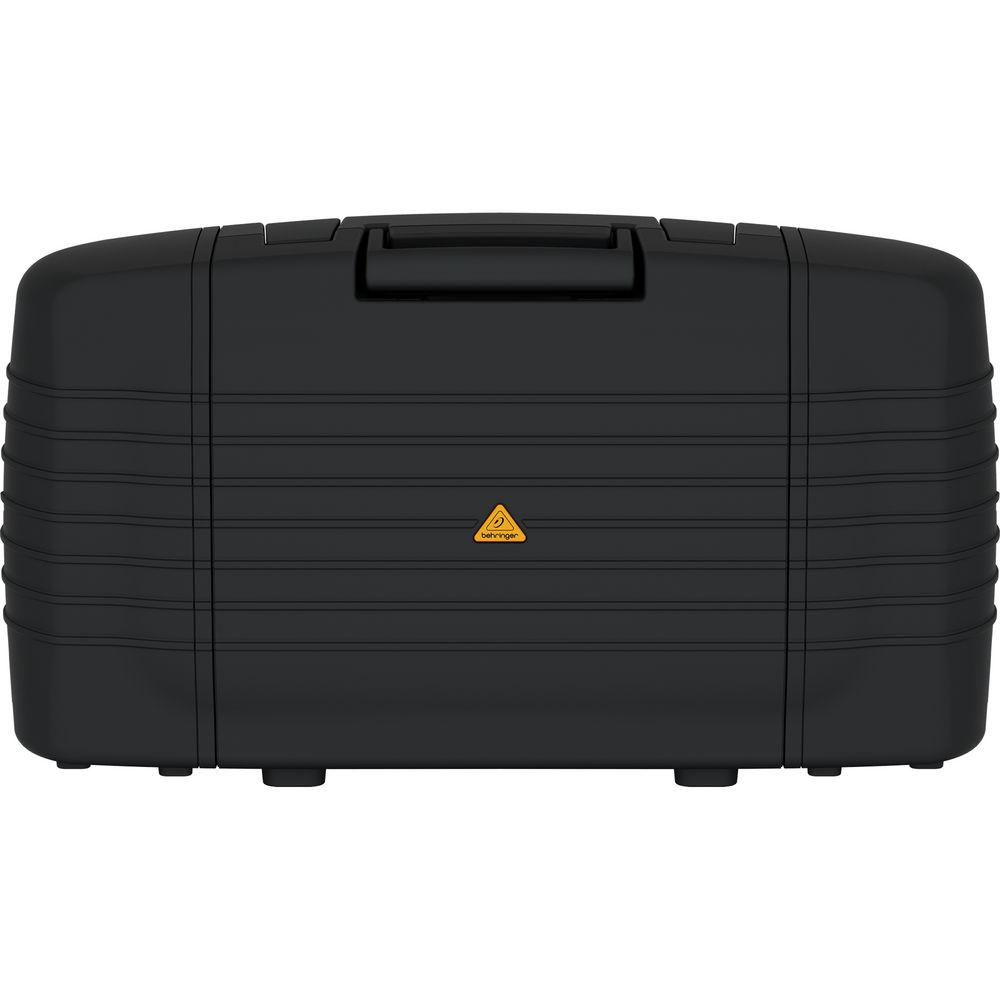

The 5-channel Behringer EUROPORT PPA200 features quality sound in a compact, portable briefcase-style 200-watt PA system that is designed to be fast and easy to set up. Intended for corporate events, seminars, working musicians and more, the EUROPORT PPA200 comes with compact speakers that each contain a 4" woofer and a 1" tweeter. It has inputs for 2 microphones, an mp3 player, or up to 5 musical instruments.

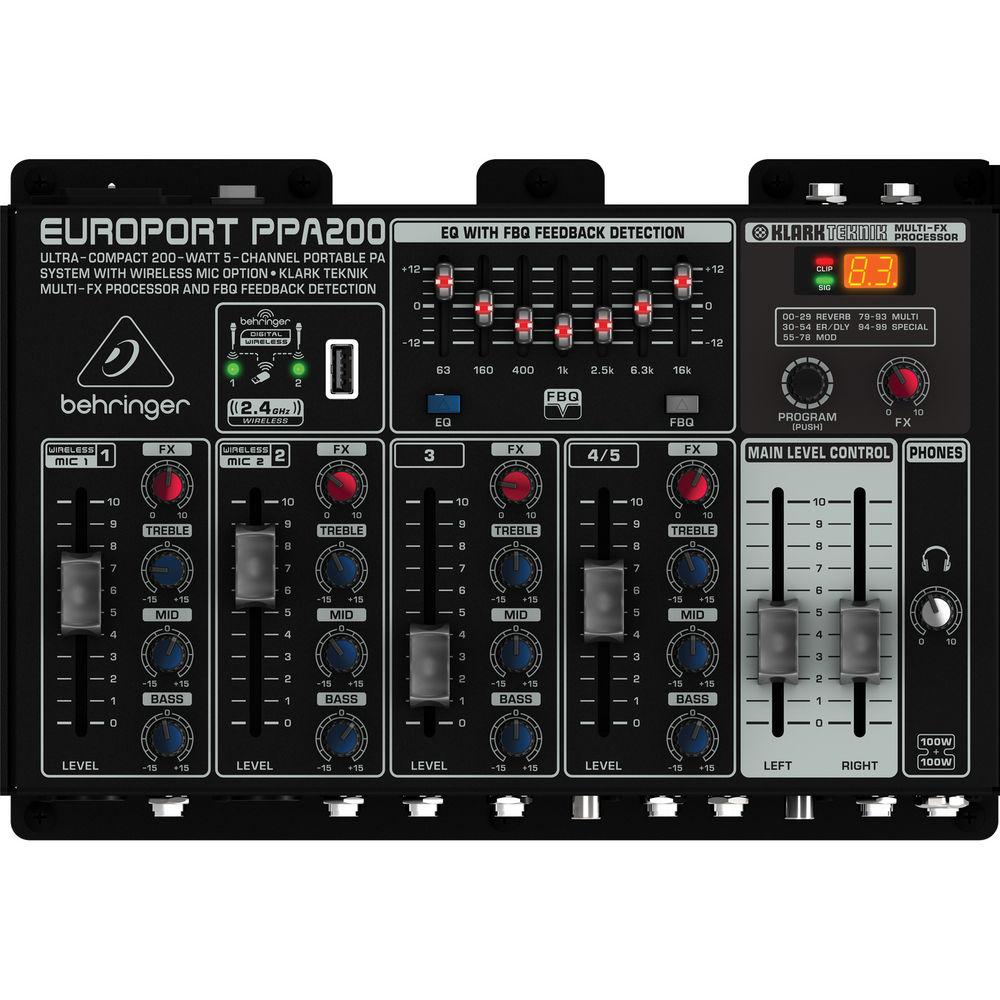

The unit also features a KLARK TEKNIK effects processor with 100 presets including reverb, chorus, flanger, delay, pitch shifter and more. The FBQ Feedback Detection System is designed to reveal frequencies that are causing feedback so they can then be attenuated with the built-in stereo 7-band graphic EQ.
The EUROPORT PPA200 is also "wireless-ready" for use with the Behringer ULM digital wireless microphones (not included). The package also comes with a BEHRINGER XM1800S microphone, mic clip and 20' cable. - Compact speakers each contain 4" woofer and a 1" tweeter, 17 mm stand insert suitable for use with standard microphone stand and come with 12' cables
- Two "Invisible" mic preamps with phantom power for condenser microphones, 1 mic/inst channel and 1 stereo channel with separate Aux input
- Switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings
UPC: 696859054242 In the Box Behringer EUROPORT PPA200 - 200W 5-Channel Portable PA System with Wireless Option XM1800S Microphone Accessory Pouch 1/8" Mini-Plug-to-Stereo RCA Adapter 20' (6.1 m) Mic Cable Mic Clip 2 x Speaker Cable Limited 10-Year Warranty PPA200 User's Manual PDF 3.1mbbcdeqcyrxvaqubwstzafdfrxzwfdzyaut Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer EUROPORT PPA200 - 200W 5-Channel Portable PA System with Wireless Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

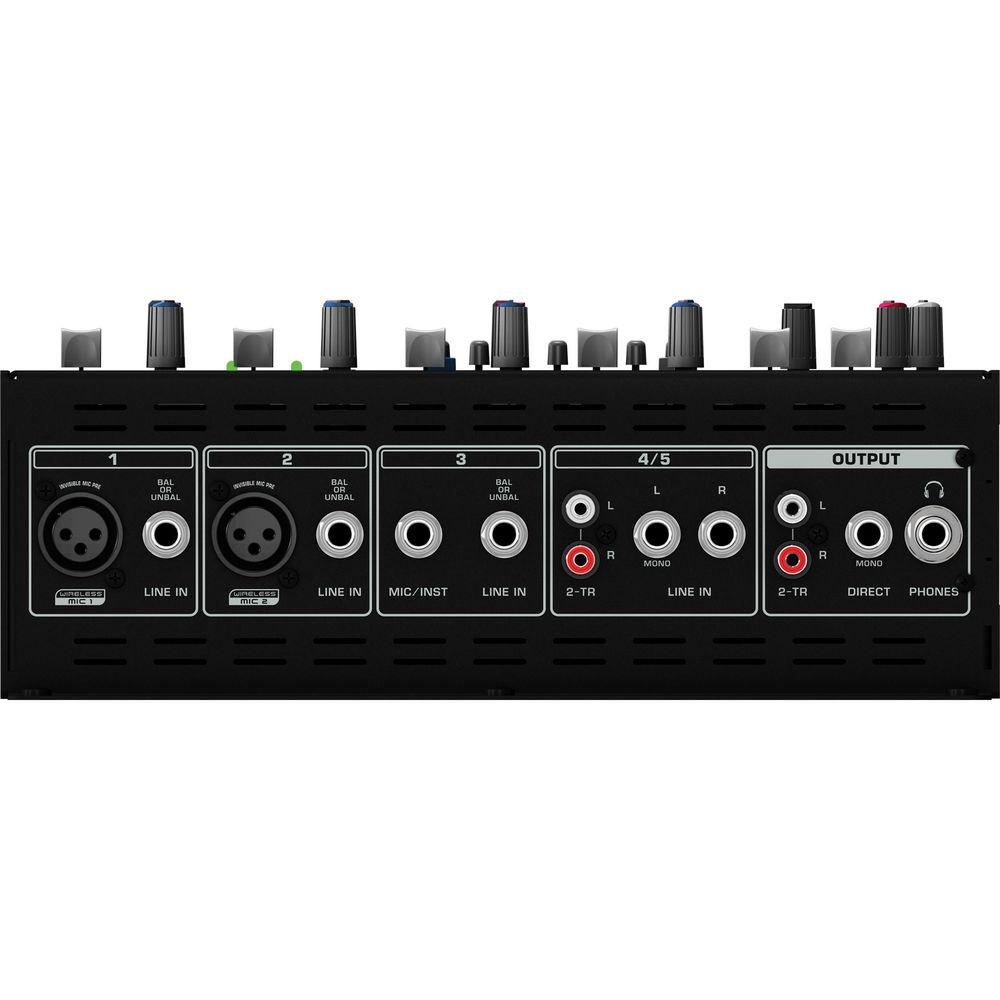

Technical parametersBehringer PPA200 Specs | Inputs | 2x XLR
3x 1/4" TRS, balanced
1x 1/4" TS, unbalanced
2x RCA, unbalanced
1x 2-channel Behringer ULM digital wireless | | Outputs | 2x RCA, unbalanced
1x 1/4" TS, unbalanced mono
1x 1/4" TRS, stereo | | Wireless | USB dongle (not included): USB socket accepts signals from max. 2x Behringer ULM mics
Signal indicator LED: 2 (green) | | Maximum Power Output | 2x 100 W @ 4 ohms | | Frequency Response | 40 Hz to 25 kHz | | Signal to Noise Ratio | 85 dB, A-weighted | | Outputs | 1/4" TS, left and right | | Speakers | 4" woofer and 1" tweeter | | Function Controls | FBQ: Activates the FBQ Feedback Detection System
EQ: Activates graphic EQ | | EQ Type | 7-band graphic | | Effects | Type: Klark Teknik
Converter: 24-bit Delta-Sigma
Sampling frequency: 40 kHz

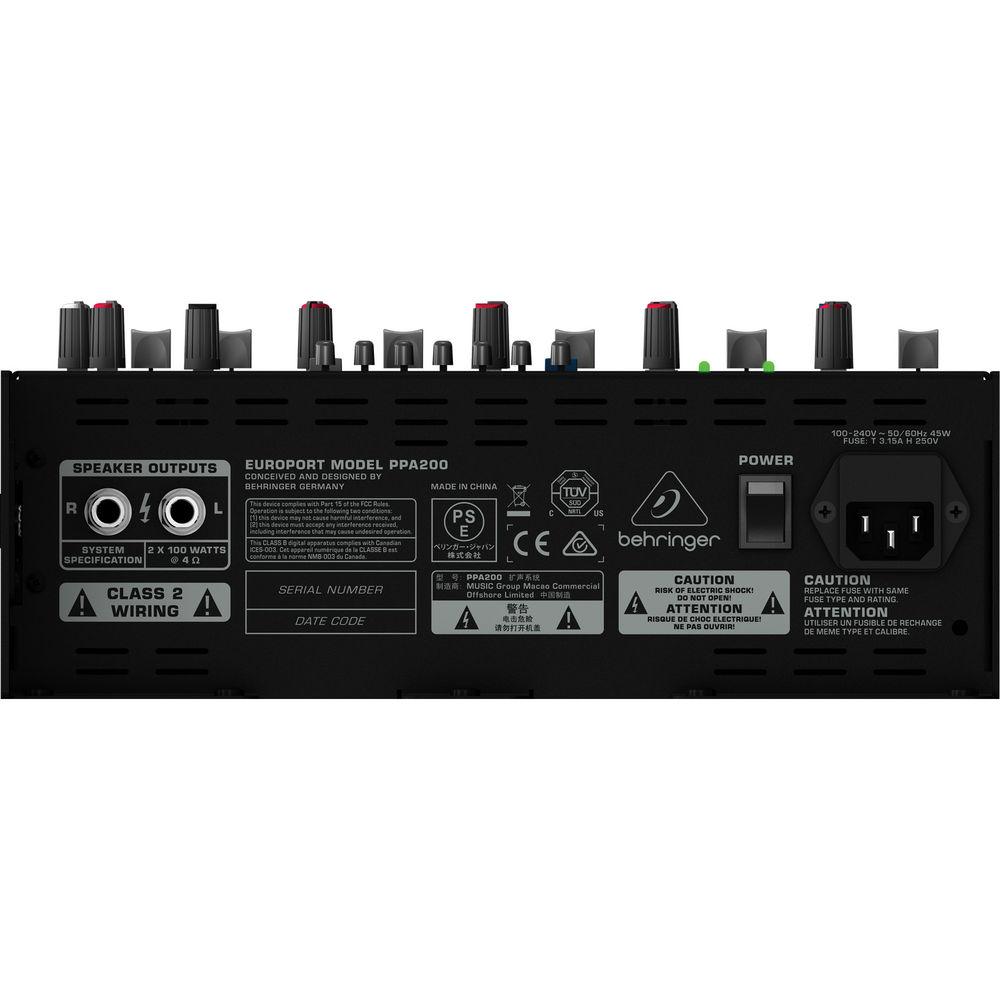

Display: 2-digit, 7-segment | | Power Supply | USA/Canada: 100-120 V~, 50/60 Hz (T3.15 A H 250 V)
Japan: 100 V~, 50/60 Hz (T3.15 A H 250 V)
UK/Australia/Europe/Korea/China: 220-240 V~, 50/60 Hz (T3.15 A H 250 V)
Power consumption @ 1/8 rated power: 45 W
Mains connection: Standard IEC receptacle | | Dimensions | 13.4 x 24.1 x 7.3" (339 x 613 x 186 mm) | | Weight | 26.5 lb (12.0 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 29.0 x 16.0 x 9.0" |
