User Manual for Behringer Europower EP4000 Professional Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Behringer Europower EP4000 Professional Stereo Power
- Product category: Power Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Power Amplifiers
 |
User manual for the Behringer Europower EP4000 Professional Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

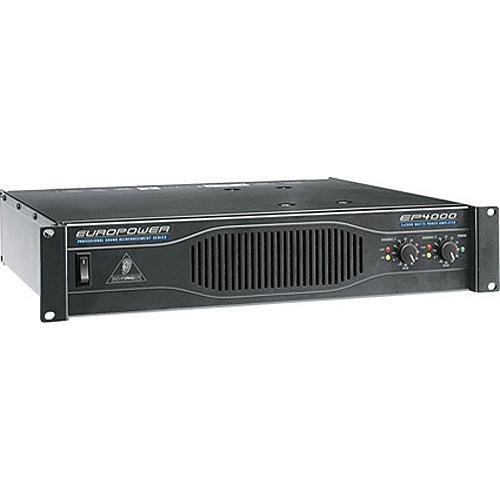

Product description The Europower EP4000 from Behringer is a professional-quality rack mount stereo power amplifier designed for installed applications. The rugged all-steel chassis houses a high-current toroidal transformer and Toshiba/Fairchild power transistors for rock-solid reliability and an ultra-high transient response.

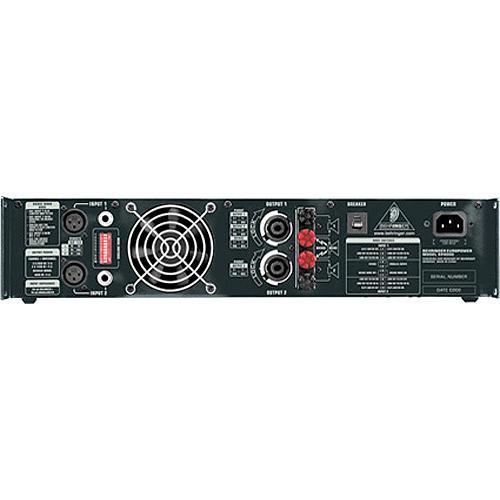

The rear panel of the unit has both XLR and 1/4" inputs, and Speakon and Binding Post outputs, allowing you to connect to virtually any sound system. The system has rear-to-front ventilation to keep the components cool. Protection circuitry protects the unit against overheating and DC overload.
The amplifier also has independent limiters to prevent distortion, front-panel gain controls for each channel, selectable LF filters to reduce hum, and LED lights for monitoring power, signal, and clip status. - Professional-quality rackmount stereo power amplifier for installed applications
- All-steel chassis for a long lifespan
- High-current toroidal transformer and Toshiba/Fairchild power transistors provide terrific reliability and high transient response
- XLR and 1/4" input connectors
- Speakon and touch-proof Binding Post outputs
- Rear-to-Front ventilation system with air filter for cool, reliable operation
- Built-in protection circuitry guards against overheating and DC overload
- Power, Signal, and Clip LEDs for easy monitoring
- Front-panel gain control knobs
- Independent limiters on each channel to prevent overload and distortion
- Selectable LF filters remove hum and other distracting low-frequency sounds
UPC: 689076150514 In the Box Behringer Europower EP4000 Professional Stereo Power Amplifier (750W/Channel @ 8 Ohms) Power Cable Limited 10-Year Warranty User Manual PDF 1.1mbbffaqvrfcevrxateb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europower EP4000 Professional Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer EP4000 Specs | Power Rating | 8 Ohms: 750W
4 Ohms: 1400W
2 Ohms: 2000W
8 Ohms Bridged: 2800W
4 Ohms Bridged: 4000W | | Damping Factor | > 300 @ 8 Ohms | | Input Sensitivity | 1.23V (+4dBu) | | Input Impedance | 10 kOhms (Unbalanced)
20 kOhms (Balanced) | | Gain | 34dB (50x) | | Frequency Response | 20Hz - 20kHz, +0/-1dB (10dB Below Rated Power) | | Signal-to-Noise Ratio | -100dB, Unweighted | | Total Harmonic Distortion (THD) | < 0.02% | | Input Connectors | 2 x XLR Inputs
2 x 1/4" Inputs | | Output Connectors | 2 x Speakon Outputs
2 x Touch-Proof Binding Post Outputs | | Controls Front Panel | 1 x Power Switch
2 x Gain Control Knobs | | Controls Rear Panel | 10 x Mode Selector DIP Switches
10 x Limiter/Filter DIP Switches | | Indicators | 1 x Power LED
2 x Clip LEDs
2 x Signal LEDs | | Cooling | Continuously Variable Speed Fan
Back-to-Front Airflow | | Power Consumption | 2600W | | Power Requirements | 100-120 V~, 50/60Hz 15A | | Dimensions (HxWxD) | 3.5 x 19 x 15.8" (88 x 483 x 402mm) | | Weight | 36.6 lbs (16.6kg) | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 23.5 x 22.0 x 7.0" |
