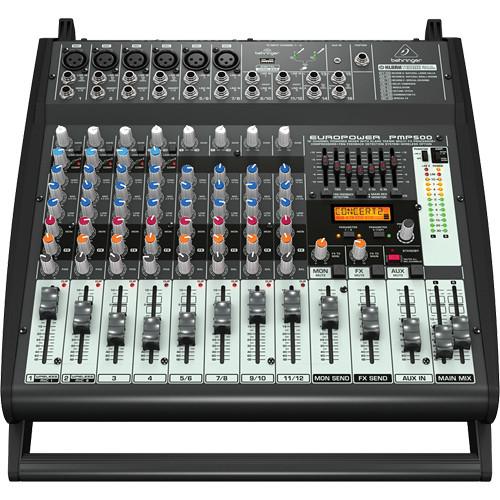

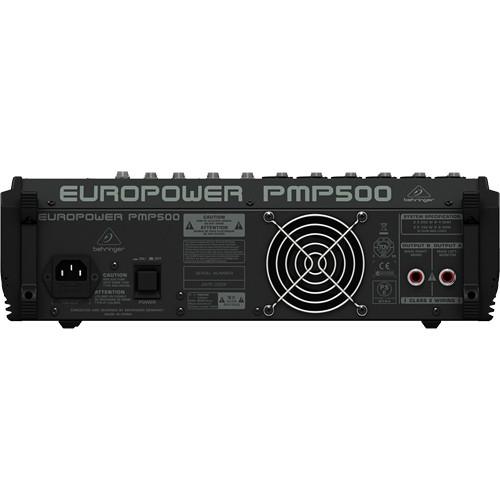

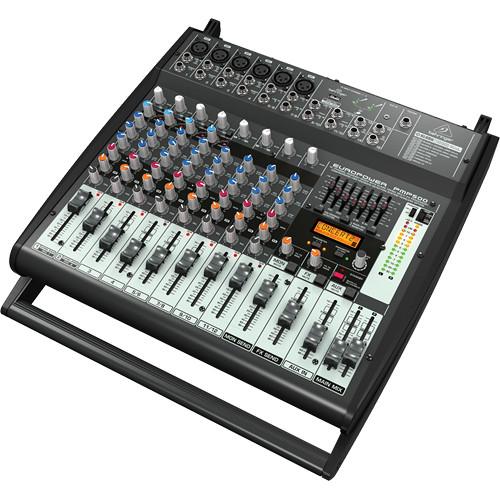

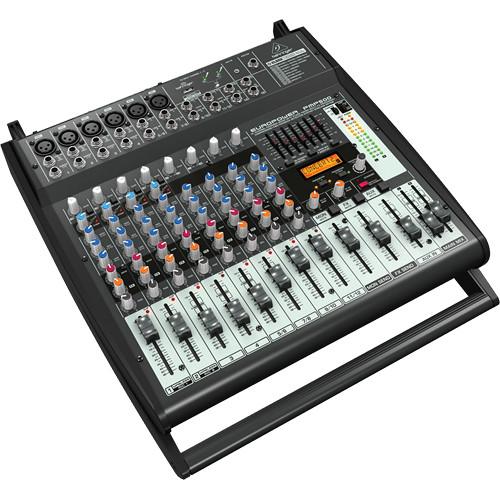

User Manual for Behringer Europower PMP500 500-Watt 12-Channel Powered Mixer Click to enlarge the picture
Contents of the user manual for the Behringer Europower PMP500 500-Watt 12-Channel Powered
- Product category: Sound Reinforcement Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Sound Reinforcement Mixers
 |
User manual for the Behringer Europower PMP500 500-Watt 12-Channel Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Europower PMP500 500-Watt 12-Channel Powered Mixer from Behringer features dual 250-watt Class D amplifiers with four mono inputs, six stereo channels, and a 1/8" auxiliary input. It can be used for smaller clubs, boardrooms, or in houses of worship. The PMP500 has six mic preamps alongside eight 1/4" line level inputs. An additional two stereo 1/4" and 1/8" auxiliary inputs provide a variety of routing and input options.
Each of its 12 mixer channels features a 3-band EQ as well as a single-knob compressor. The master section has an incorporated Klark Teknik effects processor and a 7-band graphic EQ that allows you to shape the tone of your output signal. The PMP500 features a USB port that enables the mixer to be directly compatible with Behringer's UltraLink ULM series wireless system without taking up an analog input. - The FQB Feedback Detection system reveals critical frequencies for easy feedback removal. The graphic EQ sliders will light up to indicate problem frequencies
- "Wireless Ready" for optional Behringer ULM series wireless system
- 3-band EQ, low-cut filter and clip LEDs on all mono channels
- Stereo 7-band master graphic EQ
- Stereo or dual mono amp operation
- Standby switch mutes all mic channels for breaks between sets or performances
- Internal switch-mode power supply
UPC: 713757159418 In the Box Behringer Europower PMP500 500-Watt 12-Channel Powered Mixer Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europower PMP500 500-Watt 12-Channel Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer PMP500 Specs | | | Type | 6x Electronically balanced XLR | | EIN | @ 0 Ω: -122 dB/ -125 dB A-weighted
@ 50 Ω: -122 dB/ -125 dB A-weighted
@ 150 Ω: -121 dB/ -124 dB A-weighted | | Gain | 29 dB
9 dB (with pad) | | Maximum Input Level | 12 dBu @ 10 dB gain | | Impedance | Balanced: 2.0 kΩ
Unbalanced: 1.0 kΩ | | Phantom Power | 15 V | | | | Type | 14x Mono 1/4" (6.35 mm) TRS
1x 1/8" (3.5 mm) auxiliary input | | Impedance | Balanced: 20 kΩ (approximate)
Unbalanced: 10 kΩ | | Maximum Input Level | 21 dBu | | | | EQ Type | Low: +/- 15 dB @ 80 Hz (per mono channel)
High: +/- 15 dB @ 12 kHz (per mono channel)
Master 7-band graphic EQ | | | | Noise | Main mix @ ∞, channel fader @ ∞: -106 dB/ -110 dB A-weighted
Main mix @ 0 dB, channel fader @ ∞: -87 dB/ -90 dB A-weighted
Main mix @ 0 dB, channel fader 0 dB: -80 dB/ -82 dB A-weighted | | Frequency Response | 20 Hz to 20 kHz (+ 0 / - 3 dB) | | | | Maximum Power Output | 2x 250 W | | | | Type | 2x 1/4" (6.35 mm) TS connectors | | Impedance | 4 to 8 Ω | | | | Type | Klark Teknik | | Converter | 24-bit Sigma-Delta | | Sampling Rate | 40 kHz | | | | Type | USB port for connection with ULM series USB receiver | | | | Type | 2-digit, 7-segment LED | | | | Mains | 100 to 120 V (for UL, JP, CA)
220 to 240 V (for EU, AU, UK, CN) | | Fuse | 100 to 120 V ~ T 5 A H 250 V
220 to 240 V ~ T 3.15 A H 250 V | | Power Consumption | 90 W | | Connection | Standard IEC receptacle | | | | Dimensions (HxWxD) | 4.8 x 15.4 x 16.7" (122 x 390 x 425 mm) | | Weight | 14 lb (6.3 kg) | | | | Package Weight | 18.75 lb | | Box Dimensions (LxWxH) | 18.8 x 17.5 x 7.5" |
