User Manual for Behringer Europower PMP500MP3 500W 8-Channel Powered Mixer Click to enlarge the picture
Contents of the user manual for the Behringer Europower PMP500MP3 500W 8-Channel Powered
- Product category: Sound Reinforcement Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Sound Reinforcement Mixers
 |
User manual for the Behringer Europower PMP500MP3 500W 8-Channel Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

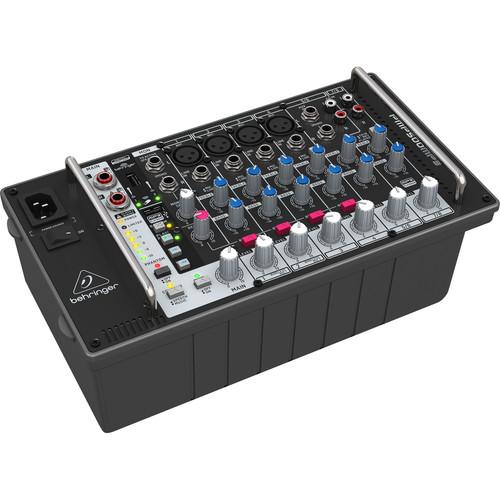

Product description Well suited for smaller clubs, boardrooms, or in houses of worship, the Europower PMP500MP3 500W 8-Channel Powered Mixer from Behringer features dual 250-watt amplifiers and an 8-channel mixer with a built-in MP3 player, reverb, and support for wireless microphones. The mixer is highly portable and may be used on a table top or mounted to a mic stand.
The unit has four mic/line channels and two stereo line-level channels. Channels 1-4 feature dedicated reverb, while all channels includes a 2-band EQ. Additionally, the master bus offers a global contour button with music or speech settings. Channels 5-6 and 7-8 offer RCA inputs for portable music players, but Channels 7-8 also double as the MP3 channel with volume and EQ controls. Channels 1-2 double as the wireless microphone channels, which work with the optional Behringer ULM wireless system. The PMP500MP3 ships with a mic stand adapter. -
- Ultra-compact 500 Watt 8-channel powered mixer
- Enormous power, incredible sonic performance, and super-lightweight
- High-performance MP3 player included to play audio files via USB stick
- Studio-grade stereo reverb adds finishing touch to your sound
- “Wireless-ready” for high-quality BEHRINGER digital wireless system (not included)
- Broadcast-like Voice-Over-Priority Function dims music when microphones are used
- 8-channel mixer section features 4 mic/line and 2 stereo channels
- 4 high-quality mic preamps with switchable +48 V phantom power for condenser microphones
- Effective and extremely musical 2-band EQ on all channels
- Music/Speech switch to set overall system equalization
- Auto limiter prevents overload damage to power amplifier and speakers

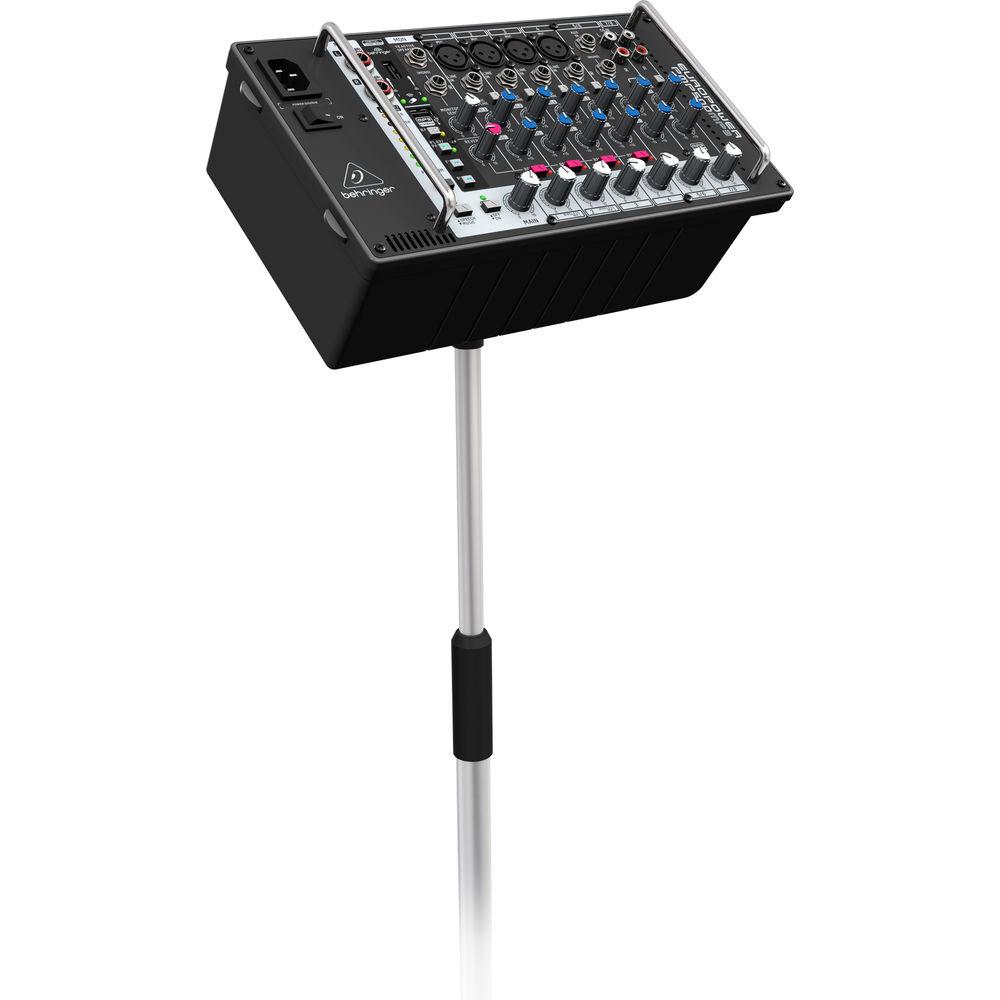

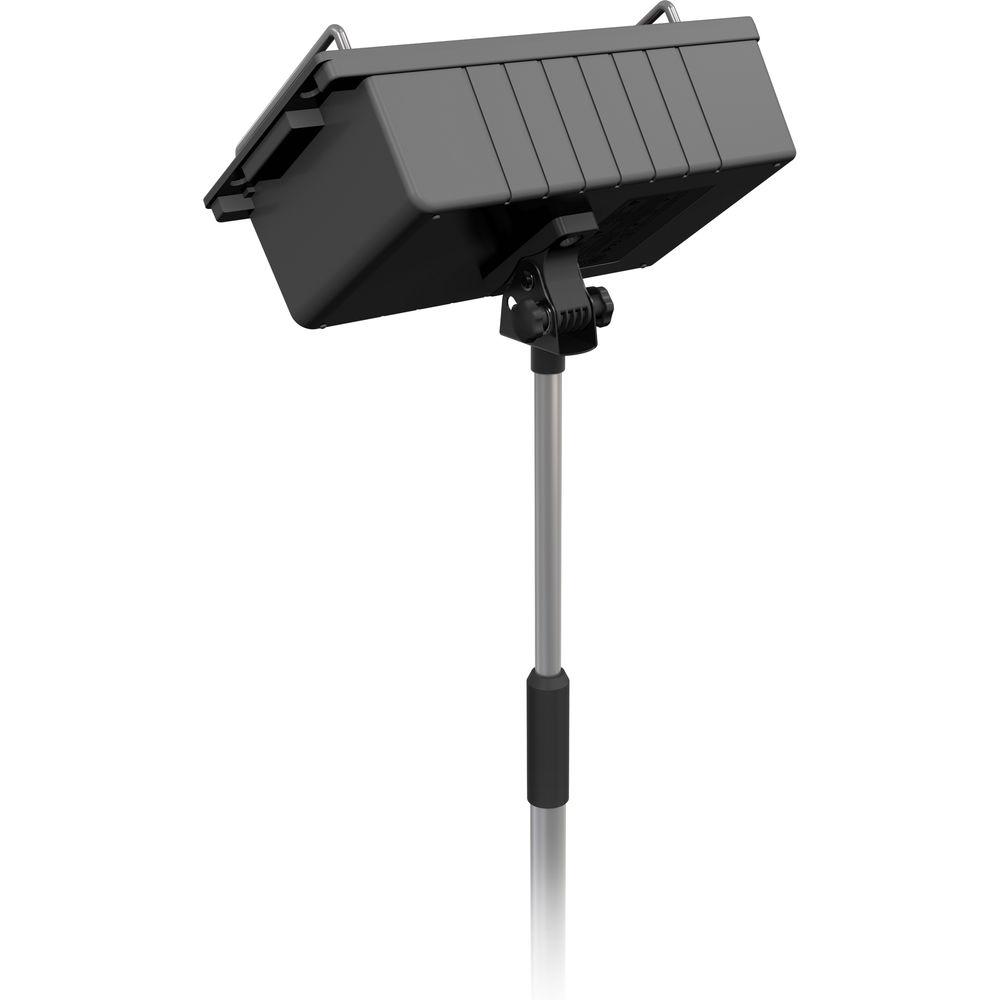

- Mic stand adapter fits standard 5/8" and 3/8" European threads (included)
- Switching power supply for maximum flexibility, noise-free audio, superior transient response plus low power consumption for energy savings
- 3-Year Warranty Program
- Designed and engineered in Germany
UPC: 748252176547 In the Box Behringer Europower PMP500MP3 500W 8-Channel Powered Mixer Power Cord Mic Stand Adapter Limited 1-Year Warranty, Extended to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Europower PMP500MP3 500W 8-Channel Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer PMP500MP3 Specs | | | Maximum Output Power | 250 W + 250 W | | Limiter | Optical | | | | Type | Channels 1-4: 4 x XLR, balanced | | Sensitivity | -54 dBV | | Impedance | 2.2 kOhms | | | | Type | Channels 1-4: 4 x 1/4" / 6.35 mm TRS, balanced | | Sensitivity | -11 dBV | | Impedance | 10 kOhms | | | | Type | Channel 5-6: 2 x 1/4" / 6.35 mm TRS, balanced | | Sensitivity | -11 dBV | | Impedance | 10 kOhms | | | | Sensitivity | RCA Inputs (Ch 5-6): -11 dBV
RCA Inputs (Ch 7-8): -11 dBV | | Impedance | RCA Inputs (Ch 5-6): 10 kOhms
RCA Inputs (Ch 7-8): 15 kOhms | | | | Type | USB, type-A | | File System | Fat 16, Fat 32 | | Format | MP3 | | Bit Rates | 8 - 320 kbps, VBR | | Sample Rates | 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 kHz | | | | USB Receiver | Behringer ULM Series USB Receiver: USB socket accepts signals from up to 2 independent Behringer ULB USB microphones | | | | Type | 1/4" TS, unbalanced | | Impedance | 1 kOhm | | | | Input Trim | -∞ to +16.5 dB | | Maximum Input Level | +26 dBu | | | | Type | Low: +/-15 dB @ 80 Hz
High: +/-15 dB @ 10 kHz | | | | Mains | 100 to 120 VAC 50/60 Hz (for US, JP, CA) | | Power Consumption | 90 W max | | Connection | Standard IEC receptacle | | | | Dimensions (HxWxD) | 4.3 x 11.4 x 6.3" / 109.2 x 289.6 x 160.0 mm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 6.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer Europower PMP500MP3 500W 8-Channel Powered Mixer
| Subject: Speakers | | Date: 11.10.2022 08:34:12 | Name: Les porter | | Hi,can I connect a pair of Peavey speakers 800w /4ohms each speaker to the Beringer pmp500mp3mixer amplifier,regards. | | Post reply |
| Subject: Speakers | | Date: 01.10.2022 22:14:58 | Name: Leslie Porter | | Hi,I have a behringer pmp500mp3 amp,can I plug in peavey 800w aside 4ohms speakers into it,many thanks. | | Post reply |
