Behringer Europower PMP550M 500-Watt 5-Channel Powered

Search your instruction manual in PDF to download

User Manual for Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer

Click to enlarge the picture
Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer Contents of the user manual for the Behringer Europower PMP550M 500-Watt 5-Channel Powered
  • Product category: Sound Reinforcement Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Sound Reinforcement Mixers

Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer
User manual for the Behringer Europower PMP550M 500-Watt 5-Channel Powered contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

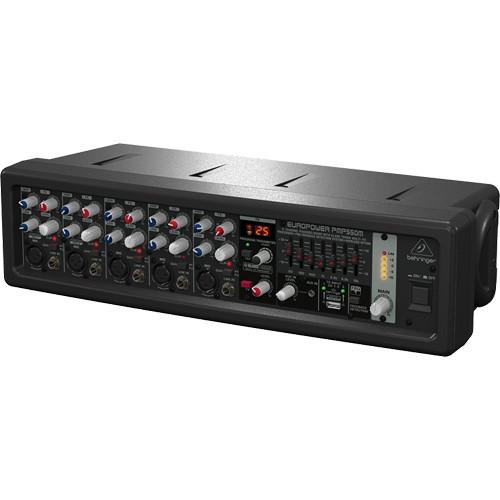

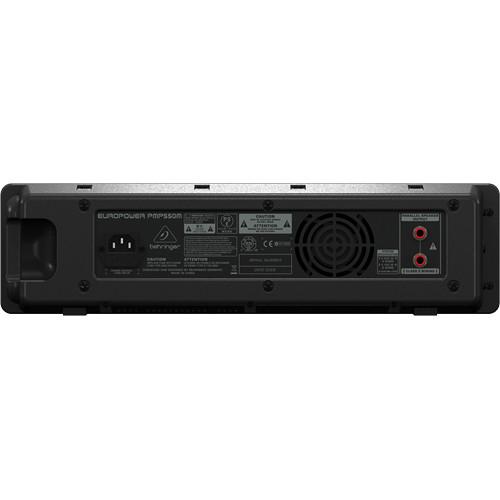

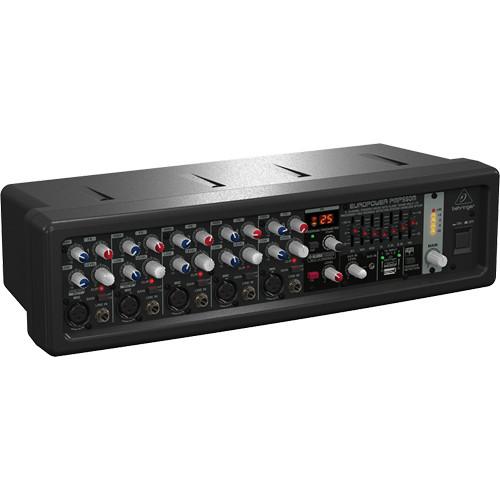

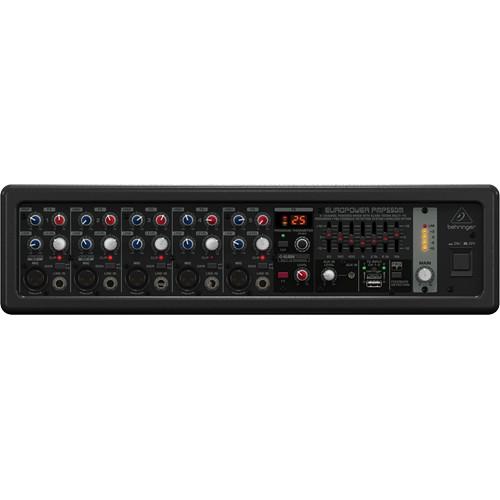

The Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer from Behringer features dual 250-watt Class-D amplifiers and a 5-channel mixer in a rackmountable design. It can be used for smaller clubs, boardrooms, or in houses of worship. The PMP550M has five mic preamps with switchable pads and a clip LED as well as five 1/4" line level inputs, allowing connectivity from a variety of sources.

Each of its five channels features a 2-band EQ to help tweak your tone. The master section has an incorporated Klark Teknik effects processor and a 7-band graphic EQ that allows you to shape the tone of your output signal. The PMP550M features a USB port that enables the mixer to be directly compatible with Behringer's UltraLink ULM series wireless system without taking up an analog input.
  • The FQB Feedback Detection system reveals critical frequencies for easy feedback removal. The graphic EQ sliders will light up to indicate problem frequencies
  • The Klark Teknik FX processor has 25 presets including reverb, chorus, flanger, delay, pitch shifting, and more
  • Wireless ready for optional Behringer ULM series wireless system
  • 3-band EQ, low-cut filter and clip LEDs on all mono channels
  • Stereo 7-band master graphic EQ
  • Stereo or dual-mono amp operation
  • Standby switch mutes all mic channels for breaks between sets or performances
  • Internal switch-mode power supply
UPC: 713757159111 In the Box Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer
  • Rackmount Brackets
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount Mixer can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Behringer Europower PMP550M 500-Watt 5-Channel Powered Rackmount MixerDownload PDF User Manual - https://www.search-manual.com/ upload/ behringer-europower-pmp550m-500-watt-5-channel-powered-rackmount-mixer-239280-user-manual.pdf
    (PDF file, 4.42 MB)


    Technical parameters

    Behringer PMP550M Specs

    Type 5 x electronically balanced XLR
    EIN @ 0 Ω source impedance: -122 dB / -125 dB A-weighted (20 Hz to 20 kHz)
    @ 50 Ω source impedance: -122 dB / -125 dB A-weighted (20 Hz to 20 kHz)
    @ 150 Ω source impedance: -121 dB / -124 dB A-weighted (20 Hz to 20 kHz)
    Gain 29 dB
    9 dB with pad
    Maximum Input Level 12 dBu @ 10 dB gain
    Impedance Balanced: 2.0 kΩ
    Unbalanced: 1.0 kΩ
    Type 5x 1/4" (6.35 mm) TRS
    1x 1/8" (3.5 mm) auxiliary
    Impedance Balanced: 20 kΩ
    Unbalanced: 10 kΩ
    Maximum Input Level 21 dBu
    Type Low: +/-15 dB @ 80 Hz
    High: +/-15 dB @ 80 kHz
    7-band graphic master EQ
    Noise Main mix @ ∞, channel fader @ ∞: -106 dB/ -110 dB A-weighted
    Main mix @ 0 dB, channel fader @ ∞: -87 dB/ -90 dB A-weighted
    Main mix @ 0 dB, channel fader 0 dB: -80 dB/ -82 dB A-weighted
    Frequency Response 20 Hz to 20 kHz (+0 / -3 dB)
    Maximum Output Power 2x 250 W
    Type 2x 1/4" (6.35 mm) TS connector
    Load Impedance 4 to 8 Ω
    Type Klark Teknik
    Converter 24-bit Sigma-Delta
    Sampling Rate 40 kHz
    Type USB port for connection with ULM series USB receiver
    Type 2-digit, 7-segment LED
    Mains 100 to 120 V (for UL, JP, CA)
    220 to 240 V (for EU, AU, UK, CN)
    Fuse 100 to 120 V ~ T 5 A H 250 V
    220 to 240 V ~ T 3.15 A H 250 V
    Connection Standard IEC receptacle
    Dimensions (HxWxD) 4.6 x 17.7 x 7.3" (117 x 450 x 185 mm)
    Weight 9.9 lb (4.5 kg)
    Package Weight 11.5 lb
    Box Dimensions (LxWxH) 19.7 x 11.5 x 6.8"

    Rating

    92% users recommend this product to others. And what about you?
    Rating: 4.6 of 5

    This product has already been rated by 80 owners. Add your rating and experience with the product.
