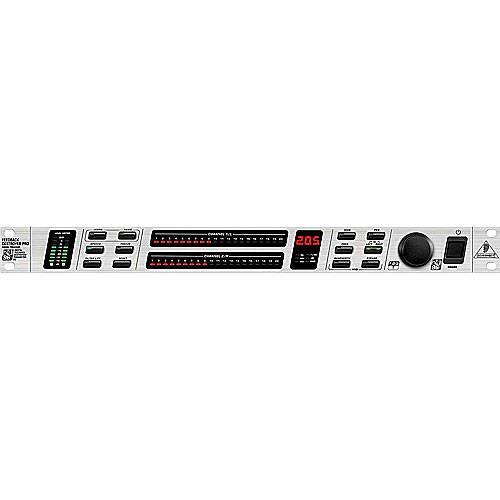

User Manual for Behringer Feedback Destroyer Pro FBQ2496 - Feedback Eliminator Parametric EQ Click to enlarge the picture
Contents of the user manual for the Behringer Feedback Destroyer Pro FBQ2496 -
- Product category: Feedback Controllers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Feedback Controllers
 |
User manual for the Behringer Feedback Destroyer Pro FBQ2496 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Feedback Destroyer Pro FBQ2496 from Behringer is a Feedback Suppressor that uses an ultra-fast feedback detection algorithm. The unit automatically and "intelligently" locates up to twenty feedback frequencies per channel and sets extremely narrow notch filters to attenuate them, leaving the remainder of the program material virtually untouched. A "Set-and-Forget" default setting plus the Panic button, allows the FBQ2496 to be set up and running in no time. The auto mode continuously monitors the mix, resetting programmed filters automatically, while the manual mode allows individual setting of up to forty fully parametric filters with frequency, bandwidth and gain adjustment. Open MIDI architecture provides for future software updates and flexible communication with other digital devices. With the unit's various modes, mastering just about any live sound situation is effortless, while the option to use it as a creative sound-shaping tool is always available. - Automatically and "intelligently" locates and modulates up to twenty frequencies per channel in response to the onset of feedback
- Fast feedback detection (less than 0.2 seconds)
- Ultra narrow notch filters for effective feedback suppression while maintaining the sonic integrity of the source material
- "Set and forget" default setting plus Panic button enable fast and easy performance
- Auto mode continually monitors the program material, resetting filters as necessary
- Single shot mode automatically detects and destroys feedback and locks the filter until reset manually
- Manual mode allows setting up of forty individual fully parametric filters with frequency, bandwidth and gain adjustment
- Open MIDI architecture for future software updates and flexible communication with other digital equipment
- Internal switching power supply for maximum flexibility, noise free audio, superior transient response plus low power consumption
UPC: 705105732534 In the Box Behringer Feedback Destroyer Pro FBQ2496 - Feedback Eliminator/Parametric EQ AC Power Cable Limited 10-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Feedback Destroyer Pro FBQ2496 - Feedback Eliminator Parametric EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer Feedback Destroyer Specs | Filter Type | Notch or parametric | | Frequency Bands | Up to 20 per channel | | Bandwidth | Notch: 1/60th octave
Parametric: 1/60th octave thru 10 octaves | | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone
1 x 5-pin DIN MIDI | | Outputs | 2 x XLR
2 x 1/4" TRS phone
2 x 5-pin DIN MIDI (out and thru) | | Maximum Input Level | +20dBu @ +4dBu nominal level
+6dBV @ -10dBV nominal level | | Maximum Output Level | +20dBu @ +4dBu nominal level
+6dBV @ -10dBV nominal level | | Frequency Response | 10Hz to 44kHz | | Dynamic Range | 107dB | | Noise | Not specified by manufacturer | | Power Supply | Mains Voltage: 100 - 240 V, 50 - 60 Hz
Power Consumption: approx. 10 W
Fuse: T 1 A H 250 V | | Dimensions (WxDxH) | 19" x 7 1/2" x 1 3/4" | | Weight | 4.2 lbs | | Specialties | Extensive remote MIDI control | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 20.9 x 12.1 x 4.3" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
