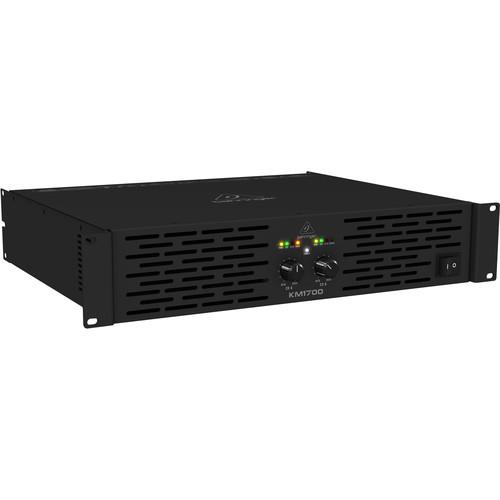

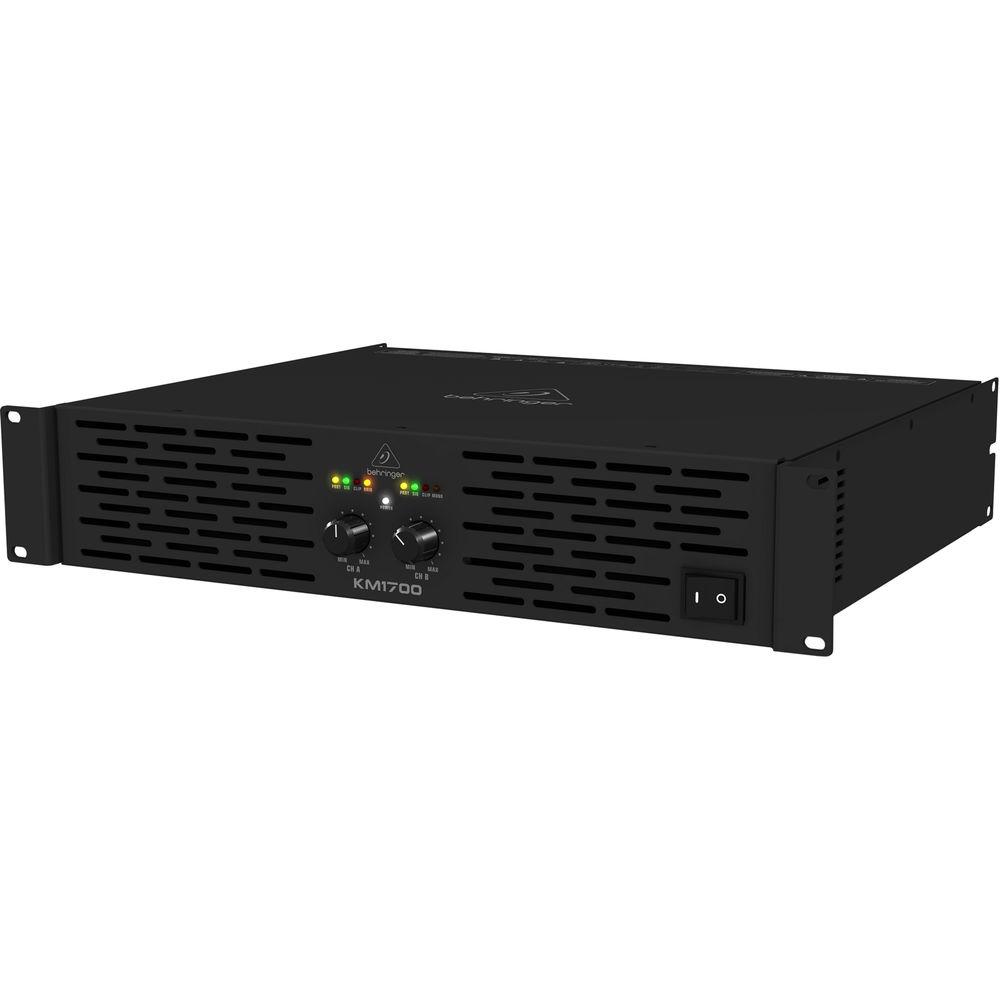

Product description The KM1700 from Behringer is a stereo power amplifier which is capable of delivering 500W into 8 Ohm loads, or 800W into 4 Ohm loads. In bridged-mono mode, it can reach an output power of 1700W. The amplifier features Behringer's ATR technology, which is designed to preserve a quick, tight transient response even at high volume levels.

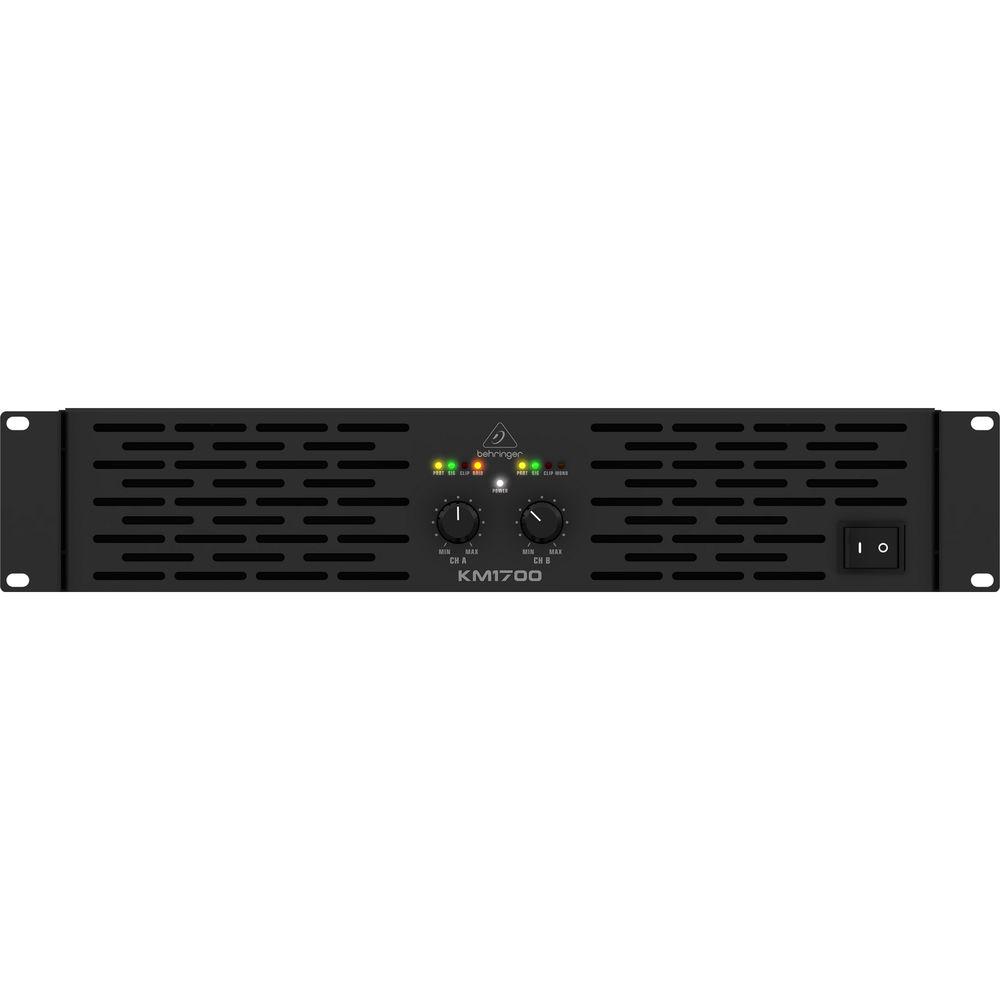

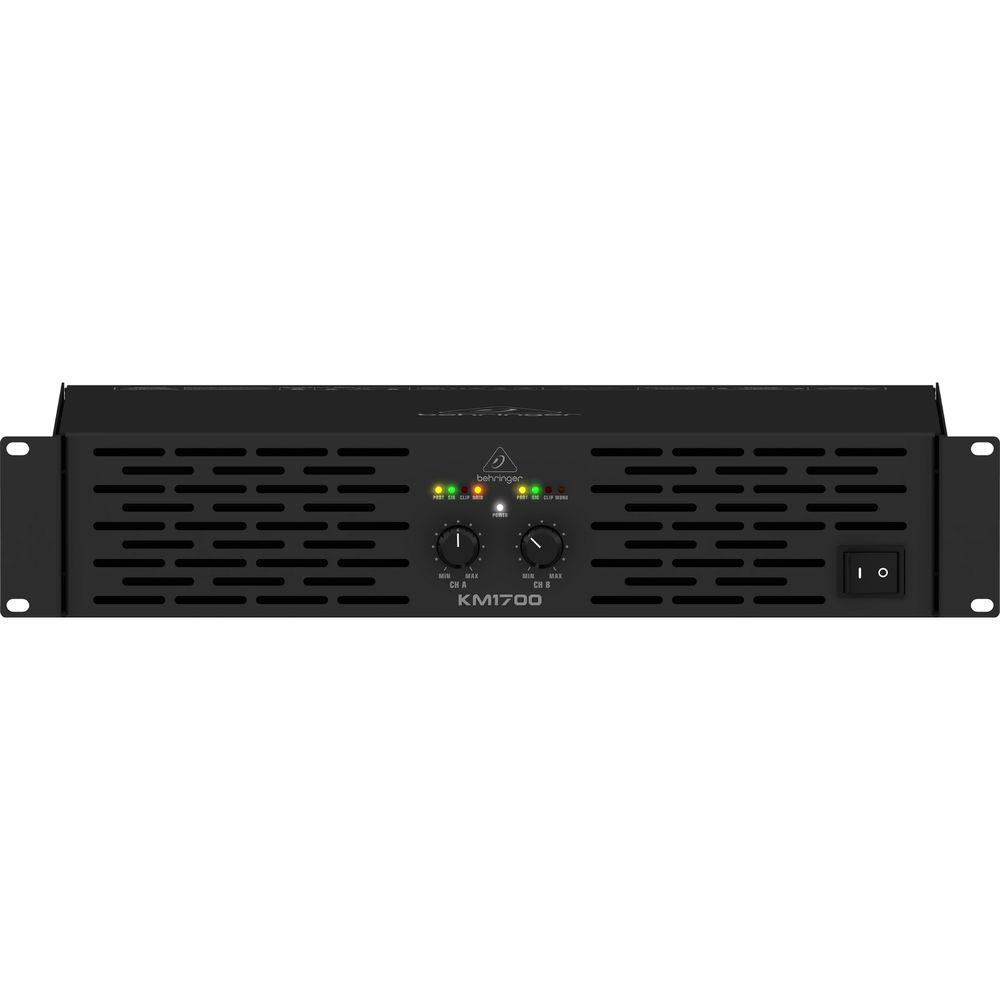

Its front panel controls are simple: two positive-detent gain knobs allow you to control the level of each independent channel. To keep you abreast of the amplifier's various goings-on, LEDs have been provided for monitoring of power, signal, and overloads.

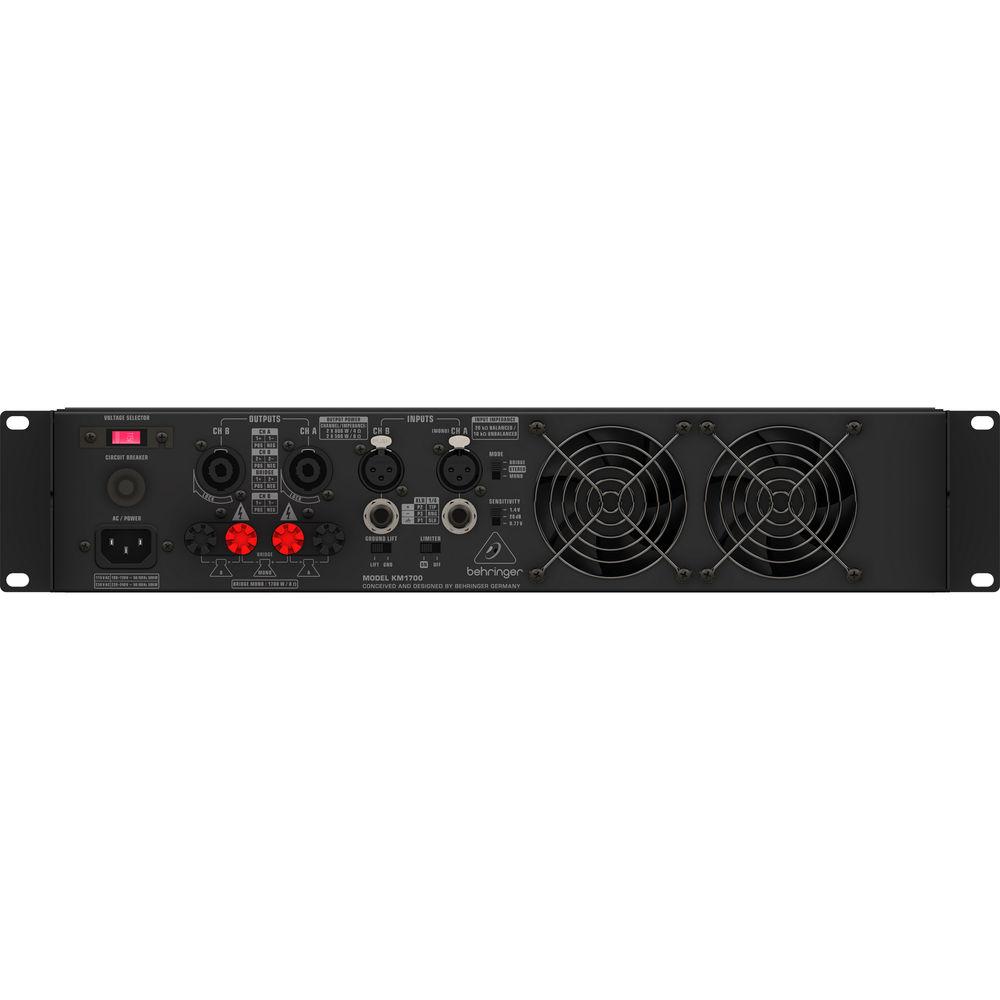

Turn your attention to the back panel and you'll notice two balanced XLR inputs, as well as two unbalanced 1/4" TRS jacks. The amplifier provides two locking speaker connections with touch-proof binding posts, thus supporting the wiring systems of most professional speakers. You'll also see the selector which switches between mono, stereo, or bridged mono mode, as well as a ground/lift switch and a selector to turn on the built-in limiter. - Key Features at a Glance
-
- 2 x 800W into 4 Ohms
- 2 x 500W into 8 Ohms
- 1700 Watts into 8 Ohms (bridged mono mode)
- ATR (Accelerated Transient Response) technology for punch and clarity
- Switchable limiters offer maximum output level with reliable overload protection
- Power, signal and clip LEDs to monitor performance
- XLR and 1/4" TRS input connectors
- Professional speaker connectors and touch-proof binding posts
- Independent DC and short circuit protection on each channel automatically protects amplifier and speakers
- High-current toroidal transformer for high transient response
- Front to back ventilation
- Impact-resistant, all-steel 2U rackmount chassis
UPC: 748252164643 In the Box Behringer KM1700 Professional 1700W Stereo Power Amplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer KM1700 Professional 1700W Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer KM1700 Specs | | | Maximum Output Power | 8 Ohms per channel, both channels driven: 500 W
4 Ohms per channel, both channels driven: 800 W
8 Ohms, bridge mode: 1700 W | | | | Inputs | 2 x XLR
2 x 1/4" TRS | | Input Impedance | XLR: 20 kOhms, balanced
1/4" TRS: 10 kOhms, unbalanced | | Outputs | 2 x locking-style professional speaker connector, binding post | | | | Output Circuit | Class-H, complementary linear output | | Circuit Protection | Short circuit current, DC fault, AC fuse, limiter, thermal cut | | Distortion | < 0.03% (8 Ohms @ 50% max. power output) | | Damping Factor | > 120 @ 8 Ohms | | Frequency | 20 Hz to 20 kHz, +0/-0.5 dB @ -10 dB below rated output power
10 Hz to 80 kHz @ -3 dB | | Signal-to-Noise Ratio | > 100 dB (unweighted, 20 Hz to 20 kHz) | | Voltage Gain | 35.6 dB @ level control max | | Input Sensitivity | 0.77 V / 26 dB / 1.4 V, switchable @ level control max | | | | Front | Power switch, level control | | Rear | Sensitivity, limiter, ground / lift, mode switch | | | | LEDs | Power: White LED
Signal: Green LED
Clip: Red LED
Protection: Yellow LED
Mono mode: Yellow LED
Bridge mode: Yellow LED | | | | USA / CAN | 120 VDC, 60 Hz | | Power Consumption | 500 W (@ 1/8 rated power) | | | | Dimensions | 3.5 x 19.0 x 14.8" / 8.8 x 48.2 x 37.5 cm | | Weight | 27.5 lb / 12.5 kg | | | | Package Weight | 31.1 lb | | Box Dimensions (LxWxH) | 20.6 x 18.7 x 6.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer KM1700 Professional 1700W Stereo Power Amplifier
| Subject: КМ 1700 | | Date: 09.01.2023 21:36:04 | Name: Aco Jovanov | | Hello, I have two KM 1700, is it correct if I have an input on channel A and B for example on 2 *XLR, can I use the 1/4" TRS inputs as an output signal for another KM 1700, | | Post reply |
