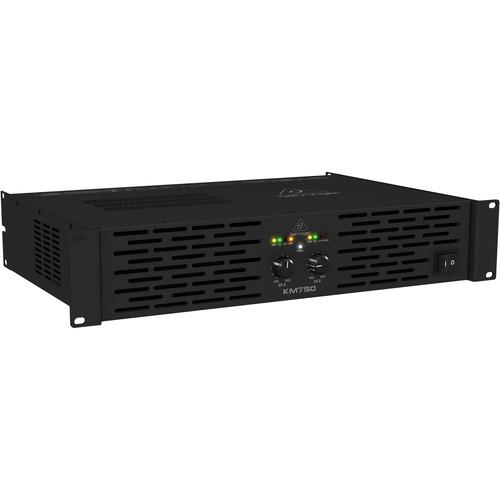

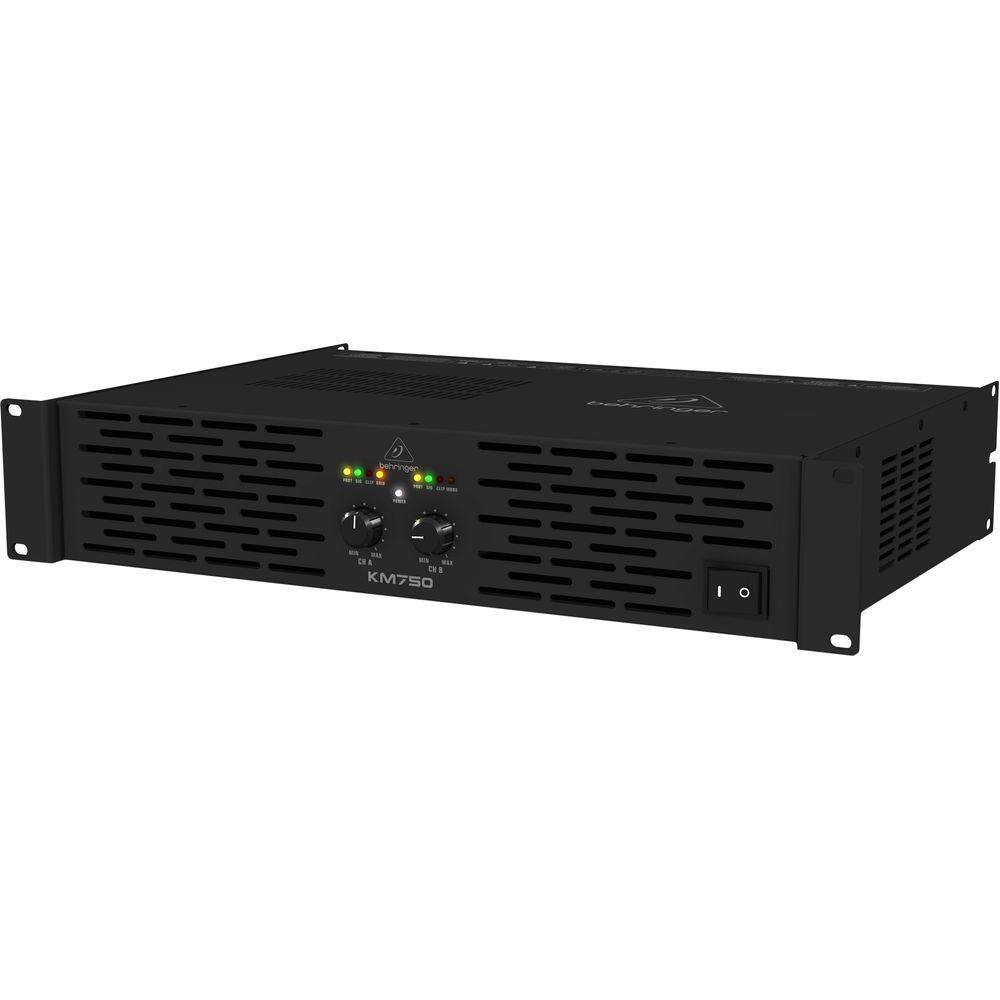

User Manual for Behringer KM750 Professional 750W Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Behringer KM750 Professional 750W Stereo Power
- Product category: Power Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Power Amplifiers
 |
User manual for the Behringer KM750 Professional 750W Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The KM750 from Behringer is a stereo power amplifier which is capable of delivering 200W into 8 Ohm loads, or 400W into 4 Ohm loads. In bridged-mono mode, it can reach an output power of 750W. The amplifier features Behringer's ATR technology, which is designed to preserve a quick, tight transient response even at high volume levels.

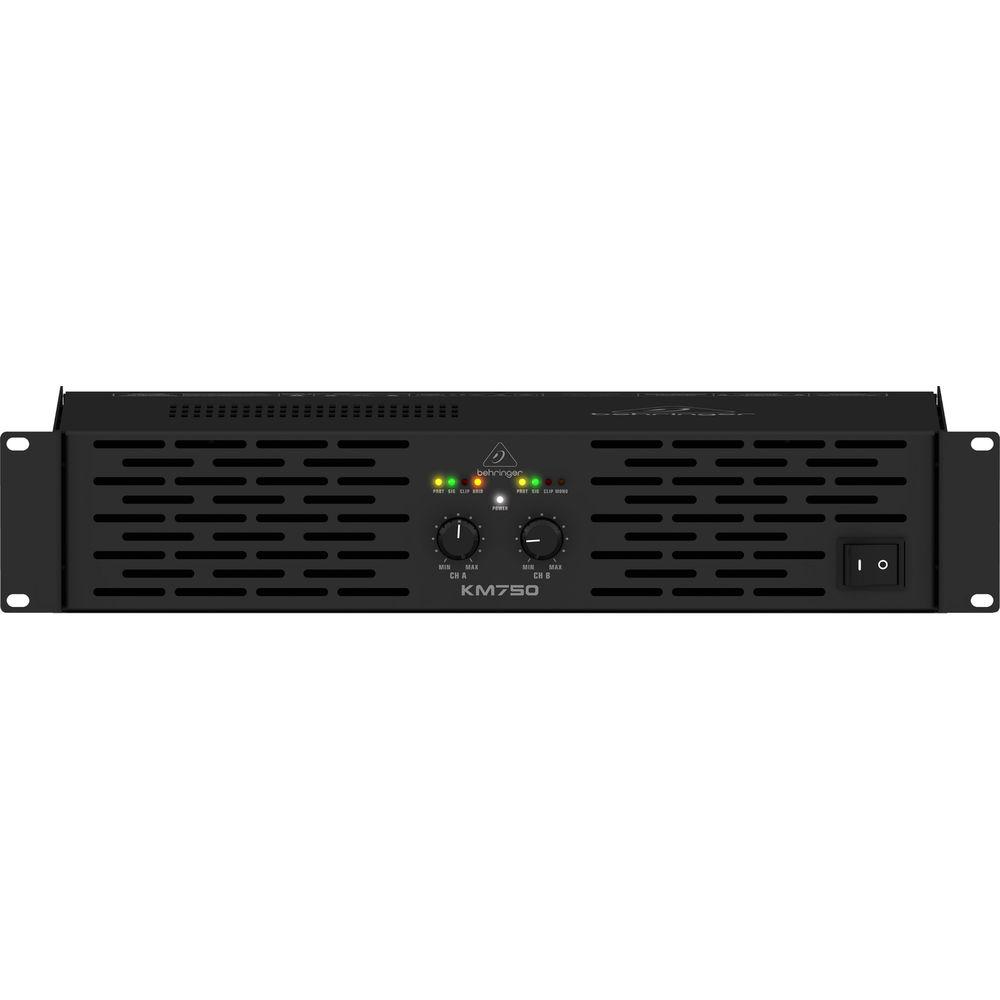

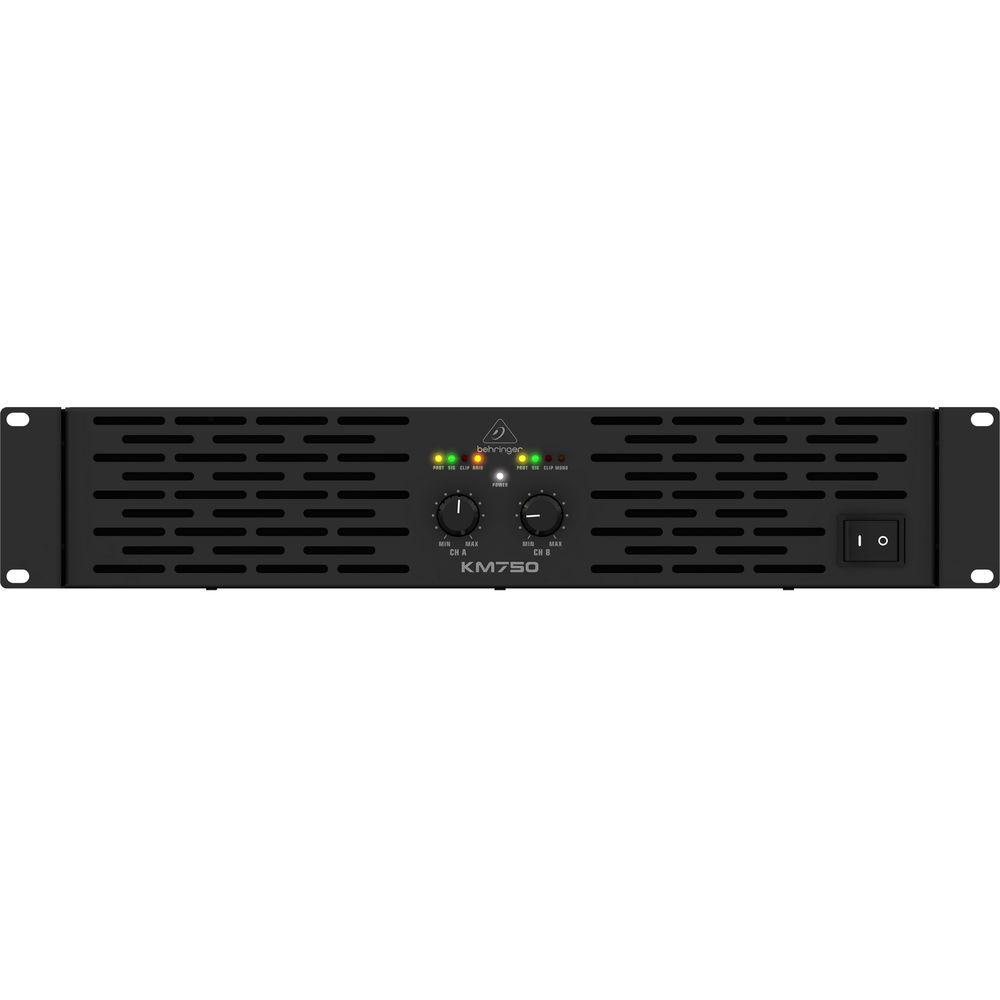

Its front panel controls are simple: two positive-detent gain knobs allow you to control the level of each independent channel. To keep you abreast of the amplifier's various goings-on, LEDs have been provided for monitoring of power, signal, and overloads.

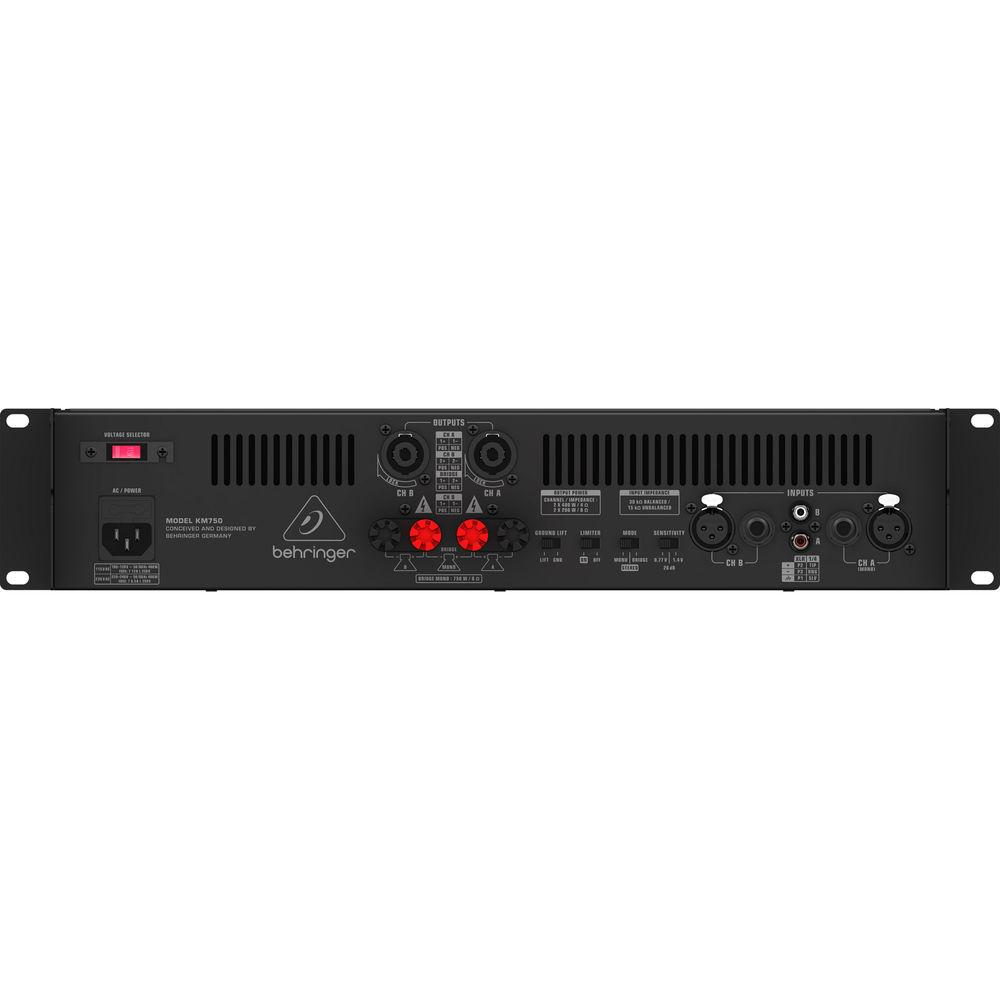

Turn your attention to the back panel and you'll notice two balanced XLR inputs, as well as two unbalanced 1/4" TRS jacks and two unbalanced RCA inputs, making this power amplifier compatible with a wide array of audio sources. The amplifier provides two locking speaker connections with touch-proof binding posts, thus supporting the wiring systems of most professional speakers. You'll also see the selector which switches between mono, stereo, or bridged mono mode, as well as a ground/lift switch and a selector to turn on the built-in limiter. - Key Features at a Glance
-
- 2 x 400W into 4 Ohms
- 2 x 200W into 8 Ohms
- 750 Watts into 8 Ohms (bridged mono mode)
- ATR (Accelerated Transient Response) technology for punch and clarity
- Switchable limiters offer maximum output level with reliable overload protection
- Power, signal and clip LEDs to monitor performance
- XLR, 1/4" TRS, and RCA input connectors
- Professional speaker connectors and touch-proof binding posts
- Independent DC and short circuit protection on each channel automatically protects amplifier and speakers
- High-current toroidal transformer for high transient response
- Active cooling on heatsink
- Impact-resistant, all-steel 2U rackmount chassis
UPC: 748252164544 In the Box Behringer KM750 Professional 750W Stereo Power Amplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer KM750 Professional 750W Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer KM750 Specs | | | Maximum Output Power | 8 Ohms per channel, both channels driven: 200 W
4 Ohms per channel, both channels driven: 400 W
8 Ohms, bridge mode: 750 W | | | | Inputs | 2 x XLR
2 x 1/4" TRS
2 x RCA | | Input Impedance | XLR: 20 kOhms, balanced
1/4" TRS: 10 kOhms, unbalanced
RCA: 14 kOhms, unbalanced | | Outputs | 2 x locking-style professional speaker connector, binding post | | | | Output Circuit | Class-AB, complementary linear output | | Circuit Protection | Short circuit current, DC fault, AC fuse, limiter, thermal cut | | Distortion | < 0.02% (8 Ohms @ 50% max. power output) | | Damping Factor | > 245 @ 8 Ohms | | Frequency | 20 Hz to 20 kHz, +0/-0.5 dB @ -10 dB below rated output power
10 Hz to 80 kHz @ -3 dB | | Signal-to-Noise Ratio | > 100 dB (unweighted, 20 Hz to 20 kHz) | | Voltage Gain | 32 dB @ level control max | | Input Sensitivity | 0.77 V / 26 dB / 1.4 V, switchable @ level control max | | | | Front | Power switch, level control | | Rear | Sensitivity, limiter, ground / lift, mode switch | | | | LEDs | Power: White LED
Signal: Green LED
Clip: Red LED
Protection: Yellow LED
Mono mode: Yellow LED
Bridge mode: Yellow LED | | | | USA / CAN | 120 VDC, 60 Hz (T 12 A H 250 VDC) | | | | Dimensions | 3.5 x 19.0 x 12.5" / 8.8 x 48.2 x 31.7 cm | | Weight | 18.7 lb / 8.5 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 20.5 x 16.8 x 6.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer KM750 Professional 750W Stereo Power Amplifier
| Subject: Behringer km750 accept speaker level inputs | | Date: 06.02.2022 04:17:47 | Name: Don Watts | | Does the km750 Behringer allow to connect from avr speaker outputs to the amp are do rca pre out connections have to be used? | | Post reply |
