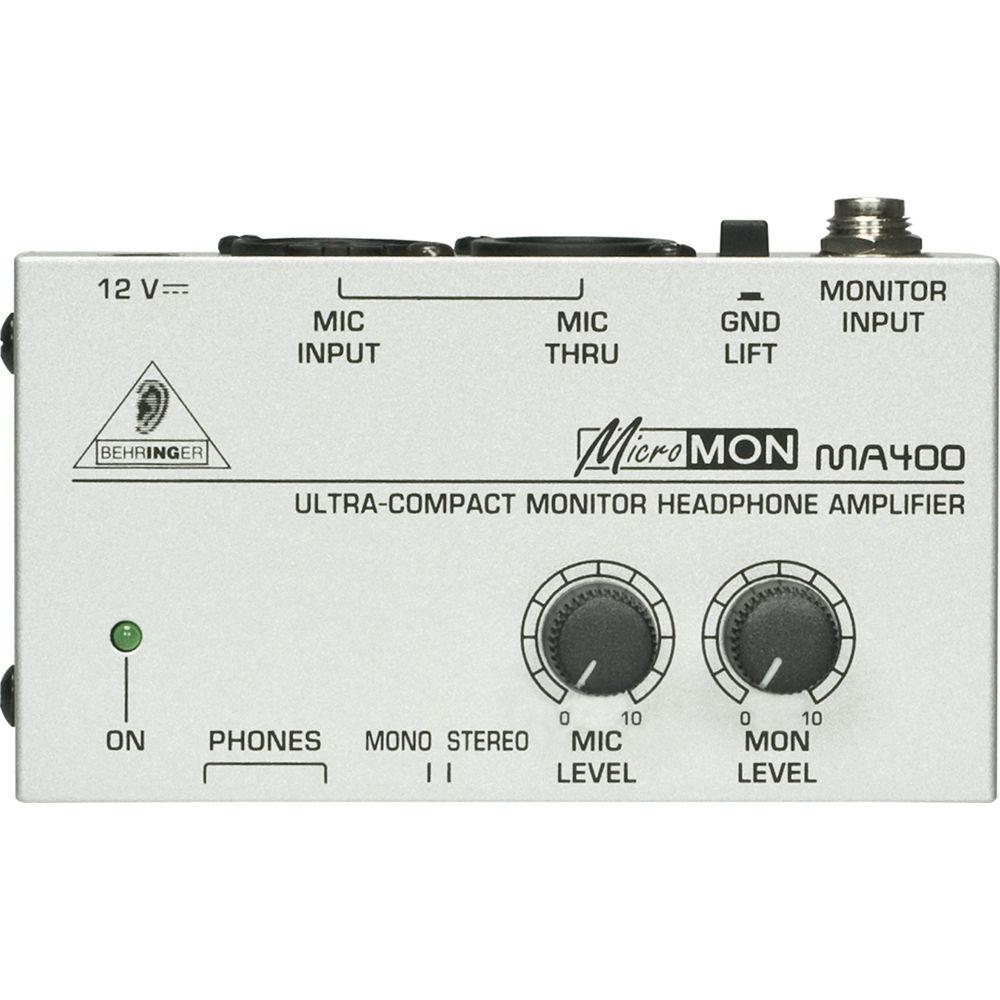

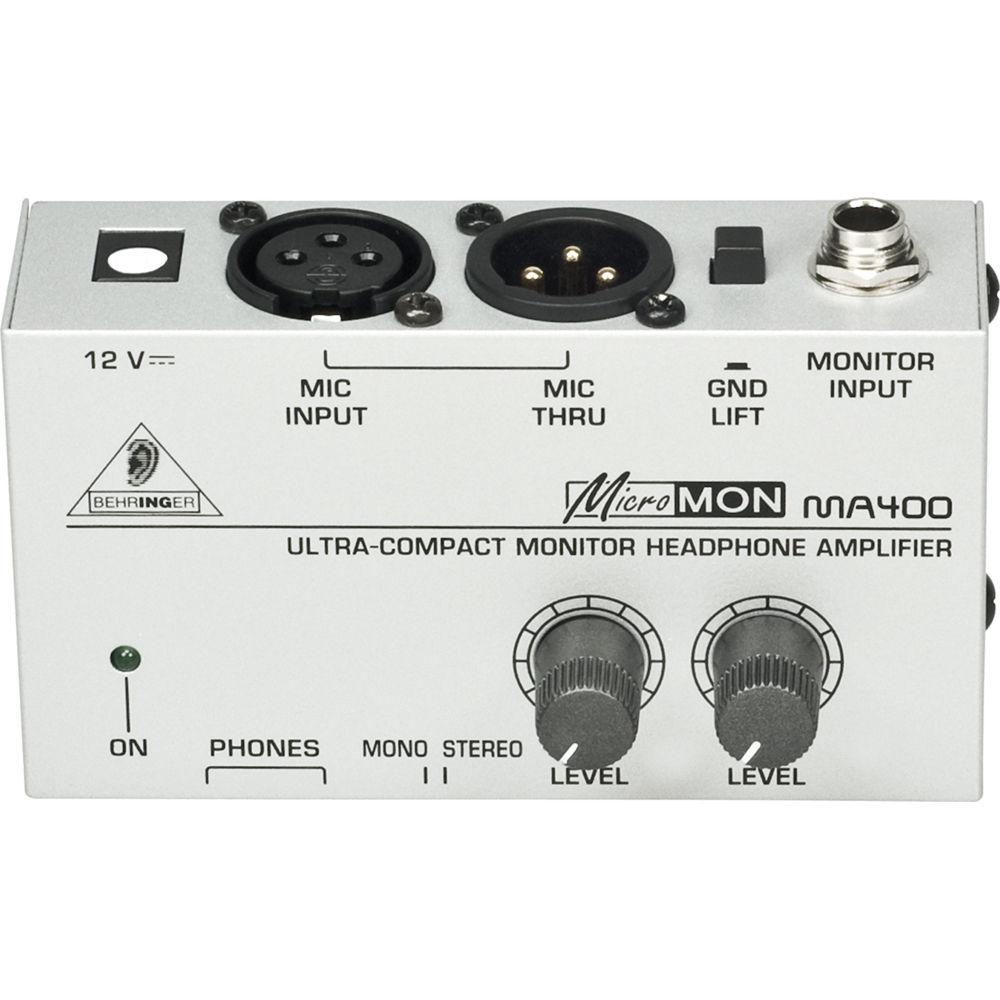

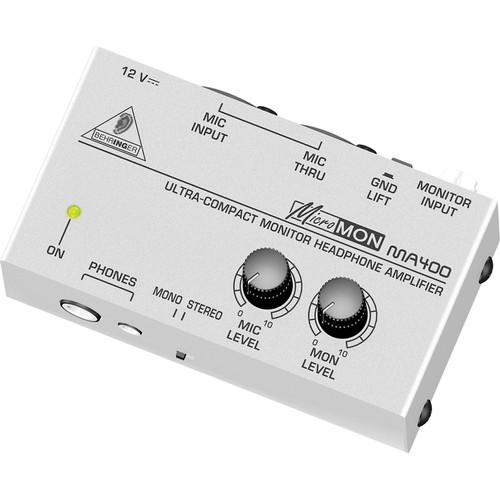

Product description - MICROMON MA400 Ultra-Compact Monitor Headphone Amplifier
The Behringer MA400 is a unique and inexpensive personal monitoring headphone amplifier. The lightweight, minature unit allows for independent microphone and line level monitoring simulataneously, and accepts balanced and unbalanced 1/4" inputs with an accompanying mono/stereo monitoring switch. The MA400 is an ingenious and cost-effective solution for rehearsal or personal practice applications, using either in-ear or standard stereo headphones. - Miniature personal headphone monitoring amplifier with microphone input for stage or studio use
- 1/4" and 1/8" stereo headphone output connectors, accepts balanced and unbalanced line signals on monitor input
- Monitor input accepts 1/4" TRs and TS phone cconnectors, with dedicated mono or stereo monitoring switch
- Separate microphone and monitor inputs
- Allows for simultaneous headphone or earphone monitoring of vocal performance and program material from mixer or audio playback device
UPC: 689076810081 In the Box Behringer MA400 - MICROMON Miniature Monitor Headphone Amplifier with Microphone Input 12VDC Power Supply Limited 10-Year Warranty User Manual PDF 767.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer MA400 - MICROMON Miniature Monitor Headphone Amplifier with Microphone Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MA400 Specs | Number of Channels | 2 | | Input Connections | 1 x 3-pin XLR Female Microphone In, Balanced
1 x 1/4" TRS Phone Monitor Input, Balanced/Unbalanced
1 x 12VDC Power Supply In | | Output Connectors | 1 x 3-pin XLR Male Microphone Thru, Balanced
1 x 1/4" TRS Headphone Out
1 x 1/8" Stereo Mini Headphone Out | | Maximum Output Level | +10dBu/60mW @ 100 Ohm Load | | Function Controls | 1 x Microphone Level Rotary Knob
1 x Monitor Level Rotary Knob
1 x Ground Lift Switch
1 x Mon/Stereo Switch | | Frequency Response | 10 Hz - 80 kHz (Monitor in)
15 Hz - 25 kHz (Microphone In) | | THD + N | 0.005% typical, 100 Ohm load | | Noise | -90dBu @ 0dBu, A-weighted | | Display | No | | Dimensions | 4 x 2.5 x 1.8" (103 x 64 x 47mm) | | Weight | 7 oz (198.4 g) | | Specialties | Miniature Headphone Amplifier with Microphone Input
1/4" Phone and 1/8" Mini Headphone Connectors
Separate Microphone and Monitor Level Controls | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.4 x 4.9 x 2.4" |
