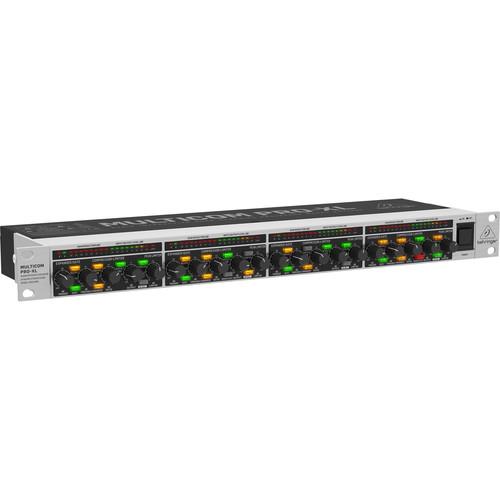

User Manual for Behringer MDX-4600V2 Multicom Pro-XL Compressor Click to enlarge the picture
Contents of the user manual for the Behringer MDX-4600V2 Multicom Pro-XL Compressor
- Product category: Dynamics Processors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Dynamics Processors
 |
User manual for the Behringer MDX-4600V2 Multicom Pro-XL Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

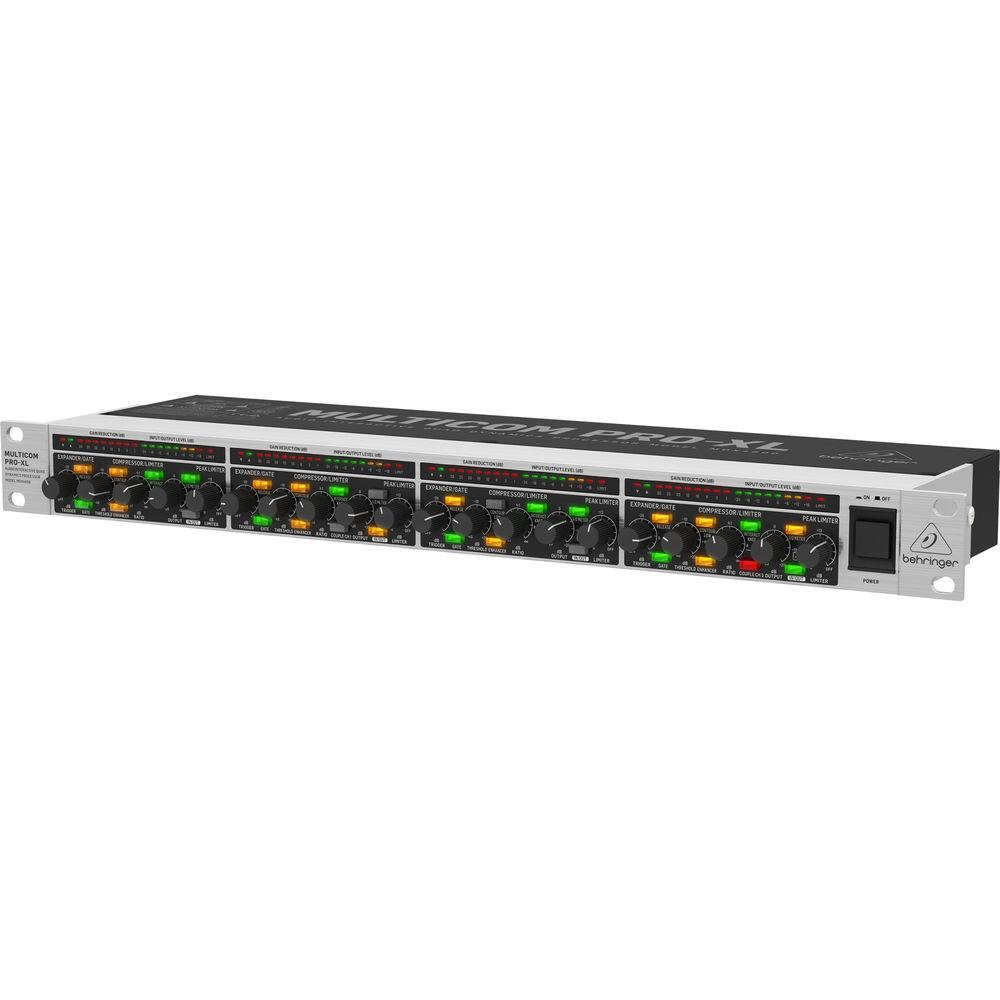

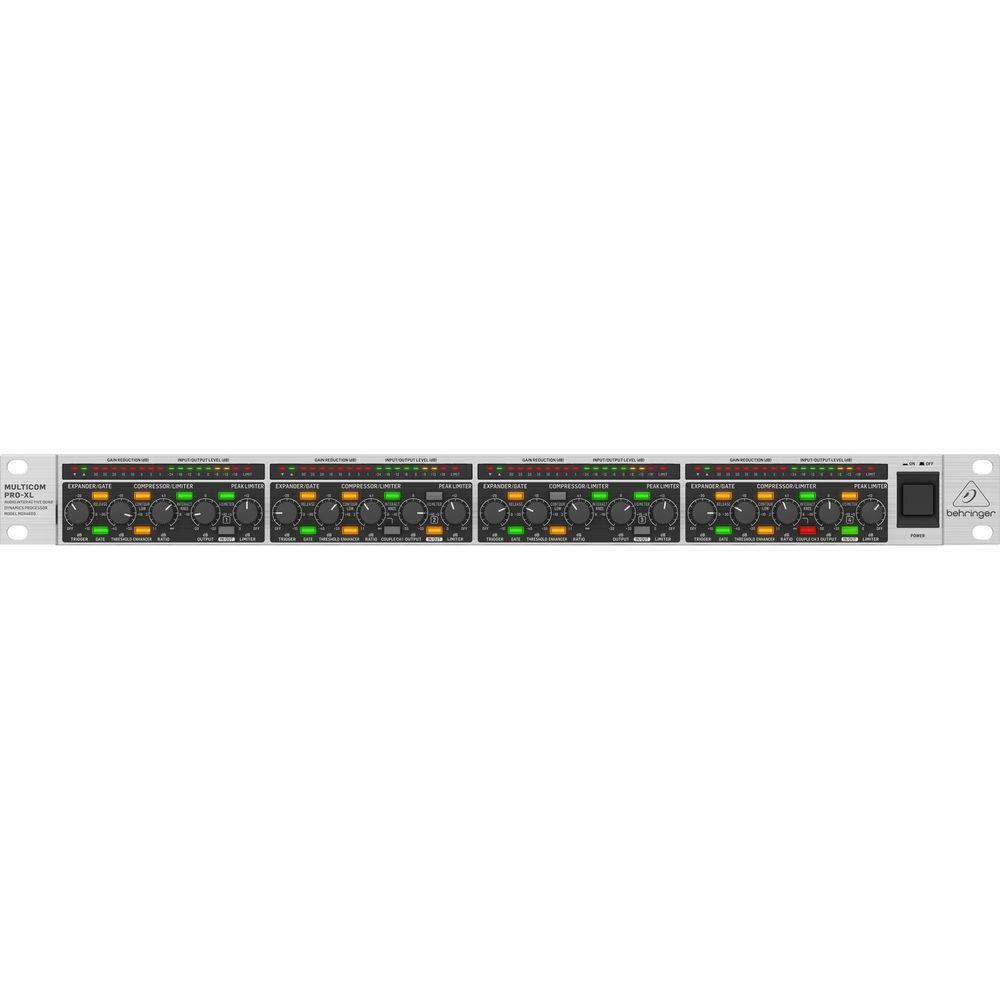

Product description The MDX-4600V2 Multicom Pro-XL Compressor from Behringer is a 4-channel expander, gate, compressor, and peak limiter for compressing mono and stereo signals and providing inaudible noise suppression. It can be used to increase instrument and vocal-presence energy, limit, and smooth out extremely high signal peaks for sound reinforcement or studio applications.The MDX-4600V2 is housed in a single space rack-mount chassis and is also applicable to mixing or mastering. It features an integrated Dynamic Enhancer and Low-Contour Filter to provide signal enrichment. The MDX-4600V2 provides everything you need for studio-quality dynamics processing. - Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
- IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
- Switchable Dynamic Enhancer for brilliant, lively audio even with heavy compression
- IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
- Switchable Low-Contour Filter prevents "pumping" due to low-frequency dominated compression
- Stereo Couple function selectable for channels 1/2 and 3/4
- Separate 8-segment LED meters for input/output levels and gain reduction
- Selectable operating level (+4 dBu/-10 dBV)

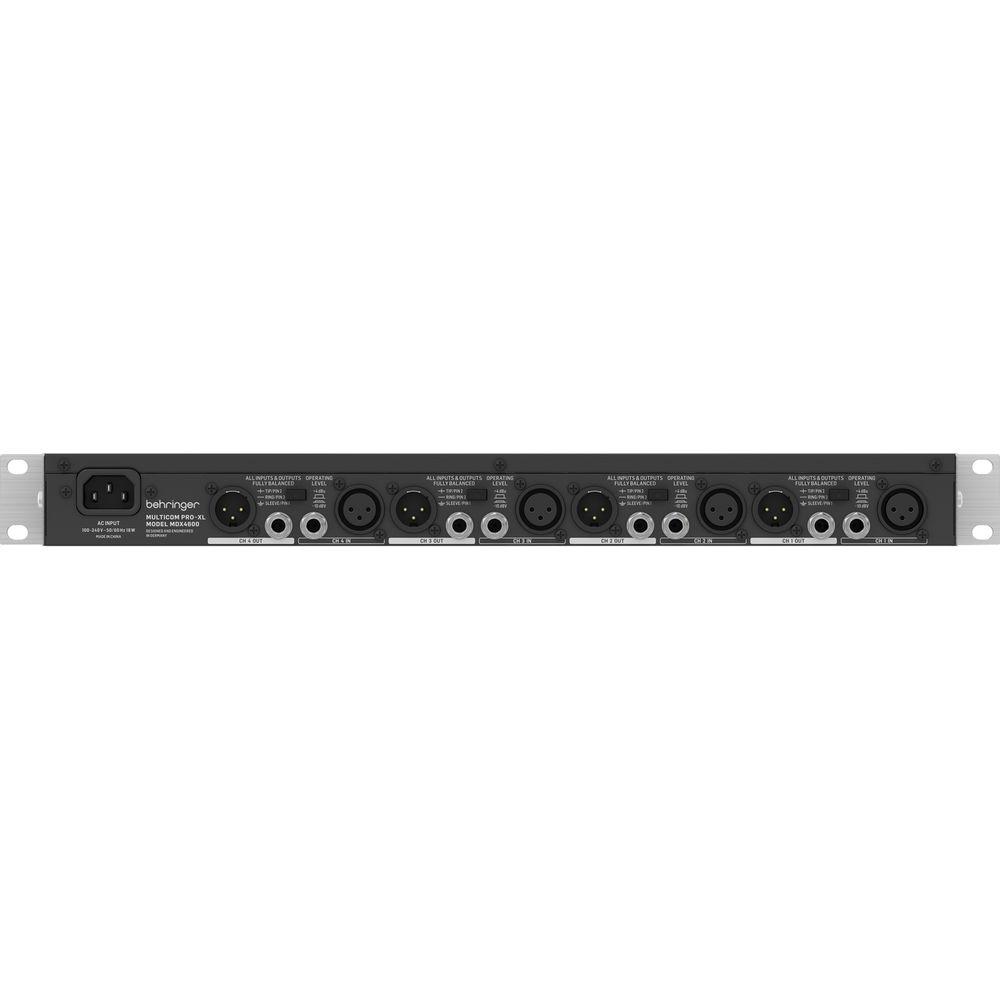

- Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
- Internal switch-mode power supply (100 to 240 VAC) for noise-free audio and low power consumption
UPC: 653341311238 In the Box Behringer MDX-4600V2 Multicom Pro-XL Compressor AC Power Cable Limited 1-Year Warranty, Extended to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer MDX-4600V2 Multicom Pro-XL Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MDX-4600V2 Specs | Function | Expander, gate, compressor, peak limiter and de-esser | | Number of Channels | Four | | | | Type | 4 x XLR
4 x 1/4" TRS phone, servo-balanced | | Impedance | +4 dBu: 50 kOhms balanced, 50 kOhms unbalanced @ 1 kHz
-10 dBV: 50 kOhms balanced, 100 kOhms unbalanced @ 1 kHz | | Operating Level | +4 dBu/ -10 dBV, switchable | | Maximum Input Level | +22 dBu, balanced and unbalanced | | CMMR | Typically 60 dB @ 1 kHz | | | | Type | 4 x XLR
4 x 1/4" TRS phone, servo-balanced | | Impedance | 100 Ohms balanced, 50 Ohms unbalanced @ 1 kHz | | Maximum Output Level | +21 dBu, balanced and unbalanced | | | | Frequency Range | 10 Hz to 70 kHz, +0/-3 dB | | Signal to Noise Ratio | 115 dB, unweighted | | Total Harmonic Distortion (THD) | 0.02% typ. @ +4 dBu, 1 kHz, unity gain | | Crosstalk | -90 dB @ 1 kHz | | | | Type | IRC (Interactive Ratio Control) expander | | Threshold | Off to +10 dB, variable | | Ratio | 1:1 to 1:8, variable | | Attack Time | < 1 ms / 50 dB, program-dependent | | Release Time | Slow: 100 ms / 1 dB
Fast: 100 ms / 100 dB, variable | | | | Type | IKA (Interactive Knee Adaptation) compressor | | Threshold | -40 to +20 dB, variable | | Ratio | 1:1 to ∞:1, variable | | Auto | Characteristic: Wave adaptive compressor | | Auto Attack Time | Typically 15 ms for 10 dB, 5 ms for 20 dB, and 3 ms for 30 dB | | Release Time | Typically 125 dB/sec, program-dependent | | Output | -20 to +20 dB, variable | | | | Type | IGC (Interactive Gain Control) peak limiter | | Level | 0 dB to Off (+21 dBu), variable | | Level 1 Limiter Type | Clipper | | Attack | Zero | | Release | Zero | | Level 2 Limiter Type | Program limiter | | Attack | Typically < 5 ms, program-dependent | | Release | Typically 20 dB/sec, program-dependent | | | | Type | IDE (Interactive Dynamic Enhancer) | | Filter | Frequency: 2.5 kHz (lower cut-off frequency) | | Characteristics | High-pass filter (6 dB / octave) | | Booster | Max 28 dB @ 7.5 kHz | | | | Switch Mode | Auto range, 100 to 240 VAC, 50/60 Hz | | Power Consumption | 18 W | | Mains Power | Standard IEC receptacle | | Dimensions (H x W x D) | 1.7 x 19.0 x 5.9" / 4.3 x 48.3 x 15.0 cm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 27.6 x 21.5 x 21.4" |
