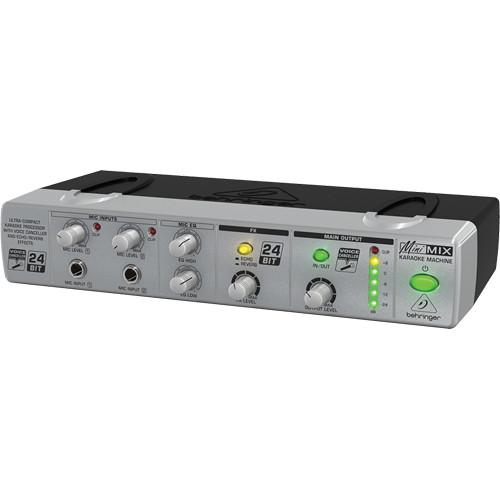

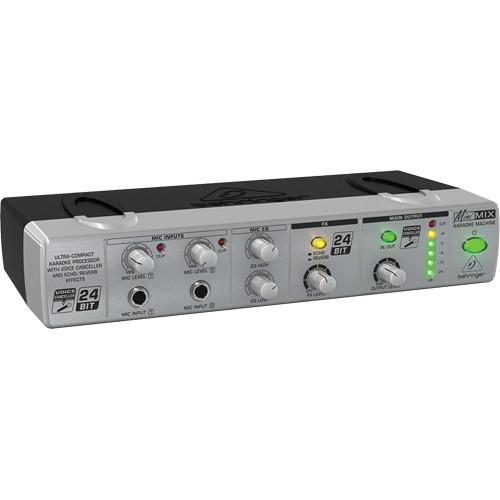

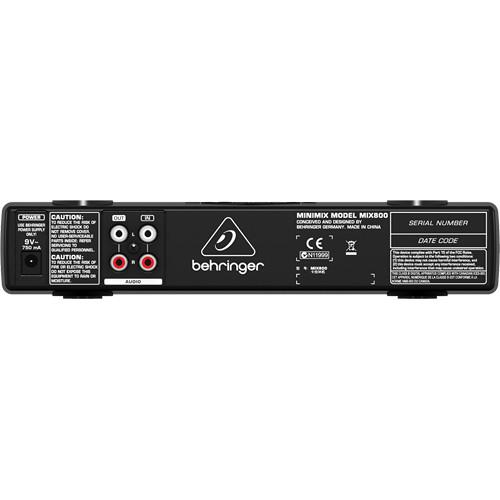

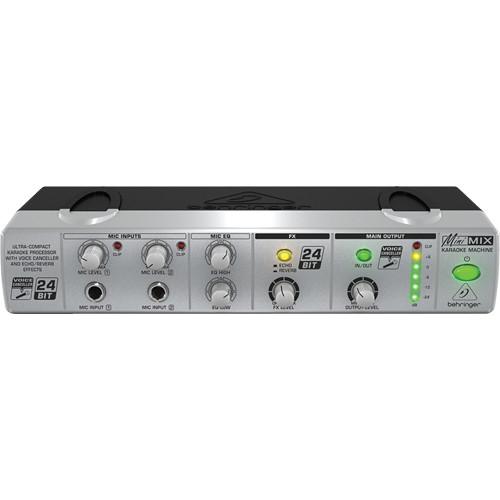

The Behringer MINIMIX MIX800 is a compact karaoke processor offering effective music isolation and vocal enhancement for singers, entertainers, and party-goers at a variety of special events. Connect up to two dynamic microphones to the 1/4" inputs, which feature clip indicators and adjustable levels. Route a stereo music source such as a CD/MP3 player to the RCA coaxial inputs, and activate the Voice Canceller function to eliminate the vocals from it.The integrated 24-bit / 40 kHz digital effects processor provides echo or reverb with adjustable level for the mic signals. Additional tonal sweetening is delivered via the 2-band EQ. The 6-segment LED output meter and dedicated output level control enable precise adjustment of the main mix level, which is fed to the rear-panel RCA coaxial output jacks. The MINIMIX MIX800 includes an external power supply.
- MINIMIX MIX800 Ultra-Compact Karaoke Processor with Voice Canceller and Echo/Reverb Effects
- Compact karaoke processor for parties and special events
- Selectable Voice Canceller effectively eliminates vocals from a stereo source while retaining most musical elements
- Integrated 24-bit / 40 kHz digital effects processor
- Add echo or reverb to the mic signals, and adjust the effect level
- Two independent microphone channels with 1/4" inputs, level controls, and clip indicators
- 2-band EQ for vocal enhancement and sound shaping
- Stereo RCA I/O for connecting a CD, MP3, or tape player
- 6-digit LED output meter for precise level indication
UPC: 689076749176 In the Box Behringer MINIMIX MIX800 Compact 2-Channel Karaoke Processor External Power Supply Limited 1-Year Warranty with Extension to 3 Years Upon Online Registration Table of Contents
- Stackable with other MINI Series models
Upload User Manual
Have you got an user manual for the Behringer MINIMIX MIX800 Compact 2-Channel Karaoke Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Behringer MIX800 Specs
| Channels || 2 |
| Inputs || 2 x 1/4" TRS (balanced) |
2 x RCA coaxial (unbalanced)
| Outputs || 2 x RCA coaxial (unbalanced) |
| Input Impedance || 1/4": 2 kOhms (approximately) |
RCA: 20 kOhms (approximately)
| Maximum Input Level || 1/4": -20 dBu |
RCA: 15 dBu
| Frequency Response || System: 10 Hz to 200 kHz (+0 dB / -2 dB) |
| Frequency Range || Output: 20 Hz to 120 kHz (±3 dB) |
| Dynamic Range || System: 112 dB (20 Hz to 20 kHz) |
| Total Harmonic Distortion (THD) || System: 0.002% typical at 4 dBu |
| Crosstalk || System: -75 dB at 1 kHz |
| Signal-to-Noise Ratio (SNR) || Output: -104 dBu |
System: 97 dBu at 4 dBu, A-weighted
| Digital Resolution || 24-bit / 40 kHz |
| Metering || 6-digit LED output meter |
LED clip indicators (channels 1 and 2)
| Power Supply || External Power Supply: 9 V, 750 mA |
Mains Voltage: 120 VAC, 60 Hz
| Power Consumption || 6 W |
| Dimensions (W x H x D) || 9.6 x 1.9 x 4.7" / 242.6 x 48.0 x 120.0 mm (approximately) |
| Weight || 1.3 lb / 0.6 kg |
| Package Weight || 2.14 lb |
| Box Dimensions (LxWxH) || 15.5 x 6.7 x 4.1" |
