Product description - Quick Listen: Behringer Model D Analog Synth
- Behringer vs Moog: The definitive comparison
- Behringer Model D #01 - Features Sounds & Patches
- Behringer Model D demo 01

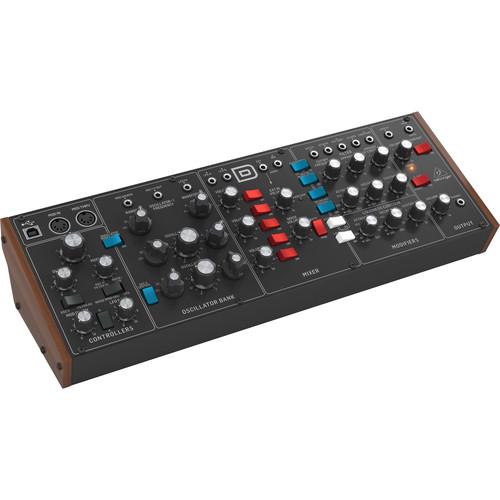

Based on the authentic synthesizer structure and ladder-style filter design found in iconic and legendary synths of the '70s, the Behringer Model D is a three-oscillator analog synthesizer with a pure analog signal path and a dedicated and fully analog triangle/square wave LFO. The instrument utilizes matched transistors and JFETs, precision 0.1% thin-film resistors, and polyphenylene-sulfide capacitors, which allow for flexible sound shaping capabilities, resulting in super-fat basses and lead tones, mind-bending effects, and progressive organ sounds.
The three VCOs offer a wide range of waveforms for sculpting sound. VCOs 1&2 include triangular, triangular/saw, saw, square, wide pulse, and narrow pulse, while VCO3 features triangular, reverse saw, saw, square, wide pulse, and narrow pulse. Additionally, all 3 VCOs can be adjusted across a wide, 6-octave range (LO, 32', 16', 8', 4', and 2'). At the heart of the Model D beats the highly flexible 24 dB ladder-style filter with controls for filter cutoff, emphasis, and contour. The filter can be switched between high-pass and low-pass, while the dedicated envelope allows the filter to be shaped over time. What's more, the filter can be key-tracked for realistic recreations of acoustic instruments.

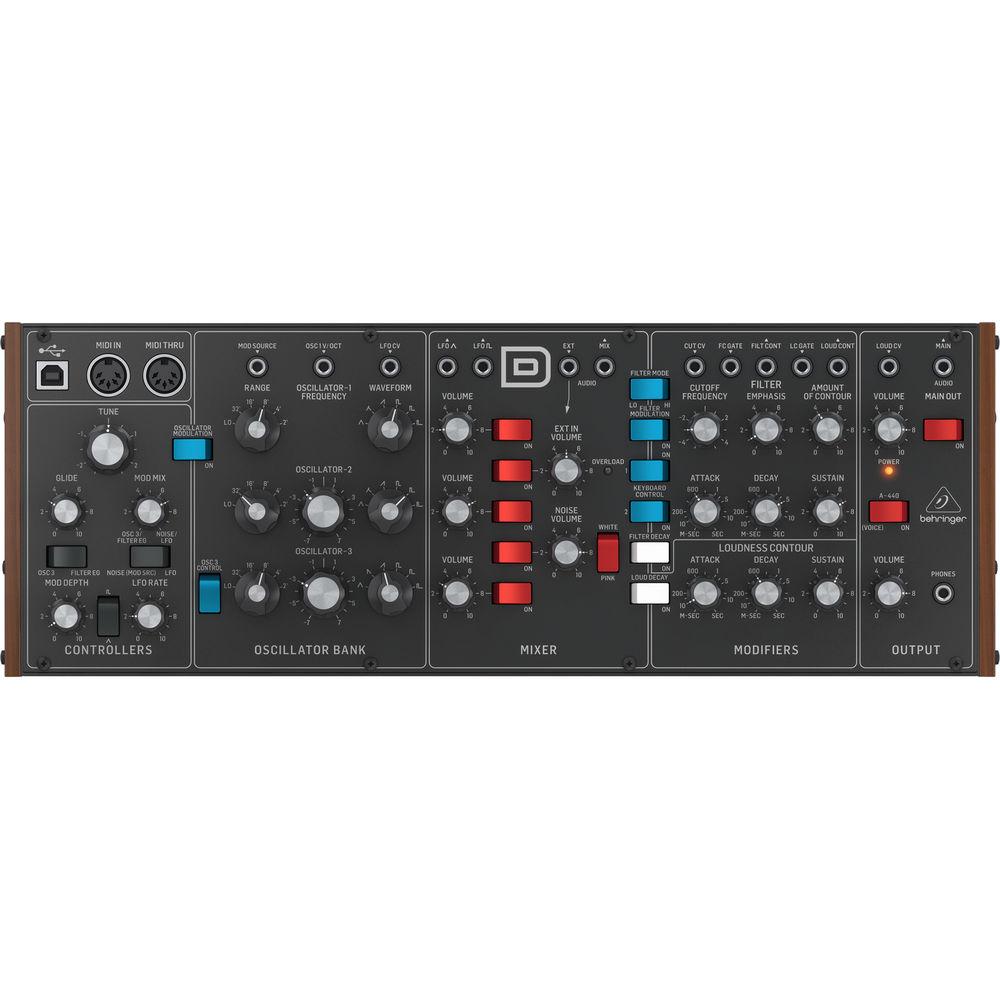

Other notable additions to the Model D include a semi-modular design, which requires no patching for immediate performance. However, many of the instrument's audio and CV input and outputs can be routed via 1/8" patch cables to interface with other Eurorack modules. The front panel can be removed from the desktop case and placed within a standard Eurorack enclosure. The monophonic Model D is capable of up to 16-note poly-chaining, allowing multiple units to be connected and used polyphonically. The Behringer Model D includes a power adapter. -
- Classic analog synthesizer with triple VCO design allows for insanely fat music creation
- Authentic reproduction of original “D Type” circuitry with matched transistors and JFETs
- Precision 0.1% thin-film resistors and polyphenylene sulfide capacitors
- Pure analog signal path based on authentic VCO, VCF, and VCA designs
- Five variable oscillator shapes with variable pulse widths for ultimate sounds
- Classic 24 dB ladder filter with resonance for authentic sound performance
- Switchable low-/high-pass filter mode for enhanced sound creation
- Dedicated and fully analog triangle/square wave LFO
- 16-voice poly-chain allows combining multiple synthesizers for up to 16-voice polyphony
- Semi-modular design requires no patching for immediate performance
- Overdrive circuit adds spice and edge to your sounds
- Noise generator dramatically expands waveform generation
- Complete Eurorack solution: main module can be transferred to a standard Eurorack case
- 48 controls give you direct and real-time access to all important parameters
- External audio input for processing external sound sources
- Low- and high-level outputs featuring highest signal integrity signal stages
- Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
UPC: 653341317032 In the Box Behringer Model D Analog Synthesizer with Ladder-Style Filter - Eurorack Compatible Power Adapter Limited 1-Year Warranty, Extendable to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Model D Analog Synthesizer with Ladder-Style Filter - Eurorack Compatible in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer Model D Specs | Synthesizer Structure | Number of Voices: Monophonic
Type: Analog
VCO: 3 x voltage-controlled oscillators (0.1 Hz to 20 kHz in 6 overlapping ranges)
LFO: 1 x low-frequency oscillator (0.05 Hz to 200 Hz, up to 300 Hz with external CV input)
VCF: 1 x voltage-controlled filter, switchable low-pass or high-pass (24 dB/octave slope)

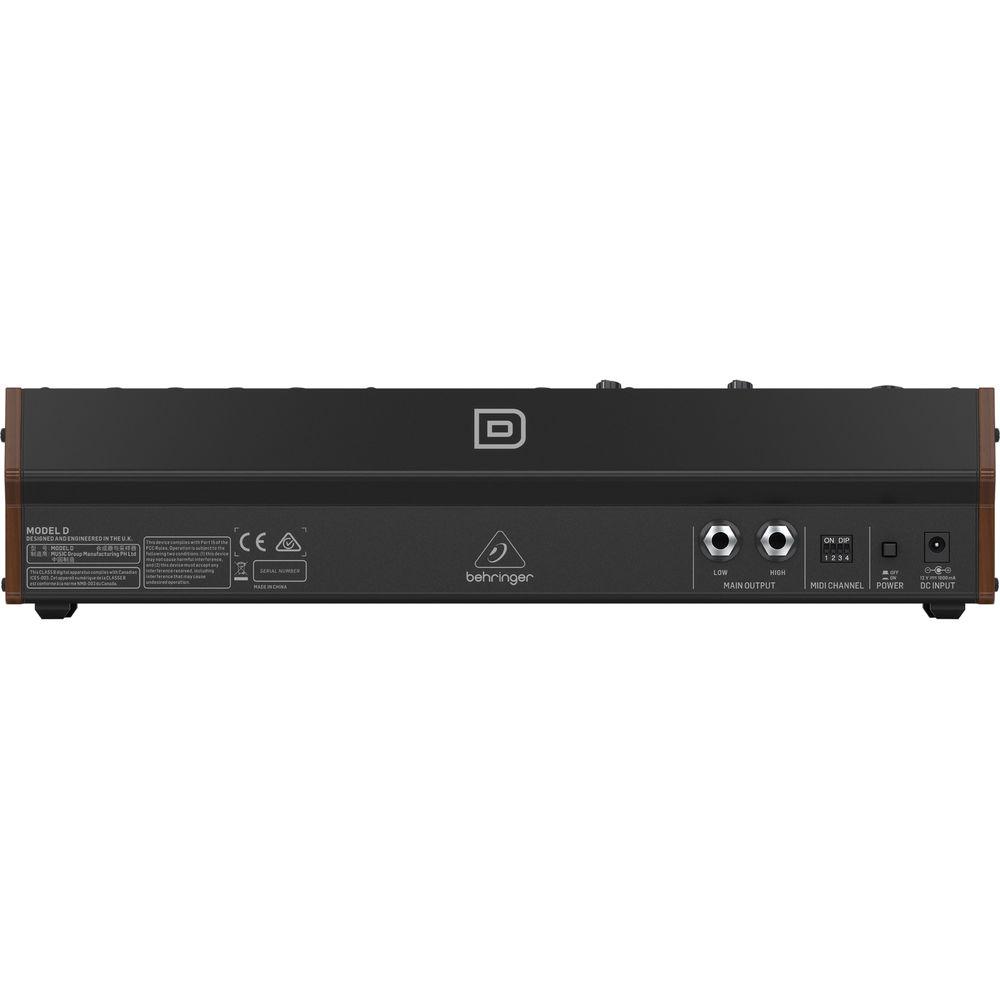

Envelopes: VCA, VCF | | Line Inputs and Outputs | High Output: 1/4" / 6.3 mm TS, unbalanced, maximum 0 dBu
High Output Impedance: 1.2 kOhms
Low Output: 1/4" / 6.3 mm TS, unbalanced, 30 dB below high output
Low Output Impedance: 1 kOhms
Headphones: 1/8" / 3.5 mm TRS, unbalanced, maximum -3.5 dBu
Headphones Output Impedance: 8 Ohms | | Control Voltage | Inputs: 1/8" / 3.5 mm (TS)
Modulation Source: Noise is the modulation source if there is no connection present
Oscillator 1: 1 V per octave
LFO: -5 V to +5 V
External Input Impedance: 1 MOhm
Cutoff Frequency: 0 to +5 V controls the cutoff frequency
Loudness: 0 to +5 V controls the loudness
Filter Contour: +5 V gate input triggers the filter contour
Loudness Contour +5 V gate input triggers the loudness contour
Outputs: 1/8" / 3.5 mm (TS)
LFO Triangular Waveform: +/- 2 V
LFO Square Waveform: +/- 2 V
Mixer Output: 0 dBu maximum
Filter Contour: 0 to +4 V
Loudness Contour: 0 to +4.6 V
Main Audio Output: 0 dBu maximum | | USB | Type: Class-compliant USB 2.0, Type-B
Supported Operating Systems:
Windows XP or higher
macOS 10.6.8 or higher | | MIDI Connectors | In/Thru: 2 x 5-pin DIN | | Controllers | Knobs
Tune: -2 to +2
Glide: 0 to 10
Modulation Mix: OSC 3 or filter EG to noise/ext mod source or LFO
Modulation Depth: 0 to 10
LFO Rate: 0 to 10
Switches
Modulation Source: OSC 3 or filter EG
Modulation Source: Noise or external modulation source or LFO
LFO Waveform: Triangular or square | | Oscillators | Knobs Range (OSC 1, 2, and 3): LO, 32', 16', 8', 4', 2' Frequency (OSC 2 and 3): -7 to +7
Waveform (OSC 1 and 2): Triangular, triangular/saw, saw, square, wide pulse, narrow pulse
Waveform (OSC 3): Triangular, reverse saw, saw, square, wide pulse, narrow pulse
Switches: Oscillator modulation on/off
OSC 3 control (by keyboard) on/off | | Mixer Section | Knobs
Volume (OSC 1, 2, and 3): 0 to 10
Volume (External Input): 0 to 10
Volume (Noise): 0 to 10
Switches
OSC 1, 2, and 3: On/off
External Input: On/off
Noise: On/off
Noise Source: Pink or white
LED: Overload | | Filter | Knobs
Cutoff Frequency: -4 to +4
Filter Emphasis: 0 to 10
Amount of Contour: 0 to 10
Attack: 1 ms to 10 s
Decay: 4 ms to >35 s
Sustain: 0 to 10
Switches
Filter Mode: Low-pass/high-pass
Filter Modulation: On/off
Keyboard Control 1: On (1/3) or off
Keyboard Control 2: On (2/3) or off
Filter Decay: On/off | | Output | Loudness Contour Dynamic Range: 80 dB
Knobs
Volume: 0 to 10
Headphone Volume: 0 to 10
Amount of Contour: 0 to 10
Attack: 1 ms to 10 s
Decay: 4 ms to >35 s
Sustain: 0 to 10
Switches
Main Output: On/off
A-440: On/off
Loudness Decay: On/off
LED: Power | | Operating Temperature Range | 41 to 104°F / 5 to 40°C | | Power | External Power Adapter: 12 VDC, 1000 mA
Power Consumption: 7 W maximum | | Dimensions (H x W x D) | 3.5 x 14.7 x 5.4" / 90 x 374 x 136 mm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 5.215 lb | | Box Dimensions (LxWxH) | 19.35 x 7.45 x 5.1" |
