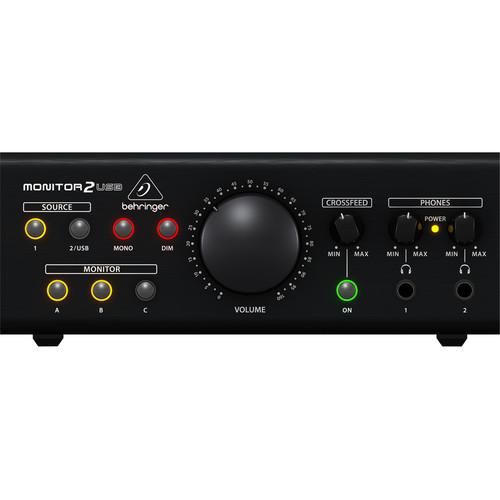

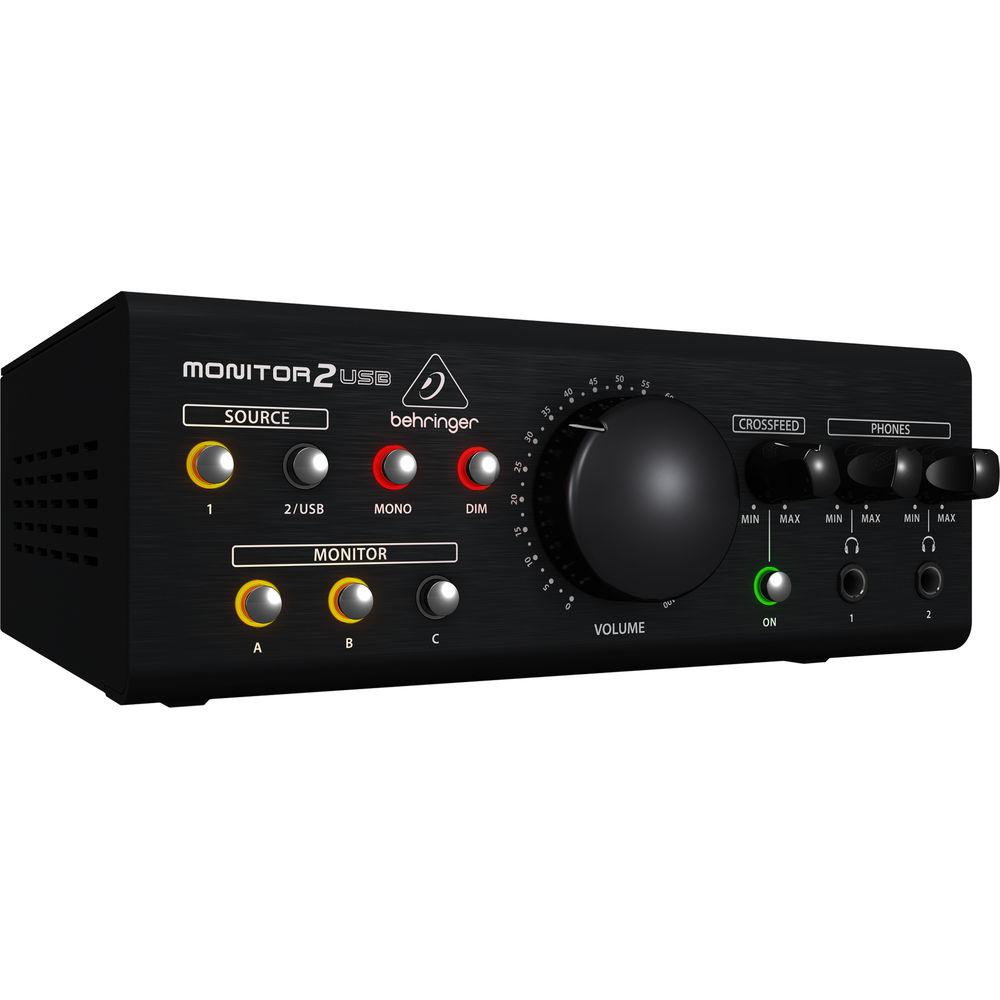

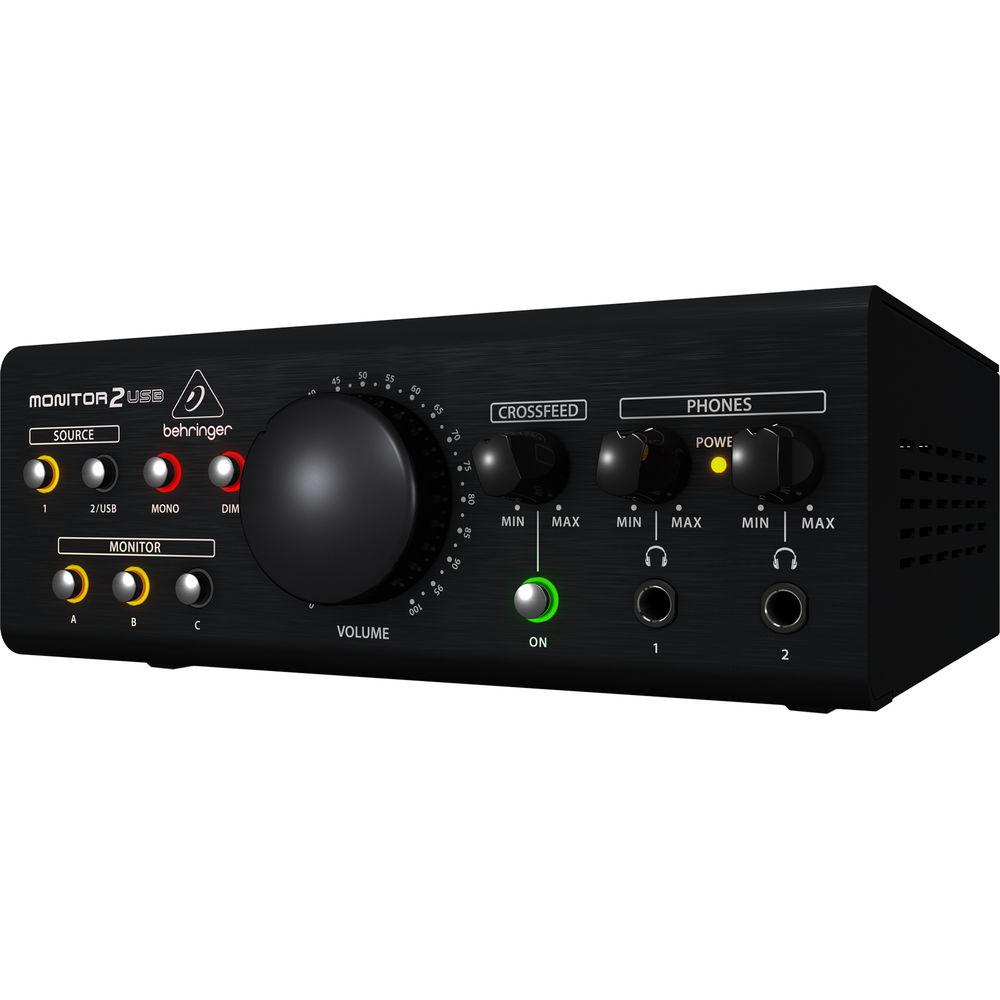

User Manual for Behringer Monitor2USB Speaker and Headphone Monitor Control Click to enlarge the picture
Contents of the user manual for the Behringer Monitor2USB Speaker and Headphone Monitor
- Product category: Studio Monitor Controllers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Studio Monitor Controllers
 |
User manual for the Behringer Monitor2USB Speaker and Headphone Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - MONITOR2USB High-End Speaker and Headphone Monitoring Controller
The Behringer Monitor2USB is a monitor controller and USB audio interface designed for home and project studios. It pairs a large VCA control knob for your overall output level with the ability to select among three sets of active studio monitors, as well as two sets of headphones. With its USB jack, you can connect your computer straight to the device so that you may play music from your digital library, or you can mix straight from your DAW. Through its XLR inputs, you can route analog sound, balanced or unbalanced. The VCA amplifier provides several benefits. For example, it allows DC current to flow through the volume control, rather than the audio signal, and thus, bypasses any DC-related signal degradation. This also helps in making sure your stereo image doesn’t drift as you crank the volume knob; anyone who’s experienced in monitor controllers knows this can be a problem—a problem mitigated in the Monitor2USB. The volume knob itself is quite large, and this too serves a function: Such a large size allows for more precision as you turn the control, so you can achieve minutely specific level adjustments, which might be necessary as you switch from monitoring post-production projects to music mixes.You can use its three sets of outputs in a variety of ways—for instance, you can hook up two monitors and a subwoofer, or three sets of monitors, one of which can serve as your dedicated mono check. On the headphone outputs, a crossfeed control mimics the stereo experience of sitting in front of your speakers by feeding a miniscule amount of signal from the right to the left and vice versa. Amongst other benefits, this feature helps mitigate ear fatigue over long sessions. Mono and Dim buttons are on hand to help you in the mixing process. Included with the Monitor2USB are a power cable and a full, complimentary copy of Tracktion—a DAW to help you in your recording, editing, and mixing journeys. - Key Features at a Glance
-
- Large volume knob with VCA control for precise level adjustments
- Built-in stereo USB audio interface
- 2 high-quality stereo inputs
- 3 independent monitor outputs to connect two stereo monitors and one mono monitor
- 2 headphone amplifiers with separate volume controls
- Crossfeed control emulates the stereo speaker panorama when listening through your headphones
- Convenient Mono and Dim functions
- Included eco-friendly power supply
- Designed and engineered in Germany
UPC: 748252157843 In the Box Behringer Monitor2USB Speaker and Headphone Monitor Control Power Cable Full Download of Tracktion Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Monitor2USB Speaker and Headphone Monitor Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

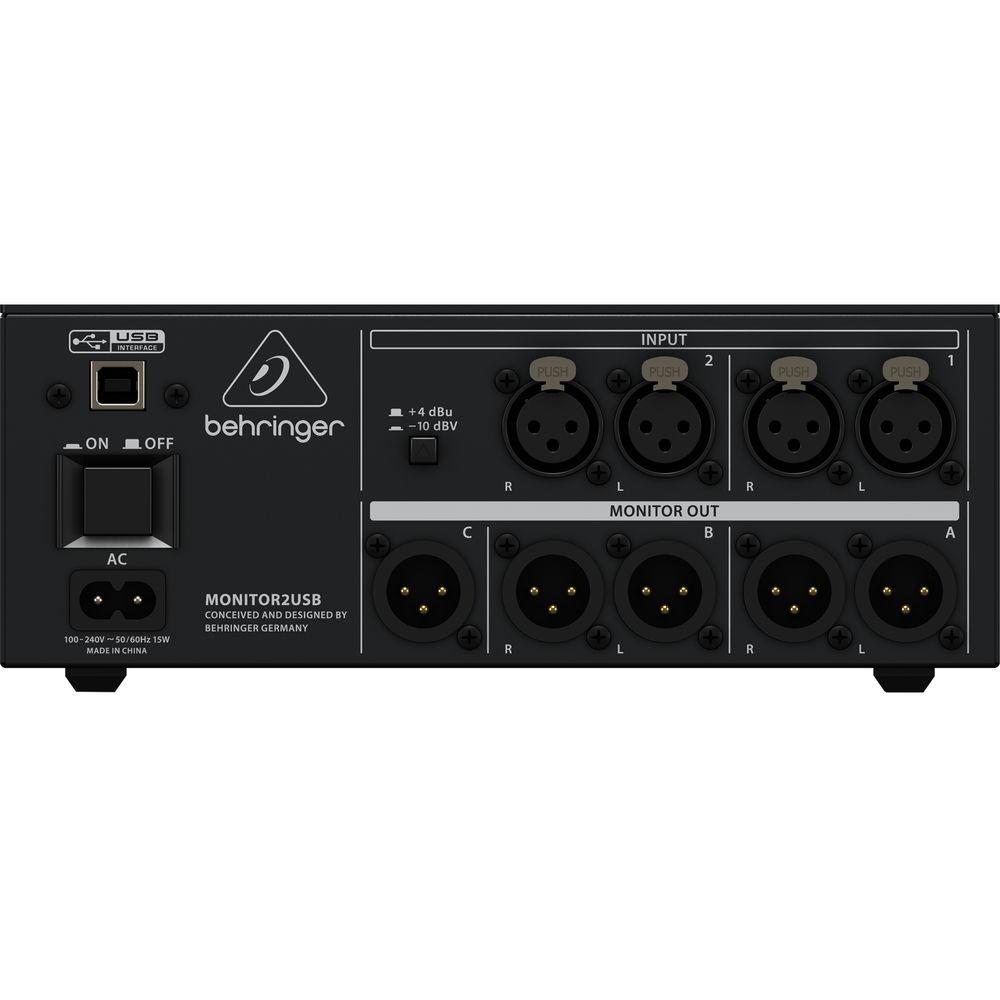

Technical parametersBehringer MONITOR2USB Specs | Analog Inputs | 2 x XLR (input set 1)
2 x XLR (input set 2) | | Input Impedance | 20 kOhms balanced, 10 kOhms unbalanced | | Input Sensitivity | Input Set 1: +4 dBu
Input Set 2: +4 dBu / -10 dBV | | Analog Outputs | Monitor Out A: 2 x XLR, balanced
Monitor Out B: 2 x XLR, balanced
Monitor Out C: 1 x XLR, balanced
Phones: 2 x 1/4" TRS, phone type | | USB | USB 1.1, type-B | | D/A Conversion | 44.1 / 48 kHz | | Frequency Response (-3 dB) | < 10 Hz to 120 kHz | | SNR | 85 dB at 0 dB, A-weighted | | CMRR | > 50 dB at 1 kHz, 0 dBu input level, unity gain | | THD+N | 0.03% at 1 kHz, 0 dBu input level, unity gain | | Crosstalk | > 75 dB at 1 kHz | | Attenuation | Dim: -15 dB | | Power Supply | 100 to 240 VAC, 50 / 60 Hz | | Dimensions (H x W x D) | 3.3 x 8.5 x 7.8" / 84.0 x 216.0 x 199.0 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.3 x 5.3" |
