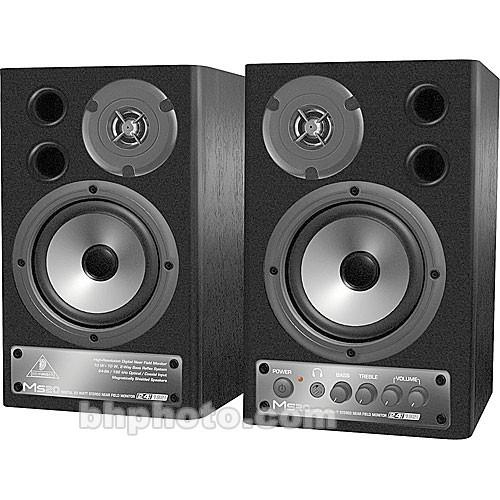

User Manual for Behringer MS-20 - 20-Watt 24 192 Digital Stereo Nearfield Monitors with SPDIF and Optical Inputs - Pair Click to enlarge the picture
Contents of the user manual for the Behringer MS-20 - 20-Watt 24 192
- Product category: Studio Monitors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Studio Monitors
|
User manual for the Behringer MS-20 - 20-Watt 24 192 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Behringer MS-20 is a pair of inexpensive nearfield speakers, equipped with high-resolution 24-bit/192kHz converters, optical and coaxial SPDIF digital inputs, and analog line inputs in a dual RCA phono and 1/8" stereo mini configuration. Designed primarily for desktop audio and multimedia personal production monitoring, the MS-20's offer 20 Watts of amplification, Bass and Treble tone controls, individual line input volume controls, and a headphone output, all easily accessed from the front panel of the Right speaker. Compact and feature-laden, these speakers are a worthy solution for desktop workstation audio monitoring. - Inexpensive 2-way active studio monitors with 2 x 10W amplification and Bass/Treble controls for Desktop Audio, Multimedia, and Keyboard workstation applications
- Active Main, Passive satellite system design, ported bass-reflex cabinets for tighter low frequency reproduction
- Magnetically shielded for close proximity use with a computer or video monitor
- Optical and coaxial digital inputs, high-res 24-bit/192kHz D/A converters with maximized dynamic range
- Two stereo analog inputs with 1/8" TRS and stereo RCA connectors, may be used simultaneously or mixed with a digital stereo input source
- Individual volume controls for line inputs
- Accessible front panel stereo headphone connector with loudspeaker auto-mute function
UPC: 689076359863 In the Box Behringer MS-20 - 20-Watt 24/192 Digital Stereo Nearfield Monitors with SPDIF and Optical Inputs - Pair AC Power Cable Limited 10-Year Warranty User Manual PDF 1.4mbrauusssayyvxddafavzqtfvavwwx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer MS-20 - 20-Watt 24 192 Digital Stereo Nearfield Monitors with SPDIF and Optical Inputs - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MS20 Specs | Low Frequency Driver | 3.6" woofer | | Mid Frequency Driver | No | | High Frequency Driver | 2.5" Dome Tweeter | | LF Amplifier | 2 x 10 Watts | | HF Amplifier | Not Applicable, Not Biamplified | | Crossover | Yes, Active | | Frequency Range | 65 Hz - 25 kHz | | Impedance | 20 kOhms | | Maximum Sound Pressure Level (SPL) | Not Specified by Manuafacturer | | Controls and Indicators | 1 x Power Switch
2 x Rotary Bass/Treble Control Knobs
1 x Line 1/Digital Volume Control Knob
1 x Line 2 Volume Control Knob | | Connectors | 2 x RCA Phono Line 2 In
1 x 1/8" Stereo Mini Line 1 In
1 x TOSLINK Optical Digital In
1 x Coaxial SPDIF Digital In
1 x RCA To Left Speaker Out
1 x 1/4: Stereo Headphone Out | | Shielded | Yes | | Dimensions (HxWxD) | 9.4 x 6.0 x 7.4" (239 x 154 x 187mm) | | Weight | Right Speaker: 8.1 lb (3.7 kg)
Left Speaker: 4.5 lb (2.05 kg) | | Specialties | Optical and SPDIF Digital Inputs
24-bit/192kHZ Resolution for Digital Inputs
Ported Cabinet Front for Improved LF Response
Bass and Treble Controls
Headphone Output | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 21.0 x 11.5 x 9.5" |
