Product description - MS40 24-Bit/192 kHz Digital 40-Watt Stereo Near Field Monitors

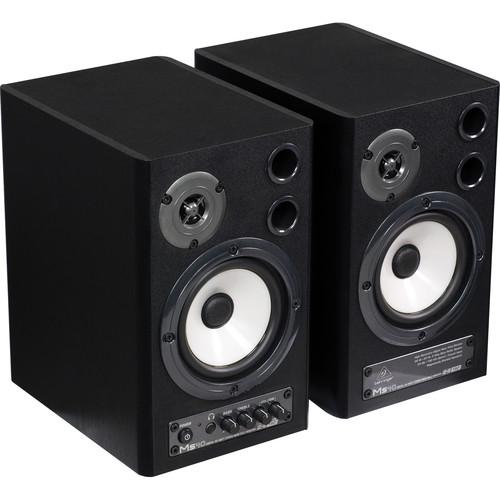

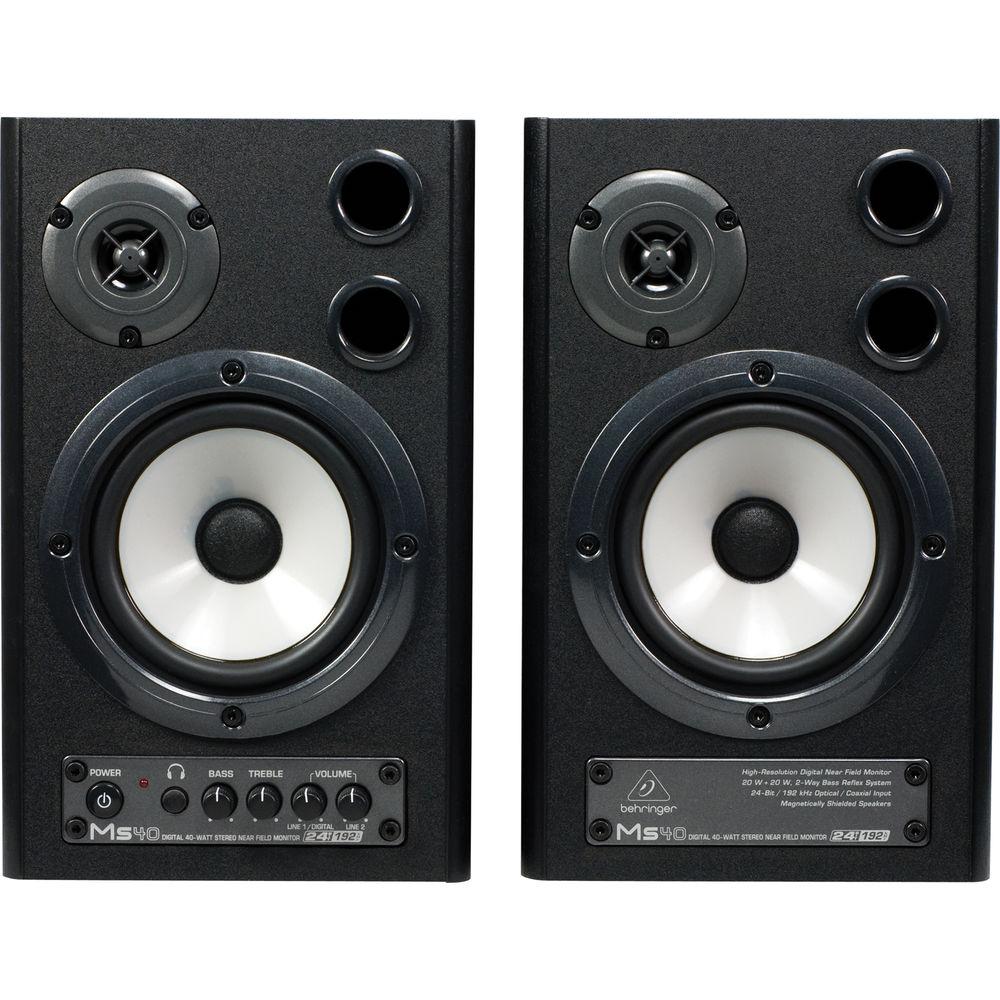

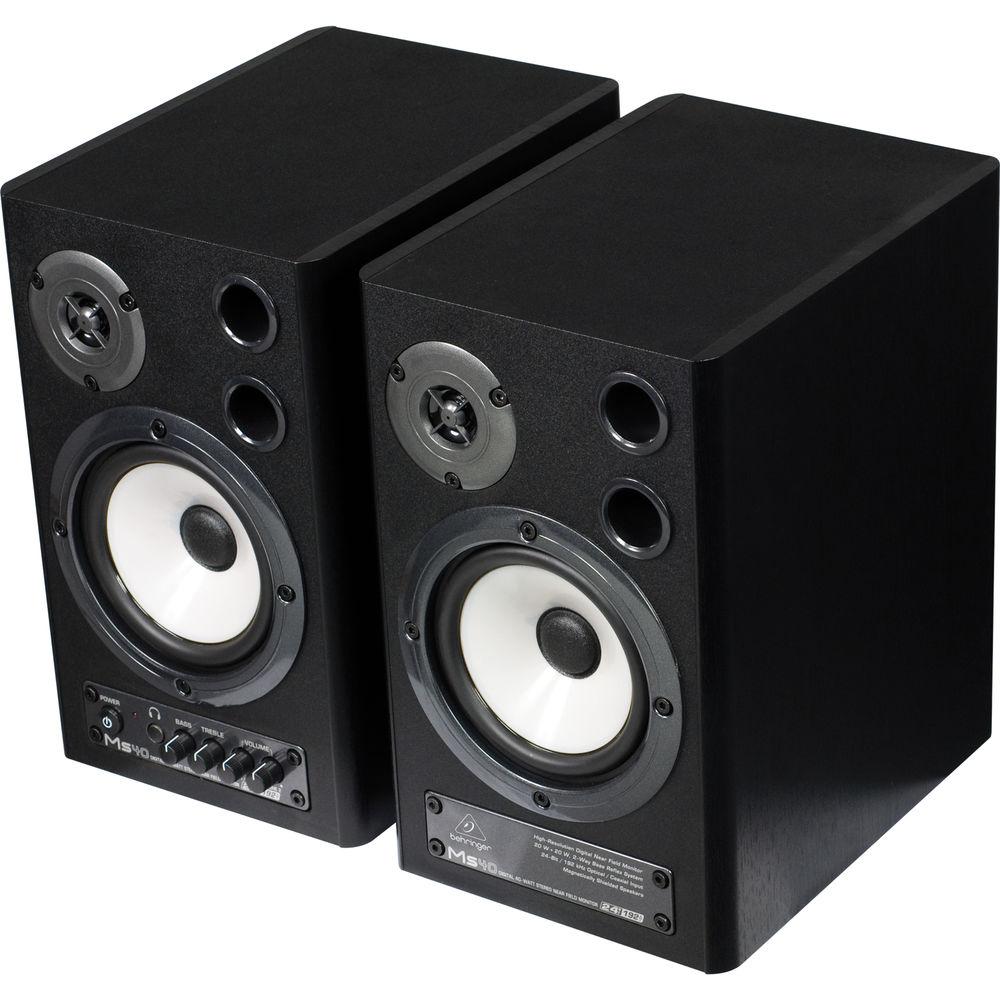

The Behringer MS40 is a pair of shielded 2-way monitor speakers with an Active Main/Passive Satellite system design. The speakers are powered by 20 Watts per channel of internal amplification, and offer TOSLINK and Coaxial SPDIF digital input capability with full 24-bit/192kHz D/A converters. The 4.75" woofers and unusually large 2.5" tweeters of the MS40's are housed in a tuned, ported bass-reflex cabinet. Treble, Bass and Volume controls are easily accessed on the front panel of the Main speaker, and a standard stereo 1/4" headphone output is available as well. All controls and connectors, except for the Passive Satellite cable input, are located on the Main speaker, along with the amplifier. - 2-way active studio monitors for computer studios, audio and multimedia workstations and electronic keyboard monitoring
- Front-ported bass-reflex cabinets, Active Main/Passive Satellite speaker system design
- TOSLINK and Coaxial SPDIF digital inputs with 24-bit/192kHz D/A converters
- Magnetically shielded 4.75" woofers and 2.5" tweeters for close proximity use with computer and video monitors
- Built-in high-headroom 40-watt stereo (20W per channel) amplification
- Treble and Bass tone controls, separate Volume controls for input Line 1 and Line 2
- 1/4" Headphone output, standard RCA and 1/8" Stereo Mini inputs
UPC: 689076359962 In the Box Behringer MS40 - 2-Way 40-Watt 24-bit/192kHz Hybrid Nearfield Monitors - Pair Power Cable RCA Left-to-Right Speaker Connector Cable Limited 10-Year Warranty User Manual PDF 1.4mbrauusssayyvxddafavzqtfvavwwx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer MS40 - 2-Way 40-Watt 24-bit 192kHz Hybrid Nearfield Monitors - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MS40 Specs | Low Frequency Driver | 4.75" | | Mid Frequency Driver | No | | High Frequency Driver | 2.5" | | LF Amplifier | 40 Watts (20W per ch.) | | HF Amplifier | No | | Crossover | Not Specified by Manufacturer | | Frequency Range | 50 Hz - 25 kHz | | Impedance | 20 kOhms(inputs) | | Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer | | Controls and Indicators | 2 x Volume Knobs
1 x Treble Control Knob
1 x Bass Control Knob

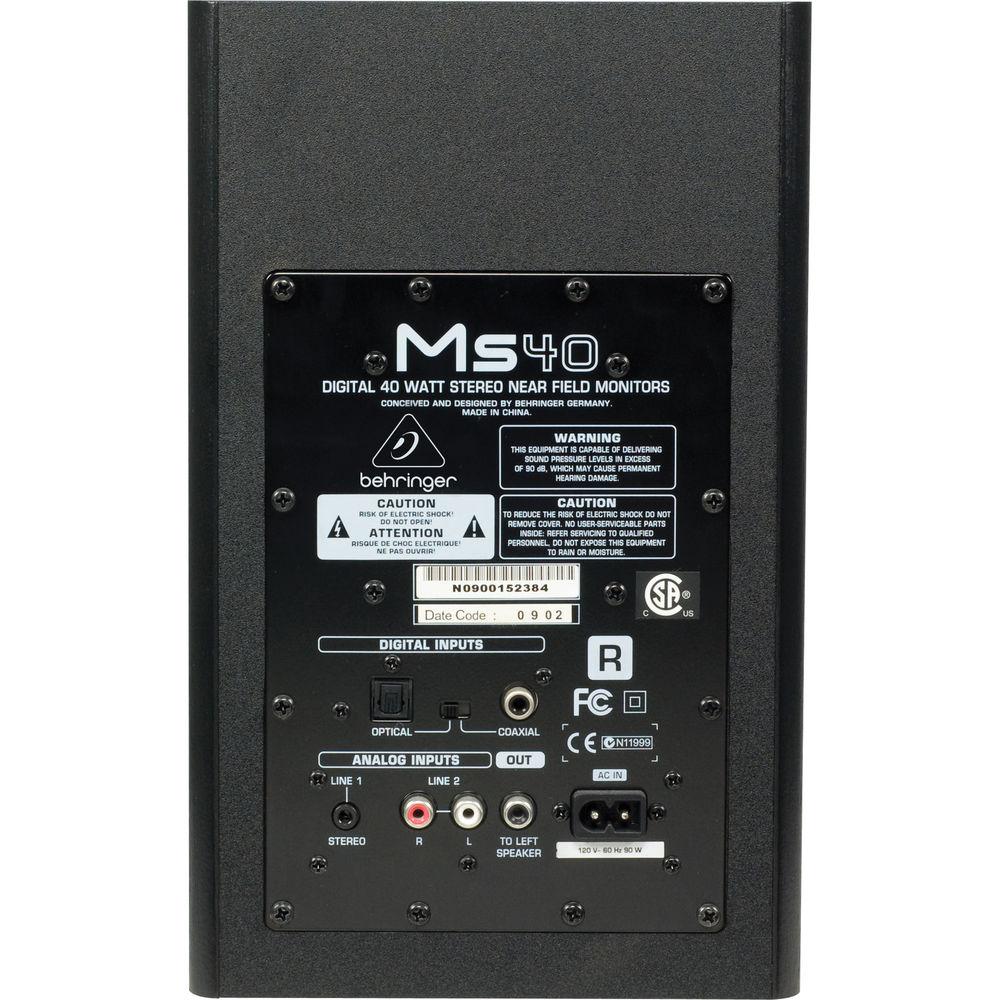

1 x Power Switch | | Connectors | 2 x RCA Phono Line 1 In
1 x 1/8" Stereo Mini Line 2 In
1 x Coaxial SPDIF Digital In
1 x TOSLINK Optical In
1 x 1/4" Stereo Headphone Out
1 x RCA To Left Speaker Out | | Shielded | Yes | | Dimensions (HxWxD) | 11 x 6.8 x 9.6" (279 x 173 x 245mm) | | Weight | Right: 10.8 lb (4.9 kg)
Left: 7 lb (3.2 kg) | | Specialties | 24-bit/192kHz D/A Converters
Optical and Coaxial SPDIF Digital Inputs
Main/Satellite System Design | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 25.5 x 13.0 x 9.5" |
