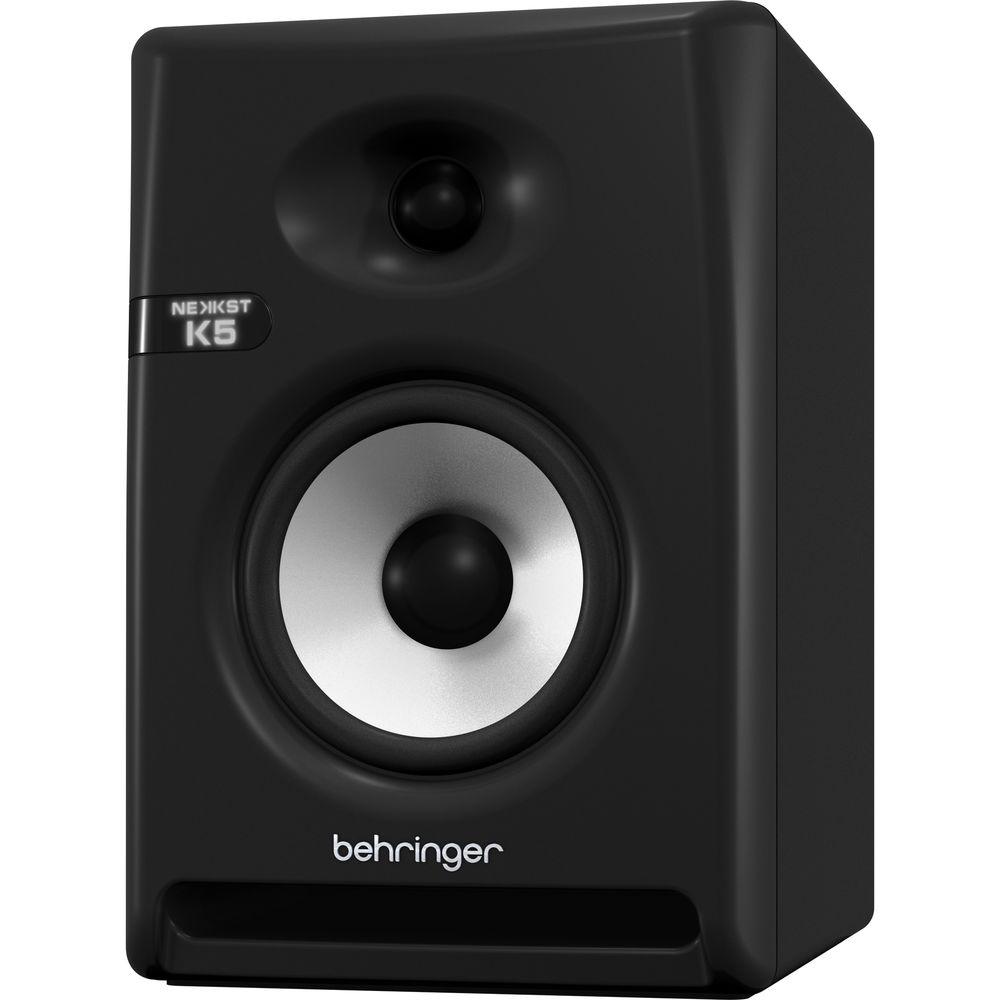

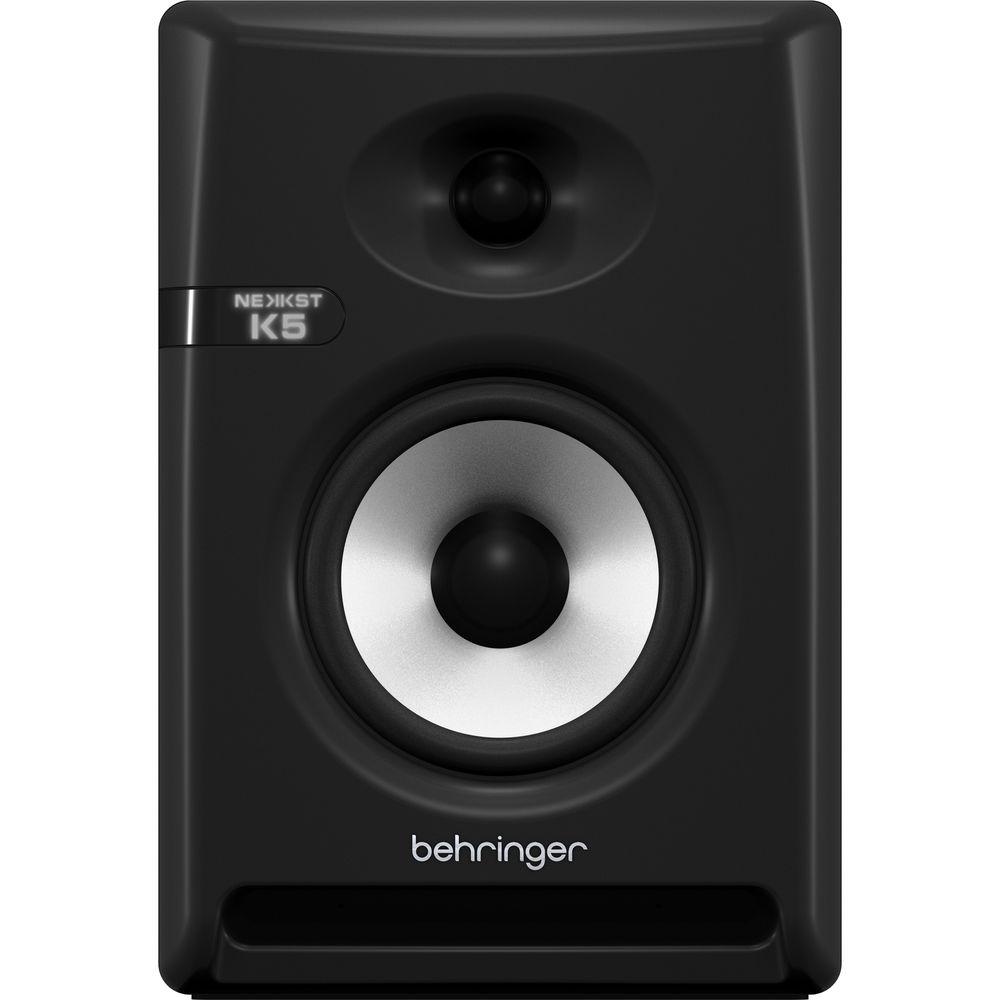

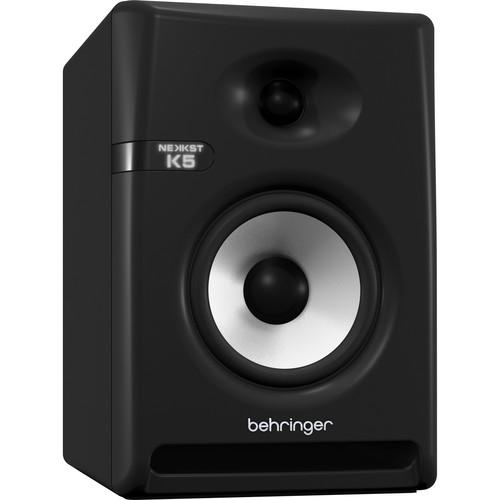

Product description The NEKKST K5 from Behringer is a bi-amped, powered studio monitor designed for critical listening in a mixing environment. It features a 1" tweeter, a 5" woofer, a frequency response of 50 Hz to 20 kHz, a maximum SPL of 100 dB, and a fixed crossover at 3.2 kHz.

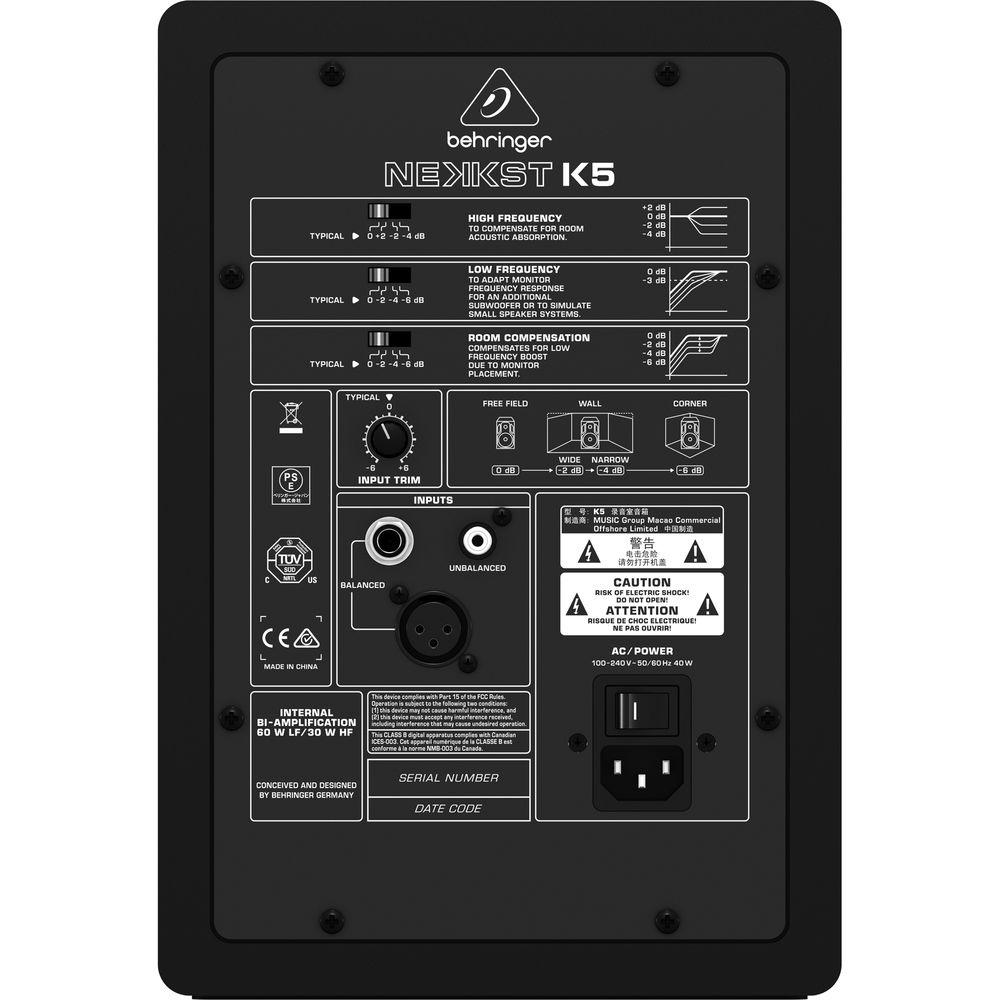

For inputs, this monitor provides an XLR connection point, as well as a 1/4" TRS balanced and an RCA unbalanced termination. It features switchable low, midrange, and high EQs on the back for help in tailoring the monitor to your specific room environment, as well as a variable input trim. It allows for a maximum output-power-handling at 150W, and works quite comfortably at 100W.
Its proprietary waveguide technology aims to provide acoustic dispersion and a large sweet spot for accurate monitoring, while its bi-amped Class-D designed allows for separate powering of the tweeter and woofer to preserve your signal's integrity. All of this contained in a high-density composite enclosure for low diffraction and reduced low-frequency distortion. UPC: 748252139146 In the Box Behringer NEKKST K5 Bi-Amped 5" Studio Monitor Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NEKKST K5 Bi-Amped 5" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer K5 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 150 W | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 5.3" / 13.46 cm Woofer | | Amplification | Full-Range Amplifier: Class-D Rated at 150 W HF and LF Amplifer Wattage NSBM | | | | Maximum Sound Pressure Level (SPL) | 100 dB | | Maximum Input Level | +14 dBu | | Protections and Limiting | Limiter | | | | EQ | 1 x HF Shelf: -6 to 0 dB at 8 kHz (2 dB Increments)
1 x Low-Mid Shelf: -6 to 0 dB at 300 Hz (2 dB Increments)
1 x LF Shelf: -6 to 0 dB at 60 Hz (2 dB Increments) | | | | Crossover Frequency | 3.2 kHz | | Crossover Type | Active | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 40 W (Maximum) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 7.8 x 11.3 x 9.7" / 19.7 x 28.8 x 24.7 cm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 13.75 lb | | Box Dimensions (LxWxH) | 14.2 x 13.8 x 10.7" |
