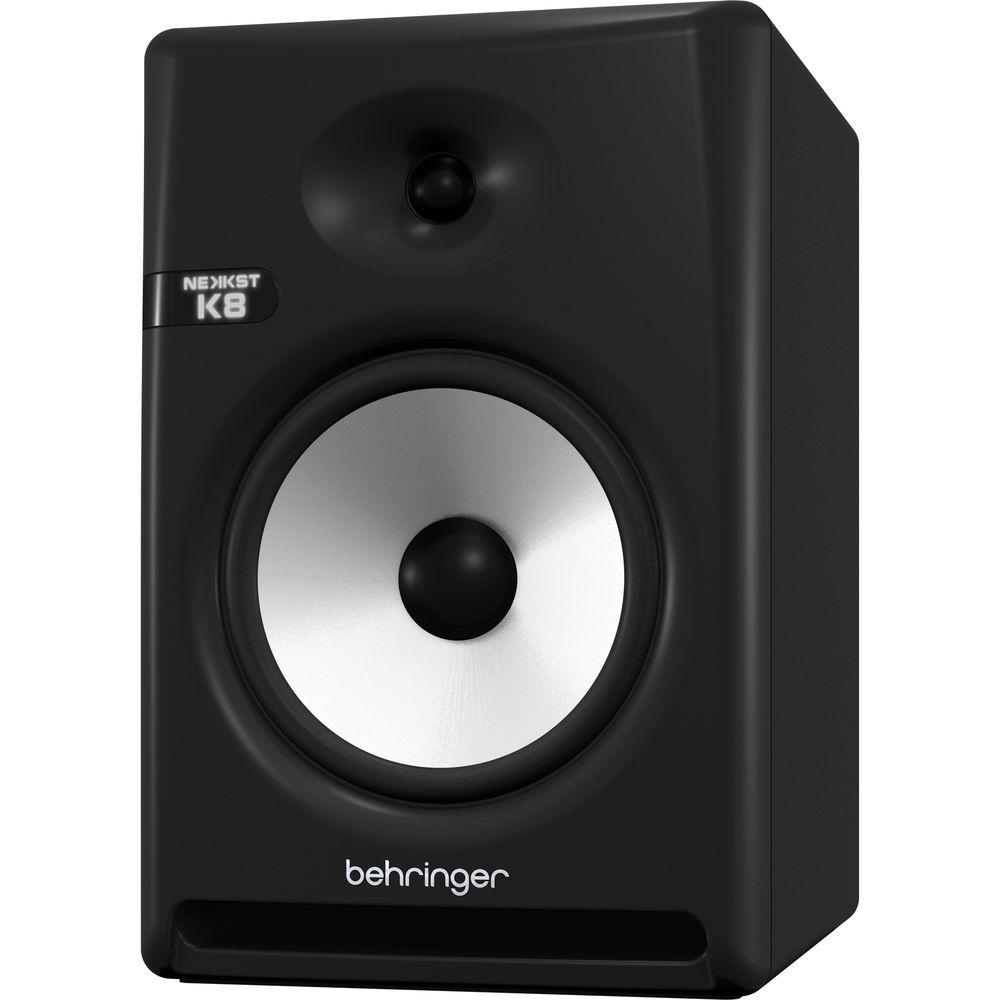

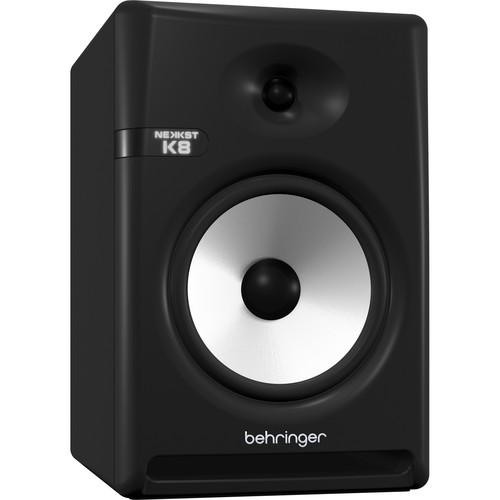

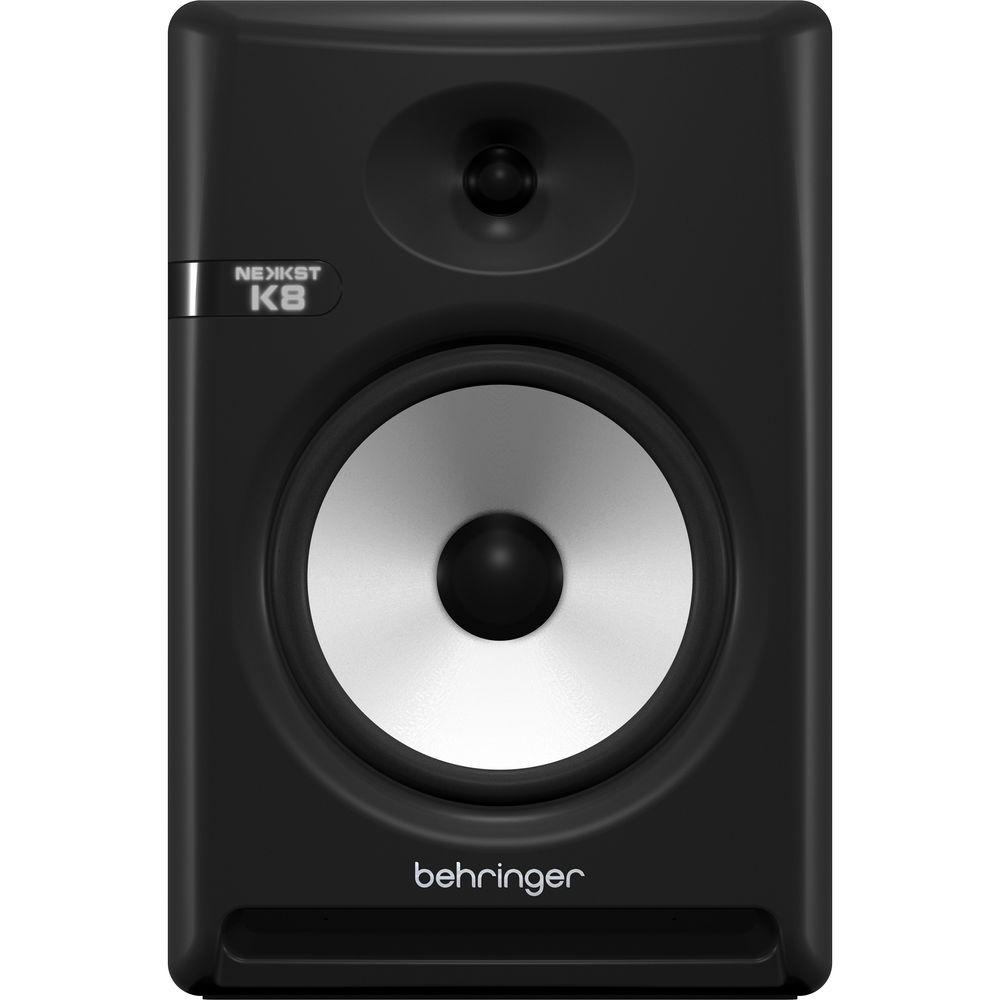

User Manual for Behringer NEKKST K8 Bi-Amped 8" Studio Monitor Click to enlarge the picture
Contents of the user manual for the Behringer NEKKST K8 Bi-Amped 8" Studio
- Product category: Studio Monitors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Studio Monitors
 |
User manual for the Behringer NEKKST K8 Bi-Amped 8" Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The NEKKST K8 from Behringer is a bi-amped, powered studio monitor designed for critical listening in a mixing environment. It features a 1" tweeter, an 8" woofer, a frequency response of 40 Hz to 20 kHz, a maximum SPL of 102 dB, and a fixed crossover at 3 kHz.

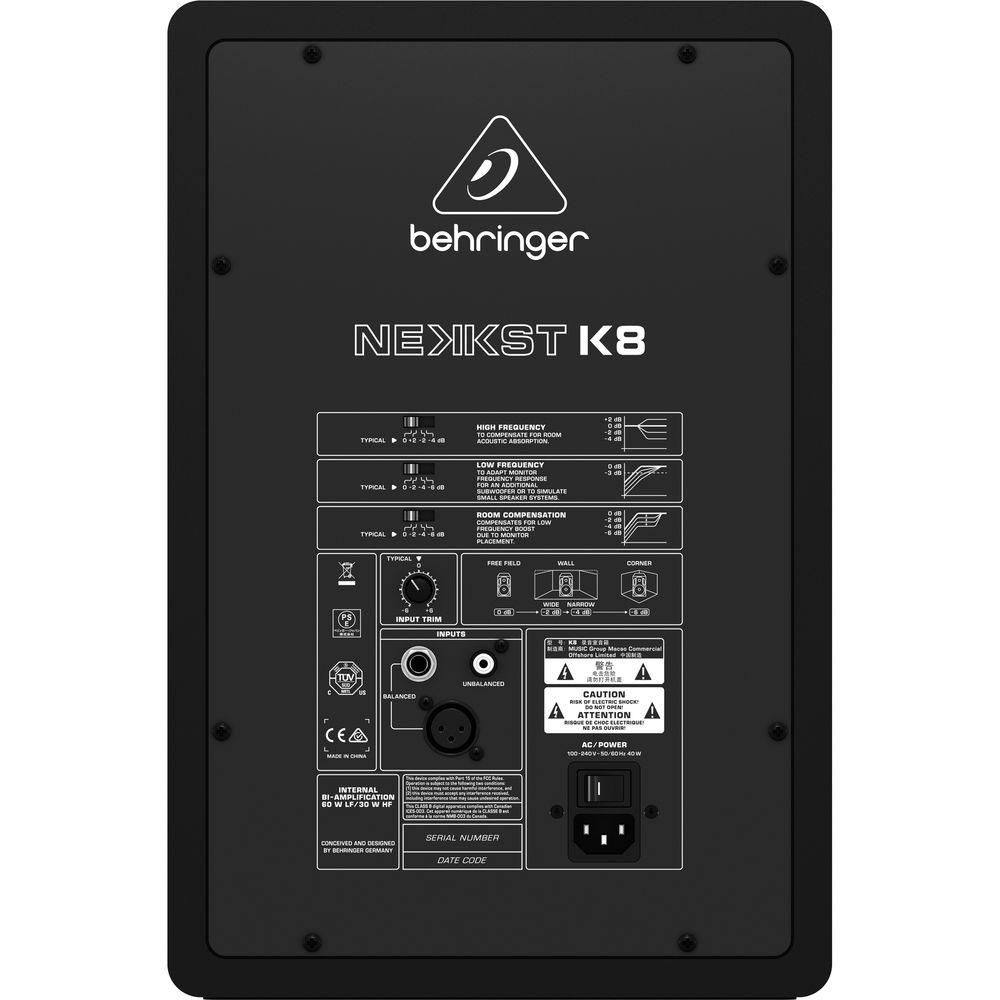

For inputs, this monitor provides an XLR connection point, as well as a 1/4" TRS balanced and an RCA unbalanced termination. It features switchable low, midrange, and high EQs on the back for help in tailoring the monitor to your specific room environment, as well as a variable input trim. It allows for a maximum output-power-handling at 150W, and works quite comfortably at 150W.
Its proprietary waveguide technology aims to provide acoustic dispersion and a large sweet spot for accurate monitoring, while its bi-amped Class-D designed allows for separate powering of the tweeter and woofer to preserve your signal's integrity. All of this contained in a high-density composite enclosure for low diffraction and reduced low-frequency distortion. UPC: 748252139344 In the Box Behringer NEKKST K8 Bi-Amped 8" Studio Monitor Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NEKKST K8 Bi-Amped 8" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer K8 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 150 W | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 8" / 203 mm Woofer | | Amplification | Full-Range Amplifier: Class-D Rated at 150 W HF and LF Amplifer Wattage NSBM | | | | Maximum Sound Pressure Level (SPL) | 102 dB | | Maximum Input Level | +14 dBu | | Protections and Limiting | Limiter | | | | EQ | 1 x HF Shelf: -6 to 0 dB at 8 kHz (2 dB Increments)
1 x Low-Mid Shelf: -6 to 0 dB at 300 Hz (2 dB Increments)
1 x LF Shelf: -6 to 0 dB at 60 Hz (2 dB Increments) | | | | Crossover Frequency | 3 kHz | | Crossover Type | Active | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 40 W (Maximum) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 10.3 x 15.5 x 12.4" / 26.1 x 39.3 x 31.5 cm | | Weight | 19.2 lb / 8.7 kg | | | | Package Weight | 22.8 lb | | Box Dimensions (LxWxH) | 19.0 x 16.5 x 13.0" |
