Product description Quick Listen: Behringer Neutron Semi-Modular Analog Synthesizer Read More - Quick Listen: Behringer Neutron

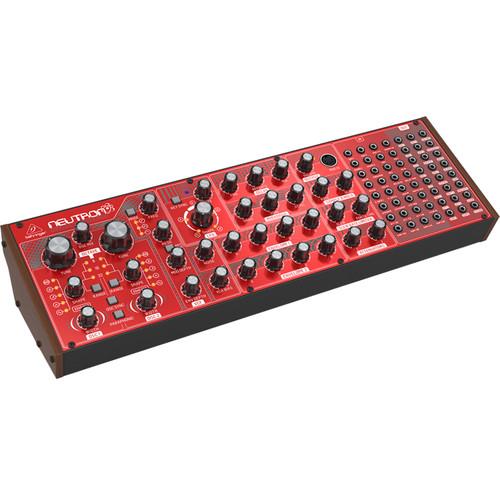

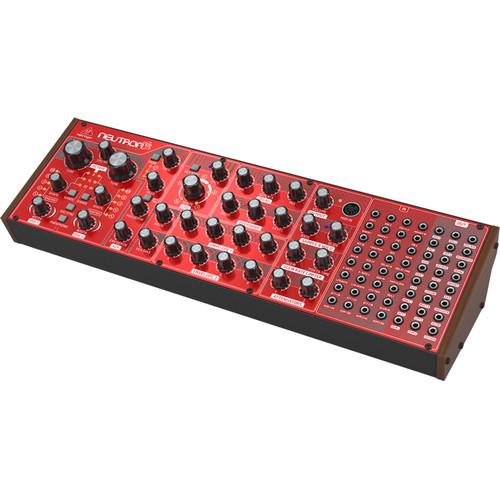

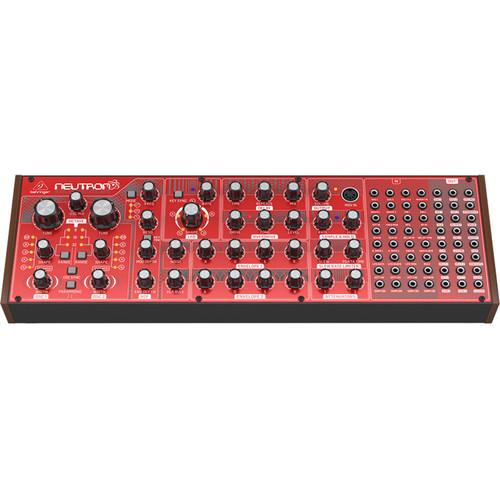

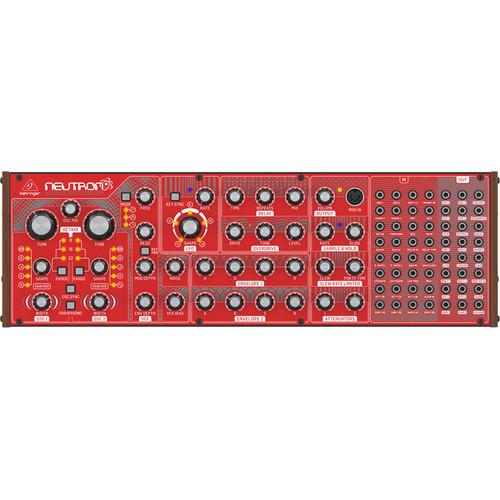

The Behringer Neutron is a semi-modular analog synthesizer with a pure signal path based on authentic VCO, VCF, VCA, and state-variable filter designs. The instrument can create huge bass lines, edgy lead tones, stunning effects, and progressive organ sounds, making it well suited for musicians, producers, DJs, and sound designers.
The Neutron can be used in monophonic or paraphonic modes. In mono mode, the synthesizer responds to a single note performance, while in paraphonic mode both 3340 oscillators are allowed to be independently controlled. The semi-modular design allows you to start working with the Neutron straight out of the box, as all necessary connections are prewired (no cables needed). The 36-in/24-out patchbay provides a vast array of potential connections that are 100% Eurorack compatible. What's more, the synthesizer can be removed from its included enclosure and placed inside any standard Eurorack case (80hp).
The highly flexible dual voltage controlled oscillators provide a remarkable range of expressive sounds via 5 waveforms, which can be sculpted into a wide range of tones. Oscillators 1 and 2 have options including Tone Mod, Square, Sawtooth, Triangular, or Sine, which can be adjusted across an extremely-wide, 3-octave range (32', 16', 8').
The highly-flexible 12 dB state-variable filter provides a cutoff frequency from 10 Hz to 15 kHz with resonance and is prewired to Env2 with modulation and envelope depth controls. There is a 3-way switch with LPF, BPF, and HPF selections for a wide pallet of tones. Additionally, the filter can keytrack with higher notes becoming brighter, which mimics the characteristics of most acoustic instruments.
The VCA can be overloaded via the onboard Overdrive circuit, which provides a growl and edge to your sound, without losing the low end. The Neutron also includes an all-analog, bucket-brigade delay, which provides 25 to 640ms of delay time. What's more the delay time can be controlled via CV from the Eurorack patchbay and allows for some mind-bending effects. Other notable features include a 5-waveform LFO, which can be synchronized with MIDI clock, key sync, and a noise generator, which dramatically expands the waveform generation. The Behringer Neutron ships with a power supply. -
- Paraphonic synthesizer with authentic dual 3340 analog oscillators for remarkable music creation
- Pure analog signal path based on legendary VCO design to recreate classic sounds
- Semi-modular architecture with default routings with no patching needed for immediate performance
- Oscillator waveform control blends seamlessly between 5 shapes (tone mod, pulse, sawtooth, triangle, sine)
- Individual pulse width / tone mod control
- Paraphonic mode allows both oscillators to be independently controlled
- Self-oscillating, multimode VCF with dual output (e.g. LP+HP available on jacks)
- Two analog ADSR generators for modulation of VCF and VCA
- Multiple stage analog delay based on legendary BBD (bucket brigade delay) technology
- Flexible LFO with five waveform shapes, MIDI clock sync and key sync
- Noise generator dramatically expands waveform generation
- Overdrive circuit adds rich analog warmth and edge to your sounds
- 36 controls and 7 buttons give you direct and real-time access to all parameters
- Utility functions including attenuators, multiples, slew rate limiter, and summers for creative patching flexibility
- 32-in/24-out jack matrix for an incredible amount of patching options
- Patchable audio rate sample and hold with glide for added creativity
- Powerful headphone output with dedicated level control
- External audio input for processing external sound sources
- Comprehensive USB-MIDI implementation for connection to keyboard/sequencer
UPC: 653341317339 In the Box Behringer Neutron Paraphonic Analog and Semi-Modular Synthesizer - Eurorack Compatible Power Adapter Limited 90-Day Warranty, Extended to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Neutron Paraphonic Analog and Semi-Modular Synthesizer - Eurorack Compatible in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer Neutron Specs | Synthesizer Structure | Number of Oscillators: 2 x V3340
Type: Analog
Oscillators: 2 (0.7 Hz to 55 kHz Across Four Ranges)
LFO: 1 (0.01 Hz to 10 kHz)
VCF: 1 Switchable: Low Pass, Band Pass, or High Pass (12 dB/Octave Slope), Dual Output

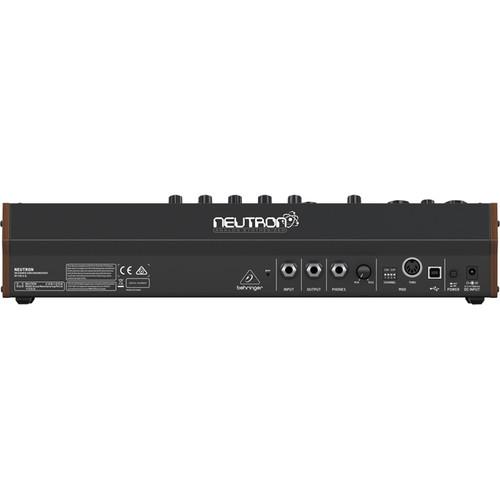

Envelopes: 2 Analog Envelope Generators | | Connectivity | External Input: 1/4" / 6.35 mm TS, Unbalanced, 100 kOhms Impedance
Output: 1/4" / 6.35 mm TRS, Balanced, Max. 12 dBu
Headphones: 1/4" / 6.35 mm TRS, Balanced
Headphones Output Impedance: 8 Ohms
MIDI In/Out (Soft Thru): 5-Pin DIN/ 16 Channels
USB (MIDI): USB 2.0 Type-B | | Oscillators | Controls:
Tune (OSC 1&2): ±1 Octave (8', 16' or 32') or ±10 (Full Range)
OSC Mix: (Linear Blend Control between OSC 1&2)
Shape (OSC 1&2): Tone Mod, Square, Sawtooth, Triangular, or Sine
Pulse Width: 0 to 100% (OSC 1&2)
Switches:
Range (OSC 1&2): 8', 16', or 32' or Full Range (All 3 LEDs)
OSC Sync: On/Off
Paraphonic: On/Off
LED:
Octave (OSC 1&2) 8', 16' or 32' or ±10 (all 3 LEDs)
Shape (OSC 1&2): Tone Mod, Square, Sawtooth, Triangular, or Sine | | Envelope Control | Attack: 300 μs to 5 sec (Linear Attack)
Decay: 2.4 ms to 10 sec (Exponential Decay)
Sustain: 0 V to 9 V
Release: 1.5 ms to 6 sec (Exponential Release) | | Output | Volume Control: 0 to 100%
MIDI LED: Gate Signal | | Sample & Hold | Rate Control: 0.26 to 28 Hz (Can Be Clocked from External Source)
Glide Control: 500 μs to 1 sec
LED Rate: 0.26 to 28 Hz (Can Be Clocked from External Source) | | Slew Rate | Slew Rate: 1 ms to 3 sec
Portamento Time: 0 to 10 sec | | Attenuator | Attenuator 1: +4 dB to -∞
Attenuator 2: 0 dB to -∞ | | Filter | Controls
Cutoff Frequency: 10 Hz to 15 kHz
Resonance: 0 to 10 (Capable of Self Oscillation)
Modulation Depth: 0 to 100%
Envelope Depth: 0 to 100%
Noise: 0 to 100%
VCA Bias: 0 to 100%
Switches
Filter Mode: High Pass, Band Pass, and Low Pass
Filter Key Track: On/Off
LED
Filter Mode: High Pass, Band Pass, and Low Pass | | LFO | Controls:
Shape: Sine, Triangle, Sawtooth, Square, and Ramp
Rate: 0 to 10 (0.01 Hz to 10 kHz)
Switches:
Key Sync: On/Off
LED:
Rate/Level Indicator
Shape: Sine, Triangle, Sawtooth, Square, and Ramp | | Effects | Delay:
Time: 25 to 640 ms
Repeats: 0 to 100%
Mix: 0 to 100%
Overdrive Controls:
Drive: 0 to 11
Tone: 0 to 10
Level: 0 dB to -∞
Overdrive LED: Drive Amount Indicator | | Patch Points | Inputs (TS 1/8" / 3.5 mm):
OSC 1 Control Voltage: 1 V per Octave
OSC 2 Control Voltage: 1 V per Octave
OSC 1&2 Control Voltage: 1 V per Octave
Invert In: Inverts Voltage
Shape 1 Control Voltage: -5 V to +5 V
Shape 2 Control Voltage: -5 V to +5 V
Pulse Width 1 Control Voltage: -5 V to +5 V
Pulse Width 2 Control Voltage: -5 V to +5 V
VCF In: Signal Input
Freq Mod Control Voltage: -5 V to +5 V
Resonance Control Voltage: -5 V to +5 V
Overdrive In: Signal input
VCA In: Signal input
VCA Control Voltage: -9 V to +9 V
Delay In: Signal Input
Delay Time Control Voltage: -5 V to +5 V
E Gate 1 Control Voltage: -5 V to +5 V (Envelope Triggers at 1.5 V)
E Gate 2 Control Voltage: -5 V to +5 V (Envelope Triggers at 1.5 V)
Sample & Hold In: Signal Input
Sample & Hold Clock Control Voltage: -5 V to +5 V (S&H Triggers at 3 V)
LFO RATE
Control Voltage: -5 V to +5 V
LFO Shape Control Voltage: -5 V to +5 V
LFO Trig Control Voltage: -5 V to +5 V (S&H Triggers at 1.6 V)
MULT (Multiple) Input Signal is Duplicated on Mult 1 and Mult 2 Outputs
ATT 1 In: Signal Input
ATT 1 CV Control Voltage: -5 V to +5 V
ATT 2 In: Signal Input
SLEW In: Signal or CV Input
SUM 1 (A): Signal Input or CV Input
SUM 1 (B): Signal Input or CV Input
SUM 2 (A): Signal Input or CV Input
SUM 2 (B): Signal Input or CV Input
Outputs (TS 1/8" / 3.5 mm):
OSC 1: Max. +14 dBu
OSC 2: Max. +14 dBu
OSC Mix: Max. +14 dBu
VCF 1: Max. +12 dBu
VCF 2: Max. +12 dBu
Overdrive: Max. +18 dBu
VCA: Max. +18 dBu
Output: Max. +15 dBu
Noise: Max. +18 dBu
ENV 1 Control Voltage: 0 V to +9 V
ENV 2 Control Voltage: 0 V to +9 V
Invert: Inverts Signals Up to ±9.5 V
LFO Control Voltage: -5 V to +5 V
LFO UNI Control Voltage: 0 V to +5 V
Sample & Hold: Tracks Input Voltage Up to a Maximum of 9.5 V
MULT 1: Tracks Input Voltage Up to a Maximum of 9.5 V
MULT 2: Tracks Input Voltage Up to a Maximum of 9.5 V
MIDI Gate Control Voltage: 0 V to +3.3 V
ATT 1: Control Voltage -9.5 V to +9.5 V (Dependent on Input Signal)
ATT 2: Max Output Voltage Dependent on Input Signal
Slew Control Voltage: -9.5 V to +9.5 V (Dependent on Input Signal)
SUM 1 Control Voltage: -9.5 V to +9.5 V (Dependent on Input Signals)
SUM 2 Control Voltage: -9.5 V to +9.5 V (Dependent on Input Signals)
Assign Control Voltage: 0 V to +5 V | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Power | External Power Adapter: 12 VDC, 1000 mA (12 W)
Power Consumption: 7.5 to 9 W typical | | Horizontal Pitch | 80hp | | Dimensions (H x W x D) | 3.7 x 16.7 x 5.4" / 94.0 x 424.2 x 137.2 mm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 21.0 x 7.0 x 5.0" |
