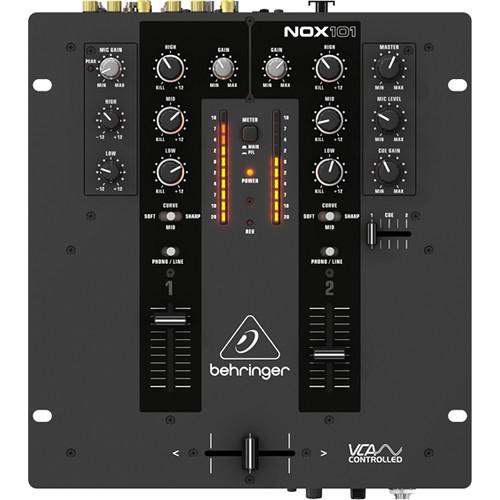

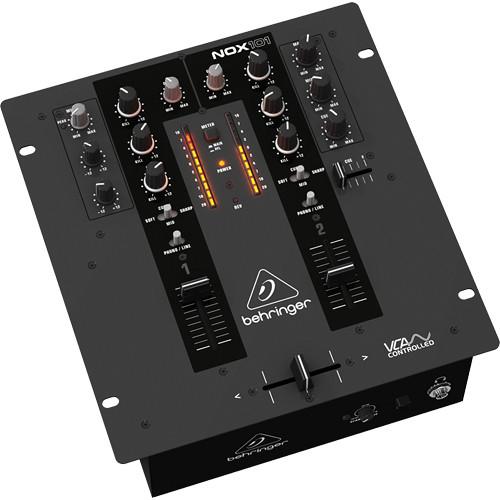

User Manual for Behringer NOX101 2-Channel Pro DJ Mixer with Full VCA Control Click to enlarge the picture
Contents of the user manual for the Behringer NOX101 2-Channel Pro DJ Mixer
- Product category: DJ Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer DJ Mixers
 |
User manual for the Behringer NOX101 2-Channel Pro DJ Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description Designed for both professional and entry-level DJs, the Behringer NOX101 is a two-channel mixer providing RCA inputs for all sorts of sound-sources (turntables, tape decks, and CD players for example), as well as a balanced, TRS input with a corresponding mic preamp. The mixer also features a smooth VCA crossfader, two individual channel faders, and preamps switchable between phono and line modes. On the output side, the NOX101 gives you unbalanced 1/4" TRS outputs, a pair of RCA outs, and a headphone output as well.Each channel features a three-band EQ, as well as a Curve switch which affects the channel fader behavior. Direction-reverse for channels one and two is possible via the REV button. With your purchase of this mixer comes a DJ-focused DAW entitled Tracktion 4, which provides tools for recording, editing, and mixing music. General Features - VCA-controlled cross and channel faders

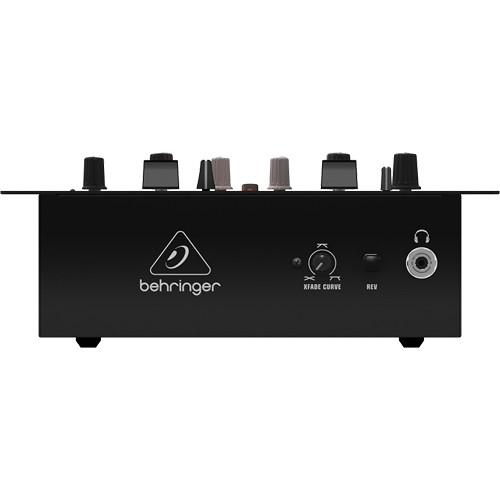

- Direction-reverse and adjustable cross fader curve control
- 3-band EQs with kill filters
- 2 phono/line inputs with individual gain controls
- Switchable line/phono preamps
- Mic input with 2-band tone control
- Cue function with PFL option for both channels
- Gold-plated RCA connectors

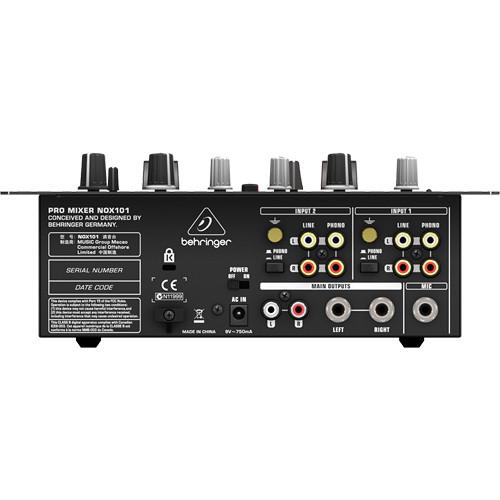

- Extensive TRS & RCA outputs
UPC: 713757159814 In the Box Behringer NOX101 2-Channel Pro DJ Mixer with Full VCA Control Tracktion 4 DAW Software Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NOX101 2-Channel Pro DJ Mixer with Full VCA Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer NOX101 Specs | | | Mic Input | 45 dB gain, TRS, electronically balanced | | Phono Input | 35 dB gain, RCA unbalanced | | Line In | 0 dB gain, RCA, unbalanced | | | | Main Output | 1/4": 18 dBu (maximum), TRS, balanced
RCA: 18 dBu (maximum), RCA unbalanced | | Phones | Out: 566 mW (maximum) at 1 kHz into 75 Ω | | Crossfader | Type: VCA crossfader | | Equalizer | Stereo
Low: +6/-25 dB at 50 Hz
Mid: +6/-30 dB at 1.2 kHz
High: +6/-15 dB at 10 kHz
Mic
Low: ±12 dB at 50 Hz
High: ±12 dB at 12 kHz | | | | Signal-to-Noise Ratio | >89 dB | | Crosstalk | >81 dB | | Distortion (THD) | <0.04% at 1 kHz | | Frequency Response | 10 Hz to 90 kHz (+0/-3 dB) | | | | Power Consumption | 10 W | | PSU | 9 VAC, 750 mA | | Dimensions (H x W x D) | 3.9 x 10.0 x 10.8" / 100 x 255 x 274 mm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 14.1 x 12.8 x 5.5" |
