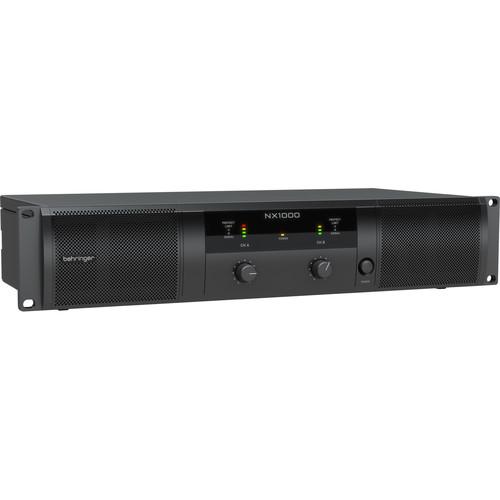

User Manual for Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo
- Product category: Power Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Power Amplifiers
 |
User manual for the Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description Lightweight (at 7.3 lb) and compact, the rackmountable Behringer NX1000 is a stereo power amplifier capable of delivering 160W of peak power per channel into a pair of 8-Ohm speakers, and in bridge mode, up to 1000W of peak power into a 4-Ohm speaker. It employs SmartSense loudspeaker impedance compensation technology combined with a switch-mode power supply and zero-attack limiters to provide a 20 Hz to 20 kHz, full linear frequency response with noise-free audio and fast transient response, at maximum output power, into any speaker load impedance. The NX1000 features cool-running, high-density Class-D technology with near-zero thermal buildup, and an independent DC, LF, and thermal overload protection on each channel, which together protect the amplifier from shutting down and interrupting your show. In addition, a continuously variable speed fan and ventilation openings with back-to-front air flow further prevent overheating. Simple to operate, the unit's front panel is equipped with two detented and illuminated gain controls for precise level setting. The back panel houses two XLR-1/4" combination input connectors compatible with any line-level, balanced and unbalanced sources. Twist-lock speaker connectors provide reliable connections to your speaker cables. There is also a built-in crossover switch, which lets you choose between full mode or low-frequency and high-frequency modes for bi-amping applications. - Key Features
-
- Delivers 2 x 500W into 2 Ohms, 2 x 300W into 4 Ohms, 2 x 160W into 8 Ohms, or 1000W into 4 Ohms (bridge mode)
- Weighs less than 7.3 lb / 3.3 kg
- Reliable, cool-running high-density Class-D technology with "near-zero" thermal buildup
- Efficient switch-mode power supply for noise-free audio, superior transient response, and low power consumption
- Built-in stereo crossover with low-cut, high-cut, and full range mode
- SmartSense loudspeaker impedance compensation features full linear frequency response at any speaker load impedance
- Zero-Attack limiters offer maximum output level with reliable overload protection

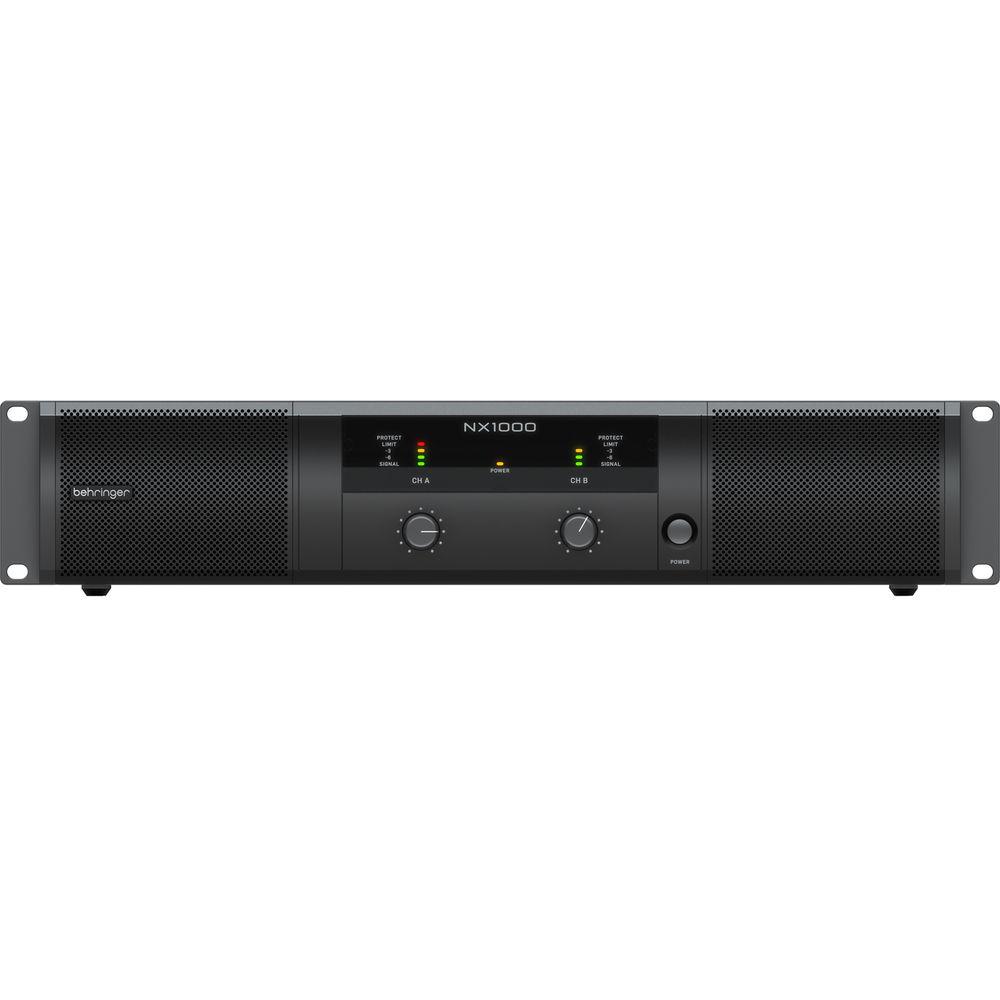

- Detented and illuminated gain controls for precise level setting
- Precise 4-segment signal and limit LEDs to monitor performance

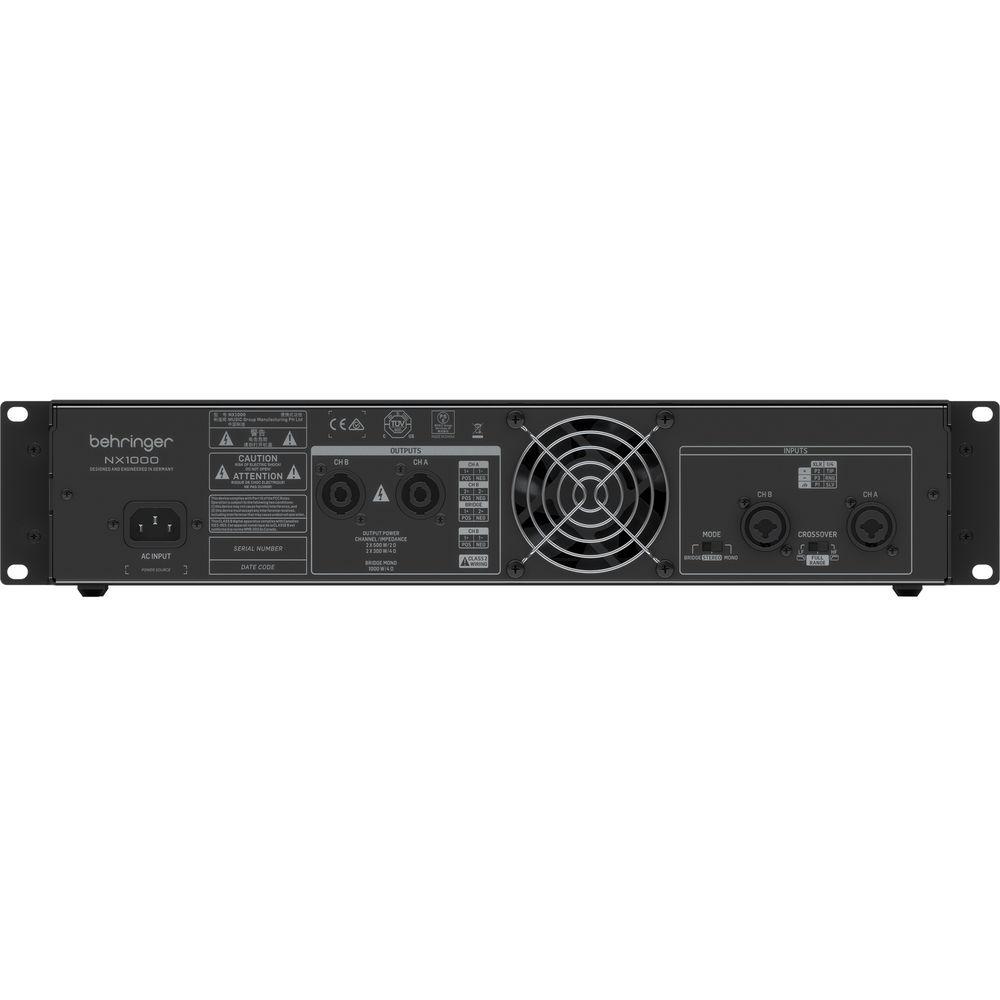

- XLR-1/4'' TRS combination input connectors for compatibility with any line-level, balanced or unbalanced sources
- Professional twist-lock speaker connectors for reliable connection
- Independent DC, LF, and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
- Back-to-front ventilation system prevents thermal buildup for reliable operation
- Rackmount design
- Designed and engineered in Germany
UPC: 653341314338 In the Box Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier (160W/Channel at 8 Ohms) Power Cord Limited 1-Year Warranty, Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer NX1000 Specs | Maximum Output Power | 2 x 500 W into 2 Ohms
2 x 300 W into 4 Ohms
2 x 160 W into 8 Ohms
1000 W into 4 Ohms (bridge mode)
620 W into 8 Ohms (bridge mode) | | Type | High-density Class-D technology | | Modes of Operation | Stereo, dual-mono, and mono bridge modes (switchable) | | Crossover Adjustment | Full range, low-cut, and high-cut modes | | Input Sensitivity | 0.775 V (0 dBu), for rated power into 4 Ohms | | Distortion | <0.05% | | Frequency Response | 20 Hz to 20 kHz, +0 / -1 dB | | Damping Factor | >155 at 8 Ohms | | Input Connections | 2 x XLR-1/4" / 6.3 mm combo connectors (L/R)
Accepts balanced and unbalanced sources | | Signal to Noise | >100 dB | | Output Connectors | 2 x twist-lock speaker sockets (L/R) | | Controls Front Panel | Channel A gain knob
Channel B gain knob
Power switch | | Indicators | Power: Amber LED
Limit: 0 dB LED (per channel)
Signal: -40, -6, -3 dB LEDs (per channel)
Protect: Red LED (per channel) | | Cooling | Continuously variable speed fan
Back-to-front air flow | | Amplifier Protection | Thermal and DC protection
Stable into reactive or mismatched loads | | Overload Protection | On/off muting, DC-fault power supply shutdown | | Power Supply | 100-120 VAC, 50/60 Hz | | Fuse | T 6.3 A H, 250 V | | Power Consumption | 150 W, at 2 Ohms, 1/8 rated power | | Power Connector | Standard IEC receptacle | | Dimensions | 3.7 x 19.0 x 9.1" / 94 x 483 x 231 mm (including 0.19" / 5 mm rubber feet) | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 6.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer NX1000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier
| Subject: Protect led are solid red! | | Date: 11.07.2021 16:12:30 | Name: Axel | | Hello, I have a problem with the NX1000 amplifier, in fact, the indicator lights are solid red and the internal regulator is blocking the sound. How to deactivate it or reset everything. | | Post reply |
| Subject: Manual for Behringer NX1000D | | Date: 05.10.2020 22:38:21 | Name: Patrick Webb | | Do you have or is there a manual for the Behringer NX1000D please. | | Post reply |
