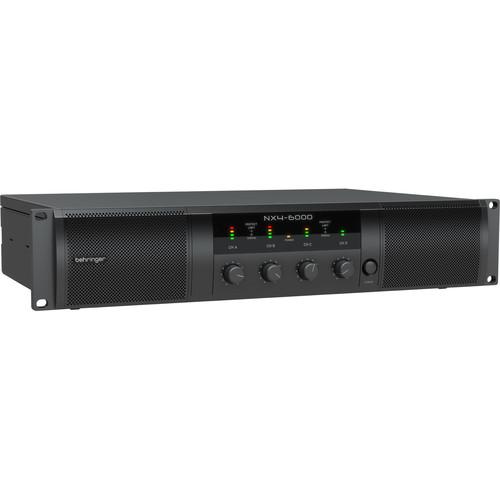

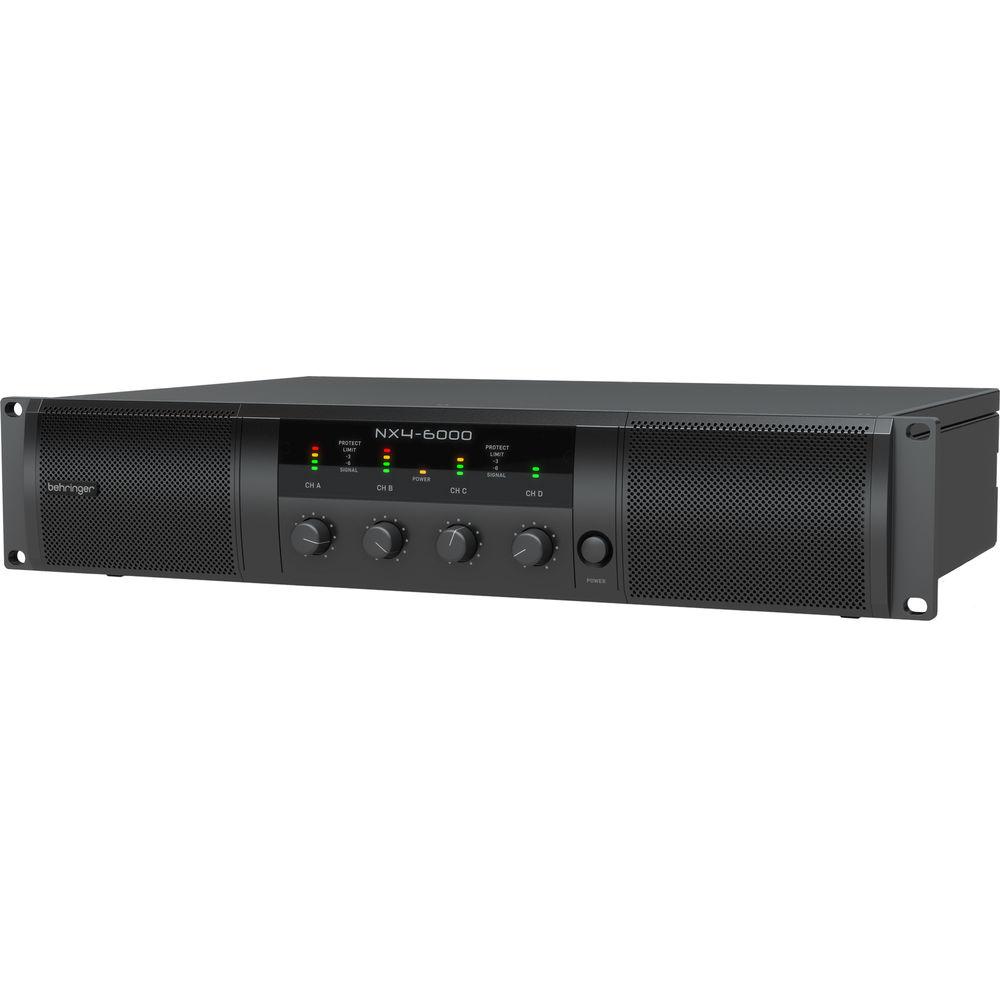

User Manual for Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier

Click to enlarge the picture
Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier Contents of the user manual for the Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D
  • Product category: Power Amplifiers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Power Amplifiers

Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier
User manual for the Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

Lightweight and sturdy, the 2 RU rack-mountable Behringer NX4-6000 is a stereo power amplifier capable of delivering 440W of peak power per channel at 8 Ohms, or in bridge mode, up to 1600W of peak power into two 8-Ohm speakers. It employs SmartSense loudspeaker impedance compensation technology combined with a switch-mode power supply and zero-attack limiters to provide a linear 20 Hz to 20 kHz frequency response with noise-free audio and fast transient response at maximum output power into any speaker load impedance. The NX4-6000 features cool-running, high-density Class-D technology with near-zero thermal buildup, and an independent DC, LF, and thermal overload protection on each channel, which together protect the amplifier from shutting down and interrupting your show. A variable-speed fan and ventilation openings with back-to-front air flow further prevent overheating. Simple to operate, the NX4-6000's front panel is equipped with detented and illuminated gain control knobs for precise level setting. The back panel houses four XLR-1/4" combination input connectors compatible with balanced and unbalanced line-level sources. Twist-lock speaker connectors inhibit accidental speaker disconnection at the amp.
    Key Features
    • Delivers a maximum of 4 x 1600W at 2 Ohms, 4 x 860W at 4 Ohms, or 4 x 440W at 8 Ohms in stereo mode
    • Delivers a maximum of 2 x 3000W at 4 Ohms or 1600W at 8 Ohms in bridge mode
    • Weighs only 13.4 lb
    • Cool-running, high-density Class-D technology with near-zero thermal buildup
    • Efficient switch-mode power supply for noise-free audio, fast transient response, and low power consumption
    • SmartSense loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
    • Zero-attack limiters offer maximum output level with reliable overload protection
    • Built-in stereo crossover with low-cut, high-cut, and full-range mode
    • Detented and illuminated gain controls for precise level setting
    • Precise 4-segment Signal and Limit LEDs to monitor performance
    • XLR and 1/4" TRS combination input connectors for compatibility with balanced and unbalanced audio sources
    • Twist-lock speaker connectors for reliable connection
    • Independent DC, LF, and thermal overload protection on each channel automatically protects amplifier and speakers without interruption
    • Back-to-front ventilation system prevents thermal buildup for reliable operation
    • Designed and engineered in Germany
UPC: 653341314932 In the Box Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier
  • Power Cable
  • Limited 1-Year Warranty with Extension to 3 Years upon Online Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer NX4-6000 Lightweight 4-Channel 6000W Class-D Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer NX4-6000 Specs

    Maximum Output Power 4 x 1600 W into 2 Ohms per channel, stereo
    4 x 860 W into 4 Ohms per channel, stereo
    4 x 440 W into 8 Ohms per channel, stereo
    2 x 3000 W into 4 Ohms, bridged
    2 x 1600 W into 8 Ohms, bridged
    Amplifier Class Class-D
    Input Sensitivity 0.775 V (0 dBu), for rated power into 4 Ohms
    Distortion <0.2%
    Frequency Response 20 Hz to 20 kHz, +0 / -2 dB
    Damping Factor >145 at 8 Ohms
    Signal to Noise >100 dB
    Input Connections 4 x XLR-1/4" combo jacks
    Input Impedance 10 kOhms, unbalanced
    20 kOhms, balanced
    Output Connectors 4 x locking-style speaker connectors

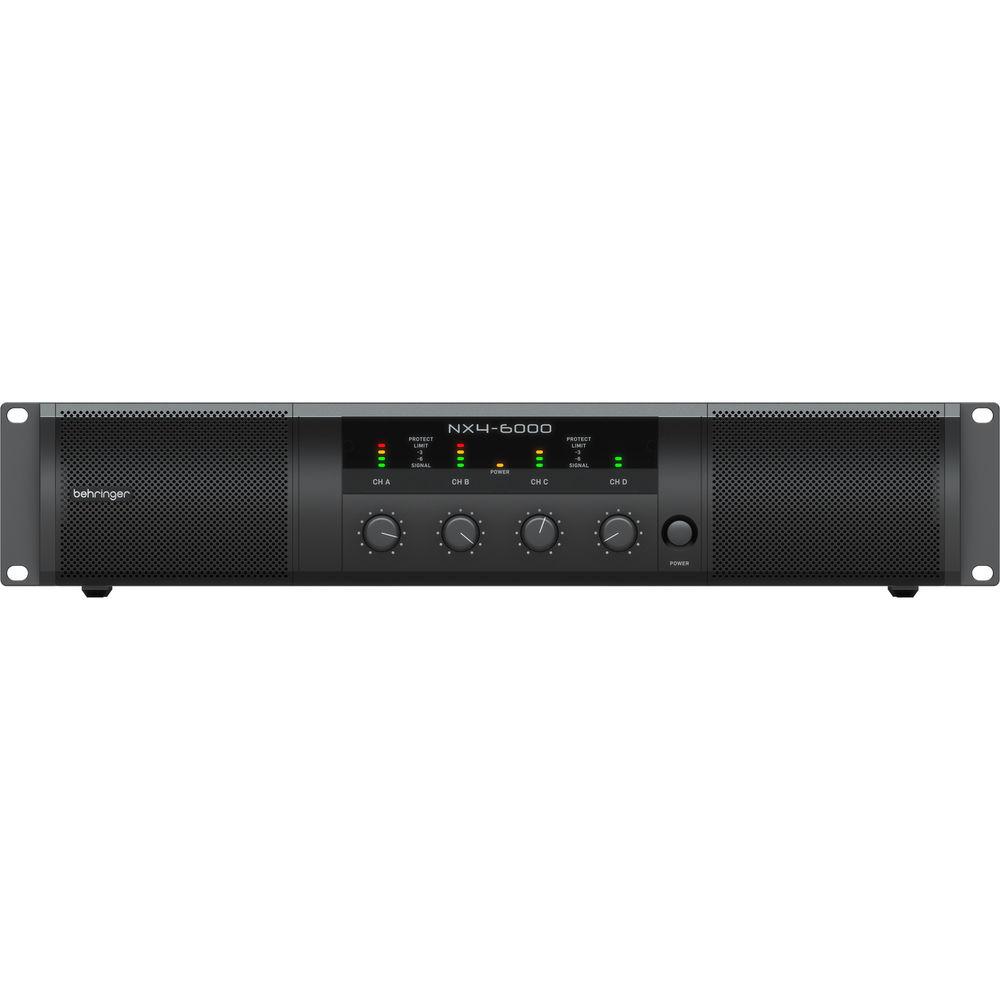

    Controls Front Panel Channel A, B, C, and D gain knobs
    Power switch

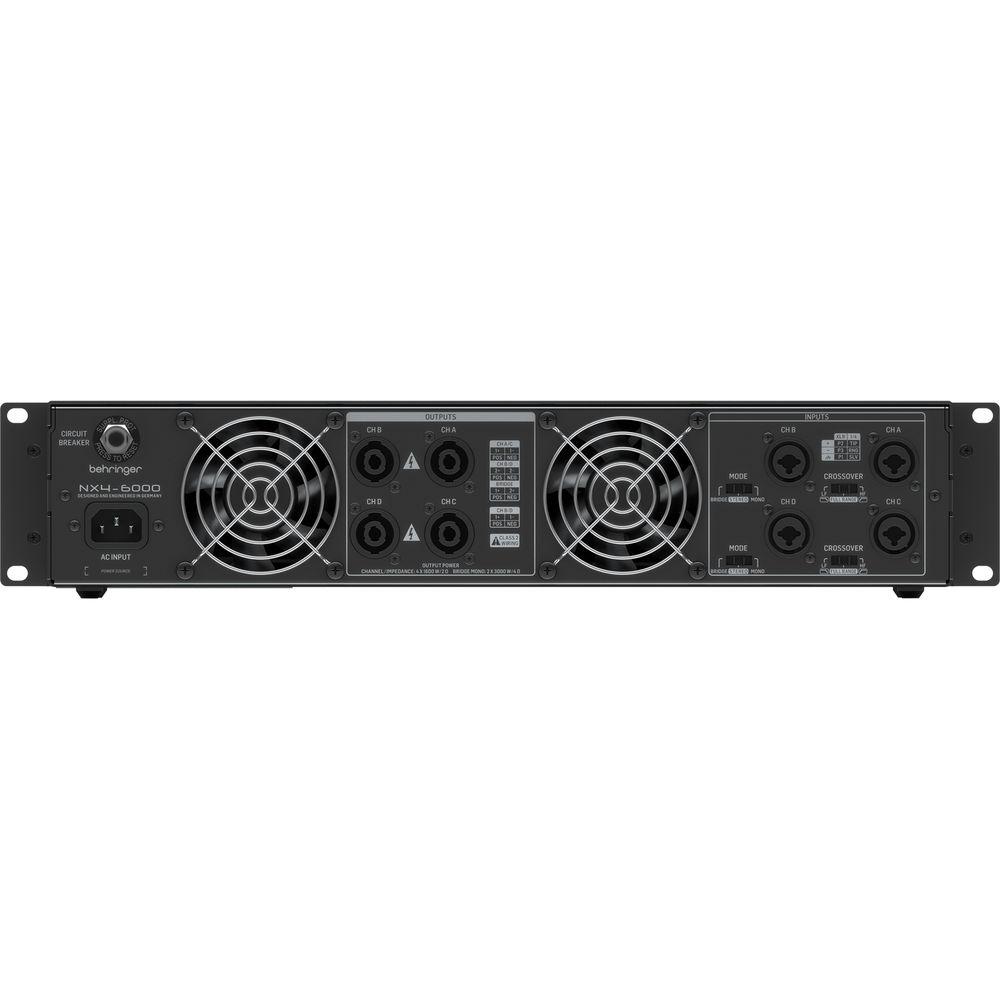

    Controls Rear Panel 2 x mode switches (bridge, stereo, mono)
    2 x crossover switches (LF, full range, HF)
    Circuit breaker
    Indicators Power: Amber LED
    Limit: 0 dB LED (per channel)
    Signal: -40, -6, -3 dB LEDs (per channel)
    Protect: Red LED (per channel)
    Cooling Continuously variable speed fan
    Back-to-front air flow
    Amplifier Protection Thermal and DC protection
    Stable into reactive or mismatched loads
    Overload Protection On/off muting, DC-fault power supply shutdown
    Power Supply 120 VAC, 60 Hz
    Fuse T 25 A H, 250 V
    Power Consumption 620 W, at 2 Ohms, 1/8 rated power
    Power Connector Standard IEC receptacle
    Dimensions (W x H x D) 19.0 x 3.7 x 12.4" / 48.3 x 9.4 x 31.6 cm (including 0.19" / 5 mm rubber feet)
    Weight 13.4 lb / 6.1 kg
    Package Weight 16.15 lb
    Box Dimensions (LxWxH) 15.3 x 10.0 x 6.5"
