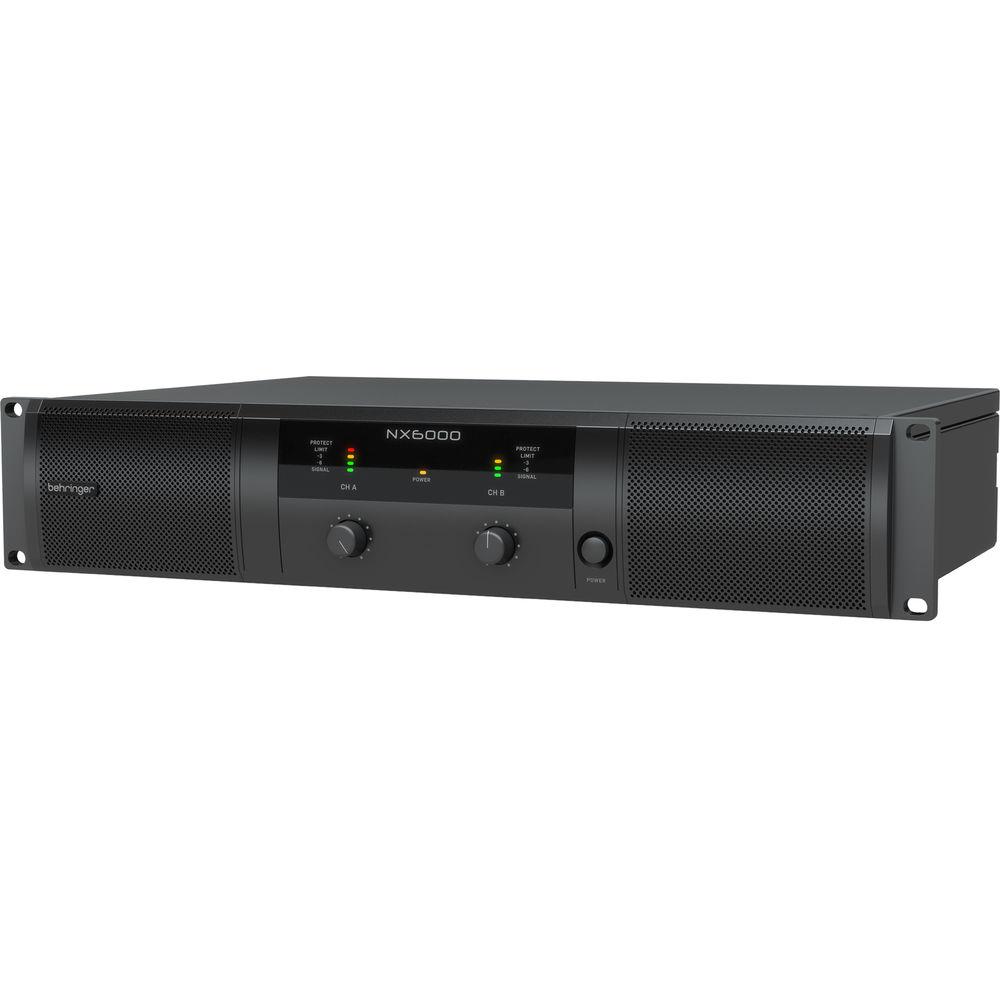

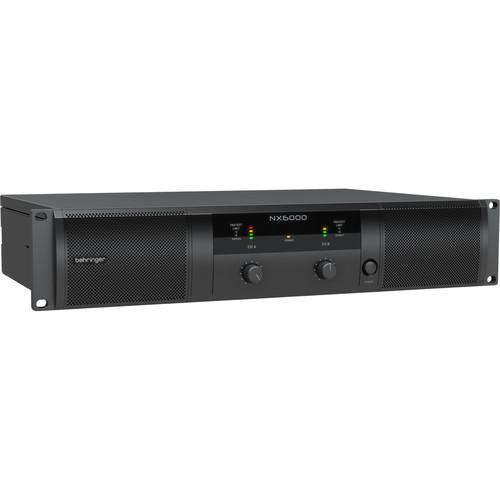

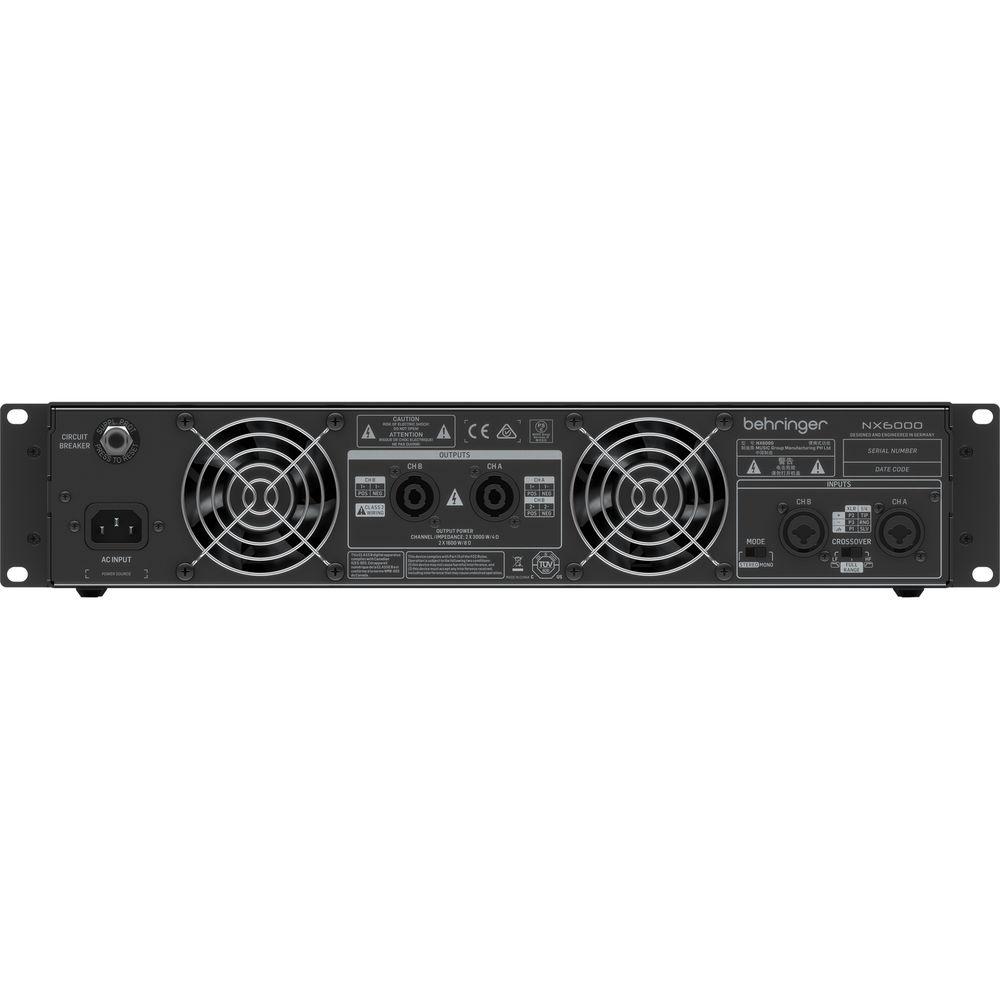

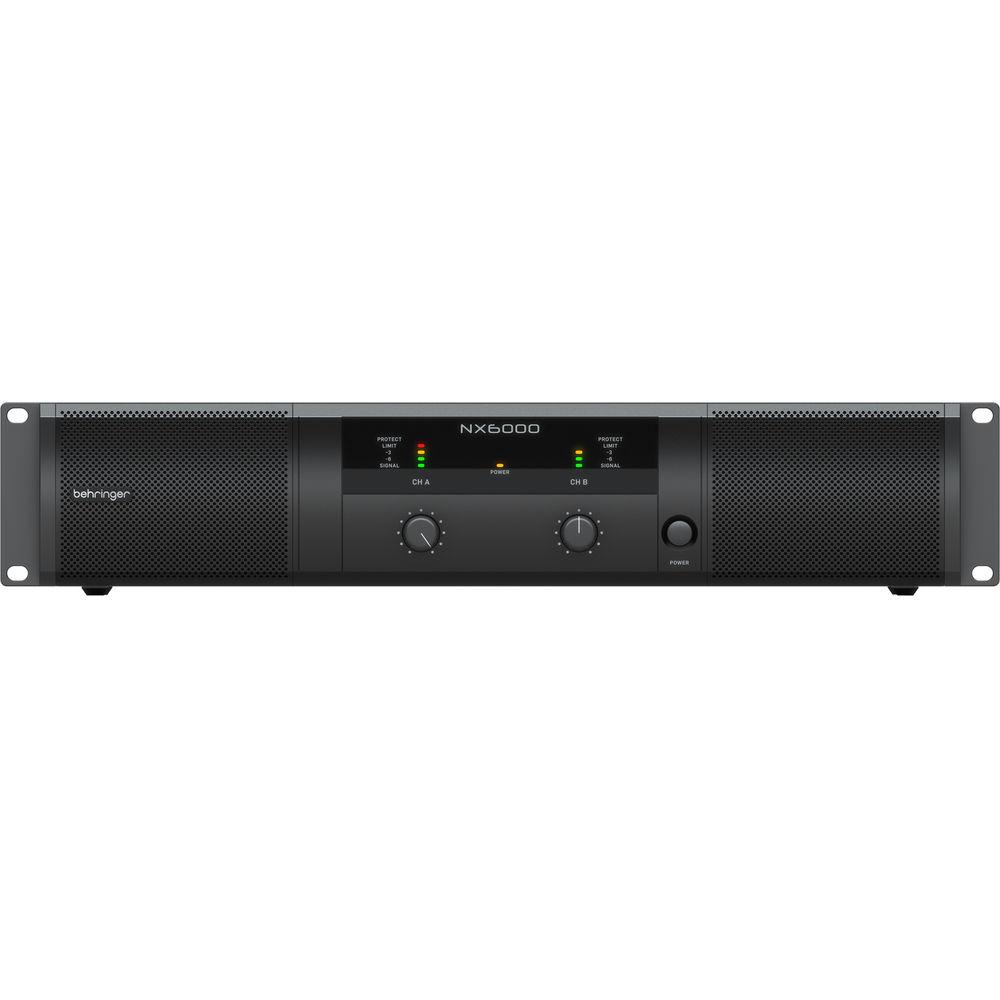

Product description Lightweight (at 13 lb) and compact, the rackmountable Behringer NX6000 is a stereo power amplifier capable of delivering 1600W of peak power per channel into a pair of 8-Ohm speakers. It employs SmartSense loudspeaker impedance compensation technology combined with a switch-mode power supply to provide a 20 Hz to 20 kHz, linear frequency response with noise-free audio and fast transient response, at maximum output power, into any speaker load impedance. The NX6000 features cool-running, high-density Class-D technology with near-zero thermal buildup, and an independent DC, LF, and thermal overload protection on each channel, which together protect the amplifier from shutting down and interrupting your show. A continuously variable speed fan and ventilation openings with back-to-front air flow further prevent overheating. Simple to operate, the unit's front panel is equipped with two detented and illuminated gain control knobs for precise level setting. The back panel houses two XLR-1/4" combination input connectors compatible with any line-level, balanced and unbalanced sources. Twist-lock speaker connectors provide reliable connections to your speaker cables. There is also a built-in crossover switch, which lets you choose between full mode or low-frequency and high-frequency modes for bi-amping applications. - Key Features
-
- Delivers 2 x 3000W at 4 Ohms, 2 x 1600W at 8 Ohms (peak)
- Weighs less than 13 lb
- Cool-running, high-density Class-D technology with near-zero thermal buildup
- Efficient switch-mode power supply for noise-free audio, fast transient response, and low power consumption
- SmartSense loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
- Built-in stereo crossover with low-cut, high-cut and full range mode
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4" TRS combination input connectors for compatibility with balanced and unbalanced audio sources
- Twist-lock speaker connectors for reliable connection
- Independent DC, LF, and thermal overload protection on each channel automatically protects amplifier and speakers without interruption
- Back-to-front ventilation system prevents thermal buildup for reliable operation
- Designed and engineered in Germany
In the Box Behringer NX6000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier (1600W/Channel at 8 Ohms) Power Cord Limited 1-Year Warranty, Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NX6000 Ultra-Lightweight, High-Density Class-D Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer NX6000 Specs | Maximum Output Power | 2 x 3000 W into 4 Ohms, stereo
2 x 1600 W into 8 Ohms, stereo | | Type | High-density, Class-D technology | | Input Sensitivity | 0.775 V (0 dBu), for rated power into 4 Ohms | | Distortion | <0.01% | | Frequency Response | 20 Hz to 20 kHz, +0 / -2 dB | | Damping Factor | >140 at 8 Ohms | | Signal to Noise | >100 dB | | Input Connections | 2 x XLR-1/4" / 6.3 mm combo jacks (L/R) | | Input Impedance | 10 kOhms, unbalanced
20 kOhms, balanced | | Output Connectors | 2 x locking-style speaker connectors (L/R) | | Controls Front Panel | Channel A gain knob
Channel B gain knob
Power switch | | Controls Rear Panel | Mode switch (stereo / mono)
Crossover switch (LF, Full-Range, HF)
Circuit breaker | | Indicators | Power: Amber backlit LCD display
Limit: 0 dB LED (per channel)
Signal: -40, -6, -3 dB LEDs (per channel)
Protect: Red LED (per channel) | | Cooling | Continuously variable speed fan
Back-to-front air flow | | Amplifier Protection | Thermal and DC protection
Stable into reactive or mismatched loads | | Overload Protection | On/off muting, DC-fault power supply shutdown | | Power Supply | 120 VAC, 50/60 Hz | | Fuse | T 25 A H, 250 V | | Power Consumption | 620 W, at 4 Ohms, 1/8 rated power | | Power Connector | Standard IEC receptacle | | Dimensions | 3.7 x 19.0 x 12.4" / 94 x 483 x 316 mm (including 0.19" / 5 mm rubber feet) | | Weight | 13.0 lb / 5.9 kg | | | | Package Weight | 15.235 lb | | Box Dimensions (LxWxH) | 22.05 x 12.7 x 6.9" |
