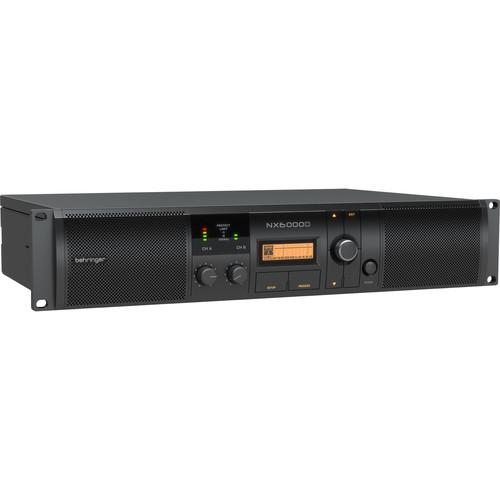

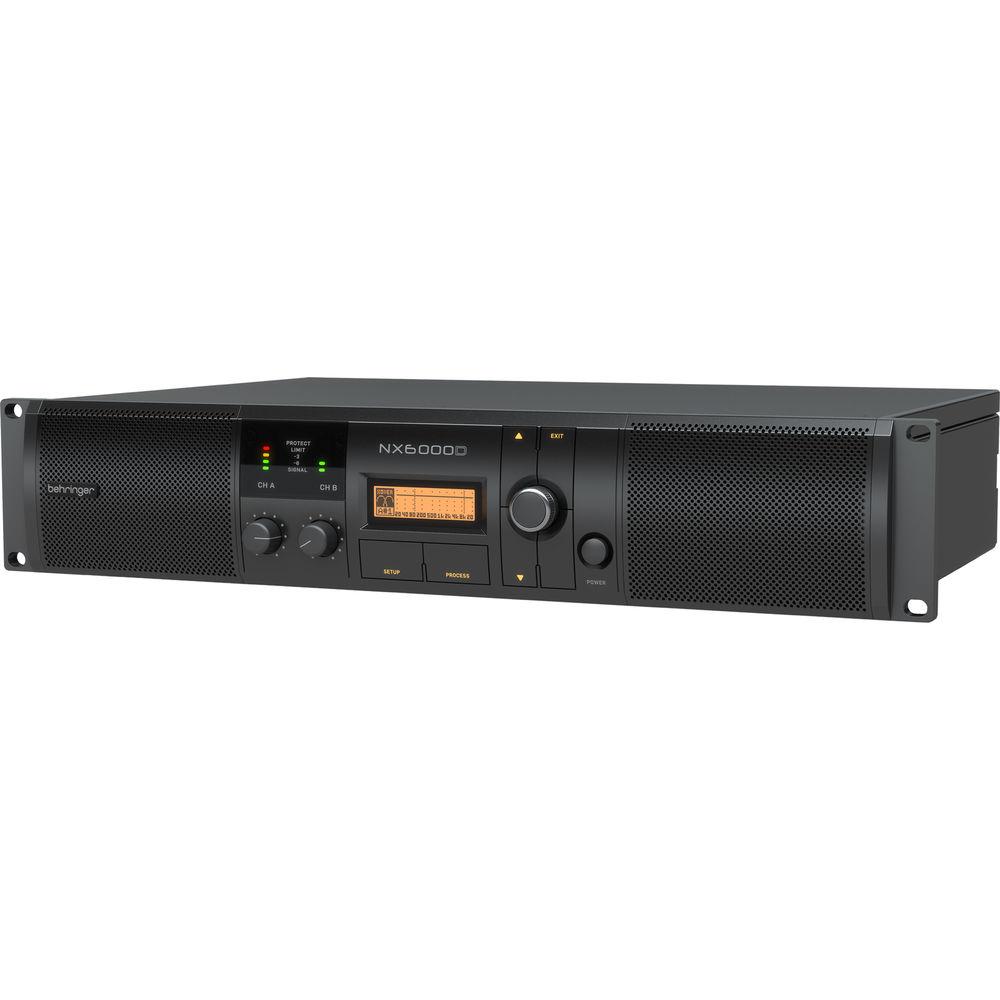

User Manual for Behringer NX6000D Ultra-Lightweight Class-D Power Amplifier with DSP Click to enlarge the picture
Contents of the user manual for the Behringer NX6000D Ultra-Lightweight Class-D Power Amplifier
- Product category: Power Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Power Amplifiers
 |
User manual for the Behringer NX6000D Ultra-Lightweight Class-D Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description Lightweight (at 13.2 lb) and compact, the rackmountable Behringer NX6000D is a stereo power amplifier with high-performance DSP capable of delivering 1600W of peak power per channel into a pair of 8-Ohm speakers. It employs SmartSense loudspeaker impedance compensation technology combined with a switch-mode power supply and zero-attack limiters to provide a 20 Hz to 20 kHz, linear frequency response with noise-free audio and fast transient response, at maximum output power, into any speaker load impedance.The NX6000D features cool-running, high-density Class-D technology with near-zero thermal buildup, and an independent DC, LF, and thermal overload protection on each channel, which together protect the amplifier from shutting down and interrupting your show. A continuously variable speed fan and ventilation openings with back-to-front air flow further prevent overheating.The amplifier offers built-in DSP with 24-bit/96 kHz converters, which ensure signal integrity with a broad dynamic range. The DSP section features delay, crossover, EQ, and dynamics processing. The security settings are lockable to prevent unwanted changes. The unit has a rear-panel USB port that allows setup, control, and monitoring from a computer with Behringer's free remote software (available separately). The amplifier's LCD display offers a convenient way to perform setup and adjustment tasks without a computer.Simple to operate, the NX6000D's front panel is equipped with two detented and illuminated gain control knobs for precise level setting. The back panel houses two XLR-1/4" combination input connectors compatible with any line-level, balanced and unbalanced sources. Twist-lock speaker connectors provide reliable connections to your speaker cables. - Key Features
-
- Delivers 2 x 3000W at 4 Ohms, 2 x 1600W at 8 Ohms (peak)
- Weighs less than 13.2 lb
- Cool-running, high-density Class-D technology with near-zero thermal buildup
- Efficient switch-mode power supply for noise-free audio, fast transient response, and low power consumption
- SmartSense loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
- High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
- DSP section features delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing, and lockable security settings
- Zero-attack limiters offer maximum output level with reliable overload protection

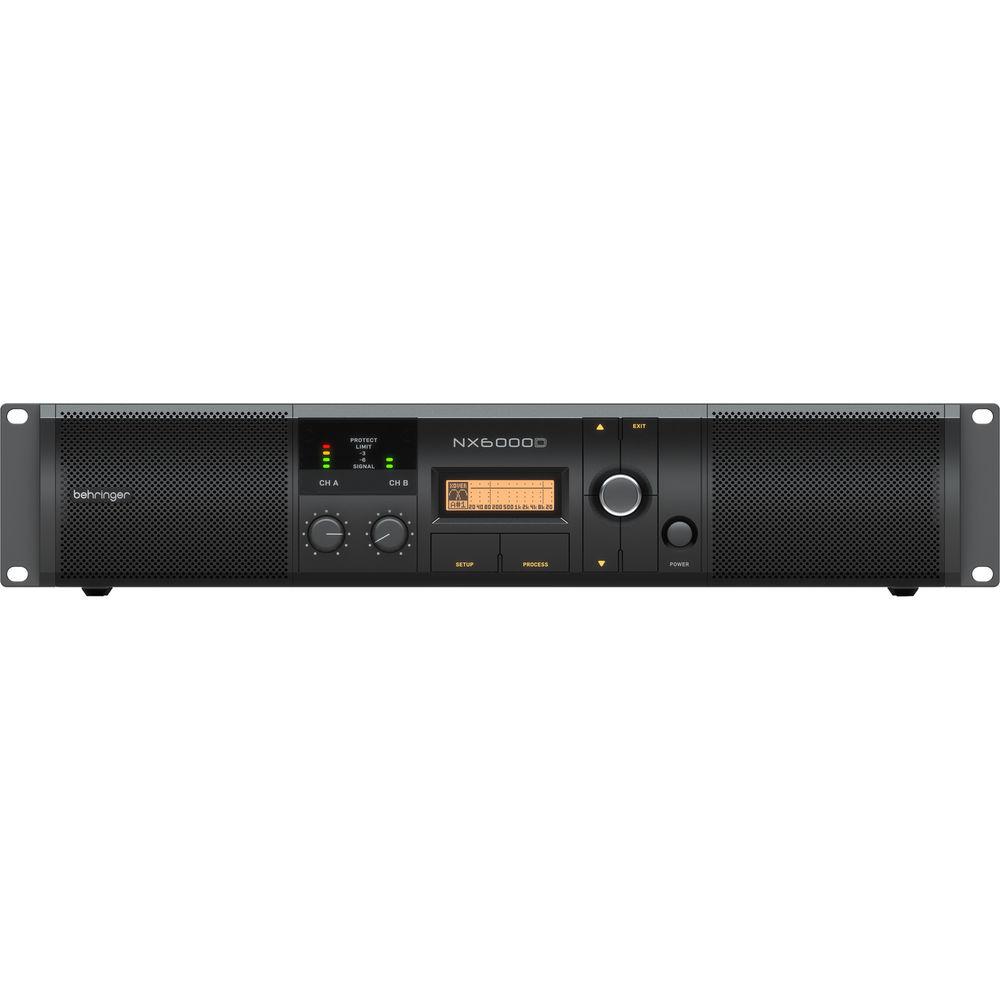

- Front-panel LCD display enables setup and adjustment without computer

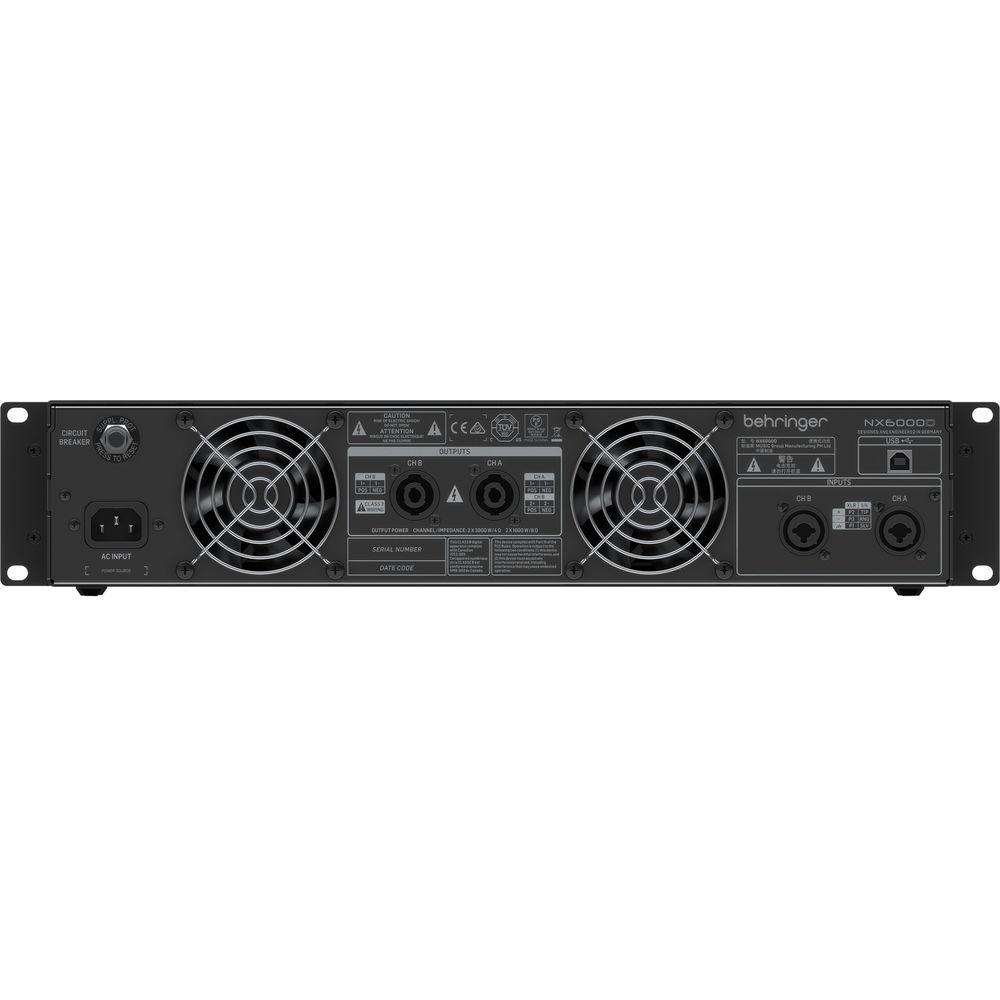

- Can be set up, controlled, and monitored via rear-panel USB connector using free remote software (available separately)
- Built-in subwoofer/satellite crossover for subwoofer operation
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4" TRS combination input connectors for compatibility with balanced and unbalanced audio sources
- Twist-lock speaker connectors for reliable connection
- Independent DC, LF, and thermal overload protection on each channel automatically protects amplifier and speakers without interruption
- Back-to-front ventilation system prevents thermal buildup for reliable operation
- Designed and engineered in Germany
UPC: 653341314833 In the Box Behringer NX6000D Ultra-Lightweight Class-D Power Amplifier with DSP (1600W/Channel at 8 Ohms) Power Cord Limited 1-Year Warranty, Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer NX6000D Ultra-Lightweight Class-D Power Amplifier with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer NX6000D Specs | Maximum Output Power | 2 x 3000 W into 4 Ohms, stereo
2 x 1600 W into 8 Ohms, stereo | | Type | High-density, Class-D technology | | Input Sensitivity | 0.775 V (0 dBu), for rated power into 4 Ohms | | Distortion | <0.02% | | Frequency Response | 20 Hz to 20 kHz, +0 / -2 dB | | Damping Factor | >140 at 8 Ohms | | Signal to Noise | >100 dB | | Input Connections | 2 x XLR-1/4" / 6.3 mm combo jacks (L/R) | | Input Impedance | 10 kOhms, unbalanced
20 kOhms, balanced | | Output Connectors | 2 x locking-style speaker connectors (L/R) | | USB | Rear-panel USB, Type-B connector for remote control of DSP section | | Controls Front Panel | Channel A gain knob
Channel B gain knob
Power switch
DSP section rotary push encoder
Buttons for Process, Setup, Up/Down, Exit | | Indicators | Power: Amber backlit LCD display
Limit: 0 dB LED (per channel)
Signal: -40, -6, -3 dB LEDs (per channel)
Protect: Red LED (per channel) | | DSP | Display: LCD 128 x 32, amber backlit
Digital Delay Function: 0 to 300 ms (per channel)
Digital Crossover Function: 3 filter types, up to 48 dB/octave
Digital EQ Function: 8-band parametric EQ, 2-band dynamic EQ (per channel)
Digital Dynamics Function: Zero-attack limiter / peak (per channel)
Presets: 20 total presets (19 user-definable) | | Cooling | Continuously variable speed fan
Back-to-front air flow | | Amplifier Protection | Thermal and DC protection
Stable into reactive or mismatched loads | | Overload Protection | On/off muting, DC-fault power supply shutdown | | Power Supply | 120 VAC, 50/60 Hz | | Fuse | T 25 A H, 250 V | | Power Consumption | 620 W, at 4 Ohms, 1/8 rated power | | Power Connector | Standard IEC receptacle | | Dimensions | 3.7 x 19.0 x 12.4" / 94 x 483 x 315 mm (including 0.19" / 5 mm rubber feet) | | Weight | 13.2 lb / 6.0 kg | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 22.0 x 12.7 x 6.75" |
