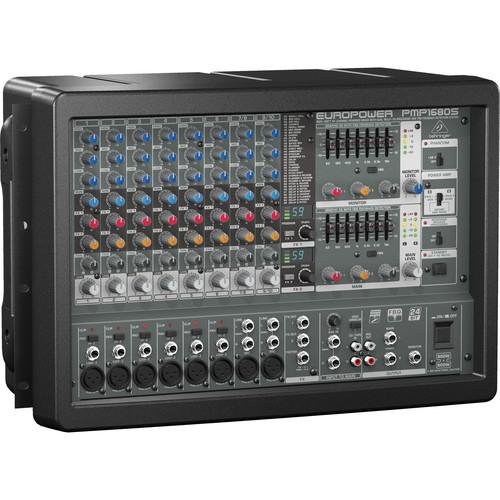

User Manual for Behringer PMP1680S 10-Channel Powered Mixer Click to enlarge the picture
Contents of the user manual for the Behringer PMP1680S 10-Channel Powered Mixer
- Product category: Sound Reinforcement Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Sound Reinforcement Mixers
 |
User manual for the Behringer PMP1680S 10-Channel Powered Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - EUROPOWER PMP1680S 1600-Watt 10-Channel Powered Mixer
The Behringer PMP1680S 10-Channel Powered Mixer delivers up to 1600 watts of power and features that are well suited for public address applications in schools, houses-of-worship, presentations, halls, outdoor events and more. Behringer's efficient class-D amplifier technology delivers clean sound and power, and 8 channels feature balanced microphone inputs, 6 line inputs and 2 stereo input channels. Each channel features a 3-band EQ section and a dual (stereo) 7-band graphic EQ also features FBQ feedback detection for minimizing noise caused by feedback. Additional features include a dual 24-bit effects processor and vocal remover feature for karaoke, rehearsals, etc. - Ultra-compact rack-mountable 2 x 800-Watt stereo powered mixer (1600-Watt bridged mode)
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
- 10-channel mixer section features 6 mono and 2 stereo channels plus separate CD/Tape input/output
- 2 studio-grade, 24-bit stereo FX processors with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
- 8 high-quality mic preamps with switchable +48 V phantom power for condenser microphones
- Effective, extremely musical 3-band EQ, switchable Pad, and Clip LEDs on all mono channels
- Stereo 7-band graphic EQ allows precise frequency correction of monitor and main outputs
- Voice Canceller function removes singer's voice from recordings for karaoke applications
- Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
- Speaker Processing function adjusts frequency response to match professional speaker systems like BEHRINGER EUROLIVE series, etc.
- Standby switch mutes all input channels during breaks while background music is provided via CD/Tape input
- Adjustable stereo Aux input for connecting external signal sources
- Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
- Rack mount brackets included
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
UPC: 705105163888 In the Box Behringer PMP1680S 10-Channel Powered Mixer Power Cord Limited 10-Year Warranty User Manual PDF 3.4mbwcszxwasrzcvftftsxwazyces Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer PMP1680S 10-Channel Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer PMP1680S Specs | Power Rating | 1600 Watts Bridged Mono
800 Watts x2 Stereo | | Mic/Line Inputs | 8 Balanced Microphone: 3-pin XLR
6 Balanced Mono Line: 1/4" Phone 2 Balanced Stereo Paired Line: 1/4" Phone | | Mains Inputs | 1/4" Phone | | In-Line Inputs/Returns | None | | Aux Sends | FX Out 1 & 2: 1/4" Phone x2 | | Aux Returns | None | | BUS (Group) Outputs | Stereo | | Main Output | Main: 1/4" Phone Stereo Paired | | Tape I/O | Rec: RCA Phono Stereo Paired | | Monitor Outputs | Monitor: 1/4" TRS Phone | | EQ Section | Channel: 3-Band EQ
7-Band Stereo Graphic | | Solo/Mute | No | | Channel Level Control | Rotary Pots | | Trim/Gain Control | Rotary Pots | | Phantom Power | +48V | | Metering | 5-Segment Stereo LED | | Frequency Response | 10Hz to 200kHz | | Signal-to-Noise Ratio | 110dB / 114dB A-Weighted | | Total Harmonic Distortion (THD) | 0.001% / 0.0007% A-Weighted | | Power Supply | 120V ~, 60Hz | | Dimensions (HxWxD) | 12.40 x 18.11 x 8.66" (315 x 460 x 220mm) | | Weight | 21.8lb (9.9kg) | | | | Package Weight | 25.3 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 8.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer PMP1680S 10-Channel Powered Mixer
| Subject: Speaker connection | | Date: 24.04.2021 17:05:53 | Name: ROBERT PUCKETT | | Im using 2 12" mtx thunder pro speakers. They do not have a passive crossover so i use a splitter off the speakon connection to my behringer europower 1680s. What side should i plug my speakon connection to. And any othrr general settings i may need to do. | | Post reply |
