Behringer PMP2000D - 2000W 14-Channel Powered

Search your instruction manual in PDF to download

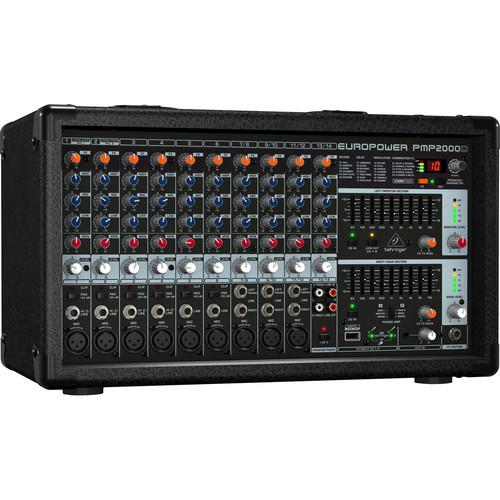

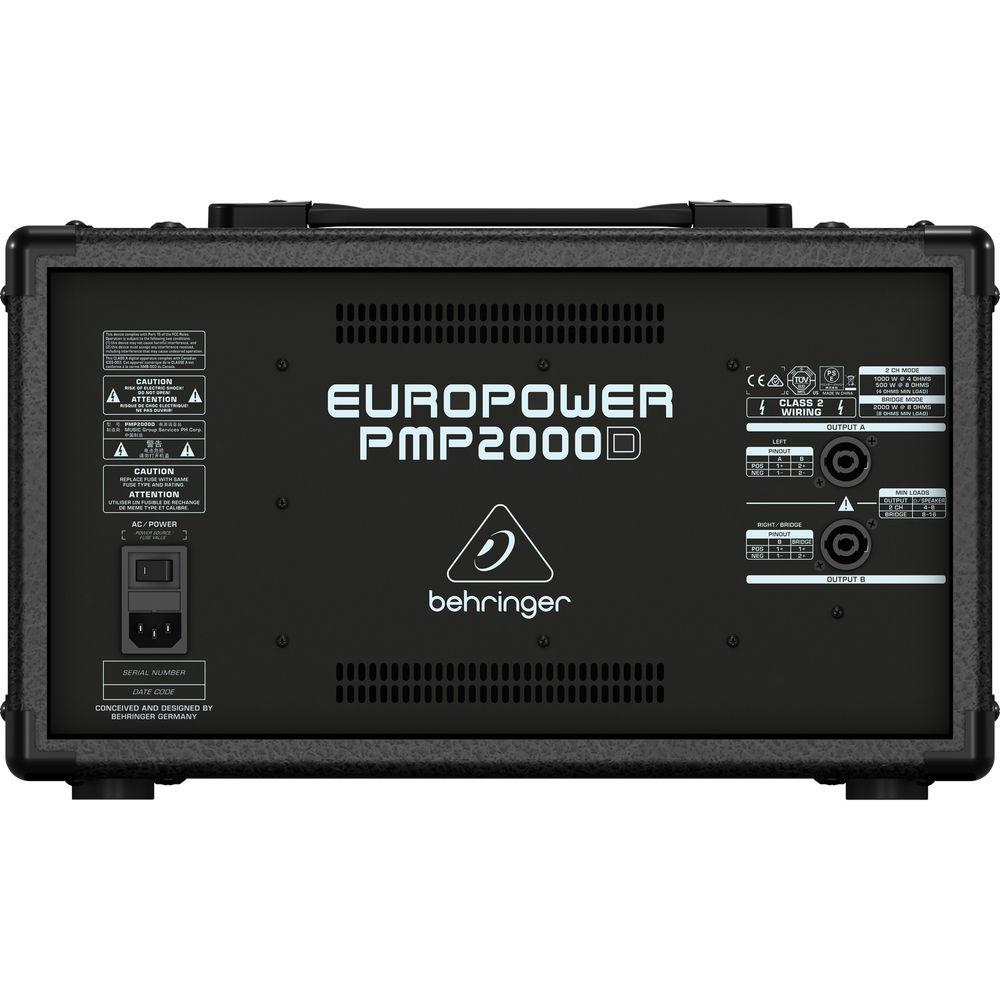

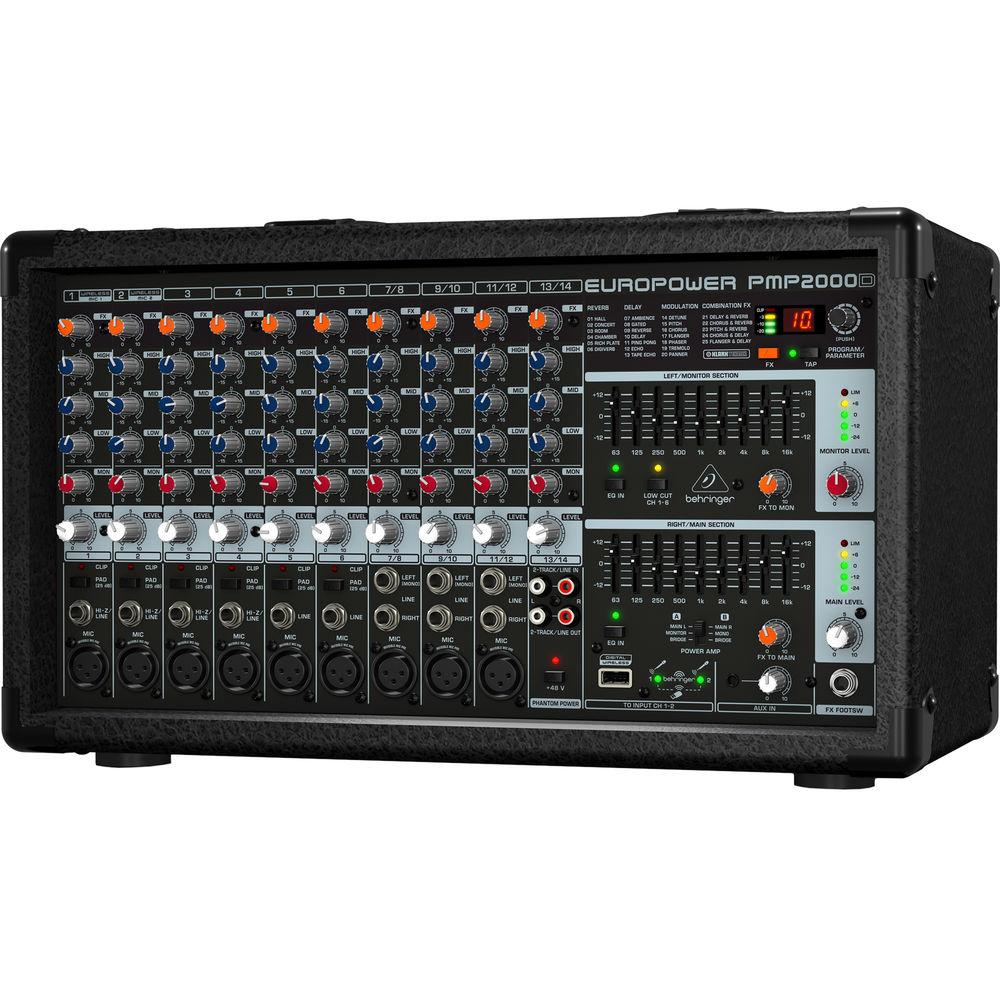

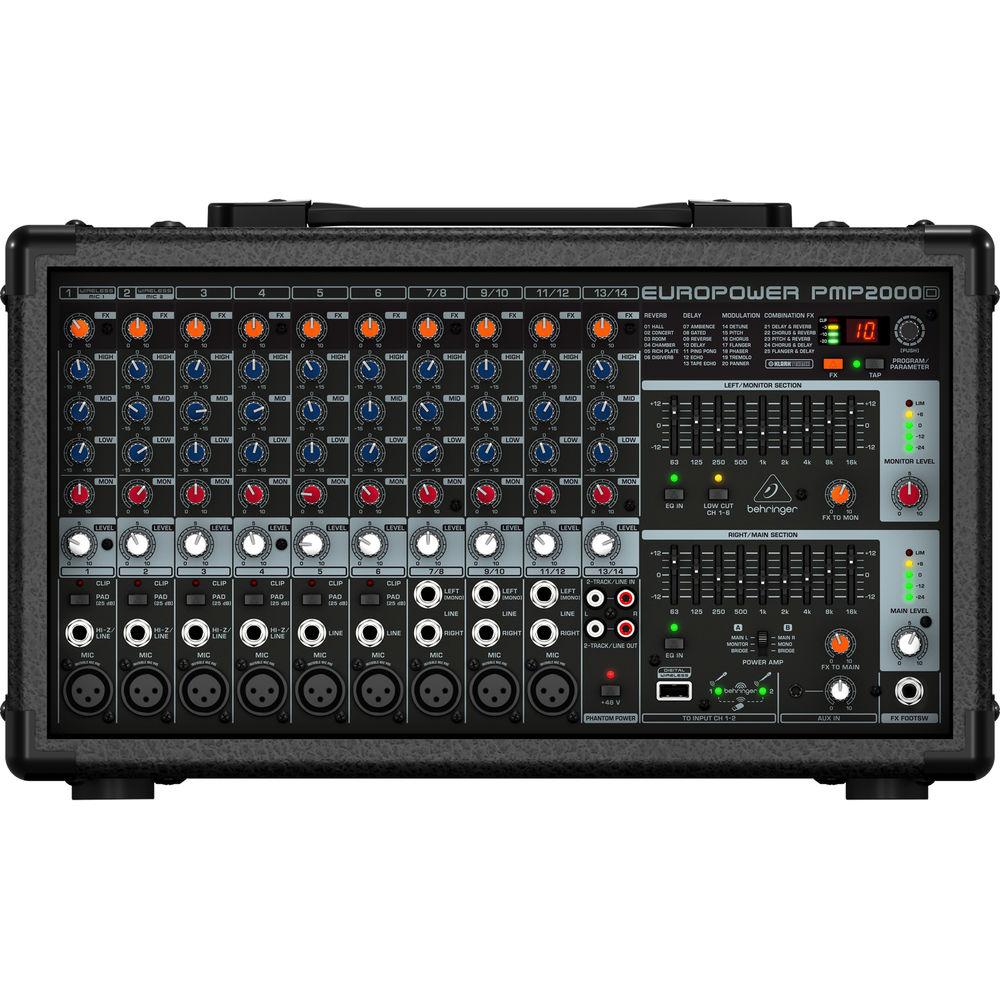

User Manual for Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX

Click to enlarge the picture
Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX Contents of the user manual for the Behringer PMP2000D - 2000W 14-Channel Powered
  • Product category: Sound Reinforcement Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Sound Reinforcement Mixers

Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX
User manual for the Behringer PMP2000D - 2000W 14-Channel Powered contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

  • EUROPOWER PMP2000D 2000-Watt 14-Channel Powered Mixer
The PMP2000D from Behringer is a 14-channel powered mixer featuring 2000 watts of Class-D amplification well suited for small to medium sized clubs, boardrooms, or in houses of worship. Channels 1-6 feature IMP mic preamps that include switchable pads and a clip LED, as well as six 1/4" Hi-Z/line level inputs, which allows for connectivity from a variety of sources. Channels 7-12 are configured as stereo pairs with stereo 1/4" line inputs and three IMP mic preamps. Channels 13-14 feature unbalanced RCA inputs for stereo playback as well as stereo RCA outputs for recording to an external device. Additionally, a 1/8" auxiliary input with level control allows you to connect an MP3 player or similar source.

Each channel features a musical 3-band EQ, level control, monitor send, and FX send. The master section includes a 24-bit KLARK TEKNIK effects processor with 25 presets, level control, and a tap-tempo button for time-based effects. The dual 9-band EQ allows you to dial in separate EQ settings for the monitor and master outputs allowing for the best sound possible to the front-of-house, while eliminating feedback from the monitors. The mixer also features a USB port that enables channels 1&2 to be directly compatible with Behringer's UltraLink ULM series wireless microphone system. The PMP2000D ships with a power cord.
    • Ultra-compact 2x 1000-Watt stereo powered mixer
    • Class-D amplifier technology: enormous power and excellent sonic performance in a light weight package
    • 9x “Invisible” IMP mic preamps with switchable +48 V phantom power for condenser microphones
    • Ultra-high quality KLARK TEKNIK FX processor with 25 presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
    • "Wireless-ready" for high-quality Behringer digital wireless system (not included)
    • 14-channel mixer section features 6 mono and 4 stereo channels
    • Musical 3-band EQ, switchable Pad and Clip LEDs on all mono channels
    • Dual 9-band graphic EQs allow precise frequency correction of monitor and main outputs
    • Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
    • Adjustable stereo Aux input for connecting external signal sources
    • Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
UPC: 748252156549 In the Box Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX
  • Power Cord
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer PMP2000D - 2000W 14-Channel Powered Mixer with KLARK TEKNIK FX in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer PMP2000D Specs

    Type 9x XLR, electronically balanced
    Mic Input Noise (E.I.N.) 20 Hz to 20 kHz
    At 0 Ohms Source Impedance: -108 dB / -110 dB A-weighted
    At 50 Ohms Source Impedance: -108 dB / -110 dB A-weighted
    At 150 Ohms Source Impedance: -106 dB / -107 dB A-weighted
    Frequency Response < 20 Hz to 22 kHz (-1 dB)
    < 20 Hz to 35 kHz (-3 dB)
    Maximum Input Level +13 dBu with PAD
    Impedance 1.5 kOhms, balanced
    Signal-to-Noise Ratio (SNR) 98 dB / 100 dB A-weighted (-15 dBu In @ +35 dB gain)
    Distortion (THD) 0.002%, A-weighted
    Pad -25 dB, channels 1-6
    Phantom Power Switchable +48 V
    Type 4x 1/4" / 6.35 mm TRS, balanced (channels 1-4)
    Impedance 1.8 MOhms balanced, 1 MOhm unbalanced
    Max Input + 22 dBu
    Type 2x 1/4" / 6.35 mm TRS connector, channels 5-6
    Impedance 20 kOhms balanced, 10 kOhms unbalanced
    Maximum Input Level + 22 dBu
    Type 6x 1/4" / 6.35 mm TRS connector, balanced channels 7-12
    Impedance 20 kOhms balanced, 10 kOhms unbalanced
    Maximum Input Level + 22 dBu
    Line In 2-Track / Line In: 2x RCA, unbalanced, channels 13-14
    Impedance 20 kOhms unbalanced
    Gain Range - ∞ dB to + 20 dB
    Maximum Input Level + 22 dBu
    Equalizer Low: 60 Hz (± 15 dB)
    Mid: 700 Hz (± 15 dB)
    High: 6 kHz (± 15 dB)
    Type 1/8" / 3.5 mm TRS connector, unbalanced
    Impedance 10 kOhms
    Gain Range - ∞ dB to +20 dB
    Type 2x RCA, unbalanced
    Impedance 2.4 kOhms
    Maximum Output Level + 9 dBu
    Graphic EQ Type: Analog 9-band equalizer
    Frequency Range 20 Hz to 20 kHz in 9 1-octave bands (ISO frequencies)
    Bandwidth 1 octave
    Control Range ± 12 dB
    Low Cut Frequency Type: 18 dB/oct, Butterworth, channels 1-6
    Frequency: 100 Hz
    USB USB Dongle (Not Included): USB socket accepts signals from a maximum of two Behringer ULM microphones
    Signal Indicator LED: 2x green
    Noise Main Mix at - ∞, Channel Fader at - ∞: - 59 dBu / - 59 dBu A-weighted
    Main Mix at 0 dB, Channel Fader at - ∞: - 56 dBu / - 56 dBu A-weighted
    Main Mix at 0 dB, Channel Fader at 0 dB: - 56 dBu / - 56 dBu A-weighted
    Maximum Output Power Both Channels Driven
    8 Ohms Per Channel: 500 W
    4 Ohms Per Channel: 1000 W
    Bridged Mode
    8 Ohms: 2000 W
    Type Speakon connector
    Load Impedance Left/Monitor: Minimum 4 Ohms
    Right/Mono: Minimum 4 Ohms
    Bridge: Minimum 8 Ohms
    Display 2-digit, 7-segment LED
    Power Mains voltage
    120 VAC, 50/60 Hz
    Mains Connection: Standard IEC receptacle
    Fuse T 8 A H 250 V
    Power Consumption Power Consumption at 4 Ohms, 1/8 Rated Power: 180 W
    Dimensions (H x W x D) 10.9 x 17.9 x 9.8" / 27.6 x 45.5 x 25.0 cm
    Weight 19.8 lb / 9.0 kg
    Package Weight 24.0 lb
    Box Dimensions (LxWxH) 21.0 x 13.0 x 13.0"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 39 owners. Add your rating and experience with the product.
