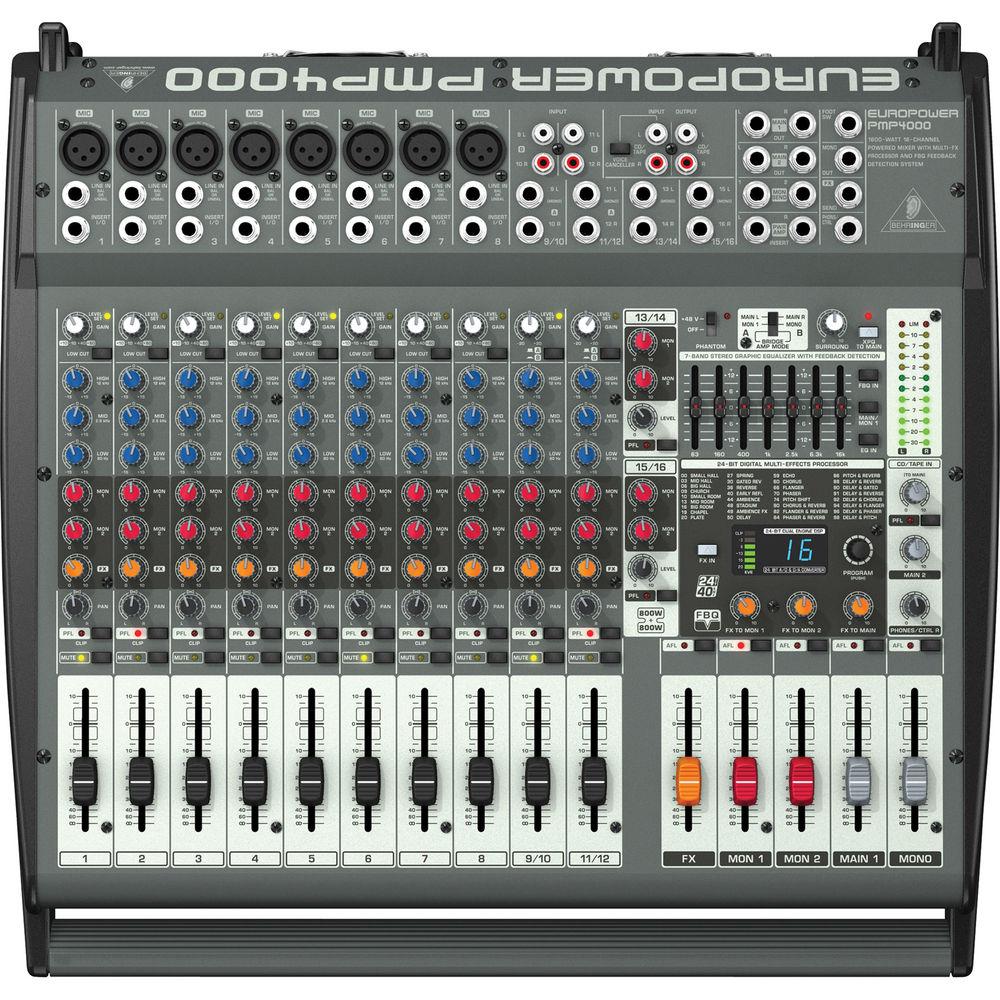

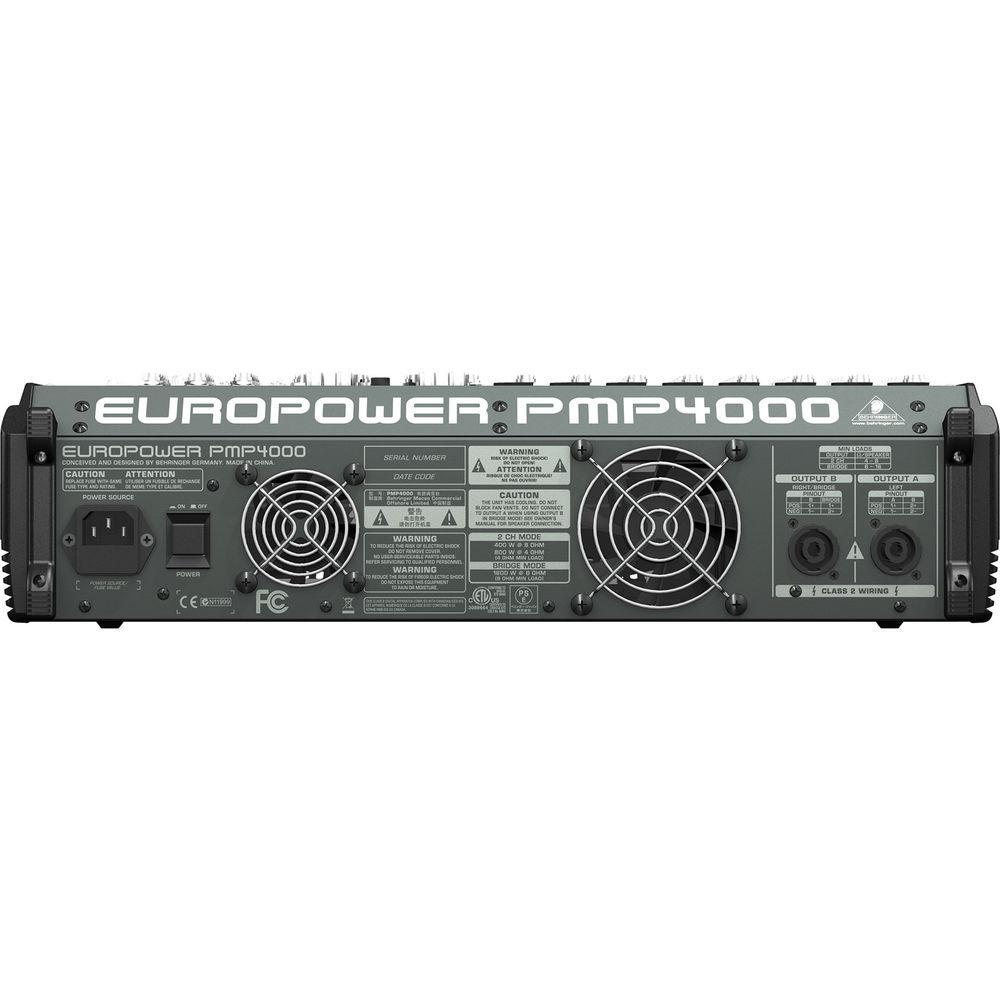

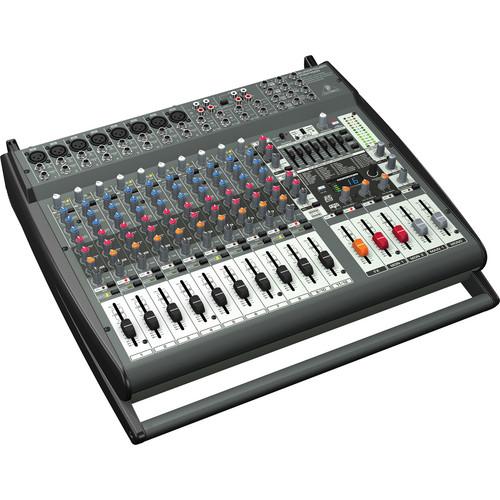

Product description - EUROPOWER PMP4000 Powered Mixer
The Behringer PMP4000 16-Channel Powered Mixer delivers a powerful 1600 watts and features a compact, table-top mixing desk enclosure. The PMP4000 is well suited for general PA applications in auditoriums, houses-of-worship, halls, restaurants, bars, band rehearsals and more. A total of 16 channels are comprised of 8 mono microphone and line inputs, and 4 stereo line input channels. Each channel features a 3-band EQ section, gain and channel fader controls, Mute and PFL switches. Additional features include a 7-band graphic EQ with FBQ feedback detection, 24-bit effects processor and vocal remover for karaoke and rehearsing. - Ultra-compact 2 x 800-Watt stereo powered mixer (1600-Watt bridged mode)
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Ultra-compact design at nearly half the weight of conventional powered mixers
- 16-channel mixer section features 8 mono and 4 stereo channels plus separate CD/Tape input/output
- Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
- 8 high-quality XENYX Mic Preamps with switchable +48 V phantom power for condenser microphones
- Effective, extremely musical 3-band EQ, switchable Low cut filter, and Clip
- LEDs on all mono channels
- Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
- Voice Canceller function removes singer's voice from recordings for karaoke applications
- Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
- Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
- Adjustable stereo CD/Tape input for connecting external signal sources
- Multi-functional stereo Preamp outputs for added flexibility
- Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
UPC: 713757154611 In the Box Behringer PMP4000 16-Channel Powered Mixer Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer PMP4000 16-Channel Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer PMP4000 Specs | Power Rating | 1600 Watts Bridged Mono
800 Watts Stereo x2 | | Mic/Line Inputs | 8 Balanced Microphone: 3-pin XLR
8 Balanced Mono Line: 1/4" TRS Phone 4 Balanced Stereo Paired Line: 1/4" Phone | | Aux Sends | 1/4" Phone Effects Out | | Inserts | 8x 1/4" TRS (Mono Channels)
Main Out | | Main Output | Main 1 & Main 2: 1/4" TRS Phone x2 Main Rear: Stereo Speakon | | Tape I/O | L/R Paired RCA Phono I/O | | Monitor Outputs | Mon Send: 1/4" Phone x2 | | EQ Section | 3-Band Channel EQ
7-Band Graphic EQ | | Solo/Mute | Channel Mute / PFL | | Channel Level Control | Channel Fader | | Trim/Gain Control | Rotary Pots | | Phantom Power | +48V | | Metering | 12 Segment Stereo LED | | Frequency Response | 10Hz to 200kHz | | Signal-to-Noise Ratio | 109dB / 112dB A-Weighted | | Total Harmonic Distortion (THD) | 0.002% / 0.0018% A-Weighted | | Power Supply | 120V~, 60Hz | | Dimensions (HxWxD) | 4.8 x 18.74 x 18.11" (122 x 476 x 460mm) | | Weight | 22.9lb (10.4kg) | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 21.5 x 21.0 x 8.0" |
