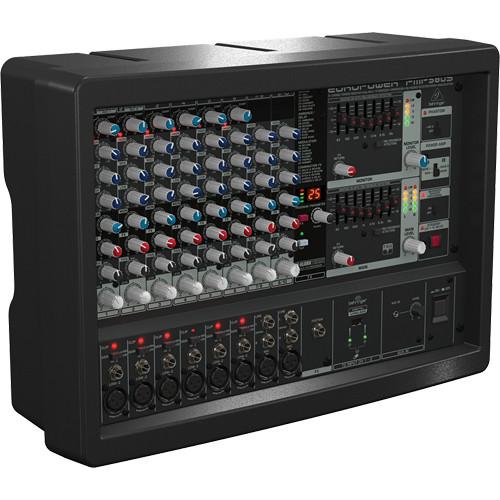

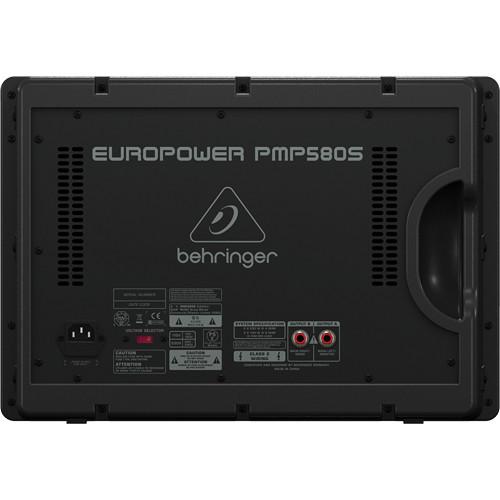

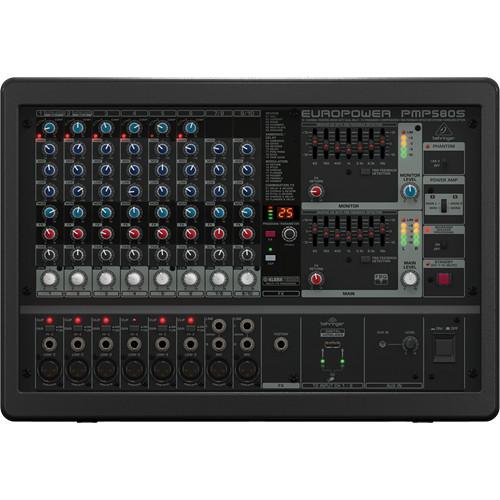

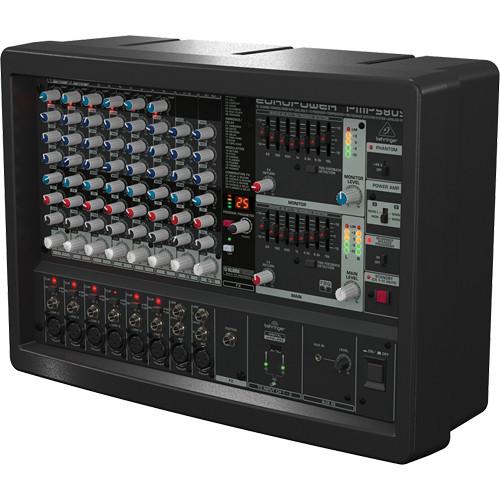

User Manual for Behringer PMP580S 500W 10-Channel Powered Mixer with KT Multi-FX Processor Click to enlarge the picture
Contents of the user manual for the Behringer PMP580S 500W 10-Channel Powered Mixer
- Product category: Sound Reinforcement Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Sound Reinforcement Mixers
 |
User manual for the Behringer PMP580S 500W 10-Channel Powered Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Behringer PMP580S 500W 10-Channel Powered Mixer with KT Multi-FX Processor features 500 watts (2 x 250 dual mono) of Class D amplification and a 10-channel mixer in a rackmountable design with eight IMP +48V phantom microphone preamps. It can be used for smaller clubs, boardrooms, or in houses of worship. The eight mic preamps with switchable pads and a clip LED as well as six 1/4" line level inputs, allowing connectivity from a variety of sources. An 1/8" auxiliary input allows you to connect an MP3 player or similar source. An adjustable stereo Aux input further expands the mixer's functionality by enabling connection to external 1/4" stereo signal sources.
Each of its eight microphone preamp/line input channels features a 3-band EQ to help tweak your tone, as well as a pan knob for placing the channel within the stereo image. The master section has an incorporated 24-bit Klark Teknik effects processor with 25 presets a 7-band graphic EQ that allows you to tame feedback using the FBQ Feedback Detection system. A stereo 7-band graphic EQ can then be used to correct frequencies on the monitor and main outputs. The mixer features a USB port that enables the mixer to be directly compatible with Behringer's UltraLink ULM series wireless microphone system without taking up an analog input. - Compact 500W powered mixer
- Class D Amplifier Technology
- 8 IMP mic preamps with switchable +48V phantom power for condenser microphones
- Klark Teknik FX processor with 25 presets including reverb, chorus, flanger, delay, pitch shifter, and various multi-effects
- FBQ Feedback Detection system for revealing critical frequencies for feedback removal
- Wireless-ready for the UltraLink ULM100USB Digital Wireless System (sold separately)
- Mixer section features 6 mono channels and separate Aux input
- Effective, musical 3-band EQ, switchable Pad & Clip LEDs on all channels
- Stereo 7-band graphic EQ enables frequency correction of monitor and main outputs
- Selectable dual mono (main / main, main / monitor) amplifier operation
- Speaker processing function adjusts frequency response to match professional speaker systems like Behringer's Eurolive series
- Standby switch mutes all input channels during breaks, while background music is provided via the Aux input
- Adjustable Aux input for connecting external signal sources
- Internal switch-mode power supply
- Rackmount brackets included
UPC: 713757159319 In the Box Behringer PMP580S 500W 10-Channel Powered Mixer with KT Multi-FX Processor Rackmount Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer PMP580S 500W 10-Channel Powered Mixer with KT Multi-FX Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer PMP580S Specs | | | Type | XLR, electronically balanced | | Mic Input Noise (E.I.N.) | 20 Hz to 20 kHz
At 0 Ω Source Impedance: -110 dB / 113 dB A-weighted
At 50 Ω Source Impedance: -110 dB / 113 dB A-weighted
At 150 Ω Source Impedance: -110 dB / 113 dB A-weighted | | Gain | +29 dB, +9 dB with pad | | Maximum Input Level | +12 dBu at 10 dB gain | | Impedance | 2.0 kΩ balanced
1.0 kΩ unbalanced | | Phantom Power | Switchable +48 V | | | | Type | 1/4" TRS connector, balanced (line) | | Impedance | Approximately 20 kΩ | | Maximum Input Level | +21 dBu | | | | Type | 1/4" TS connector, unbalanced (line) | | Impedance | Approximately 20 kΩ | | Maximum Input Level | +21 dBu | | | | Equalizer | Low: 80 Hz / ±15 dB
Mid: 2.5 kHz / ±15 dB
High: 12 kHz / ±15 dB | | | | Noise | Main mix at -∞, channel fader at -∞: -90 dB / -94 dB A-weighted
Main mix at 0 dB, channel fader at -∞: -77 dB / -86 dB A-weighted
Main mix at 0 dB, channel fader at 0 dB: -73 dB / -79 dB A-weighted
Frequency response (amplifier output): 20 Hz to 20 kHz (+0/-3 dB) | | | | Maximum Output Power | Per Channel: 250 W + 250 W Independent of limiters and driver protection circuits. | | | | Type | 1/4" TS connector | | Load Impedance | 4 to 8 Ω | | | | Type | Klark Teknik | | Converter | 24-bit Sigma-Delta | | Sampling Rate | 40 kHz | | | | Wireless Support | Behringer ULM Series & USB Receiver: USB socket accepts signals from 2 independent Behringer ULM mics | | Display | 2-digit, 7-segment LED | | Power Supply | Mains voltage
100 to 120 V (for UL, JP, CA)
220 to 240 V (for EU, AU, UK, CN)
Mains Connection: Standard IEC receptacle | | Fuse | 100 to 120 V, T 5 A H 250 V
220 to 240 V, T 3.15 A H 250 V | | Dimensions (H x W x D) | 12.0 x 17.7 x 6.3" (304.8 x 449.6 x160.0 mm) | | Weight | 15.2 lb (6.9 kg) | | | | Package Weight | 18.8 lb | | Box Dimensions (LxWxH) | 20.3 x 15.6 x 9.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
