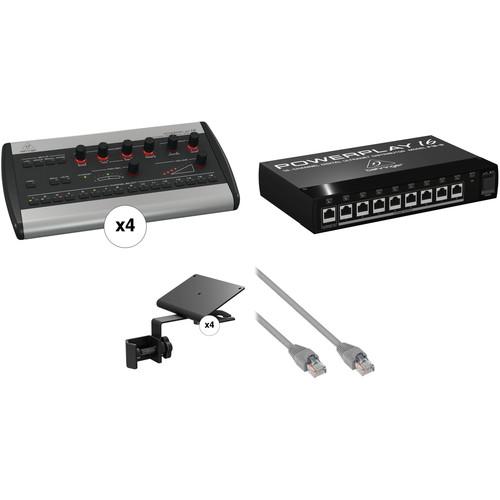

Behringer Powerplay 4-Person Personal Mixing System

User Manual for Behringer Powerplay 4-Person Personal Mixing System Kit

• Product category: Networked Audio Systems Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Networked Audio Systems

Product description

• 4 x Behringer Powerplay 16 P16-M 16-Channel Digital Personal Mixer
  • POWERPLAY P16-M 16-Channel Digital Personal Mixer
  The Behringer Powerplay 16 P16-M 16-Channel Digital Personal Mixer is used with the Behringer P16-I Input Module (sold separately) to complete the Behringer Powerplay 16 monitoring system. The system puts personal monitor mixing in the hands of musicians, singers, speakers and other talent, allowing them to set levels for up to 16 channels of audio, ultimately creating custom monitor mixes that favor their own signals.The P16-M features an intuitive layout and control section with individual level and pan controls for 16 input channels. A 3-band EQ section further contours your headphone signal, and 24-bit D/A converters ensures high audio quality and detail. An optional stand mount (P-16MB) allows the P16-M to be mounted onto a microphone stand.The P16-M connects to the P16-I via Cat5 network cable. Additional connections include stereo 1/4" phone through outputs, and of course a headphone output. A complete Powerplay 16 monitoring system is an ideal monitoring solution for houses-of-worship, small live performance venues, conference halls, auditoriums and more.
  • 16-channel digital stereo mixer to create your personal monitor mix
  • Ultra-intuitive "analog" operation with total recall and 16 presets for custom mixes
  • State-of-the-art 24-bit D/A converters for premium audio quality
  • 16 Channel Select buttons with dual LEDs for perfect overview
  • Level and Pan/Spread control per channel with LED meter
  • 3-band EQ per channel with mid-band frequency control
  • Solo and mute functions per channel
  • Global Level and EQ controls plus Panic Mute function
  • High power and "drummer proof" headphones output
  • Fully adjustable limiter protects your ears and headphones
  • Additional mono/stereo line output to connect your powered monitor
  • MIDI IN port for real-time remote control of all channels by external MIDI device such as BEHRINGER BCF2000, BCR2000, etc.
  • Standard CAT5e connection delivers power and 16 signals to each Personal Mixers
  • ULTRANET connector to daisy-chain up to forty-eight P16-M mixers for large systems (in conjunction with P16-D)
  • Ultra-low system latency of less than 1 millisecond
  • Powered via external power supply (included) or P16-I / P16-D
  • Mounts easily on a mic stand with the P16-MB mic stand mount (not included)
  • Extremely rugged construction ensures long life even under the most demanding conditions
  UPC: 705105164687
• Behringer Powerplay 16 P16-D 16-Channel Digital Ultranet Distributor
  • POWERPLAY P16-M 16-Channel Digital Personal Mixer
  The Behringer Powerplay 16 P16-D 16-Channel Digital Ultranet Distributor connects to the Behringer P16-I Input Module (sold separately) and provides 8 additional Ultranet connections (6 are available on the P16-I), allowing for more P16-M monitor mixers (sold separately) to be used in the Powerplay 16 monitor mixing system. The P16-D Digital Ultranet Distributor sends bus power and signal to the connected P16-M monitor mixers, and LEDs indicate both input and output signals. The P16-D 16-Channel Digital Ultranet Distributor effectively expands the system for use with large bands, vocal groups, choirs and more.
  • Distribution Hub for P16-I for system expansion
  • 1 Ultranet input feeds 8 Ultranet outputs (RJ-45)
  • Provides bus power and 16-channel signal transmission for all 8 outputs
  • Up to six P16-D Ultranet Distributors can be combined for a total of forty-eight P16-M Personal Mixers
  • Status LED indicators for RJ-45 input and 8 RJ-45 outputs
  • Internal autorange power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • Extremely rugged construction ensures long life even under the most demanding conditions
  UPC: 705105164885
• 4 x Behringer Powerplay 16 P16-MB Mounting Bracket for P16-M Monitor Mixer
  • POWERPLAY P16-M 16-Channel Digital Personal Mixer
  The Behringer Powerplay 16 P16-MB Mounting Bracket is a hardware accessory for the P16-M monitor mixer. The P16-MB Mounting Bracket features rugged construction, and a sturdy clamp for mounting the monitor mixer onto microphone stands, music stands, drum stands and more.
  • Mounting bracket for P16-M Digital Personal Mixer
  • Attaches to standard mic, music or drum stands
  • High-quality components and exceptionally rugged construction ensure long life
  UPC: 705105164984
• Pearstone Cat 5e Snagless Patch Cable (100', Gray)
  • POWERPLAY P16-M 16-Channel Digital Personal Mixer
  With the durable gray Pearstone Cat 5e Snagless Patch Cable, you can connect your computer to a network, extending the existing network connection, or run cables throughout an office for Gigabit-speed connectivity. This cable has a length of 100', is constructed with stranded bare-copper connectors, and offers data transmission speeds that exceed Cat 5e standards.

  The twisted-pair construction of this Pearstone cable helps to minimize RF or EM interference and reduces near-end crosstalk, which helps ensure your data speeds won't slow down when sharing an area with other power or communication lines. Gold-plated RJ45 connectors assure reliable connectivity and enhanced Ethernet speeds while resisting corrosion. With features like a snagless boot and a durable, high-quality PVC jacket, Pearstone's Cat 5e cable can withstand wear and tear under the most demanding conditions.

  General Features

  Gold-Plated RJ45 Connectors
  • Gold plating enhances conductivity and provides enhanced data transmission speeds. Gold connectors are also noncorrosive for long cable life.
  Gigabit Compatible
  • The Cat 5e cable has a 250 MHz rating to connect to a Gigabit network.
  Twisted-Pair Construction
  • The bare copper conductors are tightly twisted to minimize RF and EM interference and near-end crosstalk that can slow down the speed of your network.
  Snagless Boot
  • The cable's boot offers strain relief and covers the tab so you can smoothly pull the cable through a bundle without snagging.
  Flexible and Durable
  • The cable is constructed with a bare copper stranded conductor that allows you to flex the cable as needed. The high-quality PVC jacket is durable enough to withstand heave use.
  Colors
  • To make sure all your cables don't look alike, and so you don't use the wrong cable, Pearstone offers a wide variety of colors for easy cable identification.
  UPC: 847628005761

• 4 x Powerplay 16 P16-M 16-Channel Digital Personal Mixer dftbadurbxxz
• Limited 1-Year Warranty, Extendable to 3-Years with Product Registration

• Powerplay 16 P16-D 16-Channel Digital Ultranet Distributor dftbadurbxxz

• 4 x Powerplay 16 P16-MB Mounting Bracket for P16-M Monitor Mixer

• Pearstone - Cat 5e Snagless Patch Cable (100', Gray)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x Behringer Powerplay 16 P16-M 16-Channel Digital Personal Mixer

  Box Dimensions (LxWxH)	14.6 x 7.4 x 4.2"

• Behringer Powerplay 16 P16-D 16-Channel Digital Ultranet Distributor

  Box Dimensions (LxWxH)	12.0 x 10.1 x 4.1"

• 4 x Behringer Powerplay 16 P16-MB Mounting Bracket for P16-M Monitor Mixer

  Box Dimensions (LxWxH)	9.05 x 6.05 x 2.3"

• Pearstone Cat 5e Snagless Patch Cable (100', Gray)

  Cable Length	100' / 30.48 m
  Ethernet Standards	Cat 5e
  Connector 1	RJ45 Male
  Connector 2	RJ45 Male
  Compatibility	10/100/1000 Base-T

  Bandwidth Rating	250 MHz

  Shielding	None
  Cable Configuration	Stranded
  Pin Assignment	T568B
  Boot Type	Snagless
  Outer Diameter	0.21" / 5.4 mm
  Wire Gauge	24 AWG
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor	Bare Copper
  Contact Material	Copper
  Contact Plating	Gold
  Insulation	HDPE
  Certifications	RoHS, UL, as per Manufacturer

  Box Dimensions (LxWxH)	9.0 x 9.0 x 1.0"
