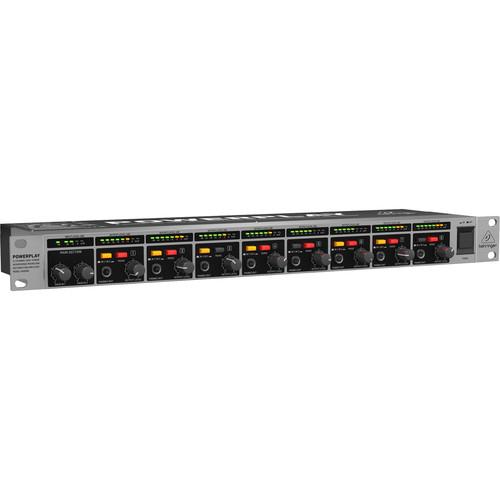

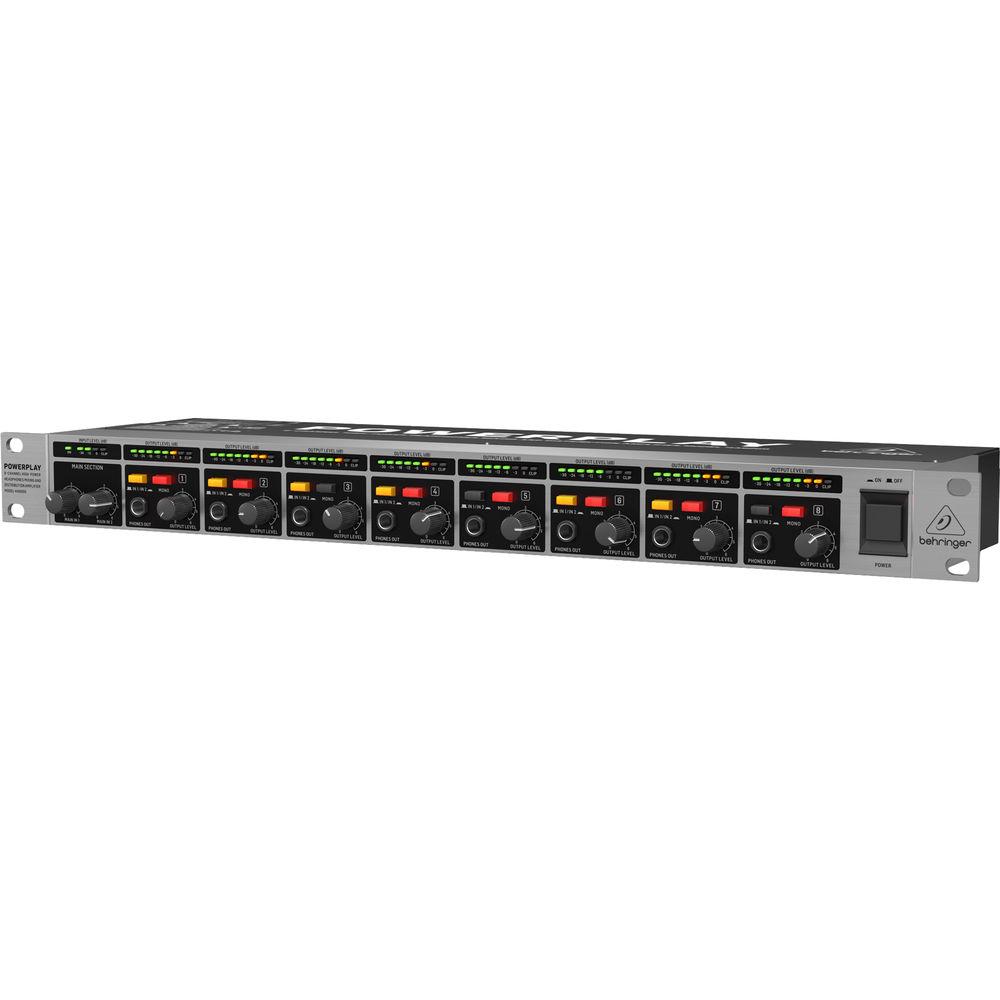

User Manual for Behringer Powerplay HA8000 V2 8-Channel High-Power Headphones Mixing & Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Behringer Powerplay HA8000 V2 8-Channel High-Power
- Product category: Headphone Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Headphone Amplifiers
 |
User manual for the Behringer Powerplay HA8000 V2 8-Channel High-Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

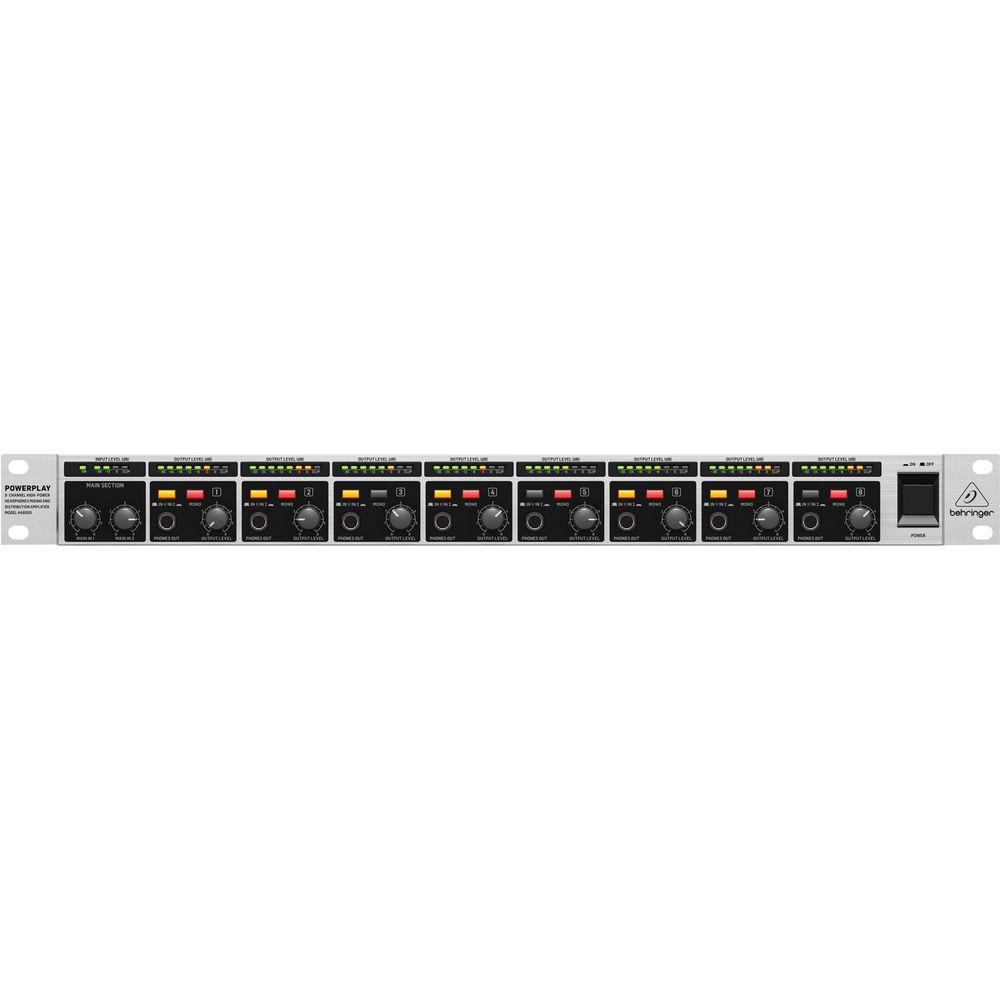

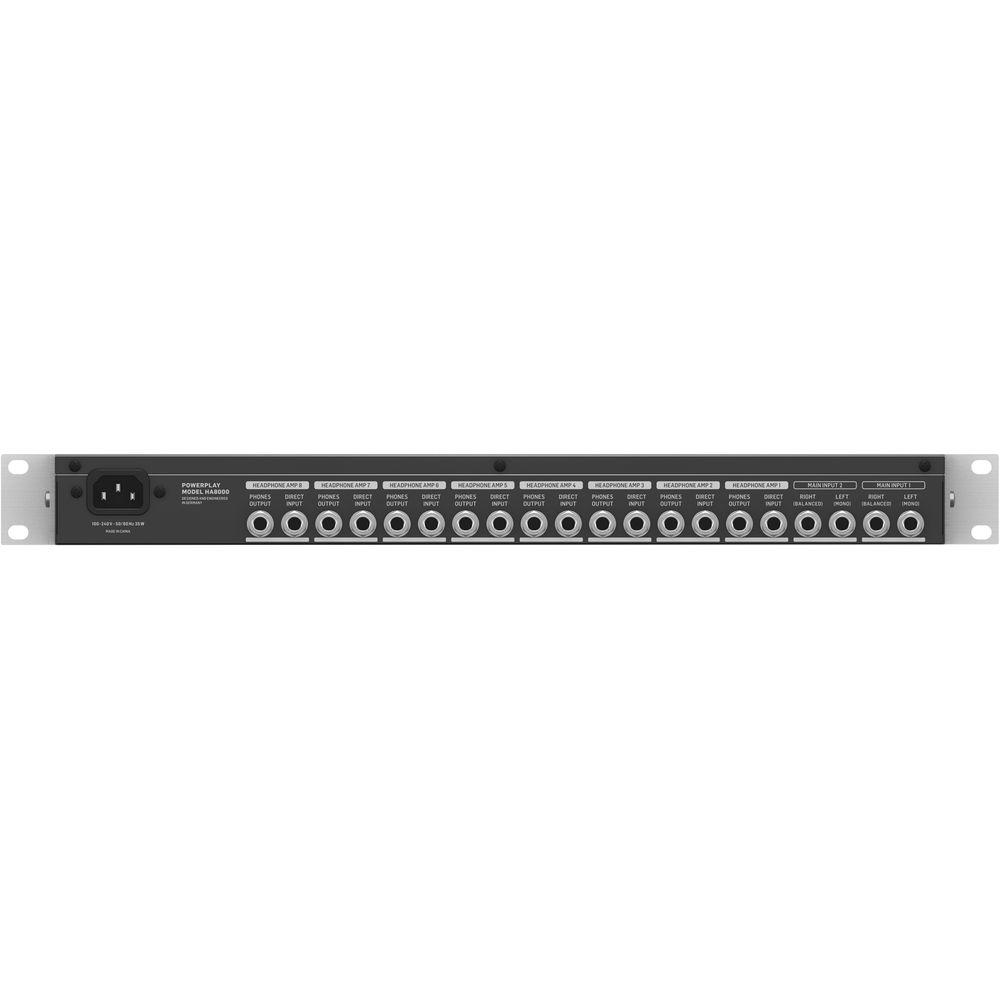

Product description The Powerplay HA8000 V2 8-Channel High-Power Headphones Mixing & Distribution Amplifier from Behringer features two independent stereo main inputs and a dedicated direct input on each channel, and has routing and mixing functions to accommodate the most discerning set of ears. It can be used to optimize headphone mixes for multiple listeners, each with their own specific requirements for studio and stage applications. Offering 8 high-power amplifiers designed to drive loads down to 8 Ohms, the headphone amp has its own 8-digit, LED-output level meter for each channel. A Main In 1/Main In 2 select switch, a stereo or dual mono-select switch, and a 1/4" direct input for integrating an additional sound source is available. The front panel gives you a 1/4" phones output jack per channel. Additionally, the main section features a dedicated 5-segment LED input meter, plus Main In 1 and Main In 2 level dials. Also, on the back panel there is an additional 1/4" phone output jack per channel, allowing up to 16 pairs of headphones to listen to 8 separate mixes at once. The back panel provides access to the HA8000's per-channel Direct Inputs and the Main 1 & 2 Inputs. Finally, when a recording session calls for everyone's head and ears to be in the game, the Powerplay HA8000 V2 is an essential tool to get the job done. With 8 discrete channels and the ability to connect up to 16 sets of cans, this is one tool you will always use. - Professional, multi-purpose headphones amplifier system for stage and studio applications
- Delivers sonic quality with virtually all types of headphones even at maximum volume
- 8 totally independent stereo high-power amplifier sections in one rack space
- 2 stereo main inputs for two independent mixes, accessible from all 8 output channels
- 8 independent direct inputs provide up to 8 individual stereo mixes
- Output level control and accurate 8-digit LED output meter per channel
- Mono/stereo switch per channel for more flexibility
- 1 front and 1 rear TRS phones connector per channel
- Direct input connector on each channel for easy connection to any sound source
- Parallel main outputs allow cascading of several headphones amplifiers
- "Planet Earth" switching power supply for maximum flexibility (100 to 240 V), noise-free audio, superior transient response plus, low power consumption for energy savings
UPC: 748252170941 In the Box Behringer Powerplay HA8000 V2 8-Channel High-Power Headphones Mixing & Distribution Amplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Powerplay HA8000 V2 8-Channel High-Power Headphones Mixing & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer HA8000V2 Specs | Number of Channels | 8 | | Input Connections | 2 x 1/4" TRS Phone (L/Mono, R) Main Input 1, Balanced
2 x 1/4" TRS Phone (L/Mono, R) Main Input 2, Balanced
8 x 1/4" Stereo Phone Direct Ins | | Input Impedances | Main: 20 kOhms balanced / 10 kOhms unbalanced
Direct In: 15 kOhms | | Line Max Input Level | + 16 dBu | | CMMR | > 50 dB | | Headphone Outputs | 8 x 1/4" TRS stereo on front panel
8 x 1/4" TRS stereo on back panel | | Maximum Output Level | +24 dBm @ 100 Ohms
+19 dBm @ 8 Ohms | | Function Controls | 1 x Main In 1 Level Control Knob
1 x Main In 2 Level Control Knob
8 x Channel Output Level Control Knobs
8 x Main In 1/Main In 2 Channel Monitoring Switches
8 x Mono Channel Monitoring Switches | | Frequency Response | 10 Hz - 150 kHz, +/-3 dB | | THD + N | 0.007% typ. @ +4 dBu, 1 kHz, Gain 1 | | Noise | 22 Hz - 22 kHz >80 dB @ 0 dBu | | Dynamic Range | 103 dB (22 Hz to 22 kHz) | | Display | Input Level:
5-digit LED:
Output Level:
8-digit LED: -30, -24, -18, -12, -6, -3, 0 dB, CLIP | | Specialties | Up to 150 kHz Frequency Response
Individual Output Level Displays
Individual Direct Inputs Per Channel | | Power Supply | Autorange, 100-240 VAC, 50/60 Hz
Fuse: T1.25AL 250 V | | Power Consumption | 35 W | | Dimensions | 1.75 x 19 x 5.9" (44.5 x 482.6 x 149 mm) | | Weight | 4.2 lb (1.9 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 20.5 x 9.7 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
