Product description - EURORACK PRO RX1202FX Premium 12-Input Mic/Line Rack Mixer

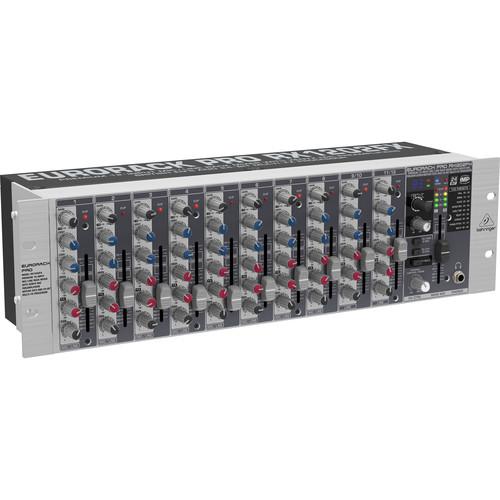

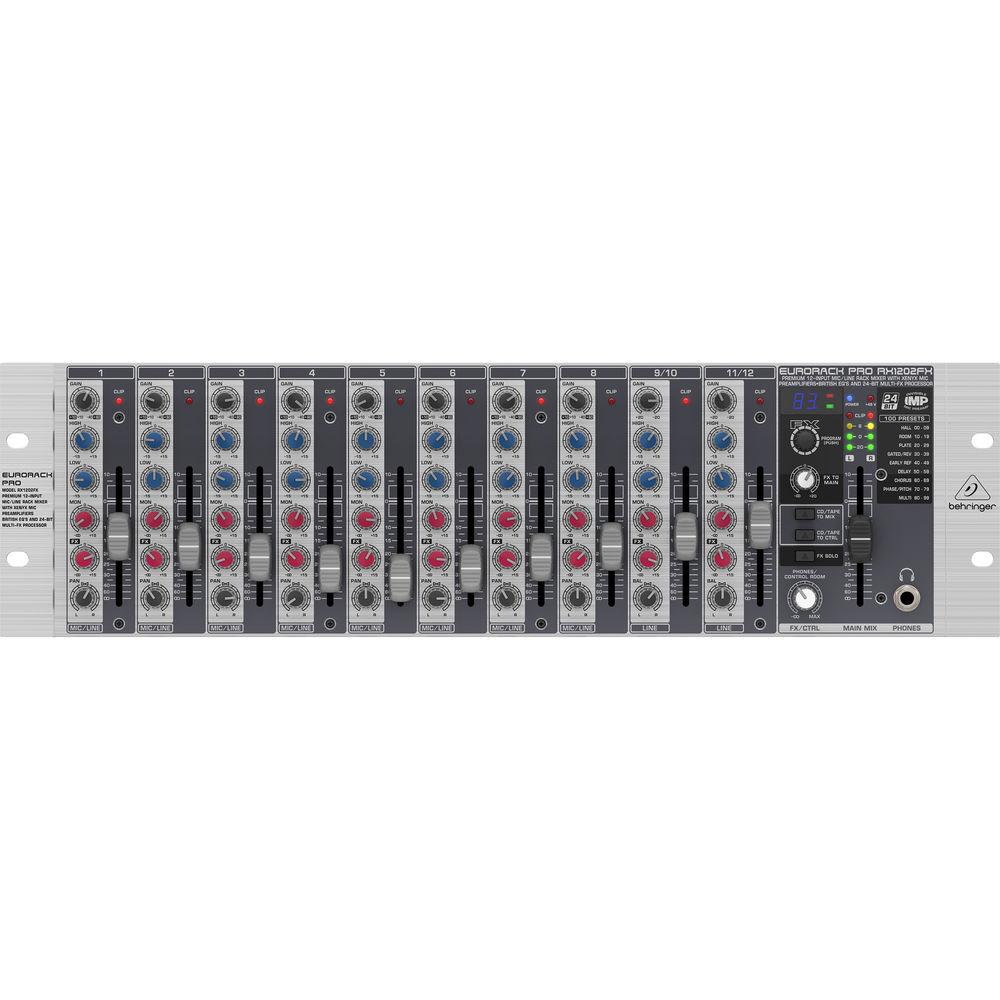

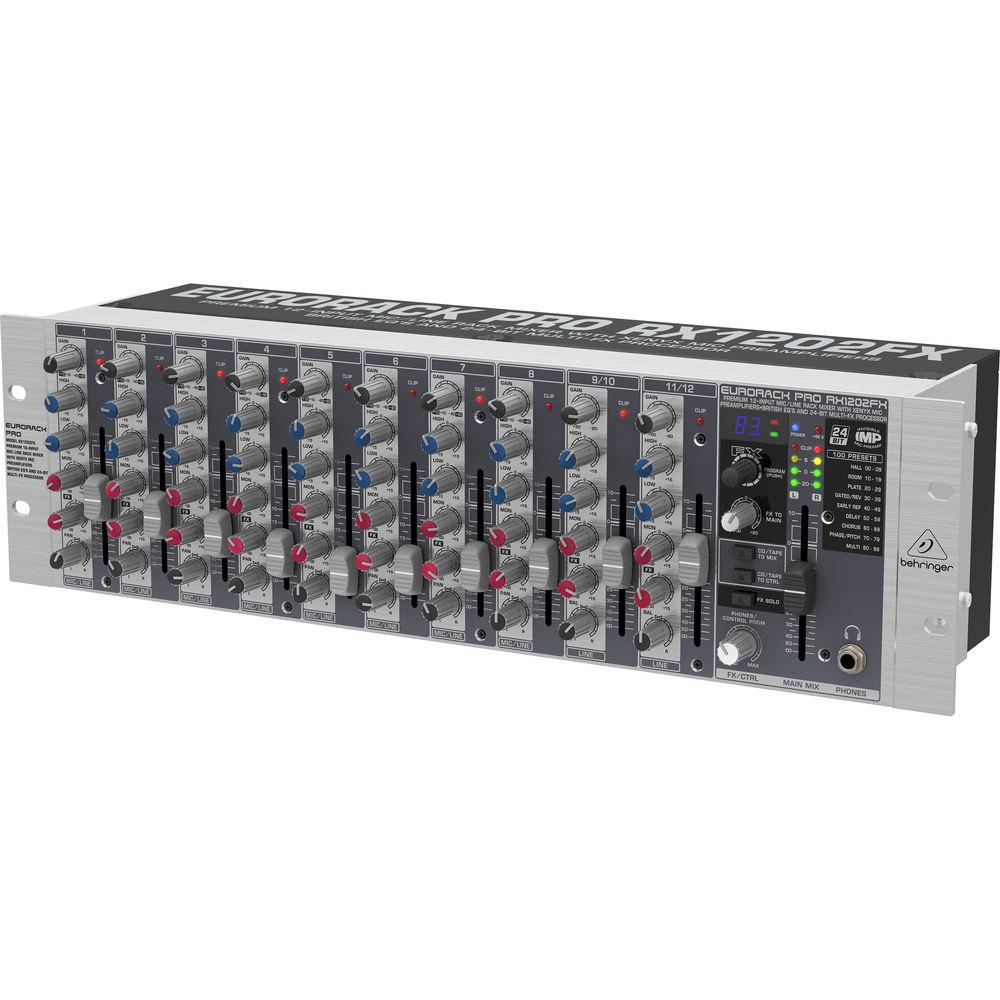

The Behringer RX-1202FX is a compact, 19-inch rack mountable audio mixer with eight mono and two stereo channels, for a total of twelve input channels. Channels 1 through 8 are mono and feature a 1/4" line and balanced XLR microphone inputs. Channels 9/10 and 11/12 are stereo paired with stereo 1/4" phone line connectors.All channels feature a 2-band EQ with gain and level control. An on-board effects processor provides delay, chorus and reverb effects. The output section includes stereo balanced XLR and 1/4" phone outputs. The RX-1202 is an ideal choice as a keyboard mixer, small sound reinforcement installation and more. - Stereo and Mono Channels
- The RX-1202FX features 8 mono and 2 stereo input channels for a total of 12 input channels.
- Effects Processor
- An on-board effects processor provides chorus, reverb and delay effects.
- 19-Inch Rack Mountable
- The mixer is designed to mount into any standard 19-inch rack.
UPC: 689076811989 In the Box Behringer RX-1202FX Rack Mount 12-Channel Line and Microphone Mixer with Effects Limited 10-Year Warranty User Manual PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer RX-1202FX Rack Mount 12-Channel Line and Microphone Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer RX-1202FX Specs | Total # Of Inputs | 12 | | Mic/Line Inputs | 8 Microphone - 3-pin XLR Balanced

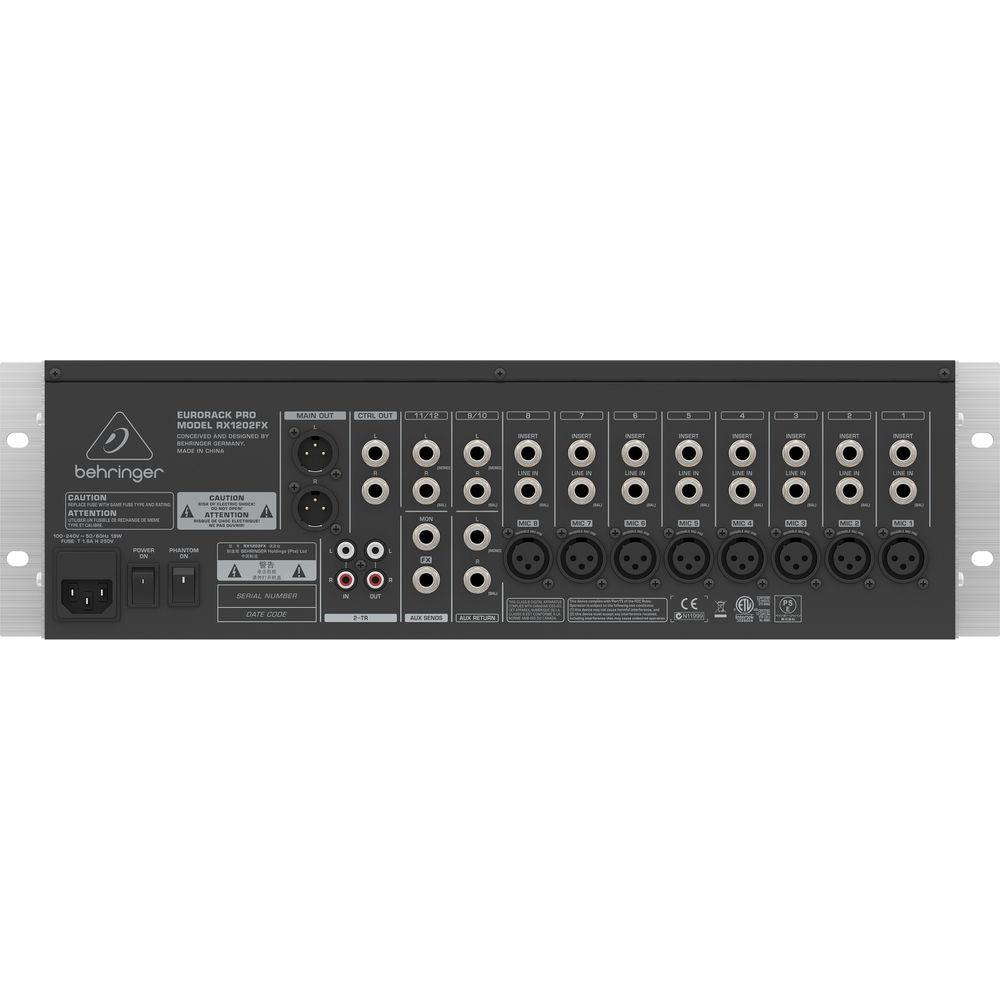

12 Line - 1/4" Phone | | Stereo Line Inputs | Channels 9/10, 11/12 - Stereo 1/4" Phone | | In-Line Inputs/Returns | No | | AUX Sends | 2 - 1/4" Phone | | AUX Returns | 2 - 1/4" Phone | | Inserts | Channels 1 through 8 - 1/4" Phone TRS | | BUS (Group) Outputs | Stereo Output Only | | 2 Trk Master I/O | Stereo Out - L/R 3-pin XLR
CD/Tape In - RCA Phono CD/Tape Out - RCA Phono | | ALT I/O | No | | Monitor Outputs | CTRL Room Out - L/R 1/4" TRS Phone | | EQ Section | Low: 100Hz, +/- 15dB
High: 12kHz, +/- 15dB | | Solo/Mute | No | | Channel Level Control | Rotary Control | | Trim/Gain Control | Rotary Control | | Phantom Power | +48V Phantom | | Metering | 4-Segment Peak LED Meters
Power and +48V Phantom Indicators | | Frequency Response | < 10Hz to 200kHz | | Dynamic Range | not specified by manufacturer | | Signal-to-Noise Ratio | Main Mix @ -Unity, -98dB / -101dB A-weighted | | Total Harmonic Distortion (THD) | 0.003%, A-Weighted | | Power Supply | Power Consumption: 18W
Voltage: 100 - 240 V ~, 50/60 Hz Fuse: 100 - 240 V ~: T 1.6 A H 250V
Mains Connection: IEC (Power) Cable | | Dimensions | 5.23 x 18.97 x 5.90" (133 x 482 x 150mm) (HxWxD) | | Weight | 6.4 lbs (2.9 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 20.394 x 8.976 x 7.638" |
