Product description

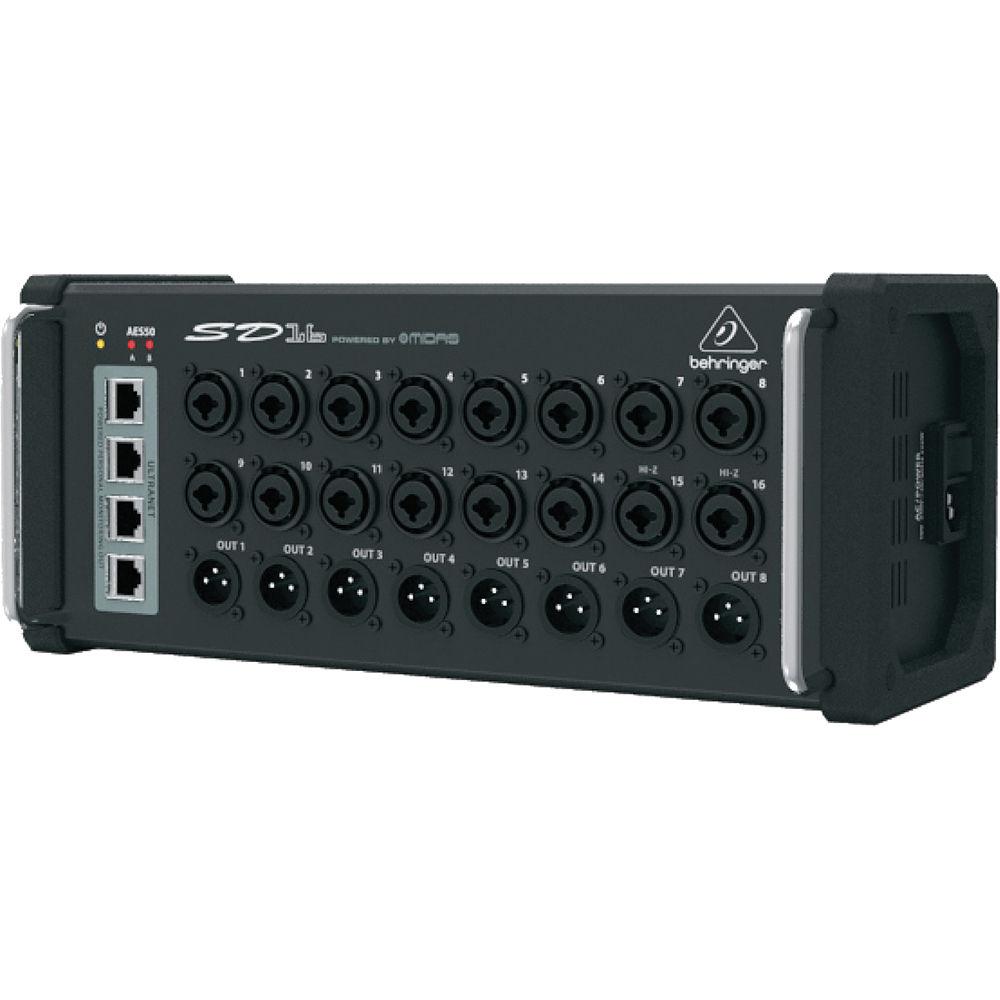

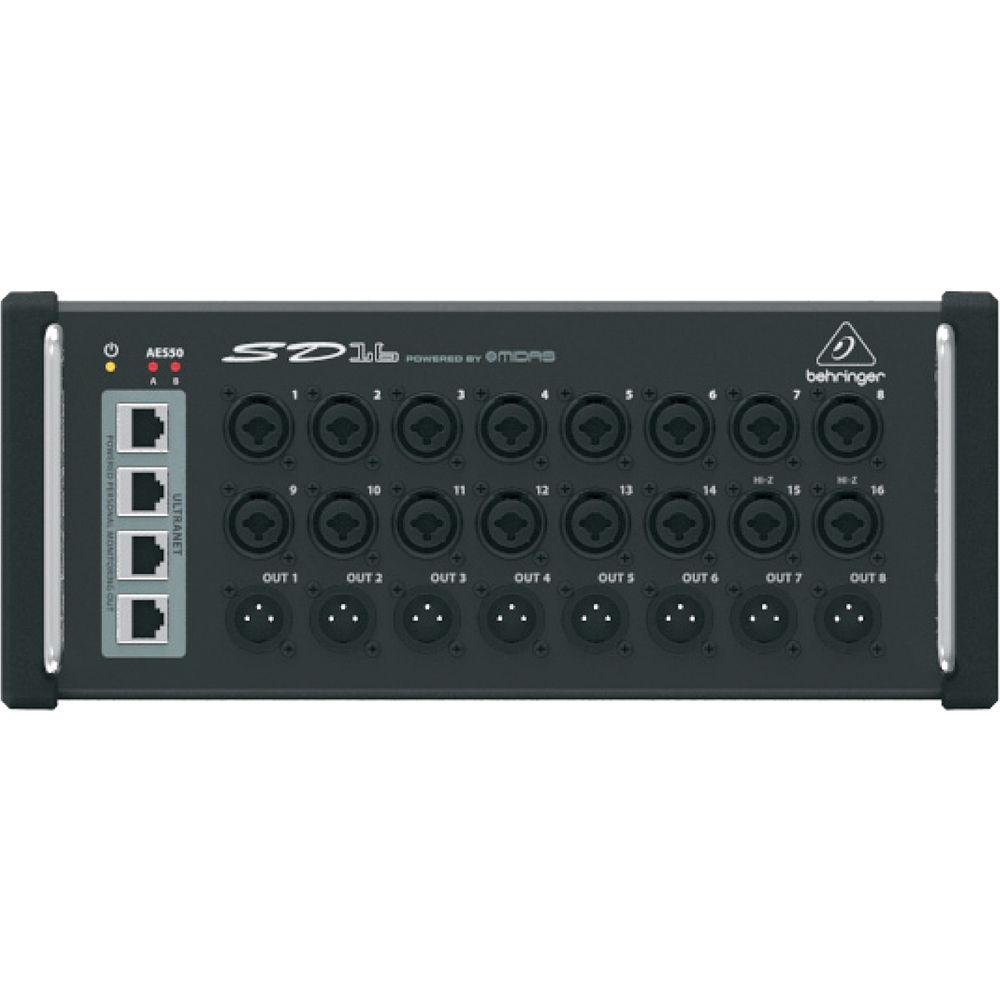

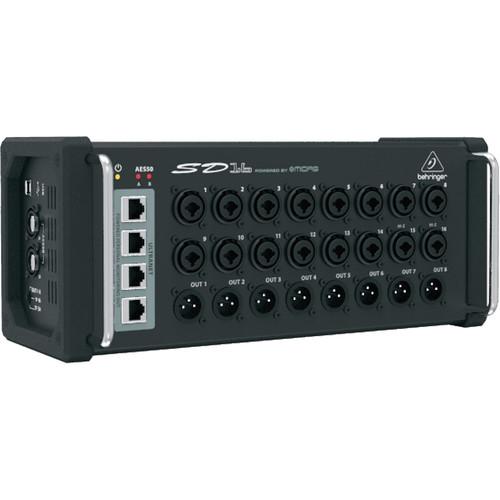

The Behringer SD16 - I/O Stage Box with 16 Preamps is designed to connect the onstage talent to the Front of House (FOH) console. The stagebox provides 16 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs. Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.

An integrated 2-port Ultranet distribution hub is included for direct connection to the company's P16-M personal monitor mixers without the need for any additional hard wire. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears.

A single Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 48 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 16 channels of audio to two of the company's Powerplay P16-M personal monitor mixers.
    Remote Controllable Preamps
  • Includes award-winning Midas-designed microphone preamplifiers with +48V phantom power and destination routing
    Servo-Balanced XLR Outputs
  • Allows you to connect to your amp racks, active loudspeakers, or monitors using Cirrus Logic 24-bit converters
    Ultranet
  • Transmits up to 16 independent channels of 24-bit digital audio and control data via a single Cat 5e cable between compatible digital devices
    Klark Teknik AES50
  • 48 bidirectional audio channels over Cat 5e cable (48 kHz)
  • 24 bidirectional audio channels over Cat 5e cable (96 kHz)
  • Single cable duplex interconnection for audio and sample clocks
  • Ethernet physical layer audio data transmission
  • High channel count and low deterministic latency
  • Accurate phase-aligned clock distribution.
  • Comprehensive error detection and management
  • Provision for redundant networking
  • Minimal configuration - total ease of deployment and use
  • Ethernet TCP/IP protocol-compatible auxiliary data channel
  • Royalty-free implementations available as Xilinx FPGA cores
  • OEM modules available from developer partners
UPC: 748252154149 In the Box Behringer SD16 - I/O Stage Box with 16 Preamps
  • Power Cord
  • Rack Ears
  • Protection Bumpers
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer SD16 - I O Stage Box with 16 Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer SD16 Specs

    A/D and D/A Conversion 24-bit at 44.1/48 kHz, 114 dB dynamic range
    Latency 1.1 ms
    Preamps 16 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo)
    Line Outputs 8 (balanced XLR)

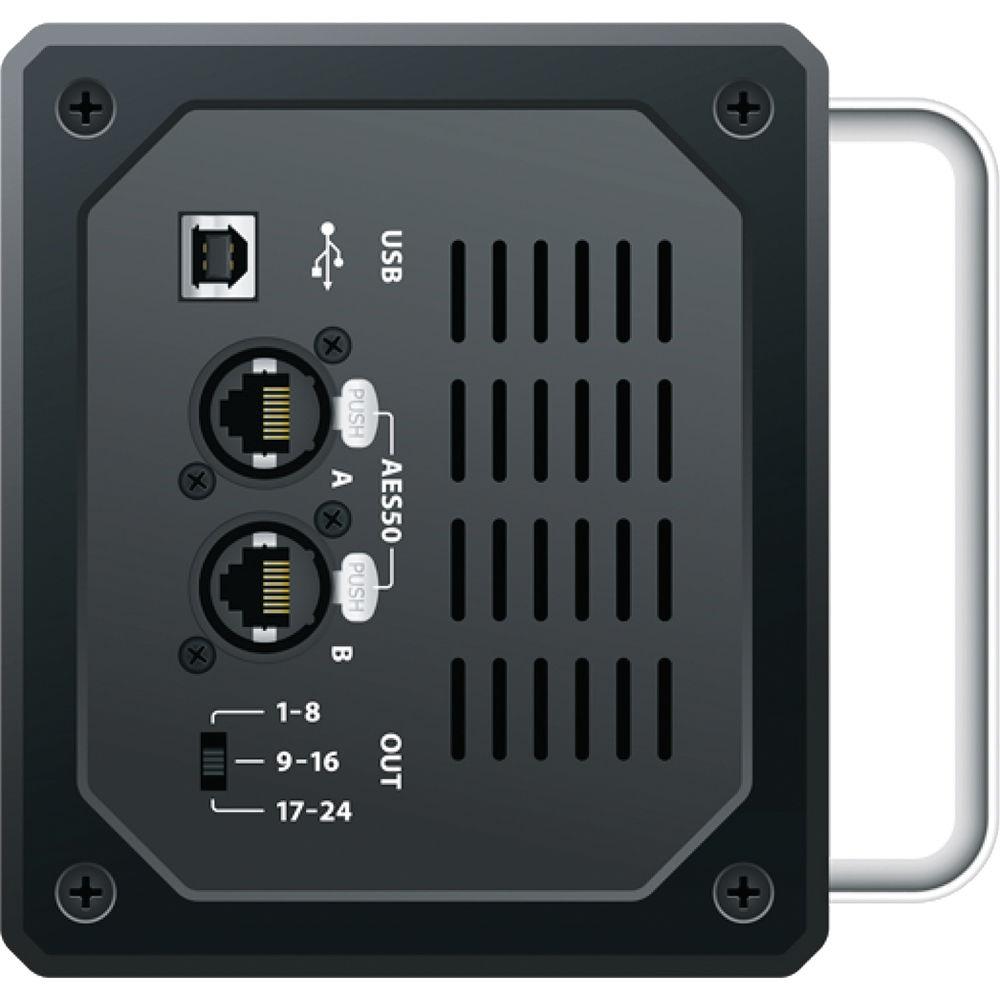

    Networking AES50 SuperMac Networking, Neutrik etherCON: 2
    USB 1x type B port (for system updates)
    Inputs 48
    Outputs 24
    RJ45 Connector Ultranet: 4x
    Design Midas
    THD + N <0.005%, A-weighted (20 dB gain, 0 dBu out)
    Phantom Power +48 V, switchable per input
    Equivalent Input Noise -128 dB, A-weighted, XLR (input shorted)
    CMRR At 20 dB gain (typical): >60 dB
    At 40 dB gain: >65 dB
    Frequency Range 10 to 22,000 Hz
    Dynamic Range Analog mic in to analog out (typical): 105 dB
    A/D Dynamic range, mic preamp to converter (typical): 109 dB
    D/A Dynamic range, converter and output: 108 dB
    Crosstalk 90 dB at 1 kHz, adjacent channels
    Impedance Mic input XLR jack, unbalanced/balanced: 5 kOhms
    Hi-Z input TRS jack, unbalanced/balanced: 1 MOhm
    Line input impedance TRS jack, unbalanced/balanced: 20 kOhms
    Input Level Non clip maximum level, TRS: +21 dBu
    Output Impedance 50 ohms, XLR, unbalanced/balanced
    Output Level +4 dBu, XLR, nominal/maximum
    Residual Noise XLR: -88 dBu, A-weighted
    Networking AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional
    AES50 SuperMac Cable Length: Up to 328' (100 m)
    Ultranet networking at 48 or 44.1 kHz, 16-bit PCM: 1x 16 channels, unidirectional
    Ultranet Cable Length: up to 246' (75 m)
    Ultranet Phantom power for P16-M personal mixers: 2x powered outputs

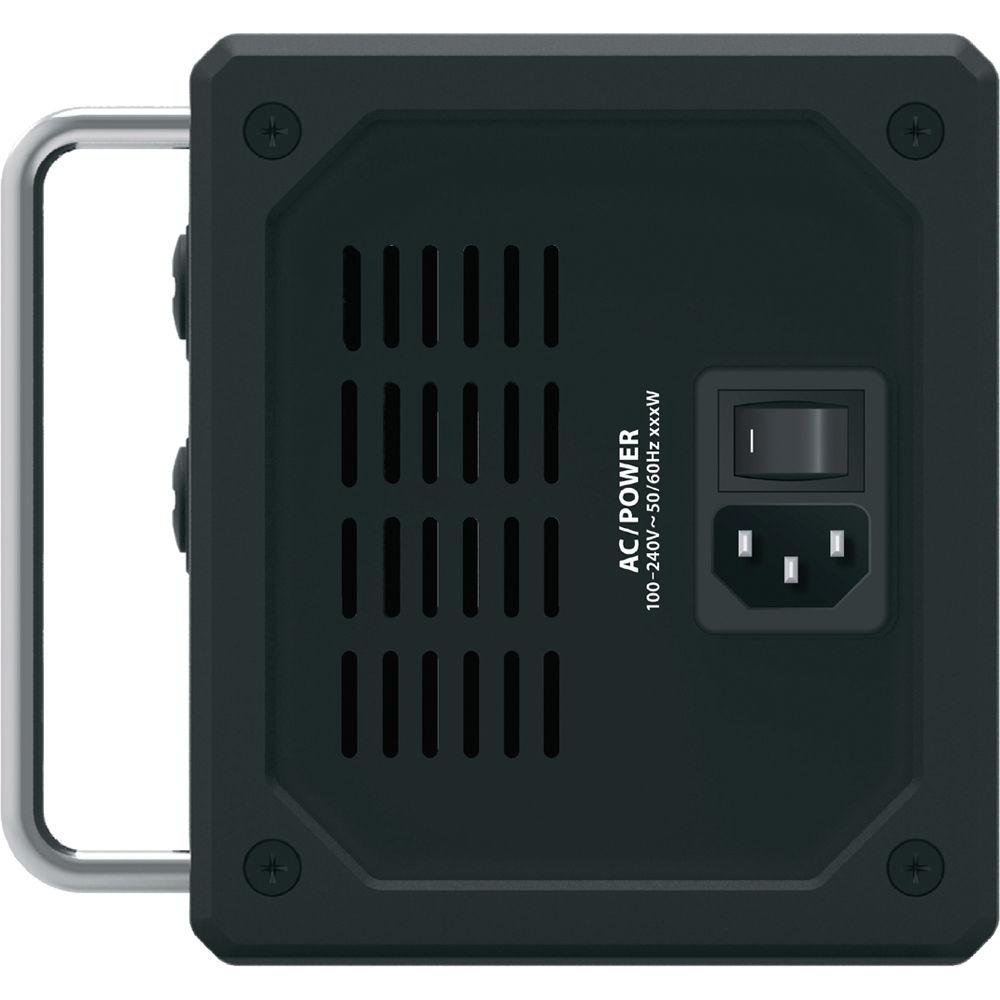

    Power Supply 100 to 240 V (50/60 Hz)
    Power Consumption 45 W
    Operating Temperature 41 to 104°F (5 to 40°C)
    Dimensions 13.1 x 5.9 x 5.5" (333 x 149 x 140 mm)
    Weight 7.1 lb (3.2 kg)
    Package Weight 9.7 lb
    Box Dimensions (LxWxH) 15.1 x 8.4 x 7.8"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 25 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Behringer SD16 - I O Stage Box with 16 Preamps

    Subject: Distorted sound on output 7 - 8
    Date: 24.05.2022 04:15:45Name: Bjørn Alexander Solfjeld
    Hey, I'm setting up my SD-16 to send 4 stereo busmixes for an IEM setup. My mixer is a X32 Rack. I routed and tested each pair of outputs 1-2, 3-4 and 5-6 all worked flawlessly! But when I get to output 7-8 there are some distortions when I play loud on the drum toms, and where the sound seems to lower in volume, and shift to one side, and doesn't normalise before I give a good hit on the kickdrum. I used the same cables for all the testing, and switched back to earlier outputs, and the problem only occurs in output 7-8. Could it be a fault with the MIDAS preamps, or is there some difference in settings for 7-8!?
