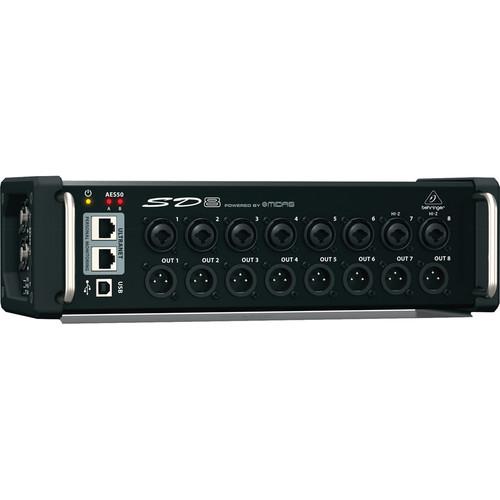

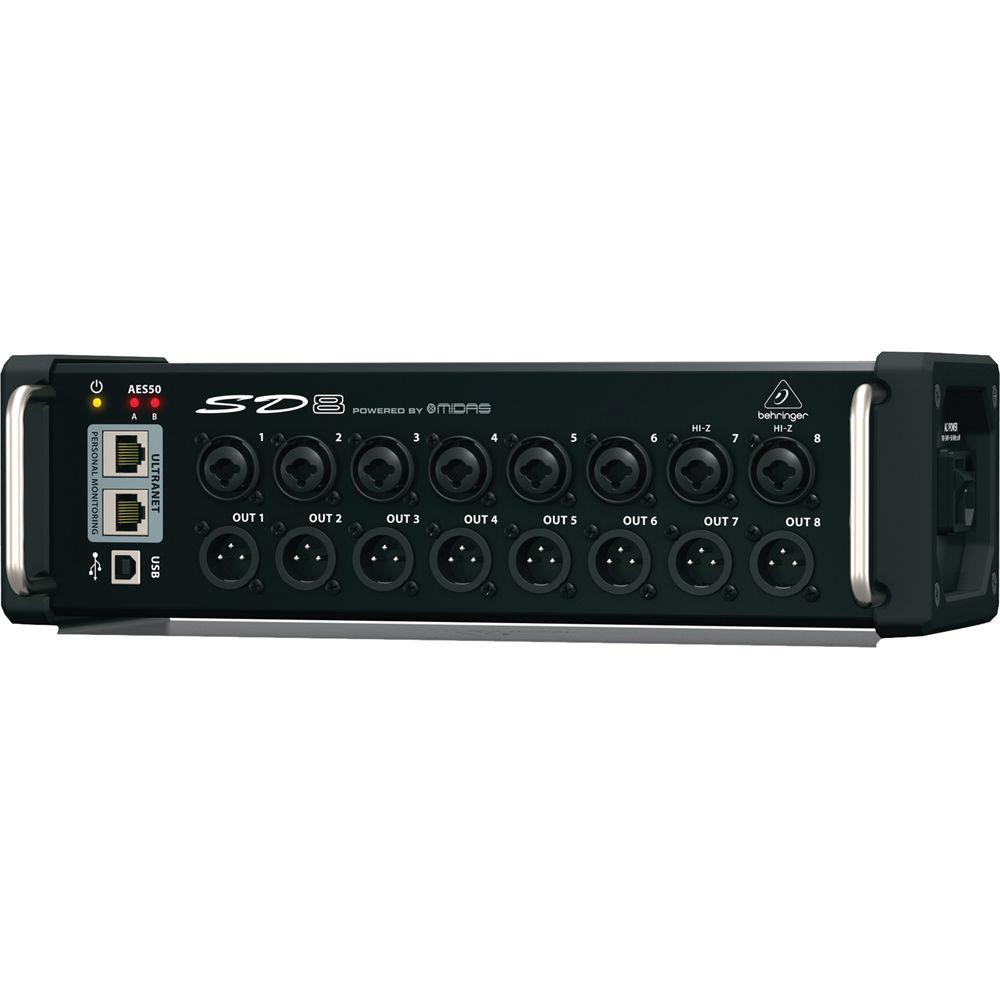

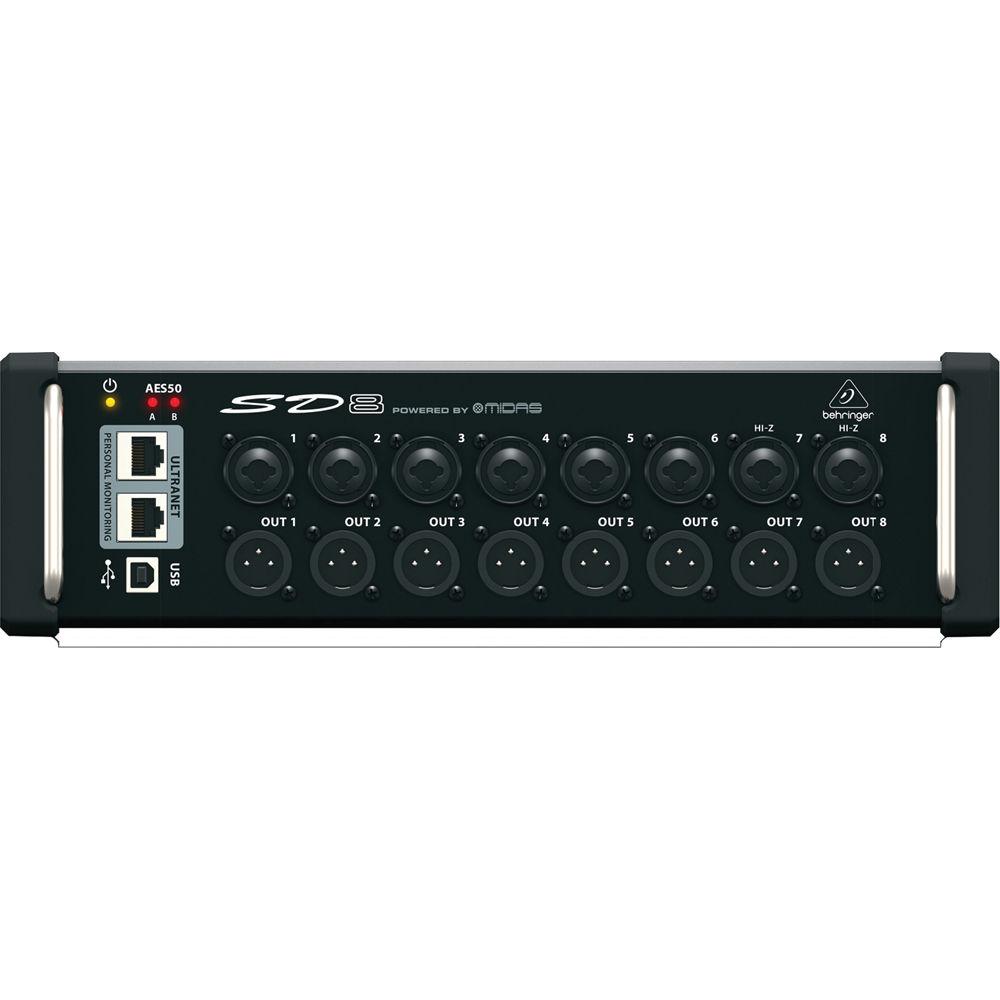

Product description The Behringer SD8 - I/O Stage Box with 8 Preamps is designed to connect the onstage talent to the Front of House (FOH) console. The stagebox provides 8 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs. Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.

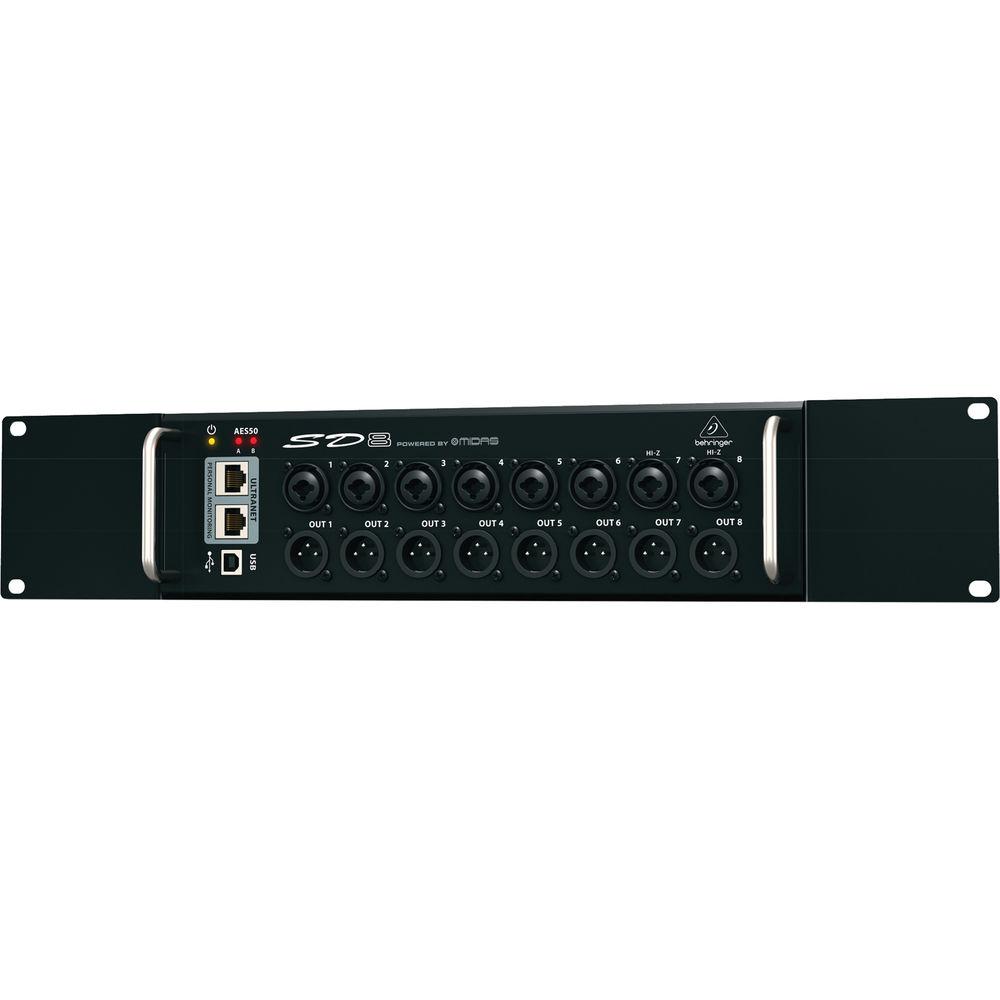

An integrated 2-port Ultranet distribution hub is included for direct connection to the company's P16-M personal monitor mixers without the need for any additional hard wire. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears.
A single Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 24 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 8 channels of audio to two of the company's Powerplay P16-M personal monitor mixers. - Remote Controllable Preamps
- Includes award-winning Midas-designed microphone preamplifiers with +48V phantom power and destination routing
- Servo-Balanced XLR Outputs
- Allows you to connect to your amp racks, active loudspeakers, or monitors using Cirrus Logic 24-bit converters
- Ultranet
- Transmits up to 16 independent channels of 24-bit digital audio and control data via a single Cat 5e cable between compatible digital devices

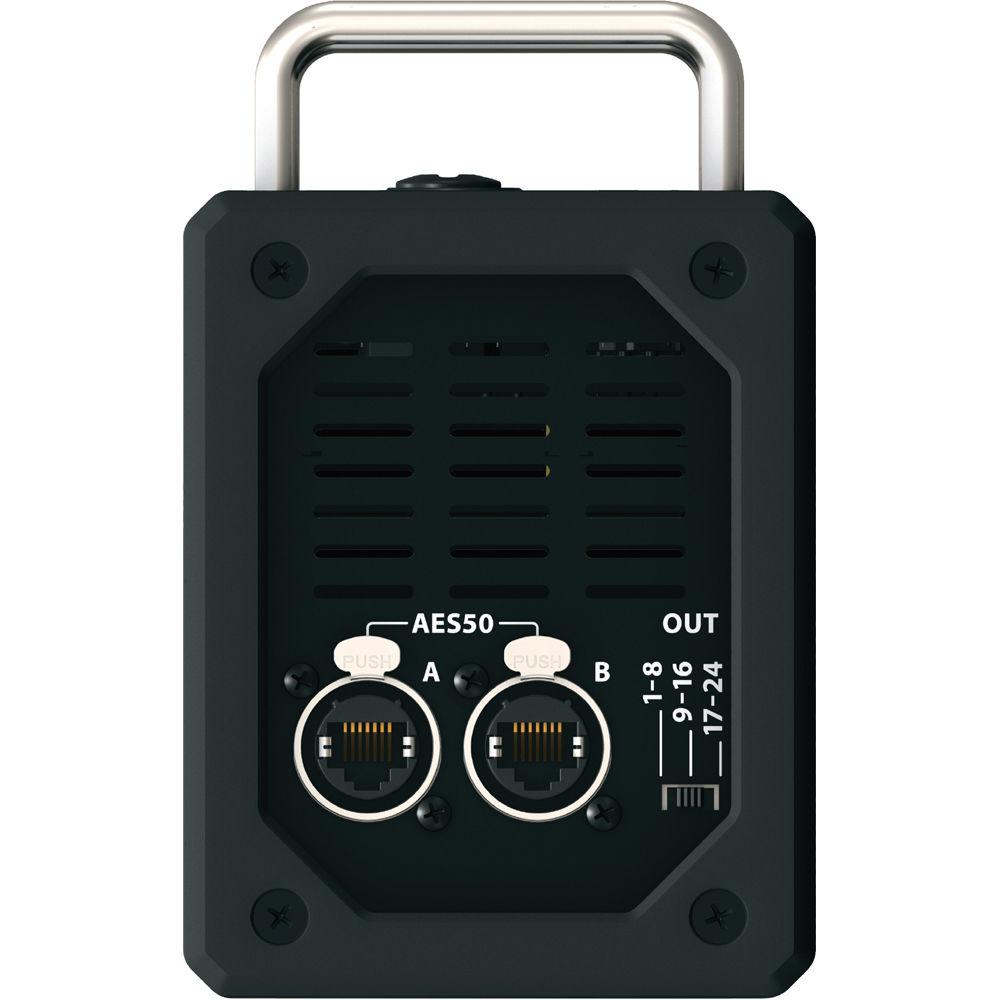

- Klark Teknik AES50
-
- 48 bidirectional audio channels over Cat 5e cable (48 kHz)
- 24 bidirectional audio channels over Cat 5e cable (96 kHz)
- Single cable duplex interconnection for audio and sample clocks
- Ethernet physical layer audio data transmission
- High channel count and low deterministic latency
- Accurate phase-aligned clock distribution.
- Comprehensive error detection and management
- Provision for redundant networking
- Minimal configuration - total ease of deployment and use
- Ethernet TCP/IP protocol-compatible auxiliary data channel
- Royalty-free implementations available as Xilinx FPGA cores
- OEM modules available from developer partners
UPC: 748252154248 In the Box Behringer SD8 - I/O Stage Box with 8 Preamps Power Cord Rack Ears Protection Bumpers Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer SD8 - I O Stage Box with 8 Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer SD8 Specs | | | A/D and D/A Conversion | 24-bit at 44.1/48 kHz, 114 dB dynamic range | | Latency | 1.1 ms | | | | Preamps | 8 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo) | | Line Outputs | 8 (balanced XLR) | | Networking | AES50 SuperMac Networking, Neutrik etherCON: 2 | | USB | 1x type B port (for system updates) | | Inputs | 24 | | Outputs | 24 | | RJ45 Connector | Ultranet: 2x | | | | Design | Midas | | THD + N | <0.005%, A-weighted (20 dB gain, 0 dBu out) | | Phantom Power | +48 V, switchable per input | | Equivalent Input Noise | -128 dB, A-weighted, XLR (input shorted) | | CMRR | At 20 dB gain (typical): >60 dB
At 40 dB gain: >65 dB | | | | Frequency Range | 10 to 22,000 Hz | | Dynamic Range | Analog mic in to analog out (typical): 105 dB
A/D Dynamic range, mic preamp to converter (typical): 109 dB
D/A Dynamic range, converter and output: 108 dB | | Crosstalk | 90 dB at 1 kHz, adjacent channels | | Impedance | Mic input XLR jack, unbalanced/balanced: 10 kOhms
Hi-Z input TRS jack, unbalanced/balanced: 2 MOhms
Line input impedance TRS jack, unbalanced/balanced: 40 kOhms | | Input Level | Non clip maximum level, TRS: +21 dBu | | | | Output Impedance | 50 ohms, XLR, unbalanced/balanced | | Output Level | +21 dBu, XLR, nominal/maximum | | Residual Noise | XLR: -88 dBu, A-weighted | | | | Networking | AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional
AES50 SuperMac Cable Length: Up to 328' (100 m)
Ultranet networking at 48 or 44.1 kHz, 16-bit PCM: 1x 16 channels, unidirectional
Ultranet Cable Length: up to 246' (75 m)

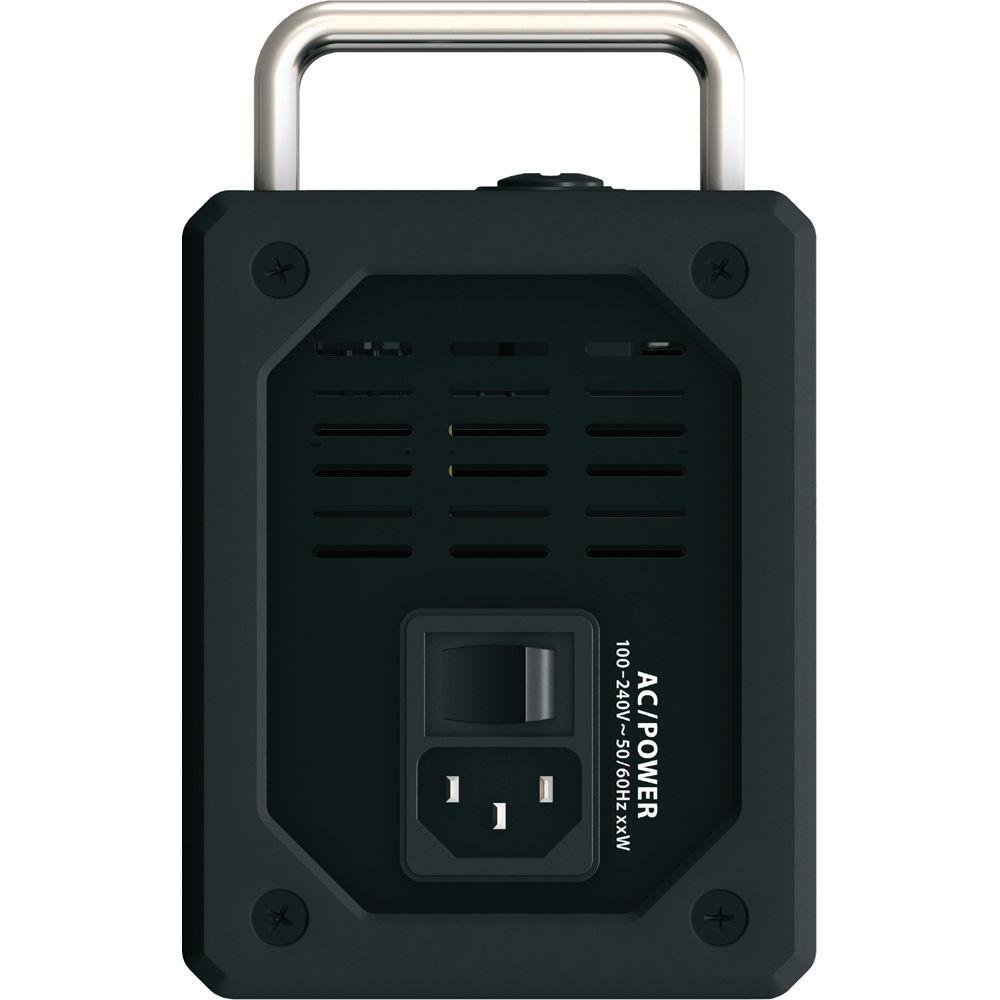

Ultranet Phantom power for P16-M personal mixers: 2x powered outputs | | | | Power Supply | 100 to 240 V (50/60 Hz) | | Power Consumption | 35 W | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Dimensions | 13.1 x 5.9 x 3.7" (333 x 149 x 95 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 15.1 x 8.5 x 5.8" |
