Product description - SHARK FBQ100 Automatic Feedback Destroyer

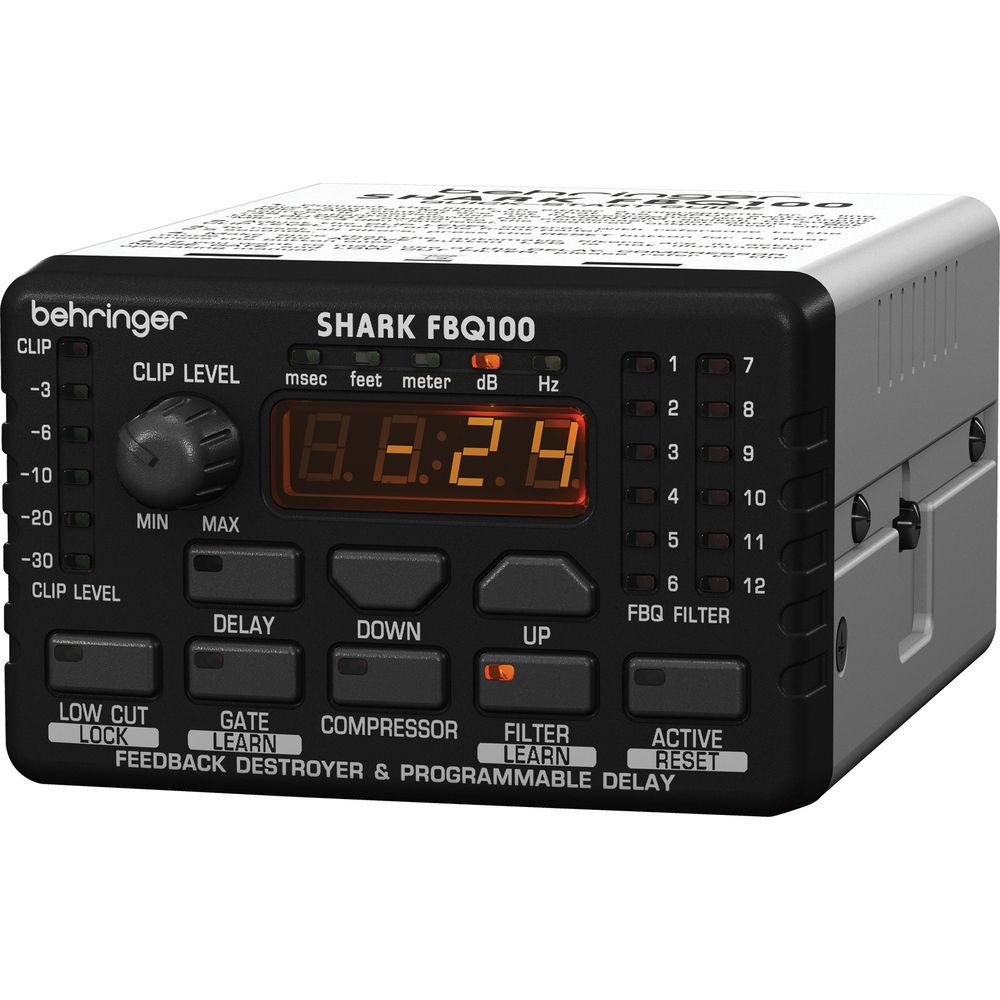

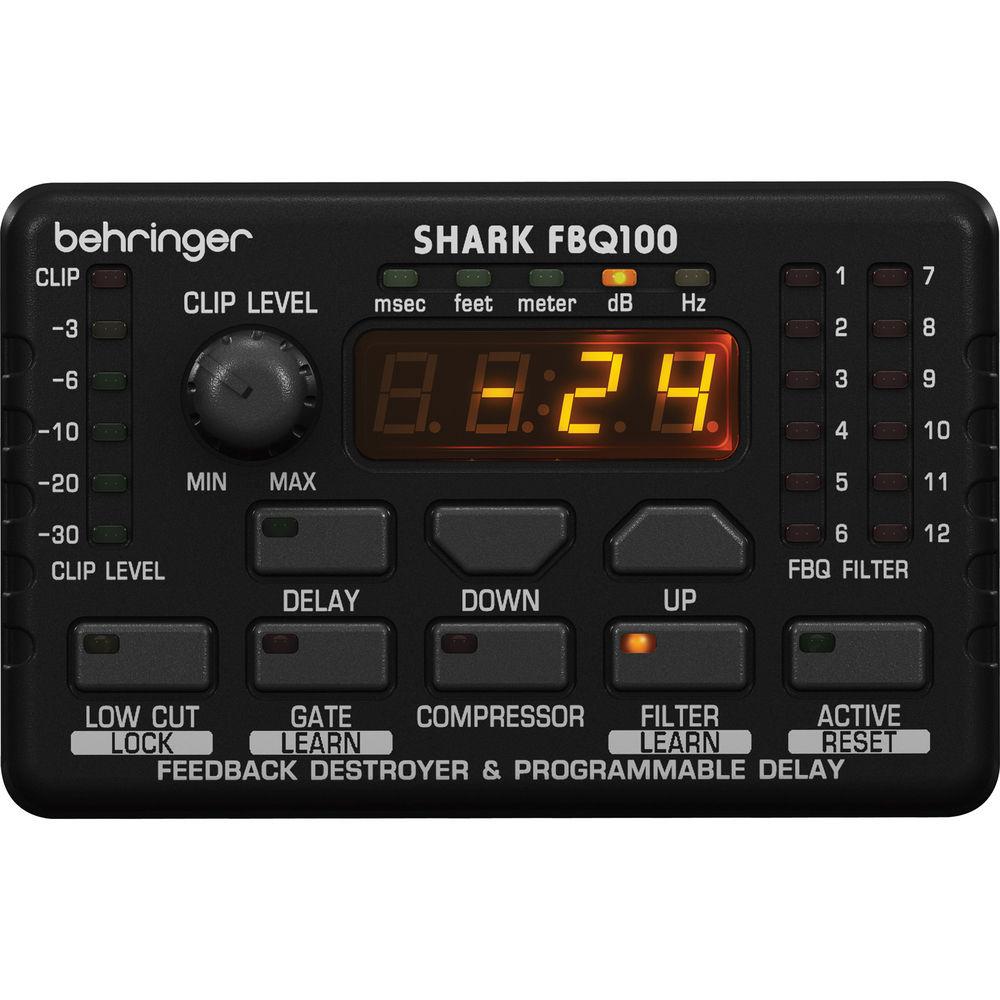

The SHARK FBQ100 Automatic Feedback Destroyer from Behringer is a compact device that eliminates feedback and provides other versatile features in an easy-to-use design. Ideal for PA applications, the unit has an intelligent "learn mode" that can automatically equalize your PA and protect your system from feedback. The search algorithm uses narrow FBQ filters that can destroy up to 8 feedback frequencies while maintaining sonic integrity.
The SHARK FBQ100 also has an integrated mic preamplifier with 48V phantom power for use with condenser mics. The balanced XLR and 1/4" inputs can accept mic and line signals with full gain control. There are also balanced XLR and 1/4" outputs for wide system compatibility. A delay line offers up to 2.5 seconds of adjustable delay, while a noise gate offers automatic and manual parameter settings. There is an automatic compressor with variable density, as well as a subsonic filter with an adjustable cut-off frequency. - Compact design, ideal for PA applications
- The intelligent "learn mode" can automatically equalize your PA and protect your system from feedback
- The search algorithm uses narrow 1/60 octave single-shot FBQ filters that can destroy up to 8 feedback frequencies while maintaining sonic integrity. The remaining filters work automatically as required, adjusting only feedback-specific frequencies
- The adjustable mic preamplifier has ultra-low noise technology for high-quality sound. It also offers 48V phantom power for use with condenser mics

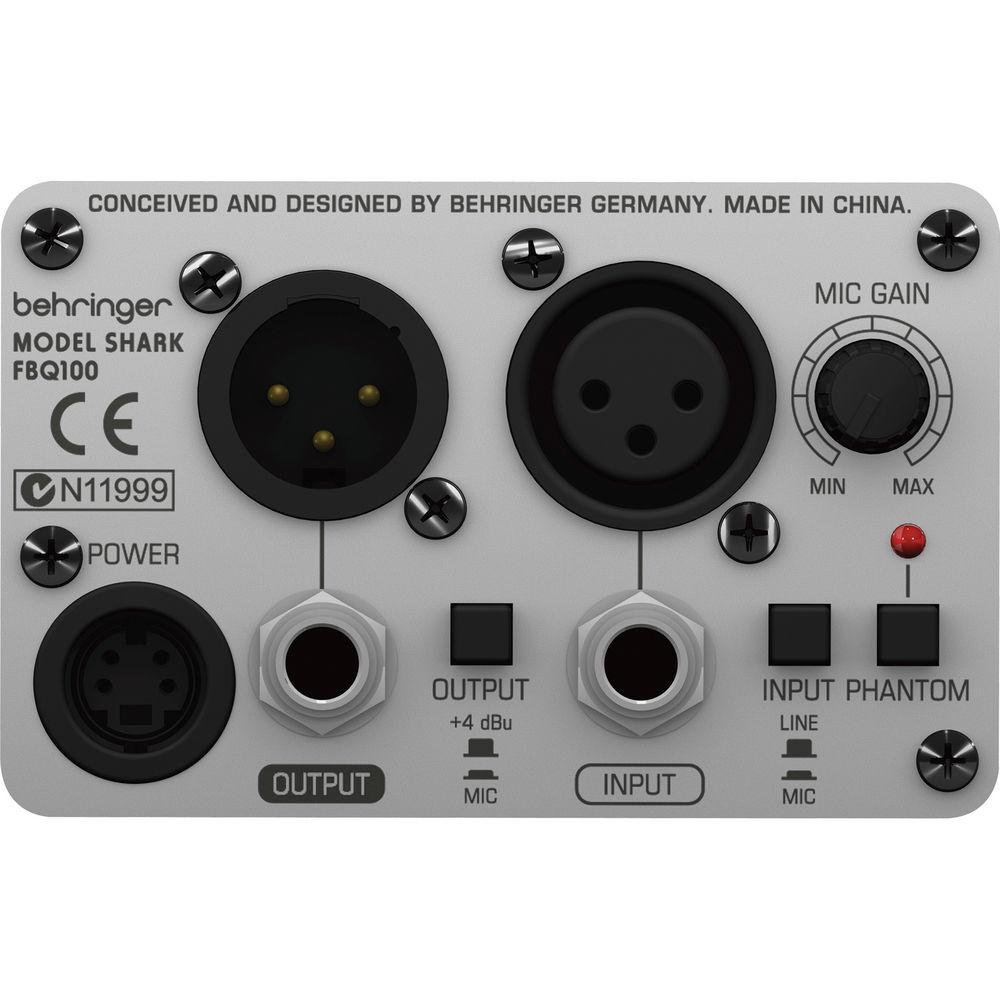

- The balanced gold-plated XLR and 1/4" inputs can accept mic and line signals with full gain control
- Servo-balanced gold-plated XLR and 1/4" outputs let you choose between line or mic output levels for connecting and converting virtually any type of signal with a variety of devices
- The delay line offers up to 2.5 seconds of delay, which can be adjusted in meters, feet, or milliseconds to compensate for time variations due to speaker positioning in large venues
- The noise gate offers automatic and manual parameter settings
- There is an automatic compressor with variable density
- Integrated subsonic filter with an adjustable cut-off frequency
- Optional rack-mount kit available (sold separately) for convenient installation
UPC: 705105164182 In the Box Behringer SHARK FBQ100 Automatic Feedback Destroyer Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer SHARK FBQ100 Automatic Feedback Destroyer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer FBQ100 Specs | Frequency Response | 10Hz - 21kHz | | Noise | Line: > 92dB, Unweighted
Mic: > 89dB, Unweighted 22Hz - 22kHz | | Total Harmonic Distortion (THD) | 0.007% Typical @ +4dBu, 1kHz, Gain 1 | | Input Level | Mic/Line Switchable
+19dBu Max | | Input Impedance | 6 kOhms Balanced
3 kOhms Unbalanced | | Output Level | Mic Level or +4dBu Switchable
+20dBu @ +4dBu, -12dBu @ Mic, Max | | Output Impedance | 60 Ohms Balanced
30 Ohms Unbalanced | | Connectors | 1 x XLR Input
1 x XLR Output
1 x 1/4" TRS Input
1 x 1/4" TRS Output
1 x Power Input | | Converters | 24-bit Sigma-Delta, 64/128-Times Oversampling | | Display | 4-Digit Numeric LED Display | | Power | USA/Canada: 120V~ 60Hz 19W
UK/Australia: 240V~ 50Hz 20.5W
Europe: 230V~ 50Hz 20W
Korea: 220V~ 50Hz 20W
China: 220V~ 50Hz 20W
Japan: 100V~ 50/60Hz 18W | | Dimensions (HxWxD) | 2.2 x 3.5 x 5.2" (56 x 88 x 132mm) | | Weight | 0.84 lbs (0.38kg) | | | | Package Weight | 3.055 lb | | Box Dimensions (LxWxH) | 8.1 x 6.75 x 4.35" |
